Kelvinator AW301F1D top-loading washer - lk31290020 Parts
Here are the diagrams and repair parts for Kelvinator AW301F1D top-loading washer - lk31290020, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

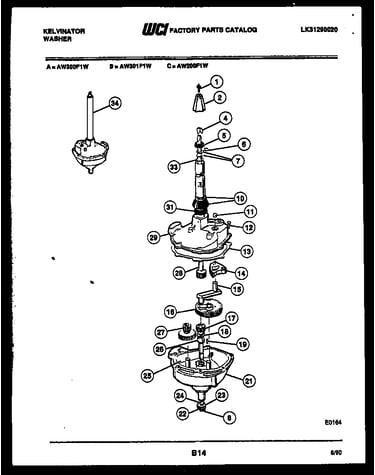

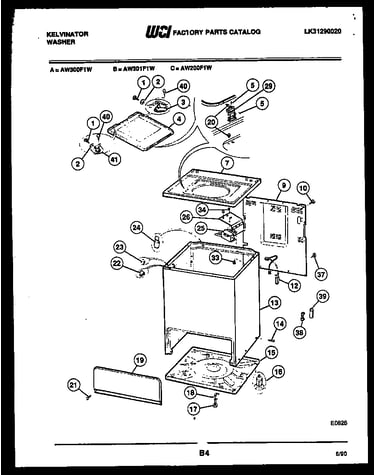

Browse Parts for AW301F1D Top-Loading Washer - LK31290020

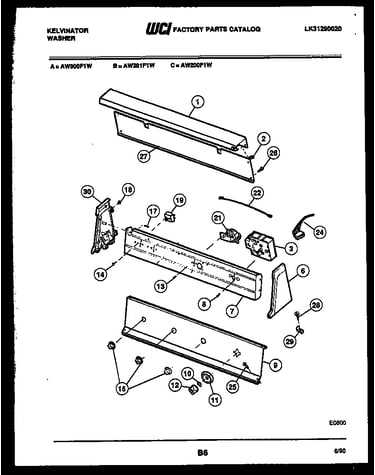

Console and control parts diagram
Screw
Part #3017891Replaced by #131168200
Manufacturer substitutionThis part replaces 3017891. Substitute parts can look different from the original.In Stock$14.0812% OFF Phone Price : $16.08
Qty

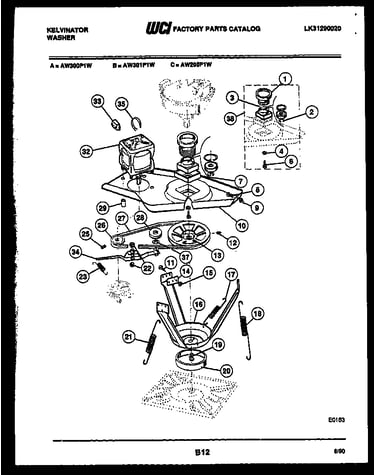

Motor and idler arm clutch diagram
Belt
Part #3161152Replaced by #5303280326
Manufacturer substitutionThis part replaces 3161152. Substitute parts can look different from the original.This item is not returnableIn Stock$38.3114% OFF Phone Price : $44.31QtyMotor and idler arm clutch diagram
Spring Washer
Part #F140083-000Replaced by #5303161306

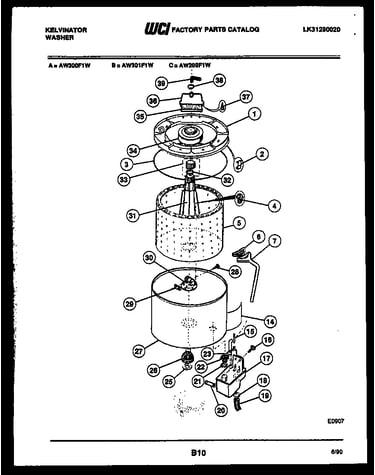

Manufacturer substitutionThis part replaces F140083-000. Substitute parts can look different from the original.In Stock$38.71QtyTub detail diagram
Dispenser

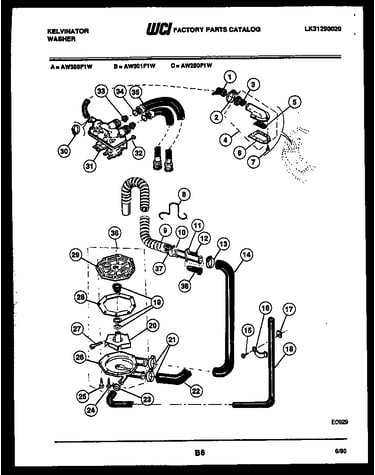

In Stock$27.35QtyPump, water valve, water inlet diagram
Valve
In Stock$44.89QtyConsole and control parts diagram
Switch
In Stock$101.76QtyConsole and control parts diagram
Screw
In Stock$28.37QtyConsole and control parts diagram
Switch
In Stock$146.42QtyMotor and idler arm clutch diagram
Spacer
In Stock$30.64QtyMotor and idler arm clutch diagram
Plate
In Stock$115.53Qty
