Why is my Kenmore refrigerator leaking underneath?
Water leaking underneath a Kenmore refrigerator like model 59673913200 is usually caused by a defrost drain problem (clogged or frozen), a water supply connection leak, or an overflowing/cracked drain pan. Our first checks are the defrost drain path and the water line connection type noted in the 59673913200 owner's manual.
- Look for a sheet of ice or standing water on the freezer floor (points to a frozen defrost drain).
- Check the drain pan underneath for cracks, misalignment, or overflow.
- Inspect the water supply line and fittings at the back of the refrigerator.
- If you have an ice maker, check for leaks around the fill tube and ice maker area.
- Confirm the refrigerator is level so water flows to the drain correctly.
| What you see | Most likely cause | What to do next |
|---|---|---|
| Water appears after defrost cycles, ice in freezer bottom | Defrost drain clogged or frozen | Thaw the drain area, flush with warm water, clear debris with a soft tube brush or pipe cleaner |
| Slow puddle near back of unit | Water line or fitting seepage | Tighten compression fittings, replace damaged tubing, recheck for drips |
| Water only when ice maker is on | Ice maker fill leak or ice maker issue | Inspect fill tube for ice blockage and check the ice maker mounting area |
| Pan is full or sloshing | Drain pan overflow or airflow issue | Clean pan, confirm it is seated correctly, check for excessive frost/defrost water |
For Kenmore 59673913200, the manual calls out that plastic tubing can be less durable for the water connection and recommends copper tubing. If your leak is at the supply line, upgrading the line and fittings often stops recurring drips.

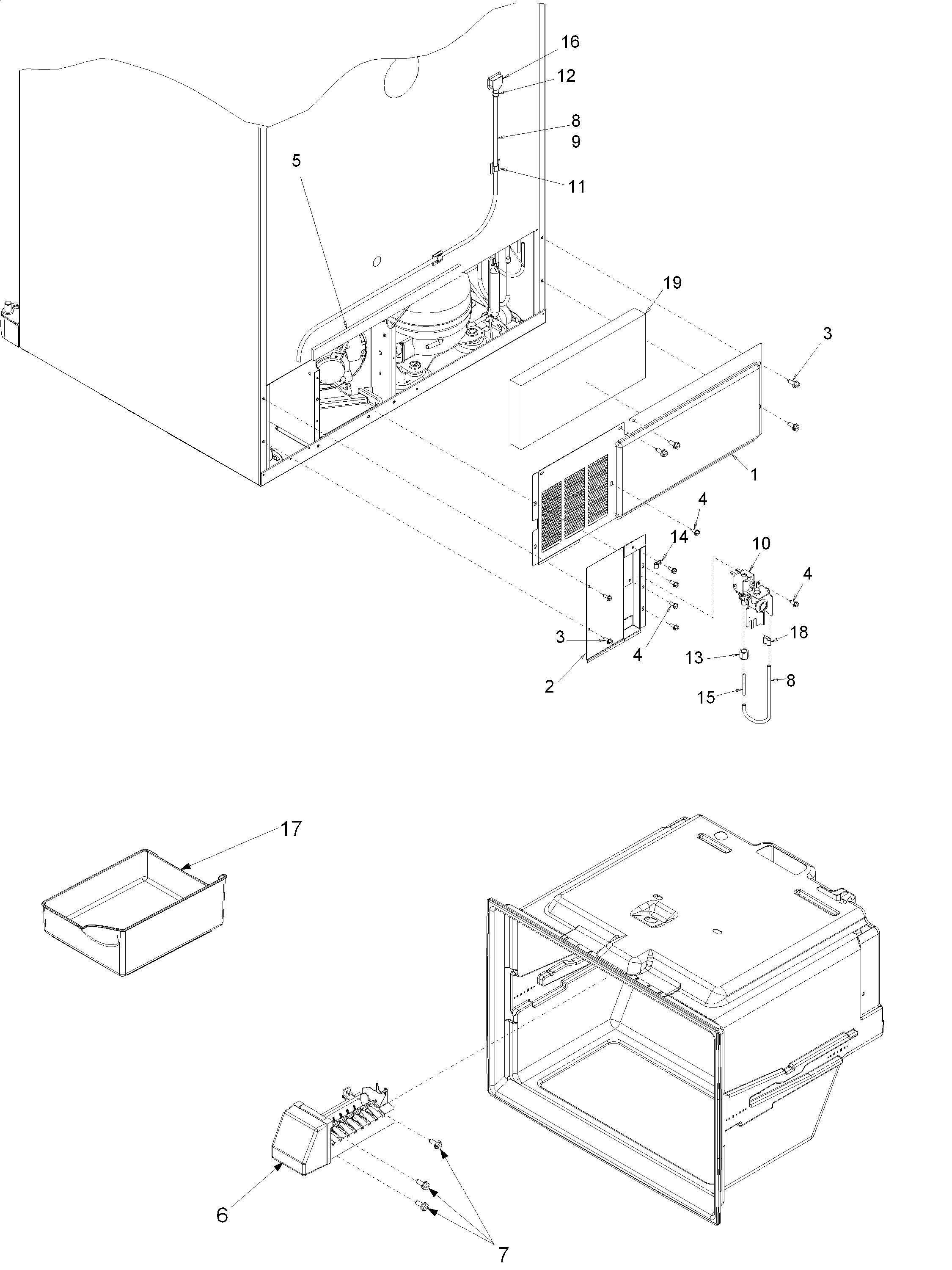

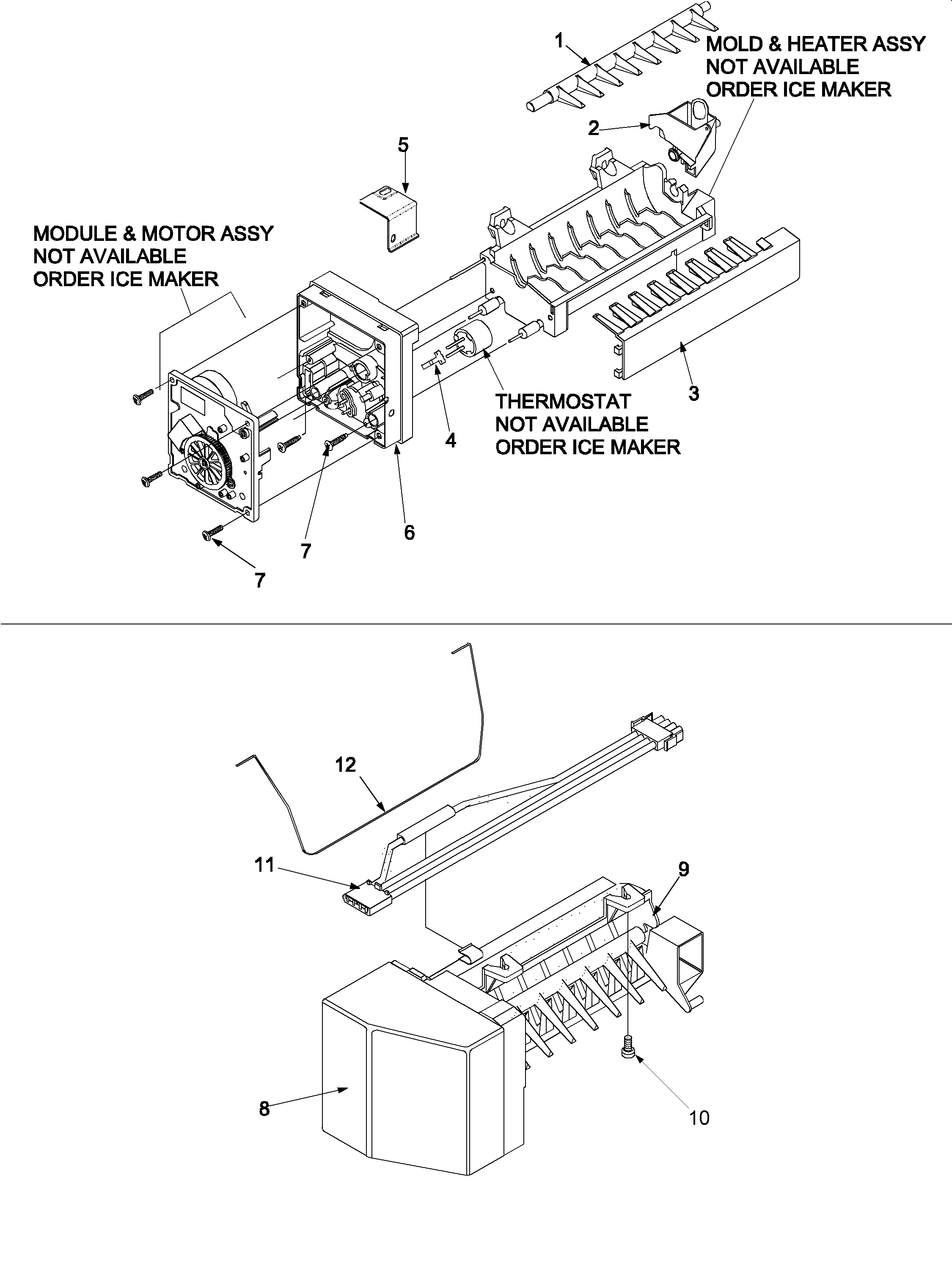

If the leak traces back to the ice maker area, the ice maker assembly is a common service item: refrigerator ice maker D7824706Q.
Leaks under the refrigerator can damage flooring and also lead to ice buildup in the freezer, which restricts airflow and causes warm temperatures. Fixing the drain path or water connection early prevents repeat puddles and cooling problems.
Last updated: January 2026
How to reset Kenmore bottom freezer ice maker?
On Kenmore refrigerator model 59673913200, the ice maker does not use a dedicated reset button. The practical “reset” is to cycle power to the refrigerator and then confirm the ice maker is turned on by lowering the shutoff arm so it can refill and restart normal harvest cycles.
- Turn the refrigerator off at the breaker (or unplug it).
- Wait 5 minutes.
- Restore power.
- Make sure the ice bin is installed and the ice maker arm is down (on position).
- Allow the freezer to reach 0°F to 2°F before expecting ice production.
- Wait up to 24 hours for the first batch after a restart.
Your manual uses the shutoff arm as the on/off control:
| Ice maker arm position | What it means | What to do |
|---|---|---|
| Arm down | Ice maker on | Leave down for ice production |
| Arm up (click) | Ice maker off | Push down to resume |
If the arm is up, the ice maker will stay off until you lower it. See the 59673913200 owner's manual for the ice maker operating instructions and temperature guidance.
These checks solve most “no ice” complaints after a power cycle:
- Verify the freezer is cold enough (target 0°F to 2°F).
- Confirm nothing is blocking the shutoff arm or jammed in the bin.
- Discard ice made in the first 12 hours after restarting (flushes the system).
- Look for a frozen fill tube or ice clumps that prevent a harvest.

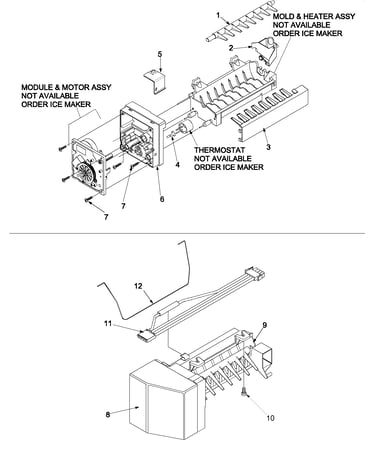

- If the ice maker will not cycle or harvest, replacement is often the fastest fix using the refrigerator ice maker D7824706Q.
A power cycle clears minor control glitches, but the ice maker still needs proper freezer temperature and the shutoff arm in the down position to refill and complete harvest cycles (typically about every few hours once conditions are correct).
Last updated: January 2026
What does DH mean on Kenmore Elite refrigerator?
On Kenmore bottom-mount refrigerator model 59673913200, DH is a defrost-related display message that points to a problem completing a defrost cycle (most often a defrost heater, defrost thermostat, wiring connection, or the electronic control). Use the 59673913200 owner's manual to confirm the exact code definition and the model-specific test steps.
A defrost problem usually shows up as restricted airflow from frost on the evaporator cover.
- Look for heavy frost or a “snowy” freezer back wall
- Confirm the freezer door closes fully and the gasket seals all the way around
- Make sure air vents are not blocked by food packages
- Power-cycle the refrigerator (unplug 5 minutes, plug back in) and see if DH returns
- Listen for the evaporator fan; weak airflow often follows frost buildup
These are the most common defrost-system items tied to DH-style messages on Kenmore refrigerators.
| What’s happening | Most likely area to inspect | Typical symptom |
|---|---|---|
| Defrost heat never turns on | Heater circuit or wiring | Frost steadily builds up |
| Defrost ends too soon or never “ends” | Defrost thermostat/sensor | Temperature swings, recurring DH |
| Control is not switching defrost correctly | Electronic control | Intermittent cooling issues |
If you confirm the ice maker and cooling are otherwise normal but frost keeps returning, the defrost system needs attention.
- If the freezer back panel is packed with frost, schedule a defrost-system diagnosis

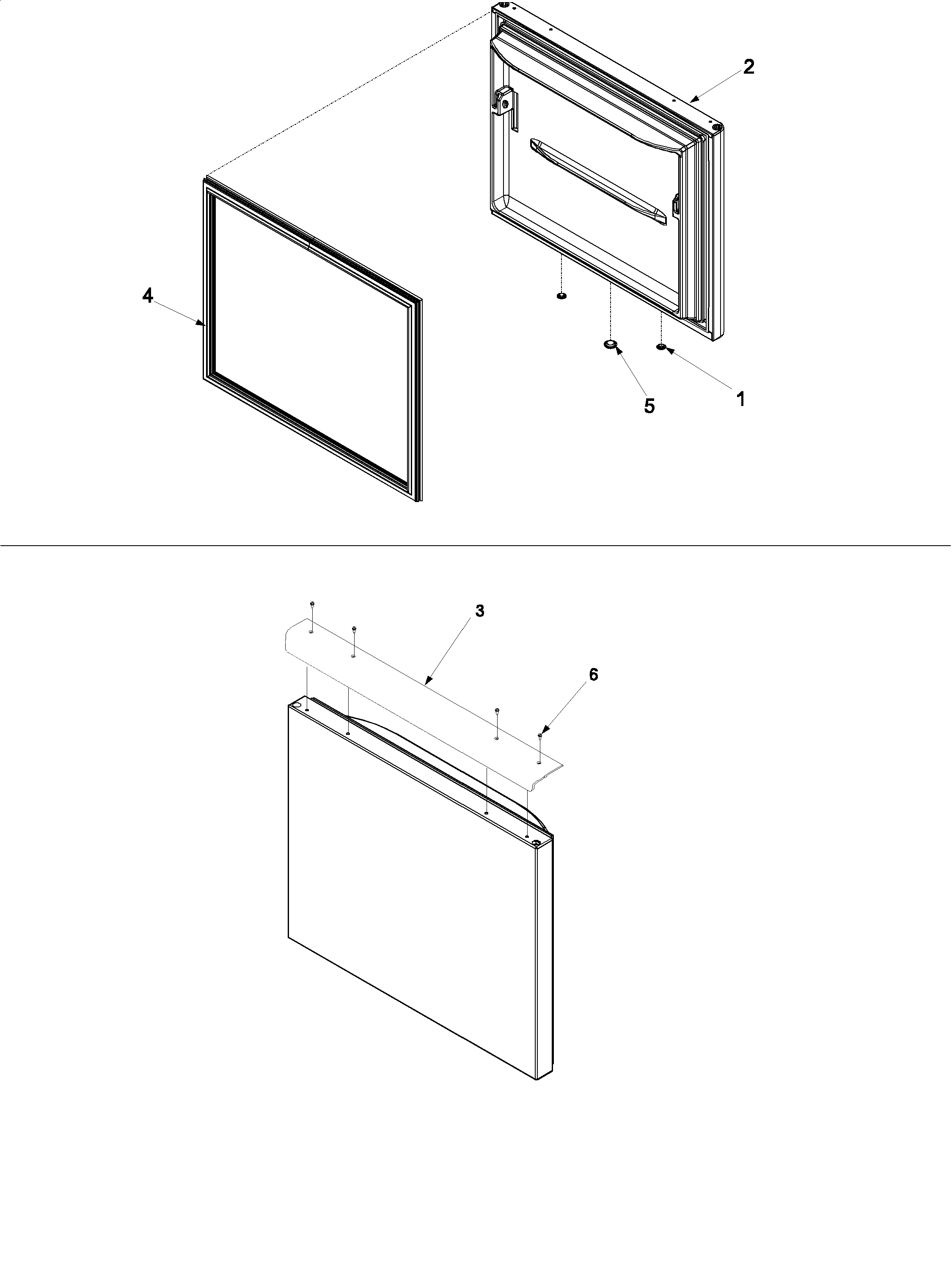

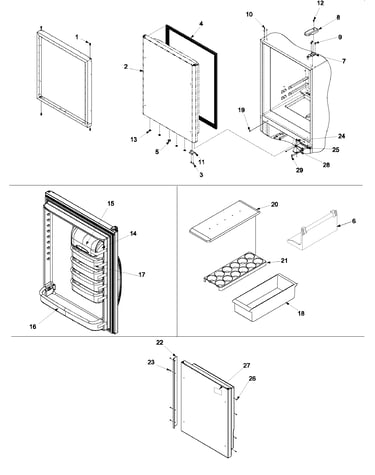

- If the door seal is torn or warped, replace the gasket; for this model, see refrigerator freezer door gasket WPW10436247
- If you find loose or burned connectors at the heater/thermostat, repair the connection before replacing parts

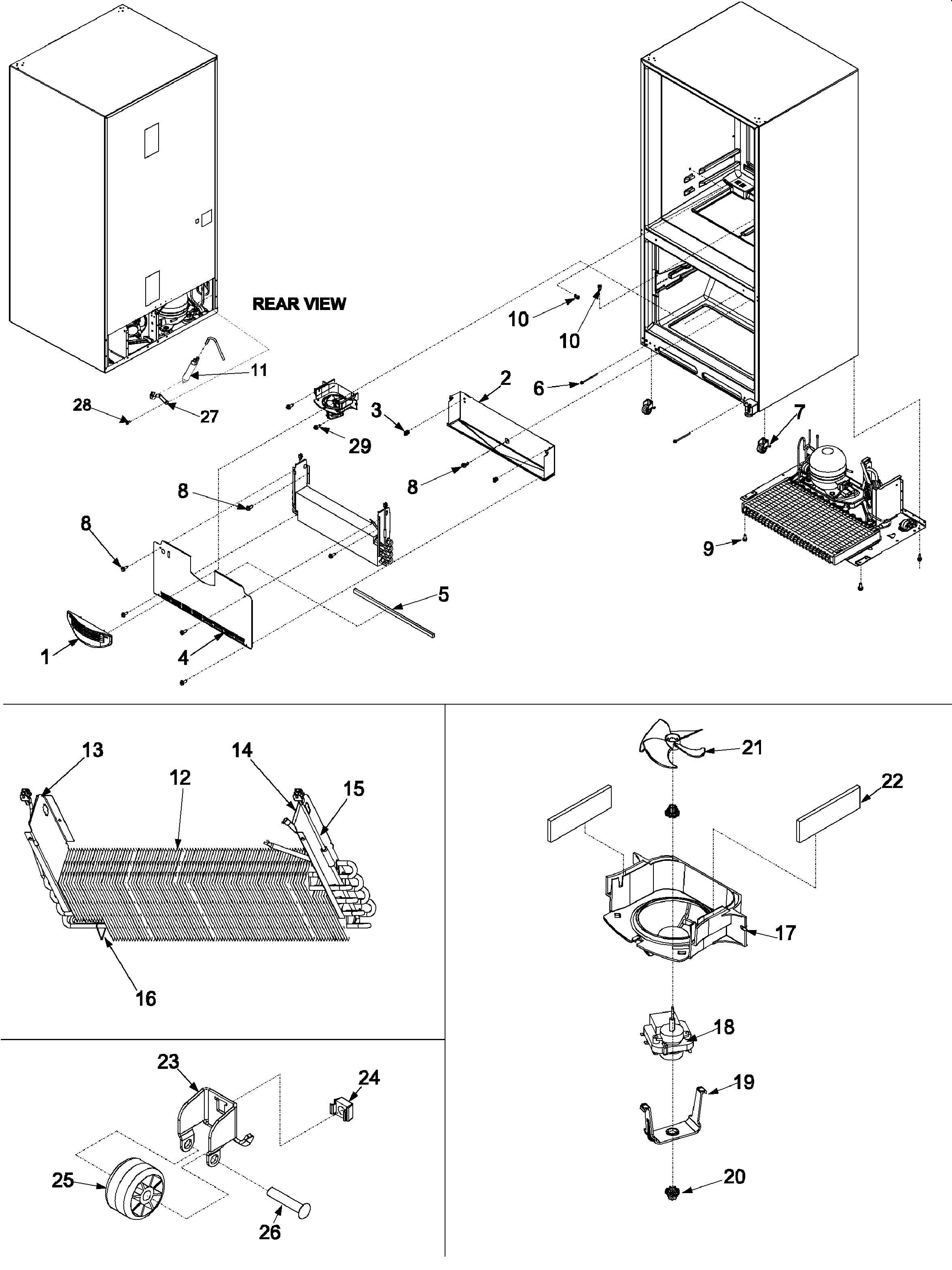

Defrost keeps the evaporator coil clear so air can move through the freezer and into the fresh food section. When defrost fails, airflow drops, temperatures rise, and the compressor runs longer.
Last updated: January 2026
