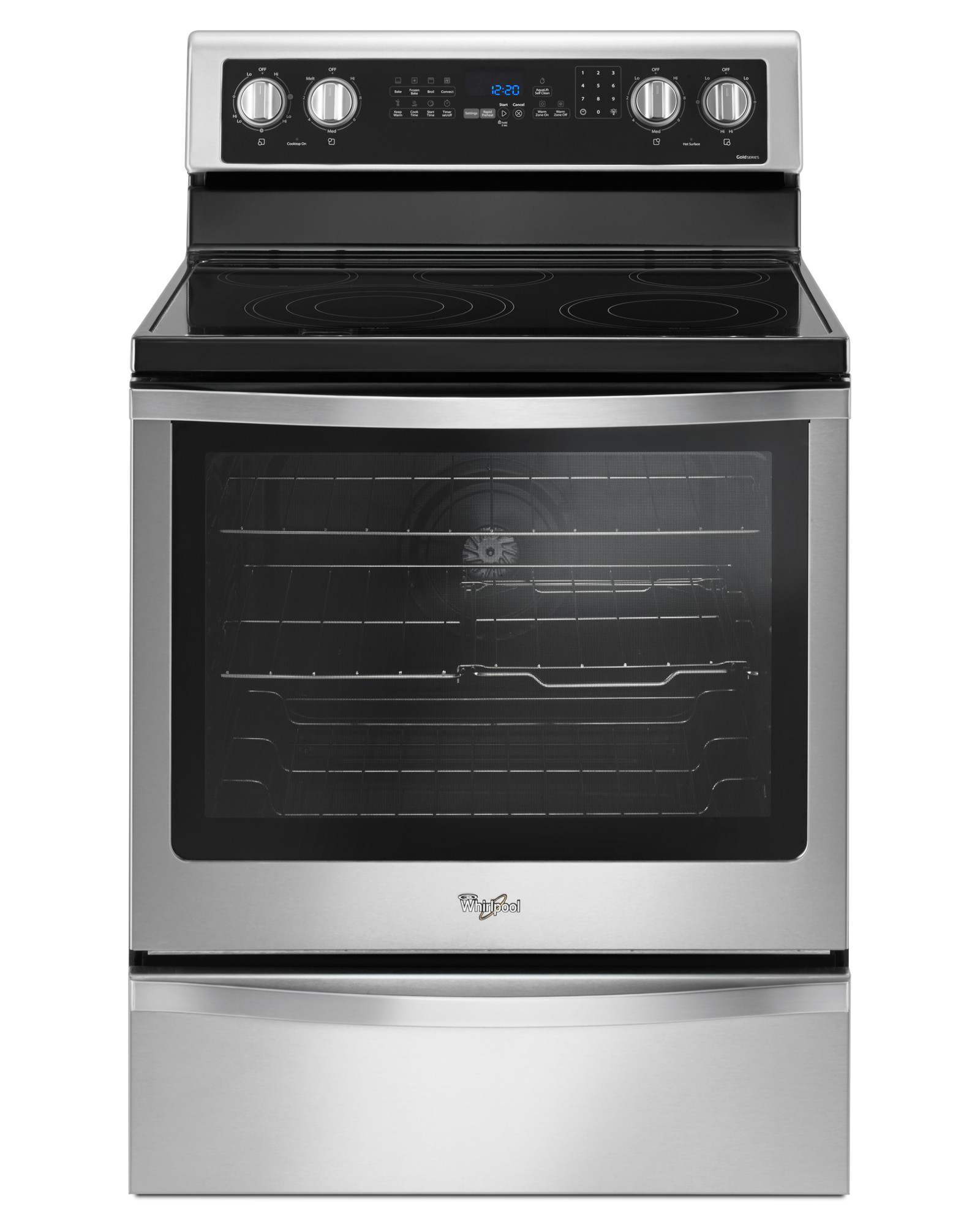

Whirlpool WFE745H0FS0 electric range Parts

A Whirlpool electric range typically lasts 10 to 15 years. For the Whirlpool WFE745H0FS0, consistent cleaning, avoiding repeated high-heat self-clean cycles, and fixing heating or control issues early helps you reach the upper end of that range; see the WFE745H0FS0 owner's manual for care and operating guidance.

Typical lifespan and what affects it

Most ranges fail early due to heat-related wear, power issues, or neglected maintenance.

• Heavy daily cooking shortens life compared to light use
• Frequent self-cleaning can stress wiring, sensors, and controls
• Spills and baked-on residue can damage surface elements and switches
• Loose power connections can cause intermittent heating or no power
• Prompt replacement of worn parts (like a heating element) prevents secondary damage

Quick maintenance checklist (best ROI)

• Wipe up boilovers quickly and keep the cooktop dry
• Use cookware with flat bottoms to reduce hot spots on radiant elements
• Keep the oven cavity reasonably clean to prevent smoke and overheating
• If baking gets uneven or preheat is slow, inspect the bake element and replace it if damaged
• If a burner cycles erratically, test the infinite switch and element connections

Common “end-of-life” symptoms and likely causes

Symptom	Most common cause	Typical fix
Oven will not heat or heats unevenly	Failed bake element	Replace bake element W10779716
Surface element not heating	Bad radiant element or switch	Diagnose element, then switch
Range dead or power cuts in/out	Loose/burned terminal connection	Inspect/replace terminal block
Error code on display	Control or sensor issue	Use Whirlpool freestanding range error codes

Why it matters

Knowing the 10 to 15 year lifespan helps you decide whether to repair (often cost-effective for a heating element or switch) or plan a replacement if multiple high-cost parts are failing.

Last updated: February 2026

On the Whirlpool WFE745H0FS0 electric range, “broil not working” almost always comes down to a setting issue, a power supply problem (missing 240 volts), or a failure in the oven heating/control circuit. Start with the correct broil operation steps in the WFE745H0FS0 owner’s manual, then move to basic electrical checks.

Quick checks (fast, no disassembly)

• Make sure the oven door is closed if your broil mode requires it.
• Select Broil and set a broil level (Hi or Lo); wait 3 to 5 minutes for heat to build.
• Cancel the cycle and try again after a control reset (breaker OFF 2 to 5 minutes, then ON).
• Check the display for an error code and follow the steps in Whirlpool freestanding range error codes.
• Confirm the range has full power: the cooktop may still work on 120V even when the oven cannot heat properly.

What the symptoms usually mean

What you see	Most likely cause	Best next step
Display works; broil never heats	Control not energizing the heating circuit, or wiring issue	Check error codes; inspect harness connections (power off)
Bake also weak or not heating	One leg of the 240V supply is out	Reset both breaker legs; verify proper outlet/cord connection
Oven heats sometimes, then stops	Loose connection heating up, or failing control	Inspect for heat damage; tighten/repair connections

Parts and areas to inspect on this model

These checks require disconnecting power first.

• Power cord connection and the terminal block area
• Oven wiring harness connections

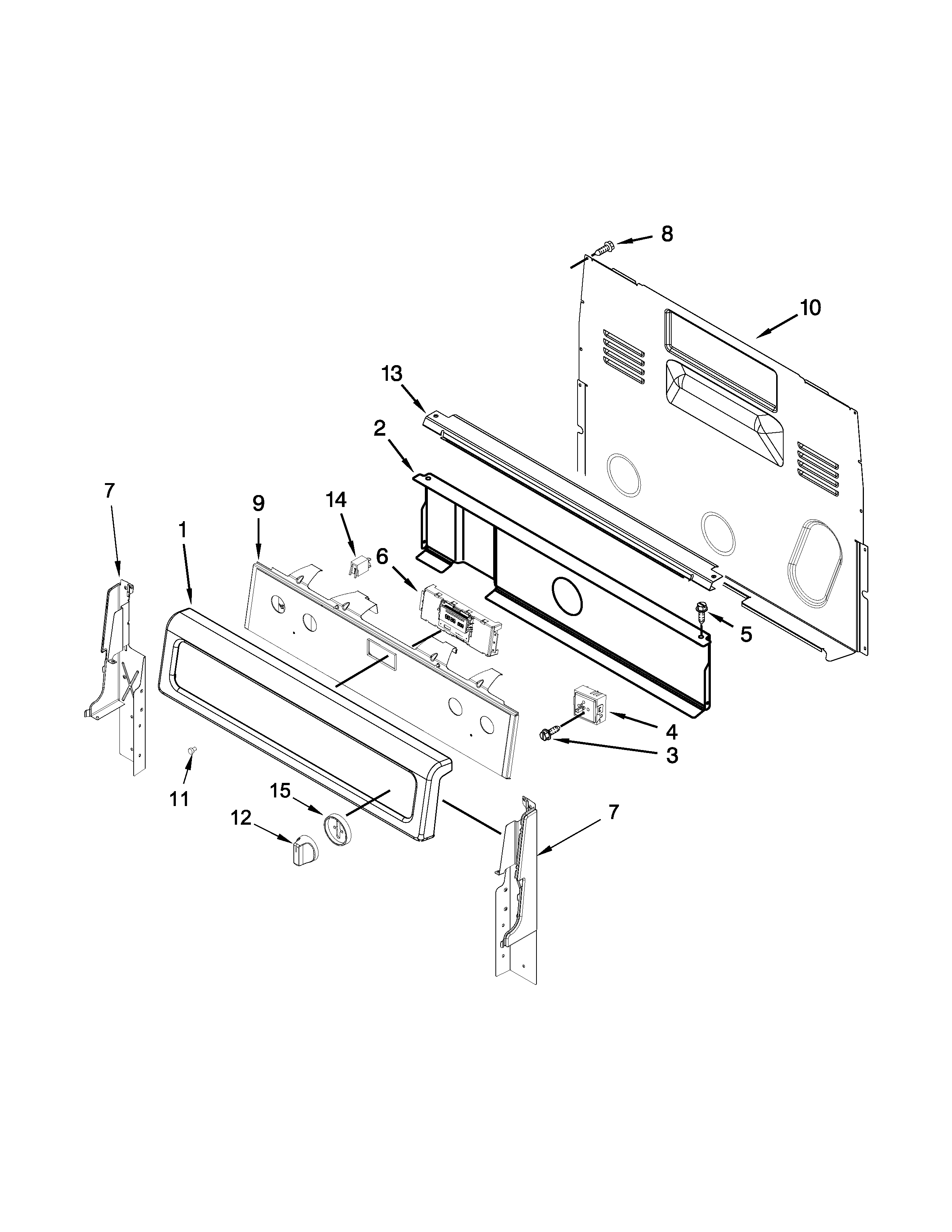

• Control panel connections
• Oven heating circuit components

If you find overheating, arcing, or a loose power connection at the back of the range, the range terminal block WPW10245259 is a common service part.

Why it matters

Broil draws high current. A loose terminal block or damaged wire can overheat and cause repeated no-heat problems. The WFE745H0FS0 installation guide covers safe electrical connection and final verification steps that help prevent repeat failures.

Last updated: February 2026

The model number for your Whirlpool electric range is printed on the model/serial rating plate. On model WFE745H0FS0, you can find that plate on the frame behind a top corner of the oven door or on either side of the storage drawer.

Where to look on the range

Use these common locations from the WFE745H0FS0 installation documentation:

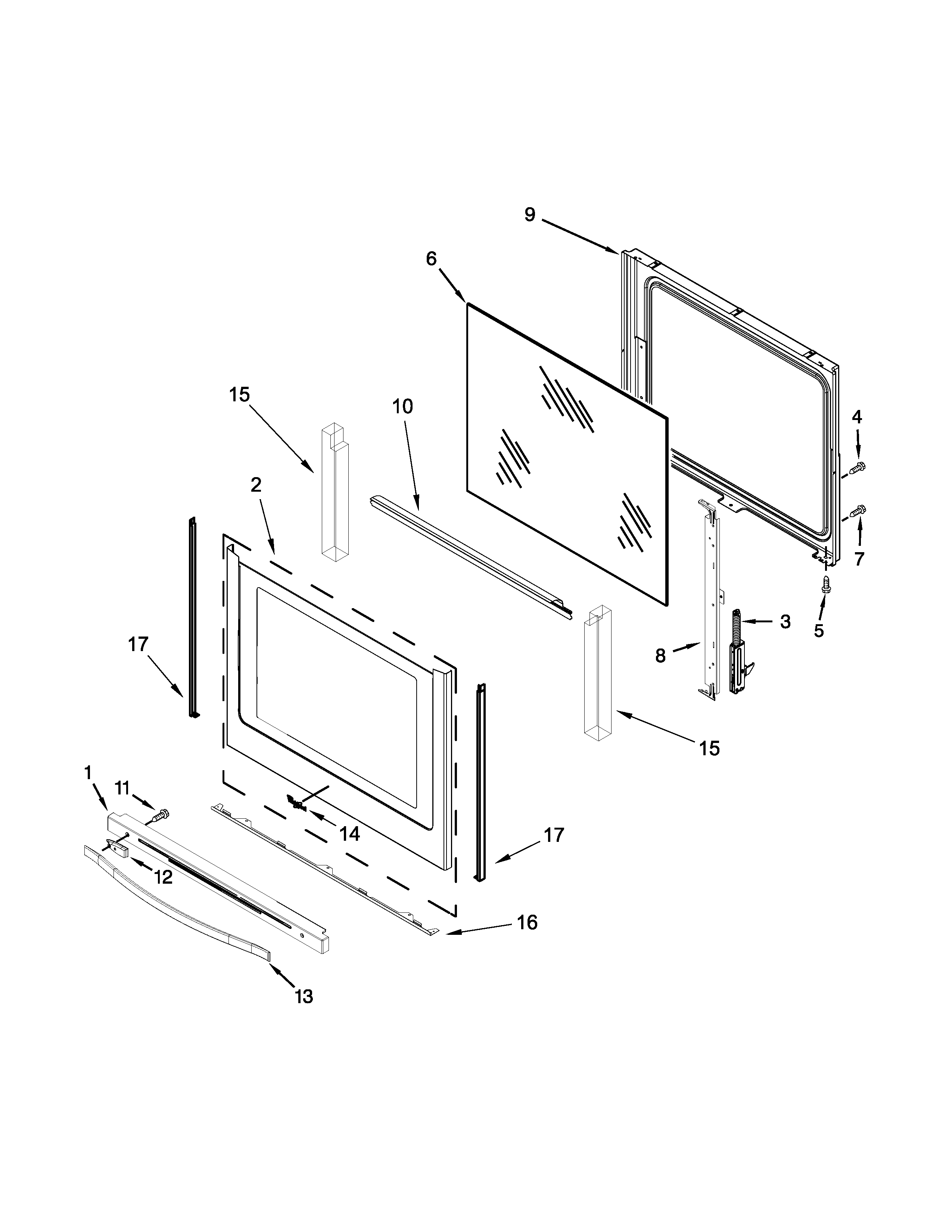

• Open the oven door and check the frame behind the top left or top right corner of the door opening

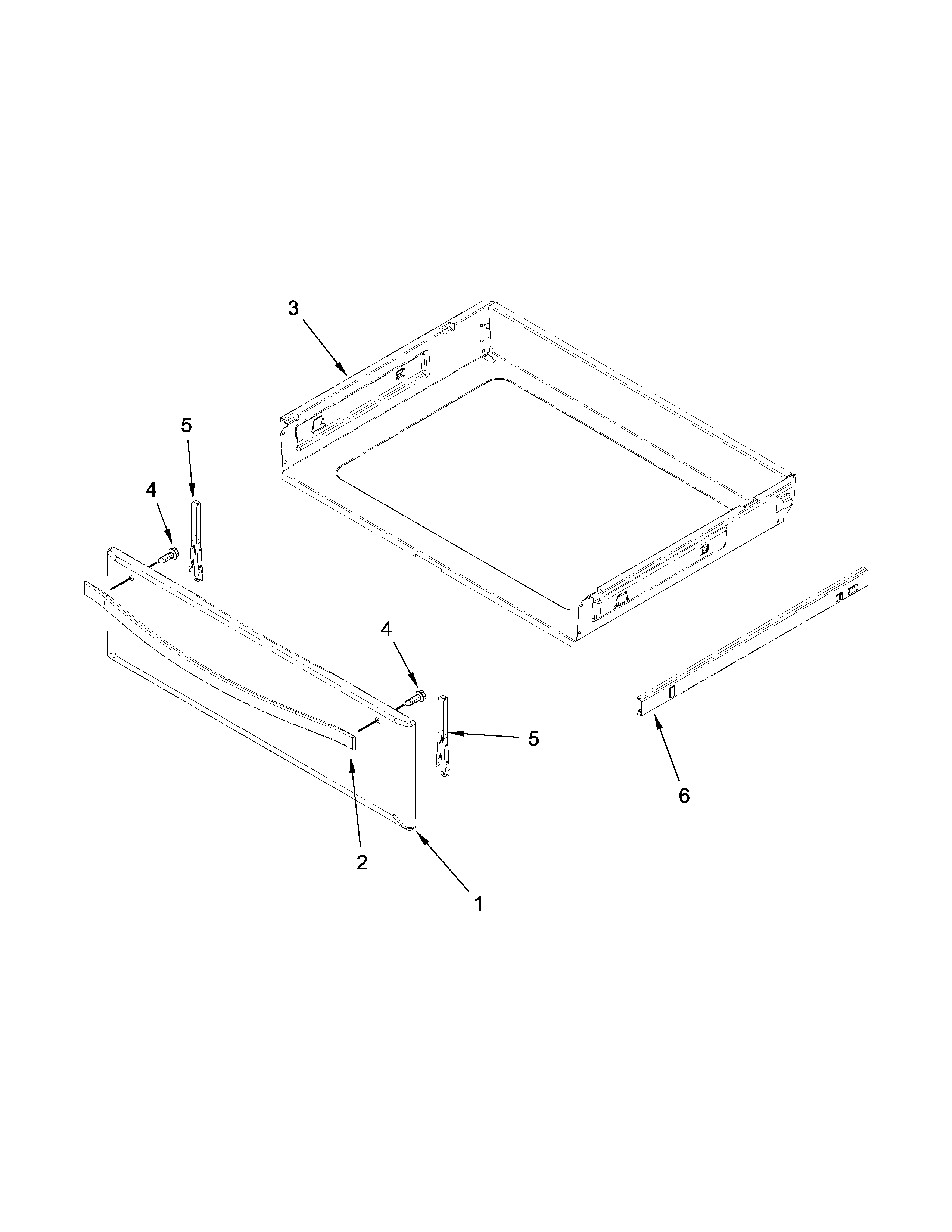

• Pull out the bottom storage drawer and check either side of the drawer opening
• Look for a label that says “Model/Serial” or “Model/Serial rating plate”
• Write down the full model number and the serial number exactly as shown
• If the label is hard to read, use a flashlight and take a close-up photo

What the label looks like and what to copy

The rating plate is a printed label (not stamped metal) and includes key identification and electrical information.

Item on label	What to do with it	Why it helps
Model number	Copy it exactly (example: WFE745H0FS0)	Ensures correct diagrams and parts match
Serial number	Copy it exactly	Helps confirm production details for service
Electrical rating	Note it if you are installing or troubleshooting power	Confirms proper voltage and amp requirements

Why it matters

Using the exact model number prevents ordering the wrong Whirlpool range parts (like a bake element, surface element, or control switch) and helps us match the correct wiring diagrams and installation requirements.

Reference

For the exact rating plate locations and installation details, use the installation guide.

Last updated: March 2026
