Kenmore Elite 79048183001 wall oven Parts

On Kenmore Elite wall oven model 79048183001, the door typically unlocks after the self-clean cycle ends and the oven cools down; if it is stuck, cancel the cycle and allow additional cooling time before trying the latch again. For model-specific control steps, follow the 79048183001 owner's manual.

Quick unlock steps (most common)

• Press Cancel/Stop once to end any active cycle.
• Wait for the oven to cool; the lock will not release while the cavity is hot.
• Listen for the latch motor; you may hear a click as it retracts.
• Gently try the door; do not force it or pry on the trim.
• If the display shows a lock indicator, keep the door closed and wait a few more minutes.

If the door is locked after self-clean

A self-clean lock is heat-controlled; the oven stays locked until the temperature drops to a safe level.

What you see	What it usually means	What to do
Door will not open right after clean	Oven is still too hot	Wait 30 to 90 minutes for cooldown
Lock light stays on long after cooling	Latch did not return fully	Cancel/Stop, wait, then retry
No heat but still locked	Latch circuit issue	Check latch motor and related wiring

When a part is likely involved

If the oven is cool and the door remains locked, a failed lock mechanism or an electrical issue is common.

Check these items first:

• Door lock motor and linkage for binding
• Wiring connections at the latch and control
• High-limit protection; a blown thermal fuse can interrupt control functions

If you suspect an overheat or no-power condition, testing the wall oven thermal fuse 5304506123 is a practical next step.

Why it matters

Forcing a locked door can bend hinges, damage the door trim, or break the latch assembly. A controlled cancel-and-cooldown approach protects the door, the lock motor, and the relay control board.

You can order replacement parts for your Kenmore Elite 79048183001 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

An electric oven like the Kenmore Elite 79048183001 is built around a heating system (bake and broil), temperature sensing and controls, airflow components for even cooking, and safety and wiring parts that deliver and manage 240/208V power. For your model’s exact component locations, use the installation guide.

Main parts you will find in most electric wall ovens

• Bake element: bottom heater used for most baking and roasting
• Broil element: top heater used for high-heat browning and broiling
• Oven temperature sensor: tells the control how hot the oven is

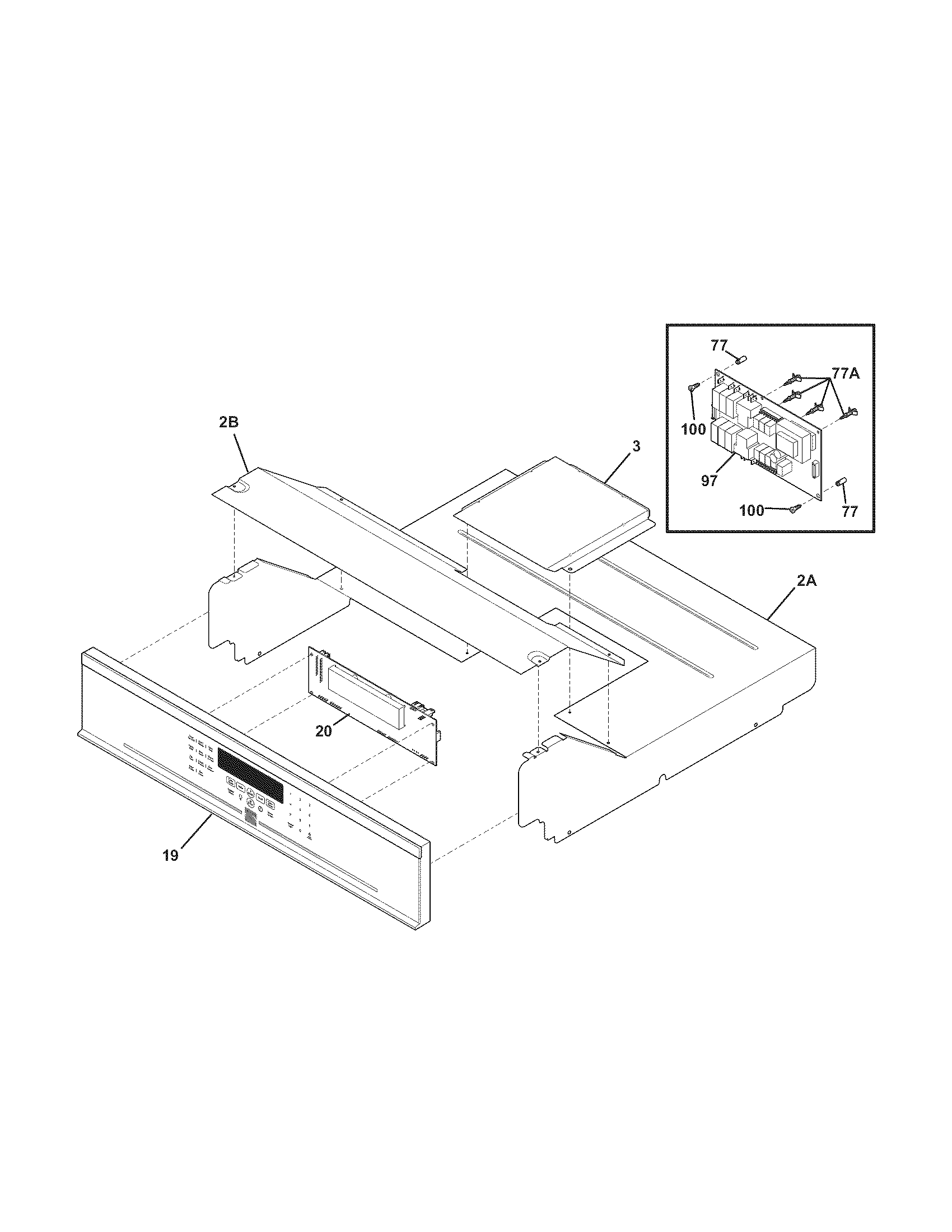

• Control system: control panel, relay/control board, and wiring harnesses
• Convection system (if equipped): convection fan and fan blade to circulate hot air
• Door and light system: door switch, lamp, door handle, trim, and panels
• Safety devices: thermal fuse and door lock motor (common on self-clean models)

Common service parts for model 79048183001 (examples)

These are some of the specific parts we list for this Kenmore Elite wall oven; they match the most common “core systems” above:

Oven system	What it does	Example part on this model page
Temperature sensing	Helps maintain accurate oven temperature	Range oven temperature sensor 5304504897
Heating	Provides bake heat	Frigidaire range bake element 318601604
Safety	Cuts power if overheating occurs	Wall oven thermal fuse 5304506123
Air circulation	Moves hot air for more even cooking	Range convection fan assembly 318398203
Controls	Switches power to elements and manages functions	Wall oven relay control board 316443935

Why it matters

Knowing which “system” a part belongs to helps you troubleshoot faster. For example, uneven baking often points to a bake element or convection airflow issue, while temperature swings often point to the sensor or control system.

Quick safety notes before inspecting parts

• Turn off power at the breaker before removing panels or touching wiring.
• This oven uses a dedicated 120/240V or 120/208V supply; use the circuit and wiring guidance in the installation guide.
• If you need to test electrical parts, use a meter rated for the job and follow safe testing practices.

You can order replacement parts for the Kenmore Elite 79048183001 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

To reset your Kenmore Elite wall oven model 79048183001, we recommend doing a simple power reset first; it clears many control glitches by rebooting the electronic control. After power is restored, re-set the clock and confirm normal bake and broil operation using the steps in the 79048183001 owner's manual.

Quick reset options (start here)

• Power reset (most common): Turn the oven circuit breaker OFF for 1 to 2 minutes, then turn it ON.
• Control lock check: If the keypad seems unresponsive, turn Control Lock off (the lock feature can look like a “frozen” control).
• Cancel/clear: Press Cancel/Clear Off once to stop a stuck cycle, then try a normal Bake cycle.
• After an outage: Restore power, then set the clock and try Bake at 350°F.

If the oven still will not respond

A reset will not fix a hard failure such as an open safety fuse, a failed sensor, or a damaged power connection. Check these common causes:

• House power issue (tripped breaker, loose connection)
• Overheat protection opened (thermal fuse)
• Temperature sensor problem (can cause no-heat or erratic heat)
• Wiring or terminal connection issue
• Control board not sending power to the elements

Parts that commonly relate to “won’t reset” or “dead display” symptoms

Symptom	What it often points to	Example part for this model
Display dead, no functions	Overheat protection opened	Wall oven thermal fuse 5304506123
Oven heats wrong or won’t regulate	Sensor reading out of range	Range oven temperature sensor 5304504897
Intermittent power, burning smell at connection	Loose/damaged power connection	Terminal block 5304409888

Why it matters

A proper reset helps distinguish a temporary electronic glitch from a real heating or power problem. If the control is rebooted and the oven still will not run, focusing on the thermal fuse, sensor circuit, and power connections speeds up accurate troubleshooting.

You can order replacement parts for model 79048183001 from the parts list for this oven, or search by model number on Sears PartsDirect.

Last updated: February 2026

If your Kenmore Elite wall oven model 79048183001 is completely dead or will not heat, the most common causes are a power supply problem (tripped breaker, loose connection), an open safety device (thermal fuse), or a failed heating or control component. Use the wiring and safety steps in the installation guide before testing parts.

Quick checks we recommend first

• Reset the oven circuit at the home electrical panel (wall ovens are typically on a 240V double breaker).
• Confirm the oven is hard-wired correctly at the junction box; power must be OFF before opening the box.
• Look for a burned smell, discoloration, or melted wiring at the junction box or terminal connections.
• If the display is blank, check for an open thermal fuse.
• If the display works but it will not heat, suspect the bake element, temperature sensor, or relay control board.

Parts that commonly stop the oven from working

These are common “no heat” or “no power” culprits for this model family:

Symptom	What it often points to	Example part on this page
No display, no response	Open thermal fuse, power issue	Wall oven thermal fuse 5304506123
Heats poorly or not at all	Failed bake element	Frigidaire range bake element 318601604
Temperature is erratic	Bad oven temperature sensor	Range oven temperature sensor 5304504897
Random shutdowns or no heat with normal power	Relay/control failure	Wall oven relay control board 316443935

Safe troubleshooting steps (basic)

1. Shut off power at the breaker and verify power is off.
2. If you can access the control area, check the thermal fuse for continuity.
3. Inspect the bake element for blisters, cracks, or a visible break.
4. If the oven powers on but temperatures are off, test the oven temperature sensor resistance (compare to the spec listed in the owner's manual).
5. If wiring looks damaged, repair or replace the affected harness and connections before installing new parts.

Why it matters

A wall oven that is not working is often a simple power or safety-device issue, but continuing to reset breakers or run the oven with overheated wiring can damage the wire harness, terminal connections, and control board. Following the grounding and disconnect steps in the installation instructions helps prevent electrical shock and repeat failures.

You can order replacement parts for model 79048183001 from the parts list for this model, or search by model number on Sears PartsDirect.
