Model # RG75BFB0 Official Frigidaire wall oven - lf32088320

Here are the diagrams and repair parts for Official Frigidaire RG75BFB0 wall oven - lf32088320, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

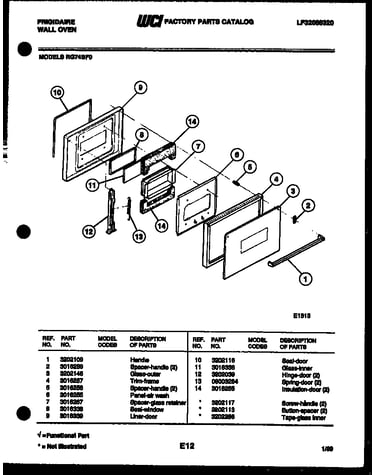

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |

Light 3013071
#4

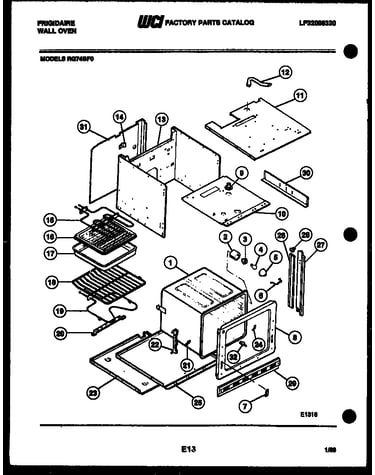

Body parts diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Element 3016246
#19

Body parts diagram

Element

Part #3016246

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3016246. Substitute parts can look different from the original.
BEST SELLER
$141.57
7% OFF Phone Price : $151.57
In Stock
Receptacle 08011085
#3

Body parts diagram

Receptacle

Part #08011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 08011085. Substitute parts can look different from the original.
$42.01
11% OFF Phone Price : $47.01
In Stock
Wall Oven Door Hinge Receiver 3201631
#22

Body parts diagram

Wall oven door hinge receiver

Part #3201631

In Stock
Element 3016247
#15

Body parts diagram

Element

Part #3016247

Replaced by #5303016247

?
Manufacturer substitution
This part replaces 3016247. Substitute parts can look different from the original.
$163.62
6% OFF Phone Price : $173.62
In Stock
Trim C/p 3202140
#11

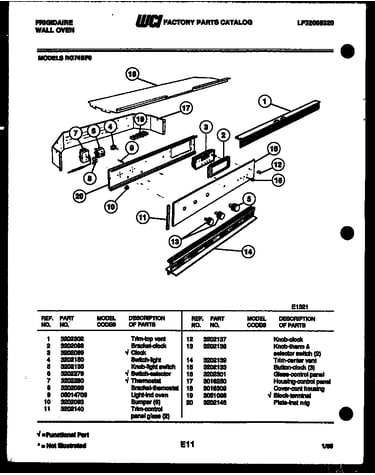

Control panel diagram

Trim c/p

Part #3202140

Replaced by #08017099

?
Manufacturer substitution
This part replaces 3202140. Substitute parts can look different from the original.
This item is not returnable
In Stock
Pan 3018808
#17

Body parts diagram

Pan

Part #3018808

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 3018808. Substitute parts can look different from the original.
$82.97
6% OFF Phone Price : $87.97
In Stock
Block 3051098
#19

Control panel diagram

Block

Part #3051098

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 3051098. Substitute parts can look different from the original.
$9.64
9% OFF Phone Price : $10.64
In Stock
Rack 3016315
#18

Body parts diagram

Rack

Part #3016315

Replaced by #318345216

?
Manufacturer substitution
This part replaces 3016315. Substitute parts can look different from the original.
$78.17
6% OFF Phone Price : $83.17
In Stock
Cover 08011086
#5

Body parts diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
$13.90
13% OFF Phone Price : $15.90
In Stock
