Model #TBT18NIBMRWW Official GE refrigerator - b series

Here are the diagrams and repair parts for GE TBT18NIBMRWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

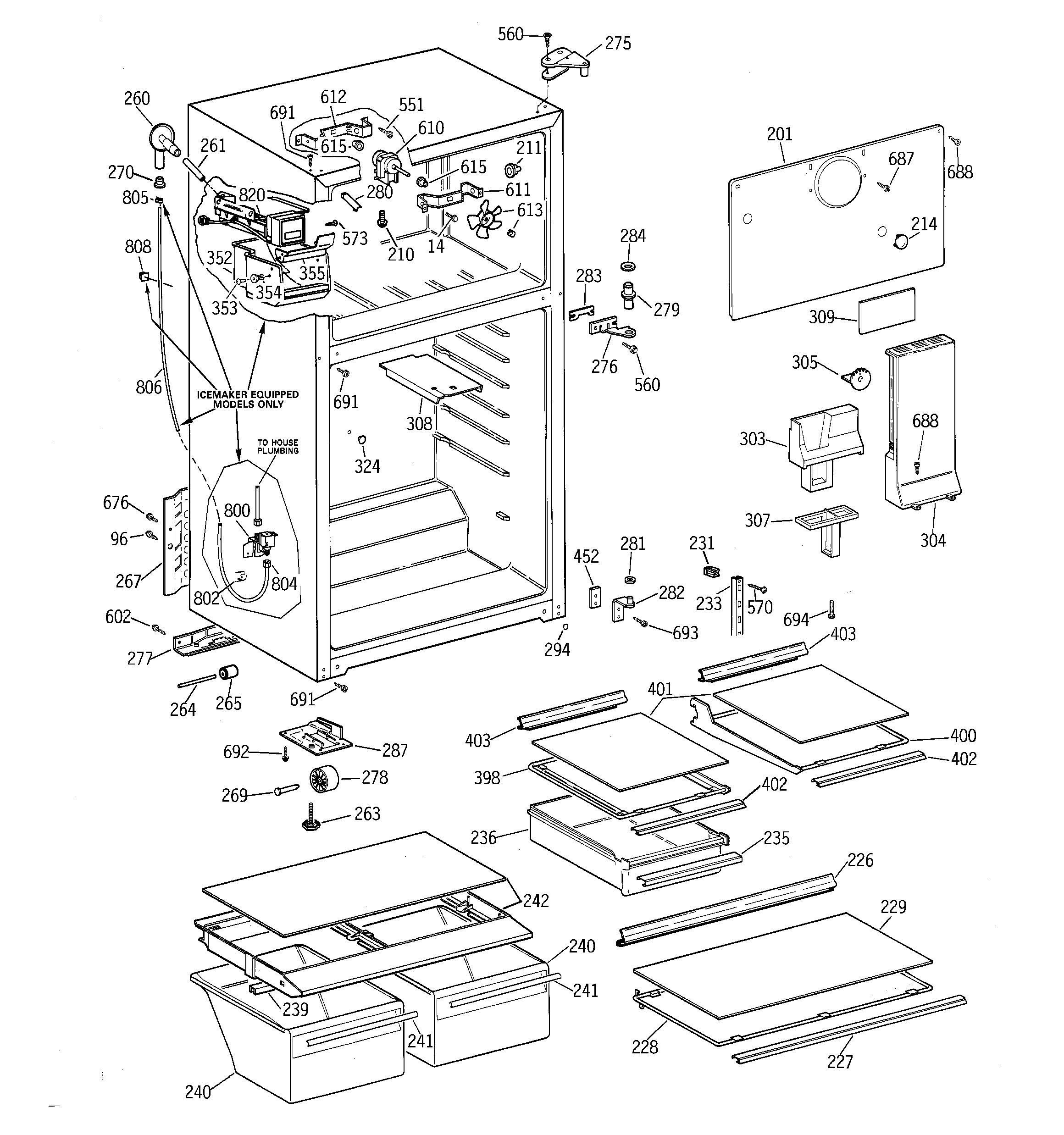

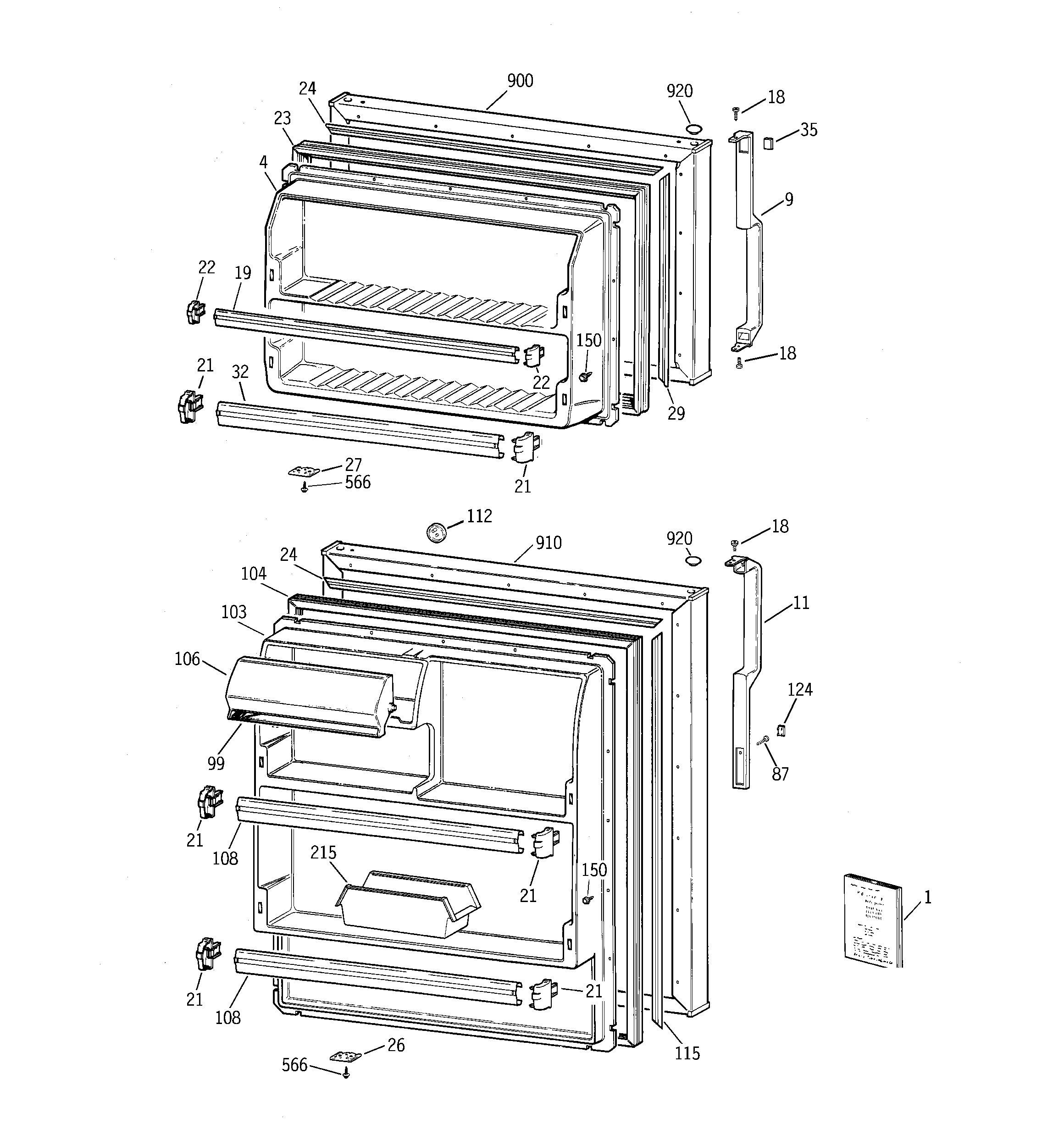

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes
?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 190 parts

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)#435

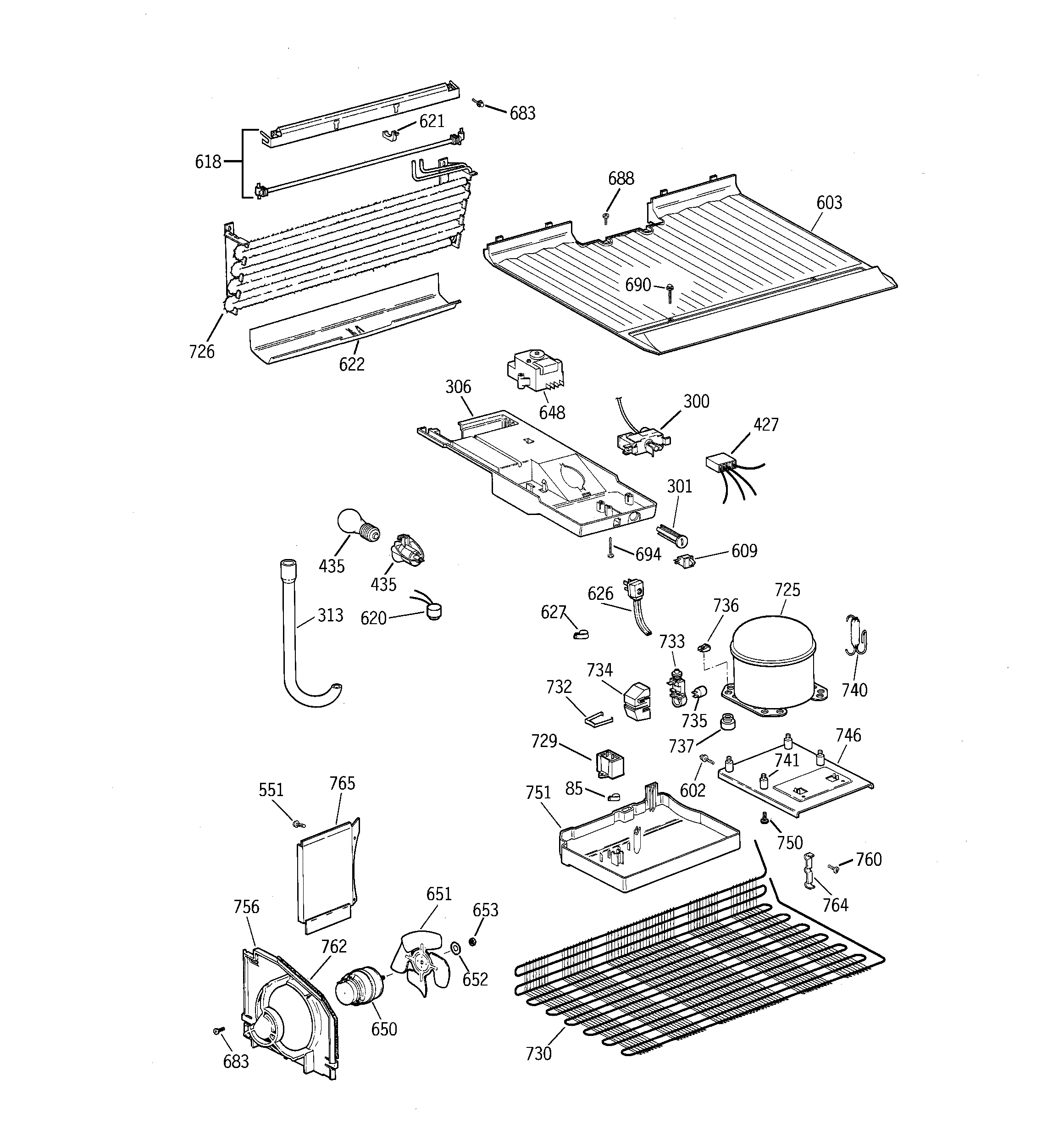

Unit parts Diagram

40a15/22

Part #STD372402
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.75 |
11% OFF
Phone Price: $8.75
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#875

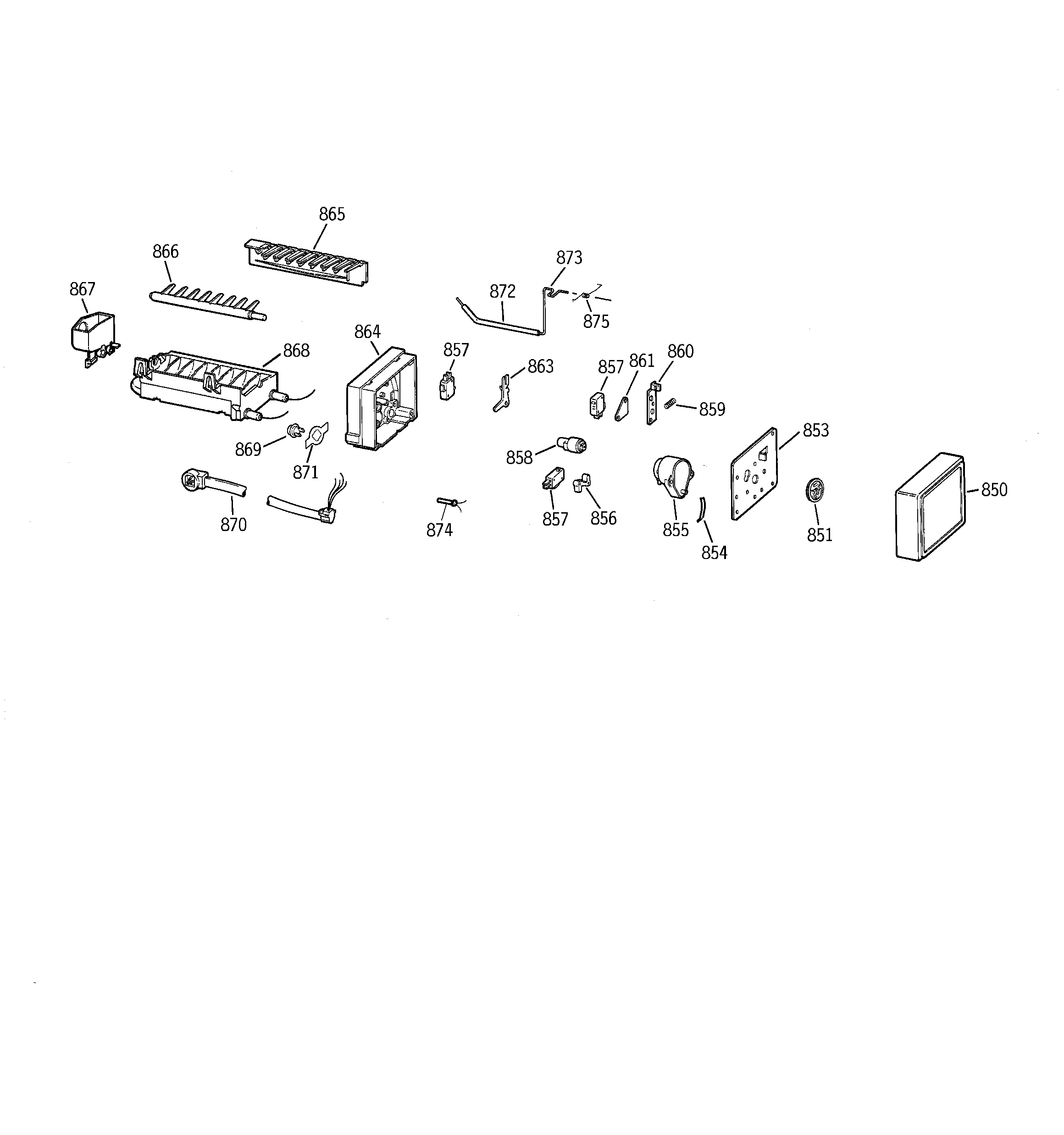

Icemaker wr30x0327 Diagram

Refrigerator spring

Part #WR29X5130
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X5130. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#855

Icemaker wr30x0327 Diagram

Refrigerator ice maker motor

Part #WR29X10001
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X10001. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#865

Icemaker wr30x0327 Diagram

Stripper

Part #WR29X0160
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X0160. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#854

Icemaker wr30x0327 Diagram

Beam spring

Part #WR29X10002
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X10002. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#874

Icemaker wr30x0327 Diagram

Thermal cuto

Part #WR29X0185
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X0185. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#869

Icemaker wr30x0327 Diagram

Thermostat

Part #WR29X0157
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X0157. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker Kit (replaces WR29X10001, WR29X10002, WR29X10080, WR29X157, WR29X158, WR29X160, WR29X185, WR29X27993, WR29X5181, WR30X10043, WR30X10109, WR30X28702, WR30X30972)#871

Icemaker wr30x0327 Diagram

Clamp t-stat

Part #WR29X0158
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR29X0158. Substitute parts can look different from the original.
BEST SELLER
In Stock
$133.59 |
7% OFF
Phone Price: $143.59
Refrigerator Ice Maker (replaces WR30X10093, WR30X30719, WR30X30919, WR30X318, WR30X40986)#859

Icemaker wr30x0327 Diagram

Refrigerator spring

Part #WR29X5115
Replaced by #WR30X30972
?
Manufacturer substitution
This part replaces WR29X5115. Substitute parts can look different from the original.
BEST SELLER
In Stock
$120.16 |
8% OFF
Phone Price: $130.16
Refrigerator Ice Maker (replaces WR30X10093, WR30X30719, WR30X30919, WR30X318, WR30X40986)#863

Icemaker wr30x0327 Diagram

Arm lever

Part #WR29X5121
Replaced by #WR30X30972
?
Manufacturer substitution
This part replaces WR29X5121. Substitute parts can look different from the original.
BEST SELLER
In Stock
$120.16 |
8% OFF
Phone Price: $130.16
