Kenmore 5649948010 microwave Parts

Here are the diagrams and repair parts for Kenmore 5649948010 microwave, as well as links to manuals and error code tables, if available.

Kenmore 5649948010 microwave
By Schematic
By Part

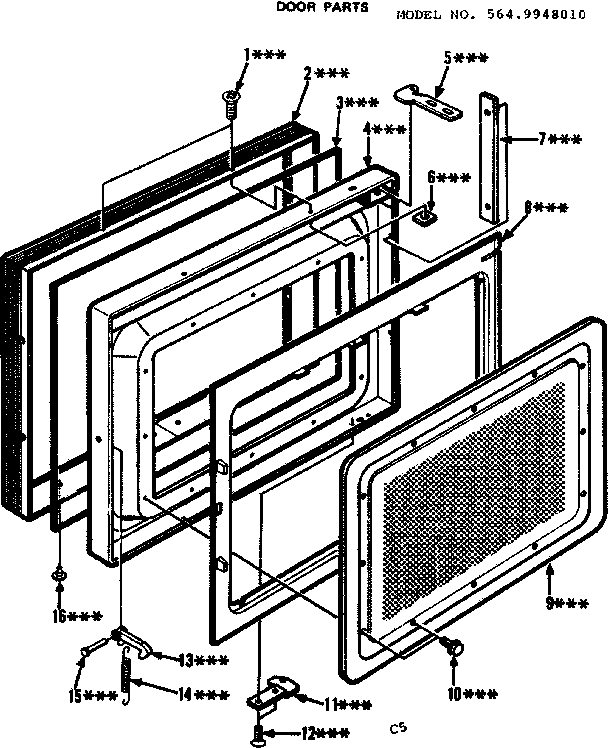

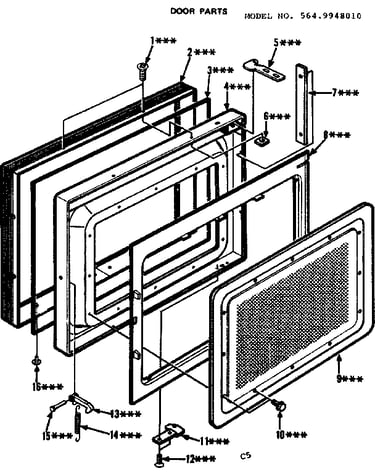

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 5649948010 Microwaves

  • Screw for Kenmore 5649948010 - Part 10049

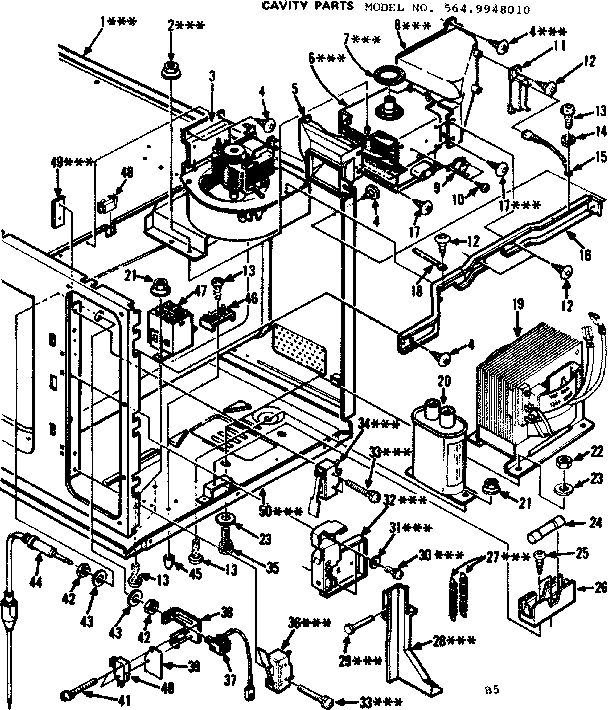

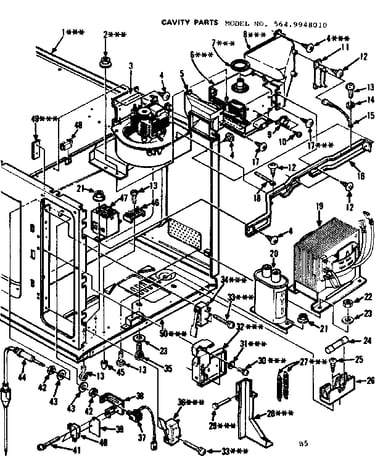

    Cavity parts diagram

    Screw

    Part #10049

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermostat for Kenmore 5649948010 - Part 10304

    Cavity parts diagram

    Thermostat

    Part #10304

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5649948010 - Part 11171

    Cavity parts diagram

    Capacitor

    Part #11171

    The manufacturer no longer makes this part, and there's no substitute part

  • Rectifier for Kenmore 5649948010 - Part 11068

    Cavity parts diagram

    Rectifier

    Part #11068

    The manufacturer no longer makes this part, and there's no substitute part

  • Special Nut for Kenmore 5649948010 - Part 10819

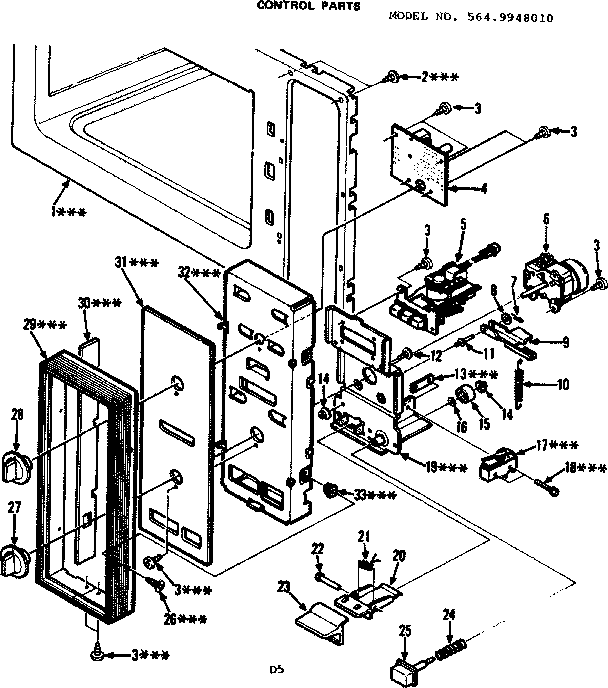

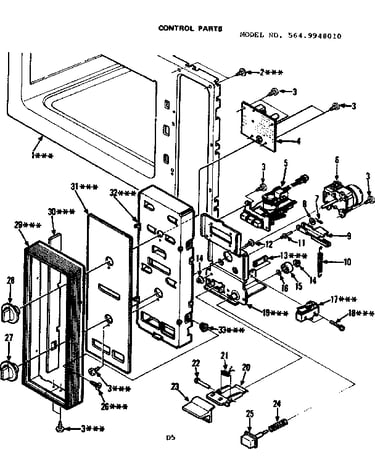

    Control parts diagram

    Special Nut

    Part #10819

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp Socket for Kenmore 5649948010 - Part 10528

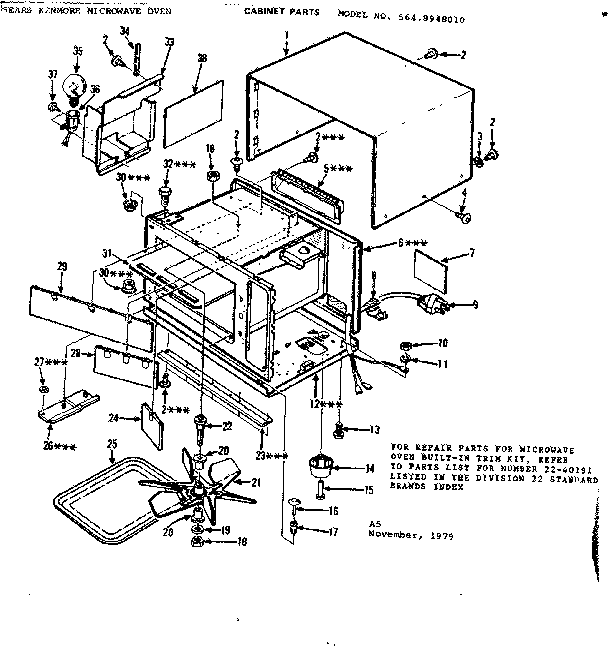

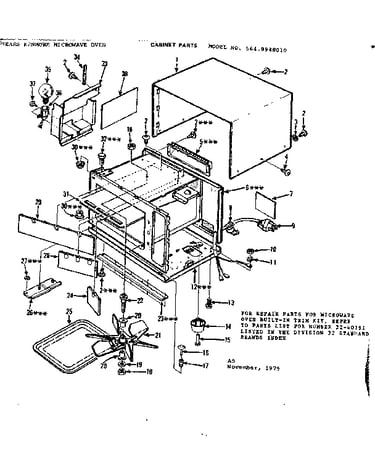

    Cabinet parts diagram

    Lamp Socket

    Part #10528

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet for Kenmore 5649948010 - Part 10825

    Cabinet parts diagram

    Cabinet

    Part #10825

    The manufacturer no longer makes this part, and there's no substitute part

  • Special Washer for Kenmore 5649948010 - Part 10532

    Cavity parts diagram

    Special Washer

    Part #10532

    The manufacturer no longer makes this part, and there's no substitute part

  • Canoe Clip for Kenmore 5649948010 - Part 10378

    Cabinet parts diagram

    Canoe Clip

    Part #10378

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for Kenmore 5649948010 - Part 10408

    Control parts diagram

    Spring

    Part #10408

    The manufacturer no longer makes this part, and there's no substitute part
