Model # 020544-01 Official Briggs & Stratton power washer

Here are the diagrams and repair parts for Official Briggs & Stratton 020544-01 power washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

O-ring Kit 75116

#NI12

All parts diagram

O-ring kit

Part #75116

Replaced by #705001

?
Manufacturer substitution
This part replaces 75116. Substitute parts can look different from the original.
BEST SELLER
$26.04
16% OFF Phone Price : $31.04
In Stock
Pressure Washer O-ring Kit 196002GS
#20

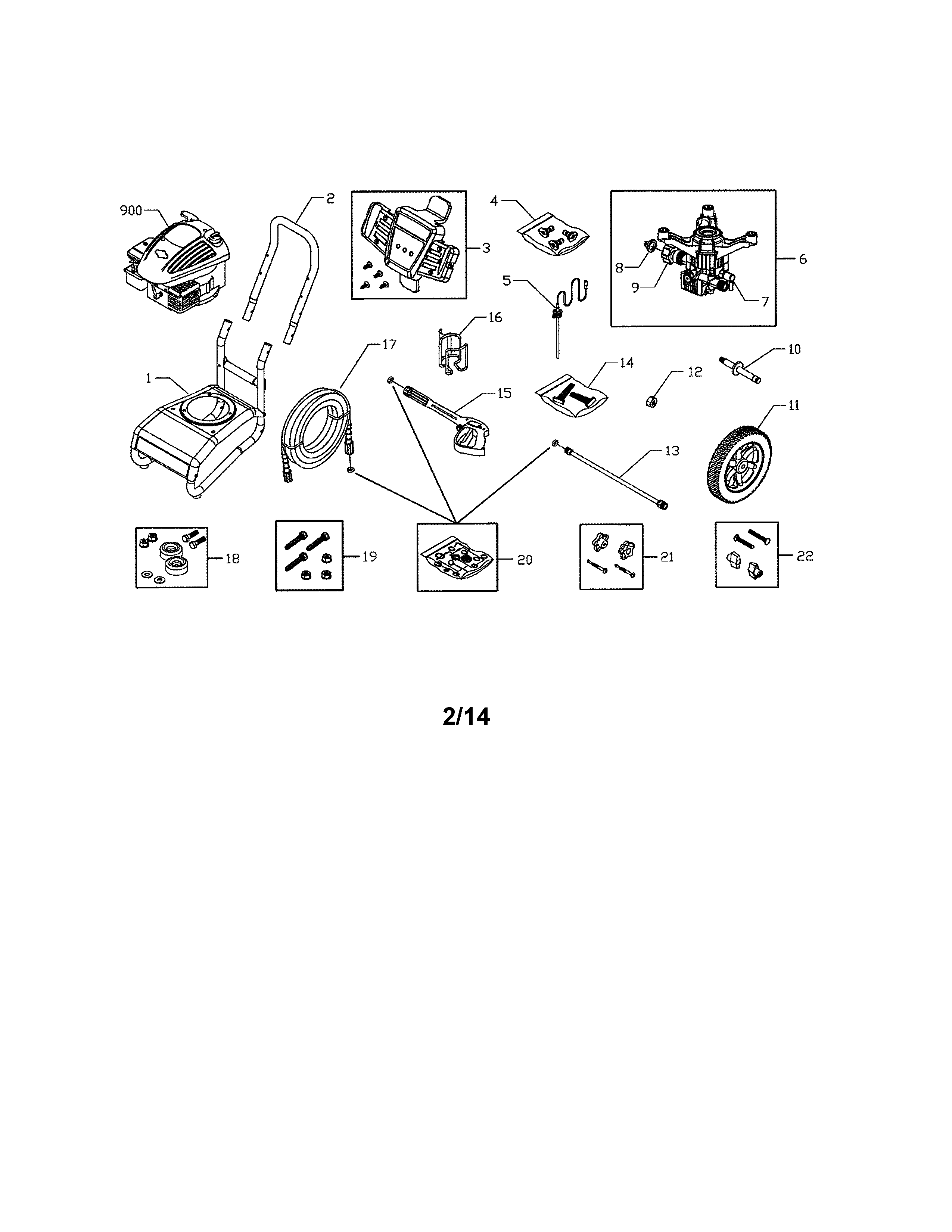

Main unit diagram

Pressure washer o-ring kit

Part #196002GS

Replaced by #705001

?
Manufacturer substitution
This part replaces 196002GS. Substitute parts can look different from the original.
BEST SELLER
$26.04
16% OFF Phone Price : $31.04
In Stock
Pressure Washer Hose 196006GS
#17

Main unit diagram

Pressure washer hose

Part #196006GS

Replaced by #84006753

?
Manufacturer substitution
This part replaces 196006GS. Substitute parts can look different from the original.
BEST SELLER
In Stock
Pressure Washer Chemical Hose 204658GS
#5

Main unit diagram

Pressure washer chemical hose

Part #204658GS

BEST SELLER
$33.17
13% OFF Phone Price : $38.17
In Stock
Pressure Washer Extension Wand 207784GS
#13

Main unit diagram

Pressure washer extension wand

Part #207784GS

Replaced by #706595

?
Manufacturer substitution
This part replaces 207784GS. Substitute parts can look different from the original.
BEST SELLER
$49.03
9% OFF Phone Price : $54.03
In Stock
Pressure Washer Water Inlet Screen (replaces 1266330gs, B2384) B2384GS
#8

Main unit diagram

Pressure washer water inlet screen (replaces 1266330gs, b2384)

Part #B2384GS

BEST SELLER
This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
Pressure Washer Wheel 314165GS
#11

Main unit diagram

Pressure washer wheel

Part #314165GS

BEST SELLER
$66.81
7% OFF Phone Price : $71.81
In Stock
Gun Assembly 204627GS
#15

Main unit diagram

Gun assembly

Part #204627GS

Replaced by #84003228

?
Manufacturer substitution
This part replaces 204627GS. Substitute parts can look different from the original.
BEST SELLER
In Stock
Pressure Washer Fastening Clip (replaces B1797) B1797GS
#3A

Main unit diagram

Pressure washer fastening clip (replaces b1797)

Part #B1797GS

BEST SELLER
This item is not returnable
$6.69
13% OFF Phone Price : $7.69
In Stock
Connector 75197

#NI08

All parts diagram

Connector

Part #75197

Replaced by #312981GS

?
Manufacturer substitution
This part replaces 75197. Substitute parts can look different from the original.
BEST SELLER
$42.29
11% OFF Phone Price : $47.29
In Stock
