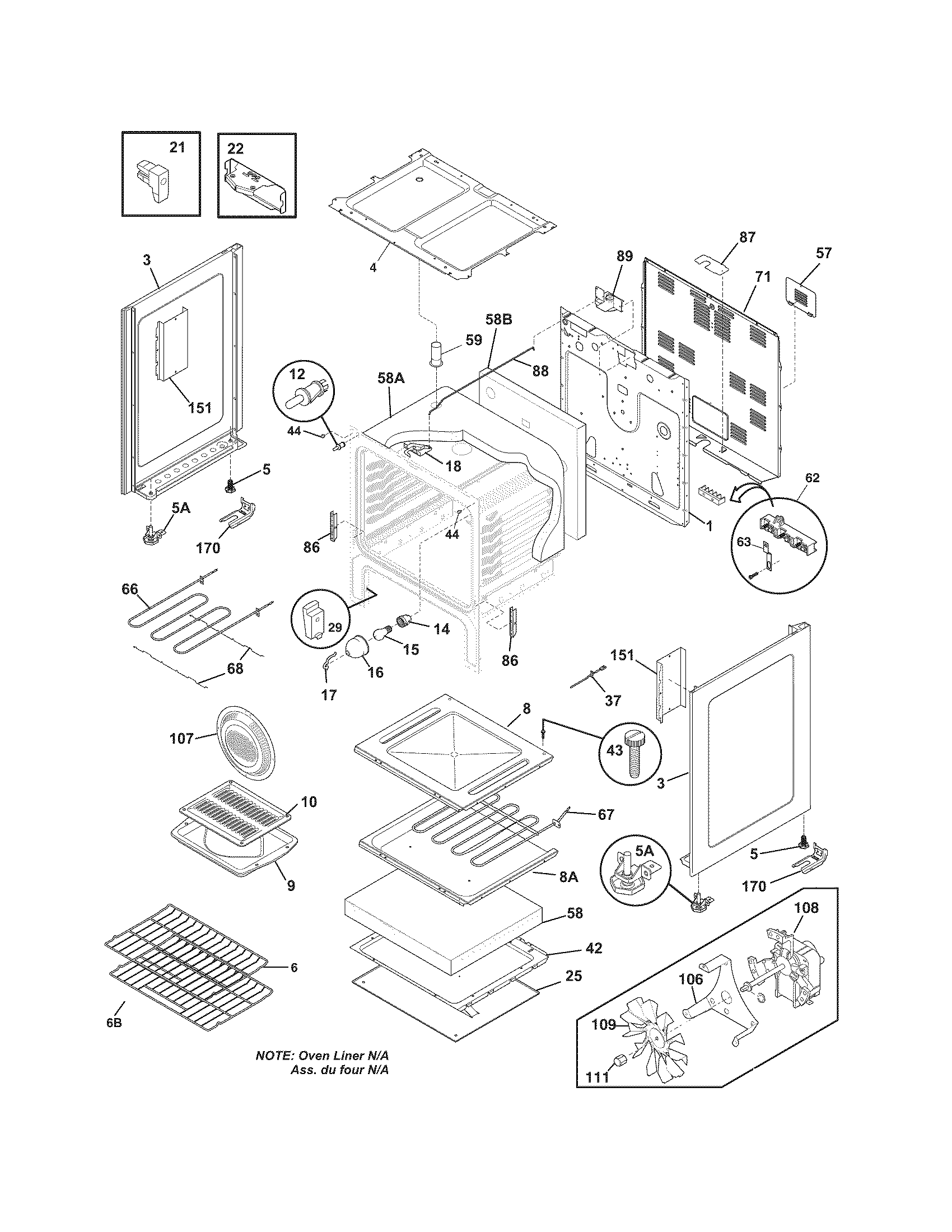

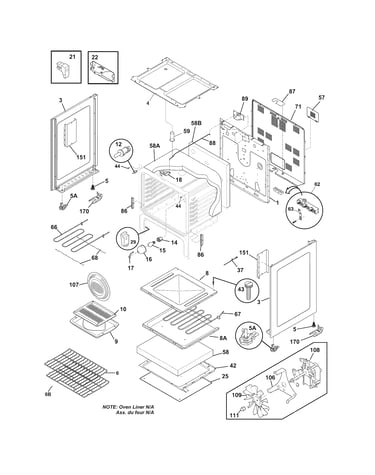

Frigidaire LFEF3016NWA electric range Parts

Yes. For your Frigidaire LFEF3016NWA electric range, using the full model number is the fastest way to pull up the correct parts list and diagrams so you can match the exact replacement part (surface element, bake element, sensor, knobs, and more) to your range.

How to look up parts by model number

• Find the model number on the range’s ID plate (commonly on the oven frame behind the door, or on the drawer frame area).
• Enter LFEF3016NWA exactly as shown (letters and numbers matter).
• Use the parts list to confirm the part name and identifier before ordering.
• Cross-check your symptom to the likely part (for example, burner not heating vs. oven not heating).
• Use the wiring and installation notes in the documentation when you’re doing a repair.

Common part lookups for this model

These are examples of parts customers often search for by model number on LFEF3016NWA:

Problem you’re solving	Part to check first	Example part for this model
Surface burner won’t heat or won’t regulate	Surface element control switch	Range surface element control switch 316436001
Oven temperature is inaccurate or error relates to sensing	Oven temperature sensor	Range oven temperature sensor 316490000
Oven won’t bake (no heat)	Bake element	Range bake element 316413800
Oven light is out	Appliance light bulb	Appliance light bulb, 40-watt 316538904

Why the exact model number matters

Frigidaire ranges can look similar but use different wiring harnesses, element styles, and control components. Using LFEF3016NWA ensures the part you choose matches the correct fit and electrical connection for your specific range.

Helpful documentation to use during repairs

• Use the LFEF3016NWA installation guide for grounding, electrical connection requirements, and anti-tip bracket placement.
• Use the LFEF3016NWA manual for operating details and model-specific guidance.

Last updated: February 2026

Your Frigidaire electric range model number is printed on a rating label attached to the appliance. On model LFEF3016NWA, the label is typically found around the oven door frame area or on/behind the storage drawer area; once you find it, copy the full letter and number string exactly.

Where to look for the model number label

Check these common spots on Frigidaire freestanding electric ranges:

• Along the oven door frame (open the oven door and look around the front frame)
• On the front frame behind the storage drawer (pull the drawer out and look at the frame)
• On the side trim or lower front area near the drawer opening
• Occasionally on the rear panel (best checked only if the range is already pulled out)

A flashlight helps; the label print can be small.

What the model number looks like (and what to write down)

The model number is usually a mix of letters and numbers (for example, LFEF3016NWA). We recommend writing down:

• Model number (example: LFEF3016NWA)
• Serial number (useful for age and production run)
• Any revision or suffix characters shown on the label

Quick character check

Common mix-up	What to watch for	Tip
0 vs O	Zero vs letter O	Zeros are more common in numeric groups
1 vs I	One vs letter I	Compare to other characters on the label
5 vs S	Five vs letter S	Look for straight edges vs curves

Why it matters

Using the exact model number ensures we match the correct Frigidaire parts and diagrams for your range, such as the correct surface element switch, oven temperature sensor, or bake element. It also helps you use the right wiring and clearance guidance in the LFEF3016NWA installation guide.

Last updated: February 2026

To reset your Frigidaire electric range model LFEF3016NWA, turn the range off and fully power-cycle it at the home breaker for 5 minutes, then restore power. This clears most control glitches after a power surge or a stuck key condition; re-set the clock afterward.

Quick reset steps (recommended)

• Turn all surface element knobs to OFF.
• If the oven is running, press Cancel/Off.
• Switch the range circuit OFF at the breaker panel.
• Wait 5 minutes (10 minutes if the display was frozen).
• Switch the breaker ON.
• Set the clock and test Bake and a surface element.

If the display shows an error code

Use the code to guide the next step (many Frigidaire range faults are sensor, keypad, or door-lock related).

• Write down the exact code (example: F30, F31, F90).
• Reset power using the steps above.
• If the code returns, troubleshoot by code.

A good next reference is Frigidaire self-cleaning range error codes.

When a “reset” does not fix heating problems

A reset will not repair a failed heating circuit. If the oven still will not heat or temperatures are way off after the power-cycle, these parts are common suspects:

• Oven temperature sensor (can cause wrong temps or error codes): Frigidaire range oven temperature sensor 316490000
• Bake element (no bake heat): inspect for blisters or breaks
• Broil element (weak broil or no broil): inspect for visible damage

Common symptoms vs. likely cause

Symptom	Most common cause	What to do next
Display frozen or beeping	Control glitch or stuck key	Breaker reset; check keypad for stuck buttons
Oven won’t heat at all	Failed bake element or wiring	Visual inspection; test element continuity
Oven temp inaccurate	Sensor out of range	Check sensor; replace if out of spec

Why it matters

Resetting by cutting power at the breaker forces the electronic control to reboot. That often clears nuisance faults after outages, but persistent errors usually point to a component issue (sensor, element, door lock, or wiring) that needs diagnosis.

For electrical safety details during installation and power connections, follow the installation guide.

Last updated: February 2026

An electric oven in a Frigidaire LFEF3016NWA range is built around heating components (bake and broil), temperature sensing, and user controls, plus basic interior hardware like racks and the oven light. These parts work together to heat evenly, regulate temperature, and keep operation safe.

Core electric oven parts (what they do)

• Bake element: primary heat source for baking and roasting (bottom of oven cavity on many models).
• Broil element: high-heat element for broiling (typically at the top of the oven cavity).
• Oven temperature sensor: tells the control how hot the oven is so it can cycle heat accurately.
• Oven control and overlay: the keypad/label area you press and read; it sends commands to the control.
• Oven rack(s): supports cookware at different cooking heights.
• Oven light and bulb: illuminates the cavity so you can check food without opening the door.

Parts you can replace on LFEF3016NWA (examples)

These are common service parts we see customers replace when the oven will not heat, heats unevenly, or the light is out:

Symptom	Common part involved	Example part for this model
Oven will not bake or takes too long to heat	Bake element	Range bake element 316413800
Broil does not heat	Broil element	Range broil element 316203301
Oven temperature is inaccurate	Temperature sensor	Frigidaire range oven temperature sensor 316490000
Oven light is out	Light bulb	Appliance light bulb, 40-watt 316538904
Need an additional rack	Oven rack	Frigidaire range oven rack 316496201

Why it matters

Knowing the main oven parts helps you troubleshoot faster. For example, a failed bake element often causes no-heat or weak-heat baking, while a bad temperature sensor can cause overbaking or underbaking even though the elements still glow.

Good to know before servicing

• Shut off power at the breaker before inspecting wiring, elements, or the control area.
• Confirm your model number from the serial plate location described in the LFEF3016NWA installation guide.
• If the range displays an error code, use Frigidaire self-cleaning range error codes to narrow the likely failed component.

Last updated: February 2026

On your Frigidaire LFEF3016NWA electric range, the part number is printed on the part itself; we use your range’s model and serial number (from the ID tag) to match the correct replacement part. The ID tag is typically visible when you open the oven door.

Where to look for the model and serial number tag

Check these common locations on freestanding electric ranges like the LFEF3016NWA:

• Along the oven frame or interior-side trim, visible with the oven door open
• On the left-side panel area of the oven frame, visible with the door open
• Around the lower front frame near the storage/broil drawer opening (if equipped)
• On the back panel of the range (less convenient, but common)

For diagrams and exact placement details for your model, use the LFEF3016NWA installation guide.

How to use that information to get the right part

Once you have the model and serial number, match parts by function and location, then confirm the part ID/part number.

• Identify the system: surface element, oven bake, broil, control panel, or wiring
• Compare the part description to what failed (switch, sensor, element, light)
• Verify fit by model number before ordering
• If multiple versions exist, use the serial number to narrow the correct revision

Examples of part numbers you might see on common repairs

What you are replacing	What the number is used for	Example from this model’s parts
Surface burner control	Identifies the infinite switch style	Frigidaire range surface element control switch 316436001
Oven temperature sensor	Identifies the sensor calibration/connector	Frigidaire range oven temperature sensor 316490000
Oven light bulb	Identifies wattage and base type	Appliance light bulb, 40-watt 316538904

Why it matters

Using the correct model/serial prevents ordering a look-alike part that mounts differently, has a different terminal style, or is calibrated differently (common with an oven temperature sensor, bake element, or surface element control switch).

Last updated: February 2026
