Admiral NT17H8H/7A53A refrigerator

Admiral NT17H8H/7A53A refrigerator Parts

Here are the diagrams and repair parts for Admiral NT17H8H/7A53A refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

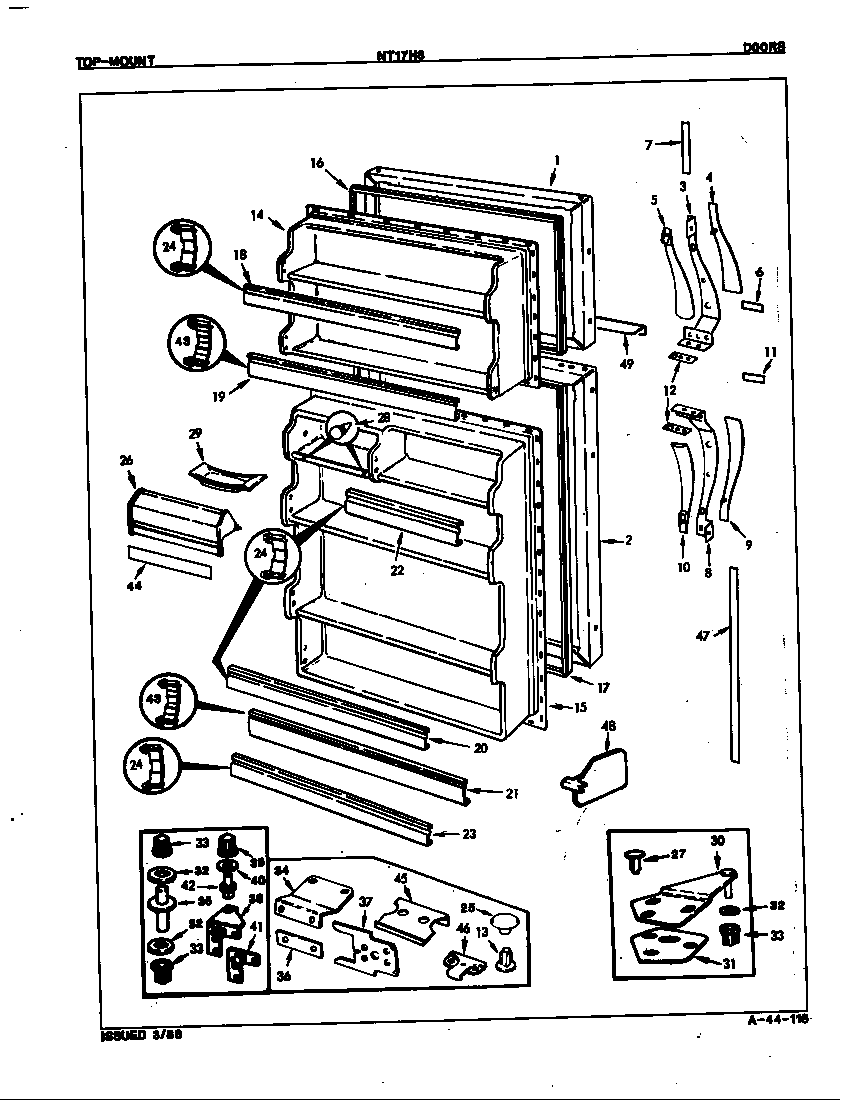

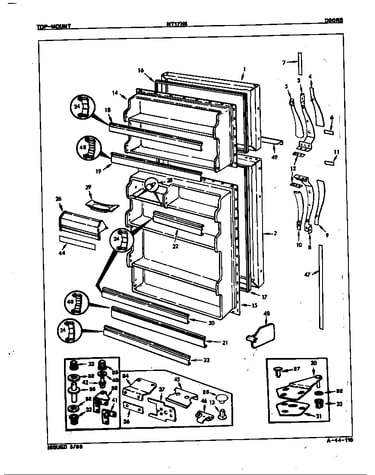

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for NT17H8H/7A53A Refrigerators

  • Refrigerator Uv Filter Dryer for Admiral NT17H8H/7A53A - Part WPW10143759

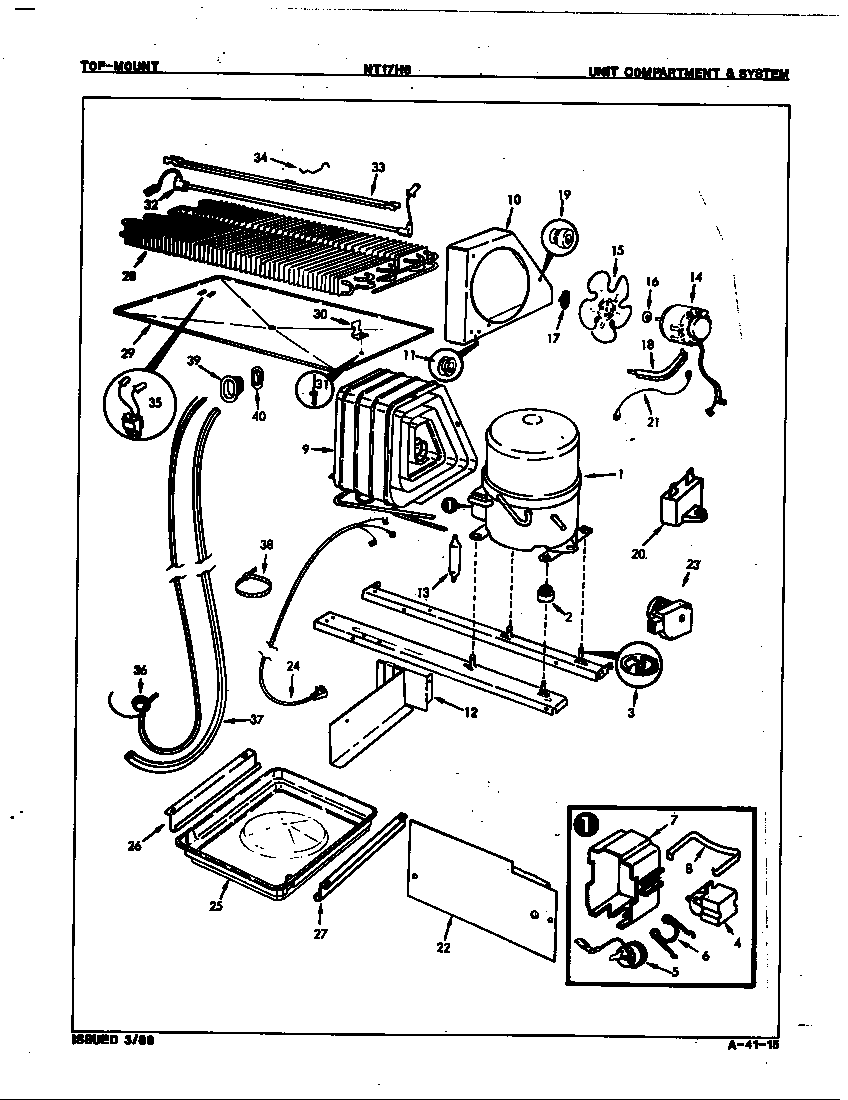

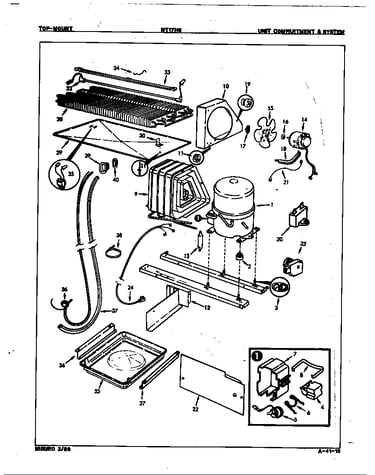

    Unit compartment & system diagram

    Drier

    Part #13900

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces 13900. Substitute parts can look different from the original.
    In Stock
    $22.85
    21% OFF Phone Price : $28.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Admiral NT17H8H/7A53A - Part W11384469

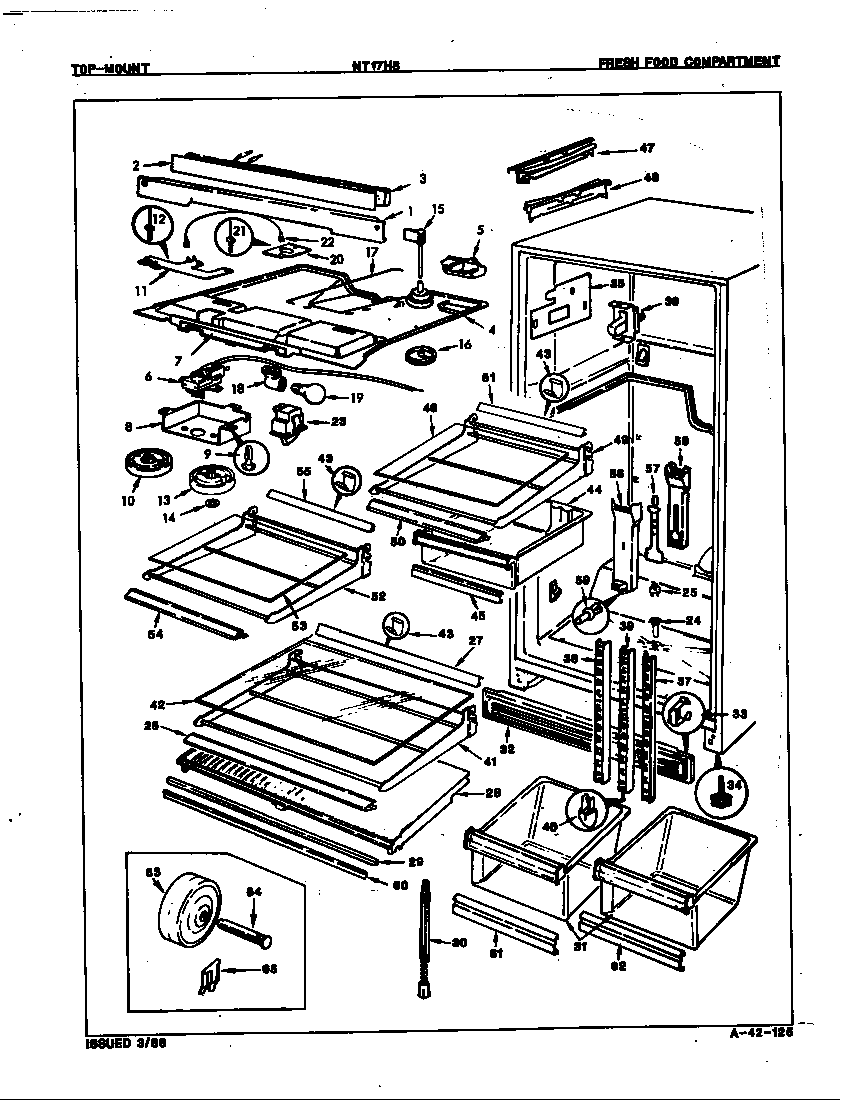

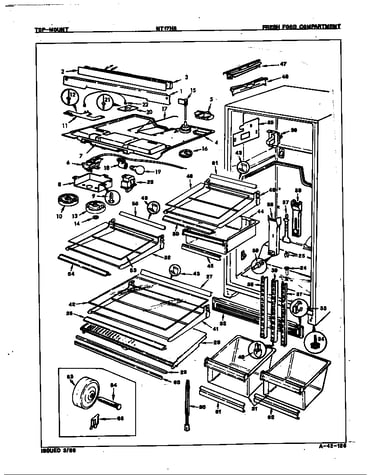

    Fresh food compartment diagram

    Light Switch

    Part #55732-1

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 55732-1. Substitute parts can look different from the original.
    In Stock
    $25.91
    19% OFF Phone Price : $31.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Motor for Admiral NT17H8H/7A53A - Part 833697

    Unit compartment & system diagram

    Fan Motor

    Part #28056-13

    Replaced by #833697

    Info Icon
    Manufacturer substitution
    This part replaces 28056-13. Substitute parts can look different from the original.
    In Stock
    $64.83
    8% OFF Phone Price : $70.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for Admiral NT17H8H/7A53A - Part WP488729

    Unit compartment & system diagram

    Screw

    Part #9986-45

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 9986-45. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Admiral NT17H8H/7A53A - Part WP489478

    Screw

    Part #400017-1

    Replaced by #WP489478

    Info Icon
    Manufacturer substitution
    This part replaces 400017-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.06
    17% OFF Phone Price : $6.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Admiral NT17H8H/7A53A - Part WP52085-28

    Unit compartment & system diagram

    Thermostat

    Part #52085-24

    Replaced by #WP52085-28

    Info Icon
    Manufacturer substitution
    This part replaces 52085-24. Substitute parts can look different from the original.
    In Stock
    $79.95
    7% OFF Phone Price : $85.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Admiral NT17H8H/7A53A - Part W11233072

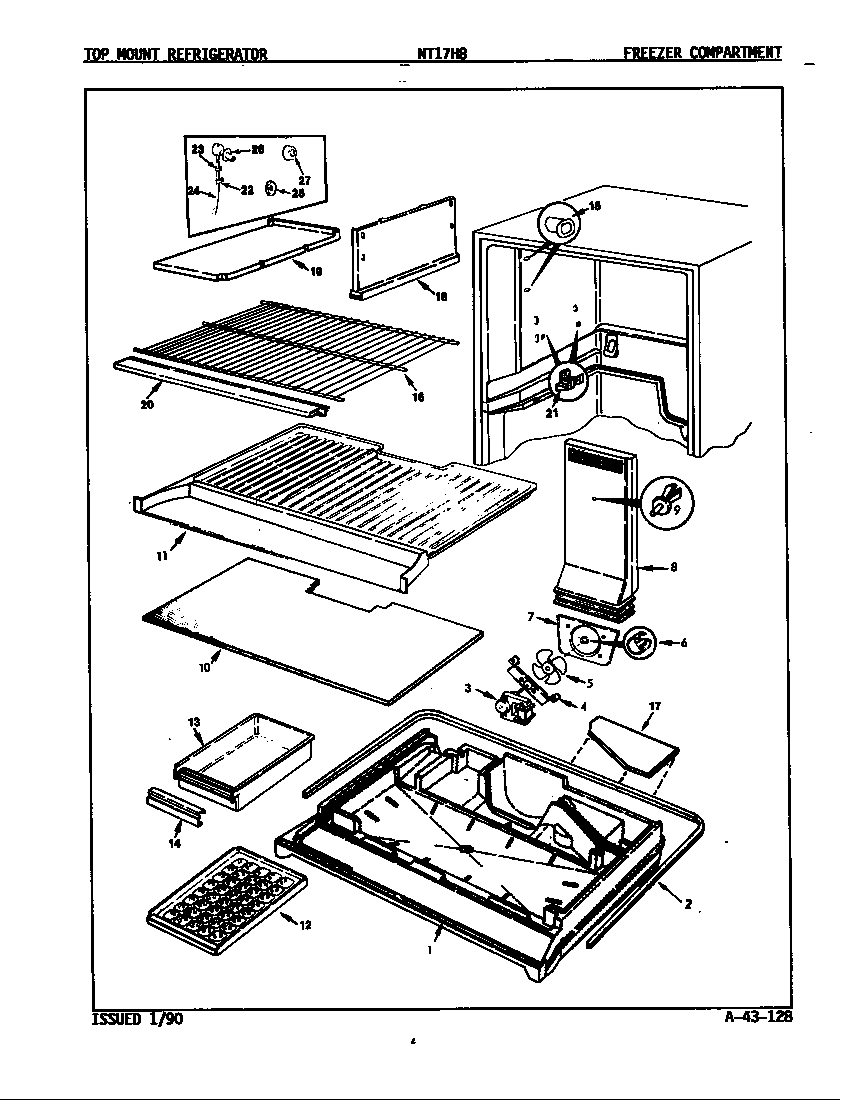

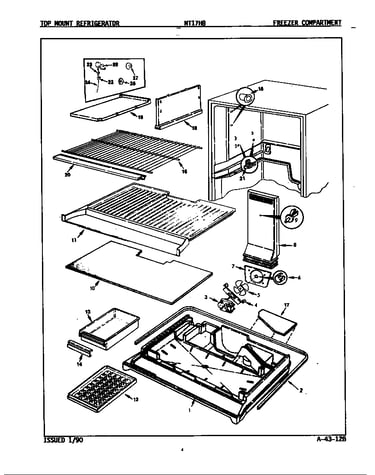

    Freezer compartment diagram

    Screw

    Part #400015-12

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 400015-12. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Blade for Admiral NT17H8H/7A53A - Part WP12587601

    Unit compartment & system diagram

    Condenser Blade

    Part #60485-1

    Replaced by #WP12587601

    Info Icon
    Manufacturer substitution
    This part replaces 60485-1. Substitute parts can look different from the original.
    In Stock
    $78.99
    7% OFF Phone Price : $84.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Heater for Admiral NT17H8H/7A53A - Part WP60106-34

    Unit compartment & system diagram

    Refrigerator Evaporator Defrost Heater

    Part #60106-34

    Replaced by #WP60106-34

    Info Icon
    Manufacturer substitution
    This part replaces 60106-34. Substitute parts can look different from the original.
    In Stock
    $86.38
    6% OFF Phone Price : $92.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Leveler for Admiral NT17H8H/7A53A - Part W11117769

    Fresh food compartment diagram

    Leveling Leg

    Part #6012-8

    Replaced by #W11117769

    Info Icon
    Manufacturer substitution
    This part replaces 6012-8. Substitute parts can look different from the original.
    In Stock
    $14.47
    12% OFF Phone Price : $16.47Info Icon
    Minus Item
    Qty
    Plus Item
