Model # 11640240 Official Kenmore vacuum cleaner parts

Here are the diagrams and repair parts for Official Kenmore 11640240 vacuum cleaner parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |

Screw 681181
#50

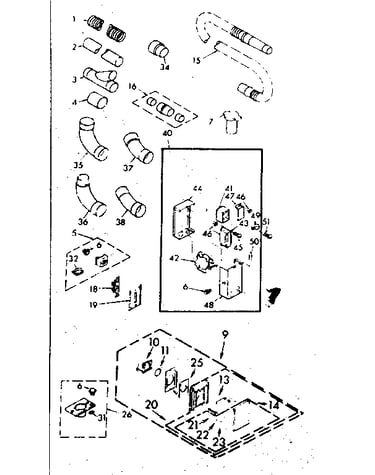

Wall valve assembly diagram

Screw

Part #681181

The manufacturer no longer makes this part, and there's no substitute part

Screw 681036
#45

Wall valve assembly diagram

Screw

Part #681036

The manufacturer no longer makes this part, and there's no substitute part

Tubing 616605
#1

Wall valve assembly diagram

Tubing

Part #616605

The manufacturer no longer makes this part, and there's no substitute part

Screw 681151
#51

Wall valve assembly diagram

Screw

Part #681151

The manufacturer no longer makes this part, and there's no substitute part

Dstng Brush 721447
#16

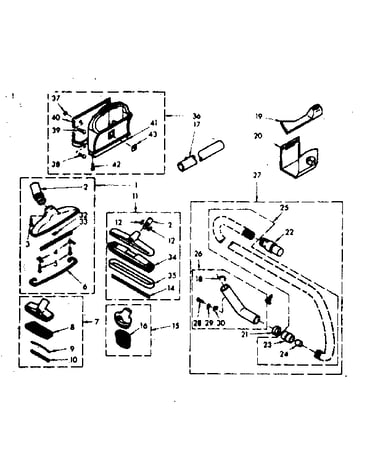

Attachment parts diagram

Dstng brush

Part #721447

The manufacturer no longer makes this part, and there's no substitute part

Valve Switch 701266
#26

Wall valve assembly diagram

Valve switch

Part #701266

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 701481

#NI

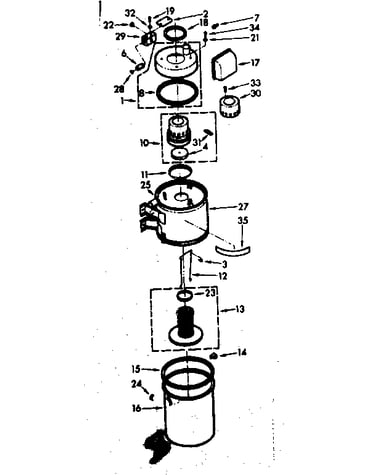

All parts diagram

Owner's manual

Part #701481

The manufacturer no longer makes this part, and there's no substitute part

Terminal 701553
#22

Attachment parts diagram

Terminal

Part #701553

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 721458
#14

Attachment parts diagram

Vacuum brush

Part #721458

The manufacturer no longer makes this part, and there's no substitute part

Hose 701487
#27

Attachment parts diagram

Hose

Part #701487

The manufacturer no longer makes this part, and there's no substitute part
