GE ZGU36ESL1SS gas counter unit cooktop Parts

Yes, you can replace a GE gas cooktop like model ZGU36ESL1SS yourself if you can safely shut off gas and power, follow the required clearances and connection steps, and leak-test the new hookup. For propane (LP) conversion or any gas-pressure concerns, we use a qualified technician.

What we recommend before you start

• Read the ZGU36ESL1SS installation guide end-to-end before disconnecting anything.
• Shut off the main gas supply valve before removing the old cooktop; keep it off until the new hookup is complete.
• Plan to use a CSA International-certified flexible metal appliance connector unless local codes require hard piping.
• Use approved pipe thread sealant or gas-rated thread tape on male pipe threads to help prevent leaks.
• Confirm your home outlet is a live, properly grounded 120-volt outlet (the igniters need power).

DIY vs. pro install: what’s typically safe to DIY

Task	DIY-friendly	Better for a pro	Why
Drop-in removal and setting the new cooktop	Yes	No	Mostly mechanical fit and handling
Gas connection and leak test	Sometimes	Often	Leak risk if fittings are misaligned
Hard-piped connection	No	Yes	Cooktop cannot be moved after connection
Natural gas to LP conversion	No	Yes	Requires correct conversion per instructions

Gas supply basics that matter

Your cooktop is typically set up for natural gas from the factory and can be converted to propane (LP) gas using the installation instructions. The installation guide also lists inlet pressure ranges (natural gas minimum 6" water column; LP minimum 11" water column; maximum 13" water column). If you are unsure about inlet pressure, contact your gas supplier.

Why it matters

A correct gas hookup prevents leaks and ignition problems (burners not lighting, constant clicking, weak or yellow flames). Following the installation steps also protects the cooktop’s gas valves, igniters, and manifold from damage.

Last updated: February 2026

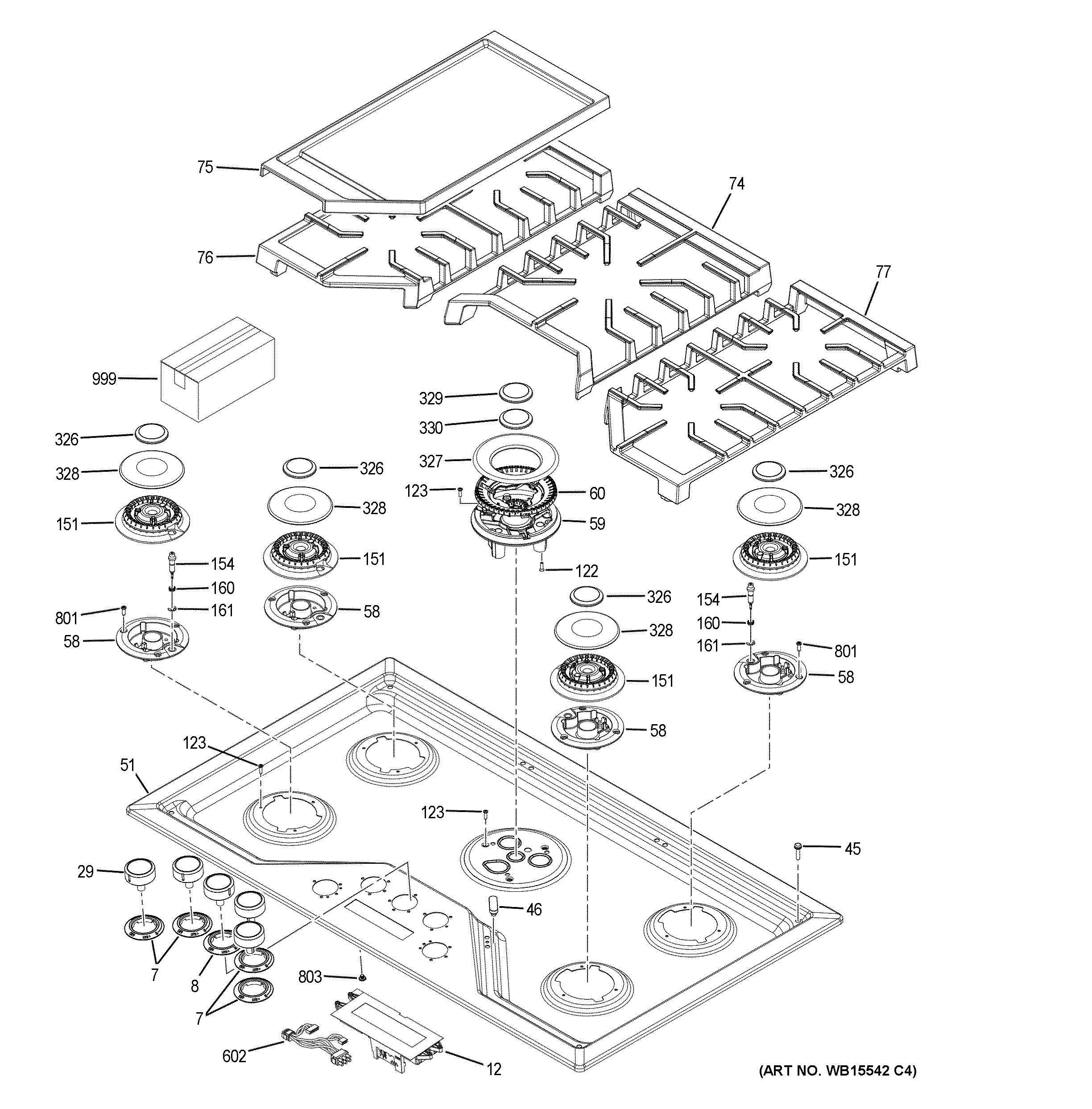

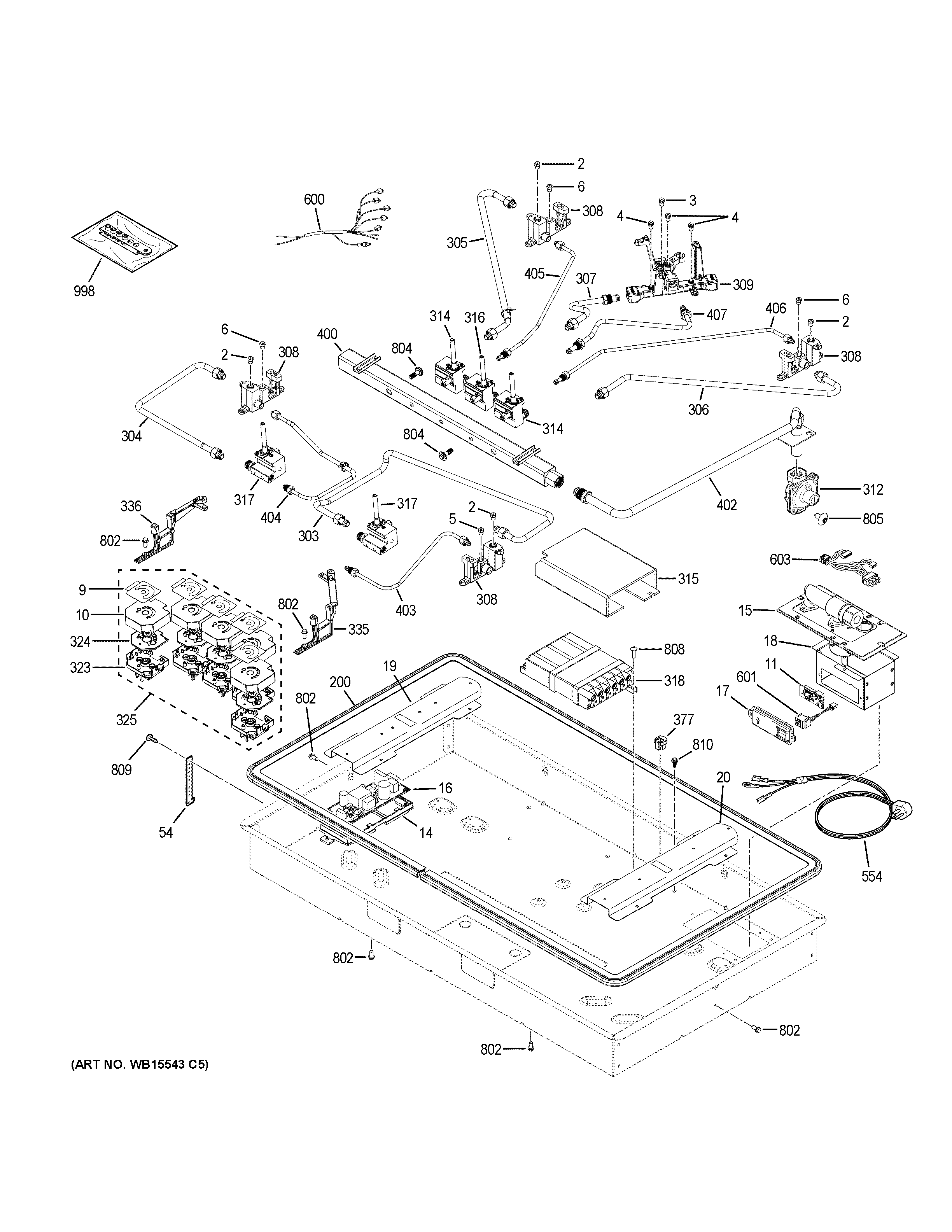

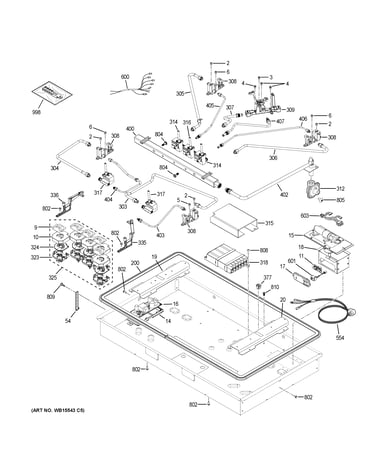

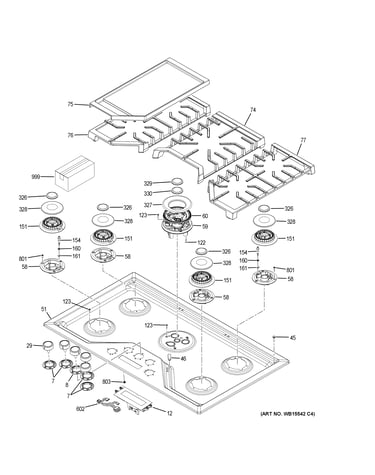

For your GE gas cooktop model ZGU36ESL1SS, the right part number comes from matching the exact model number to the correct parts diagram, then confirming the part name and location on the cooktop. We recommend using the exploded views and part lists in the ZGU36ESL1SS owner's manual to avoid ordering a similar looking but incompatible part.

Steps we use to match the correct part

• Confirm the full model number is ZGU36ESL1SS (use the rating label on the cooktop).
• Identify the symptom or the part you need (burner not lighting, weak flame, broken grate, etc.).
• Use the parts diagram to match the part name to the correct position (front vs. rear, left vs. right).
• Cross-check the part ID/part number before ordering.
• If the cooktop was converted for LP or high altitude, verify the correct gas setup before selecting gas orifices.

Common GE cooktop parts that are easy to mix up

These parts can look similar across burners, so matching by diagram position matters:

What you are replacing	What it affects	Example part on this model
Burner base	Burner alignment and gas/air path	Cooktop burner base WB16X28656
Burner head	Flame pattern and ignition carryover	Cooktop burner head WB16X28764
Orifice spud	Gas flow size (NG/LP/high altitude dependent)	Orifice spud WB28X29397

Why it matters

Using the correct GE part number for ZGU36ESL1SS prevents fit issues (mounting holes, burner sizing, grate seating) and performance problems (uneven flame, delayed ignition, clicking). It also helps you avoid ordering a part that matches the look but not the burner position or gas configuration.

Quick safety check before you order

• Turn off power to the cooktop at the breaker before inspecting ignition parts.
• Shut off the gas supply valve before removing burner components.
• Let grates and burner parts cool completely.
• If you smell gas, do not operate the cooktop; shut off gas and ventilate the area.

Last updated: February 2026

For the GE ZGU36ESL1SS gas cooktop, we recommend ordering parts using your complete model number and matching the part to the correct diagram and description; if you need help confirming the right part or the part is temporarily unavailable, contact Sears PartsDirect support.

Fastest way to order the right part

• Confirm the full model number: ZGU36ESL1SS (use the rating label on the cooktop).
• Use the parts list and diagrams to match the exact part name and identifier.
• Compare what you see on the cooktop (burner style, grate style, knob position) to the diagram callouts.
• Use the ZGU36ESL1SS owner's manual for model-specific component identification and guidance.

Common parts customers order for this cooktop

What you’re fixing	Typical part involved	Example from this model’s parts
Burner won’t light or flame is uneven	Burner head/cap/base (cleaning or replacement)	Cooktop burner head WB16X28764
Clicking or ignition issues across burners	Ignition system component	Spark module WB13X30331
Grate movement or rattling	Grate bumper	Range surface burner grate bumper WB02X24790

Before you place the order (prevents returns)

• Verify whether you have natural gas or LP conversion installed; ordering the wrong orifice or kit causes poor flame.
• Check for visible wear, cracks, or corrosion on burner parts before replacing.
• For ignition problems, clean and dry burner components first; moisture and spills commonly cause misfires.
• If you’re troubleshooting ignition or wiring, follow the safety steps and diagrams in the installation guide.

Why it matters

Cooktop parts are highly model-specific; using ZGU36ESL1SS ensures you get the correct GE burner components, ignition parts, and hardware so the cooktop lights reliably and burns safely.

Last updated: March 2026

On the GE ZGU36ESL1SS gas cooktop, it’s normal for all igniters to click whenever any burner is turned on. If clicking continues after the burner lights, the knob may still be in LITE, the auto-reignition feature may be sensing a weak flame (often from drafts), or the electrode/burner parts may be wet, dirty, or misaligned (see the ZGU36ESL1SS owner’s manual).

Quick checks that stop most clicking

• Turn the knob out of LITE to your desired flame setting.
• If the flame is very low, raise it slightly; auto-reignition can keep sparking if the flame shifts off the sensor.
• Reduce drafts: turn down or redirect ventilation fans and avoid strong cross-breezes.
• Make sure burner parts are seated correctly and fully dry after cleaning.
• Wipe the metal tip of the electrode gently with a soft cloth; keep the white ceramic clean and dry.

Clean and re-seat the burner correctly

If the burner was recently cleaned or boiled over, reassemble it carefully:

• Place the burner head on the burner base and align the head opening with the electrode.
• Set the cap squarely on the burner head so it sits flat.
• Dry everything thoroughly before relighting.

Helpful model-matched parts if yours are damaged or warped:

• Cooktop burner base WB16X28656
• Cooktop burner head WB16X28764

What “normal” vs “not normal” sounds like

Situation	What you’ll notice	What to do
Normal ignition	Clicking while lighting	Release from LITE after flame appears
Drafty/low flame	Clicking returns at low setting	Reduce drafts, increase flame slightly
Wet/dirty electrode or mis-seated parts	Clicking persists after lighting	Dry, clean, re-seat cap/head/base

Why it matters

Continuous sparking can indicate the cooktop is trying to re-ignite a flame or the ignition system is being triggered by moisture, soil, or misalignment. Fixing the cause helps the burner light reliably and reduces wear on ignition components.

Last updated: February 2026
