Model # 358791820 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 358791820 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

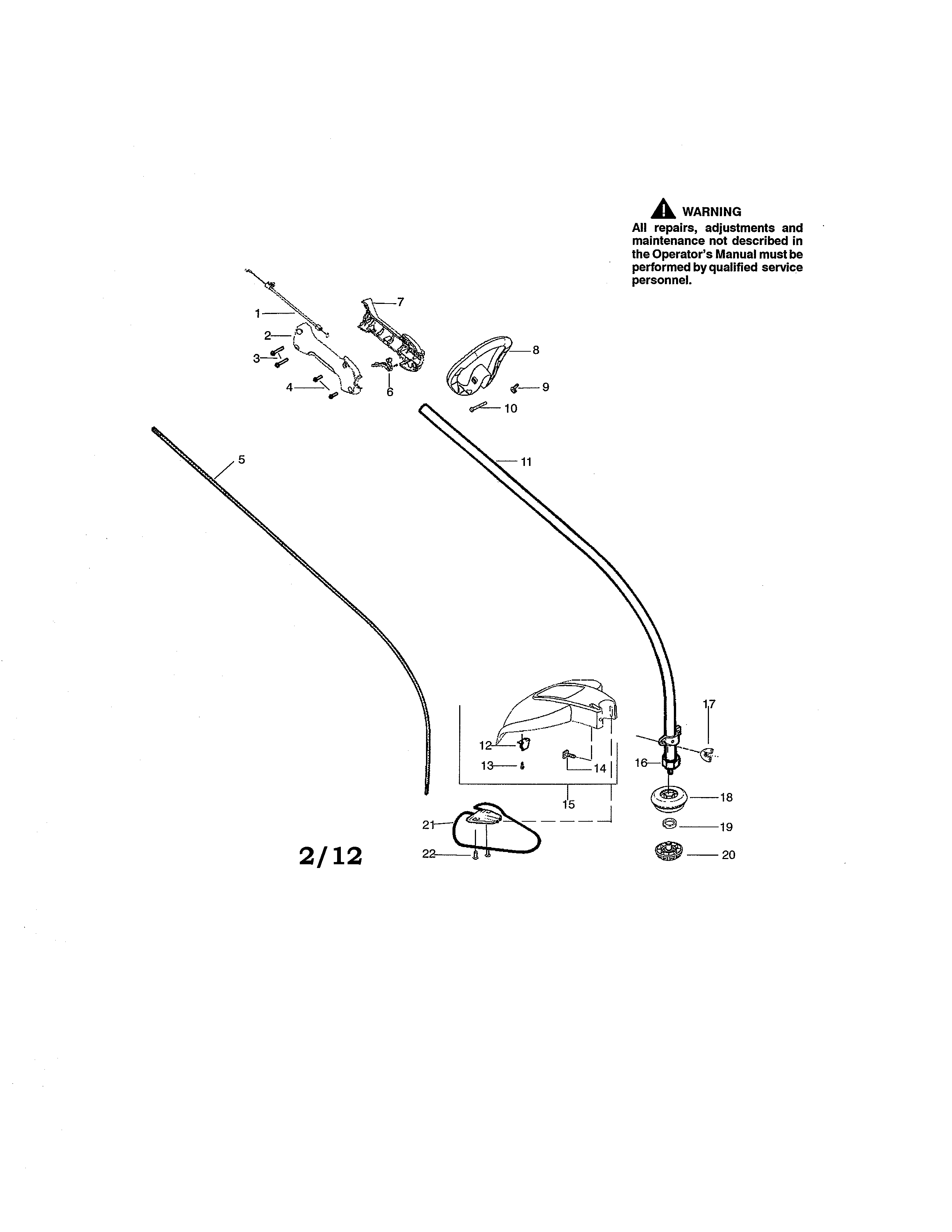

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#54

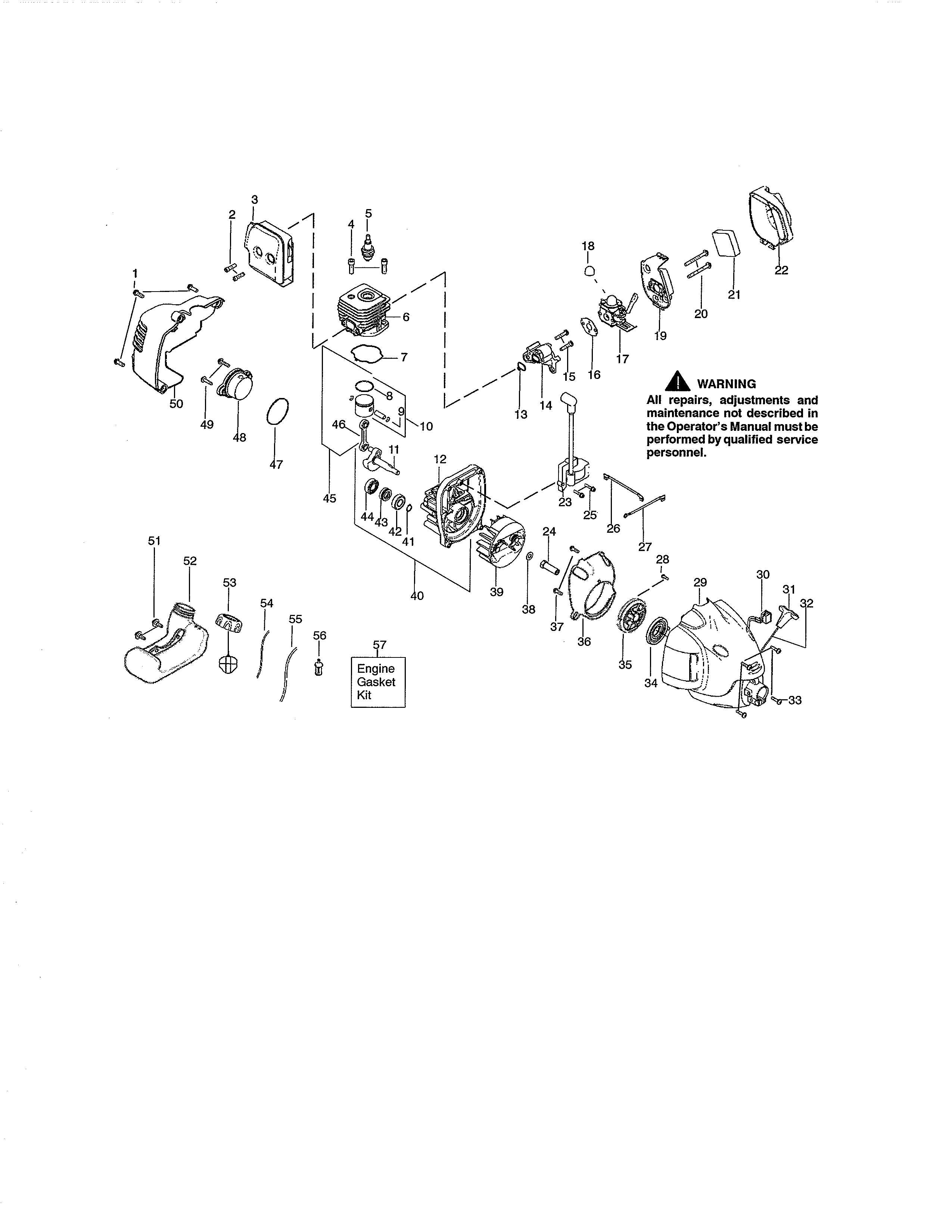

Cylinder/fuel tank/muffler diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
This item is not returnable
$6.36
14% OFF Phone Price : $7.36
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#55

Cylinder/fuel tank/muffler diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
This item is not returnable
$6.22
14% OFF Phone Price : $7.22
In Stock
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#56

Cylinder/fuel tank/muffler diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
This item is not returnable
$4.92
17% OFF Phone Price : $5.92
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces 5300365-75, 530-036575) 530036575
#21

Cylinder/fuel tank/muffler diagram

Lawn & garden equipment engine air filter (replaces 5300365-75, 530-036575)

Part #530036575

BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Line Trimmer Carburetor 530071811
#17

Cylinder/fuel tank/muffler diagram

Line trimmer carburetor

Part #530071811

BEST SELLER
$39.89
11% OFF Phone Price : $44.89
In Stock
Piston Ring 530055120
#8

Cylinder/fuel tank/muffler diagram

Piston ring

Part #530055120

Replaced by #545154001

?
Manufacturer substitution
This part replaces 530055120. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09
24% OFF Phone Price : $4.09
Back Order
Start Spring 545054901
#34

Cylinder/fuel tank/muffler diagram

Start spring

Part #545054901

Replaced by #545008014

?
Manufacturer substitution
This part replaces 545054901. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Lawn & Garden Equipment Screw 530015814
Lawn & garden equipment screw

Part #530015814

Replaced by #503210619

?
Manufacturer substitution
This part replaces 530015814. Substitute parts can look different from the original.
This item is not returnable
$2.80
26% OFF Phone Price : $3.80
In Stock
Piston Kit 530071357
#10

Cylinder/fuel tank/muffler diagram

Piston kit

Part #530071357

Replaced by #530071833

?
Manufacturer substitution
This part replaces 530071357. Substitute parts can look different from the original.
$24.19
17% OFF Phone Price : $29.19
In Stock
Lawn & Garden Equipment Screw 530016386
Lawn & garden equipment screw

Part #530016386

This item is not returnable
In Stock
