Model # GTAP2000M0WW Official GE washer

Here are the diagrams and repair parts for Official GE GTAP2000M0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |

Split Ring WH02X1195
#313

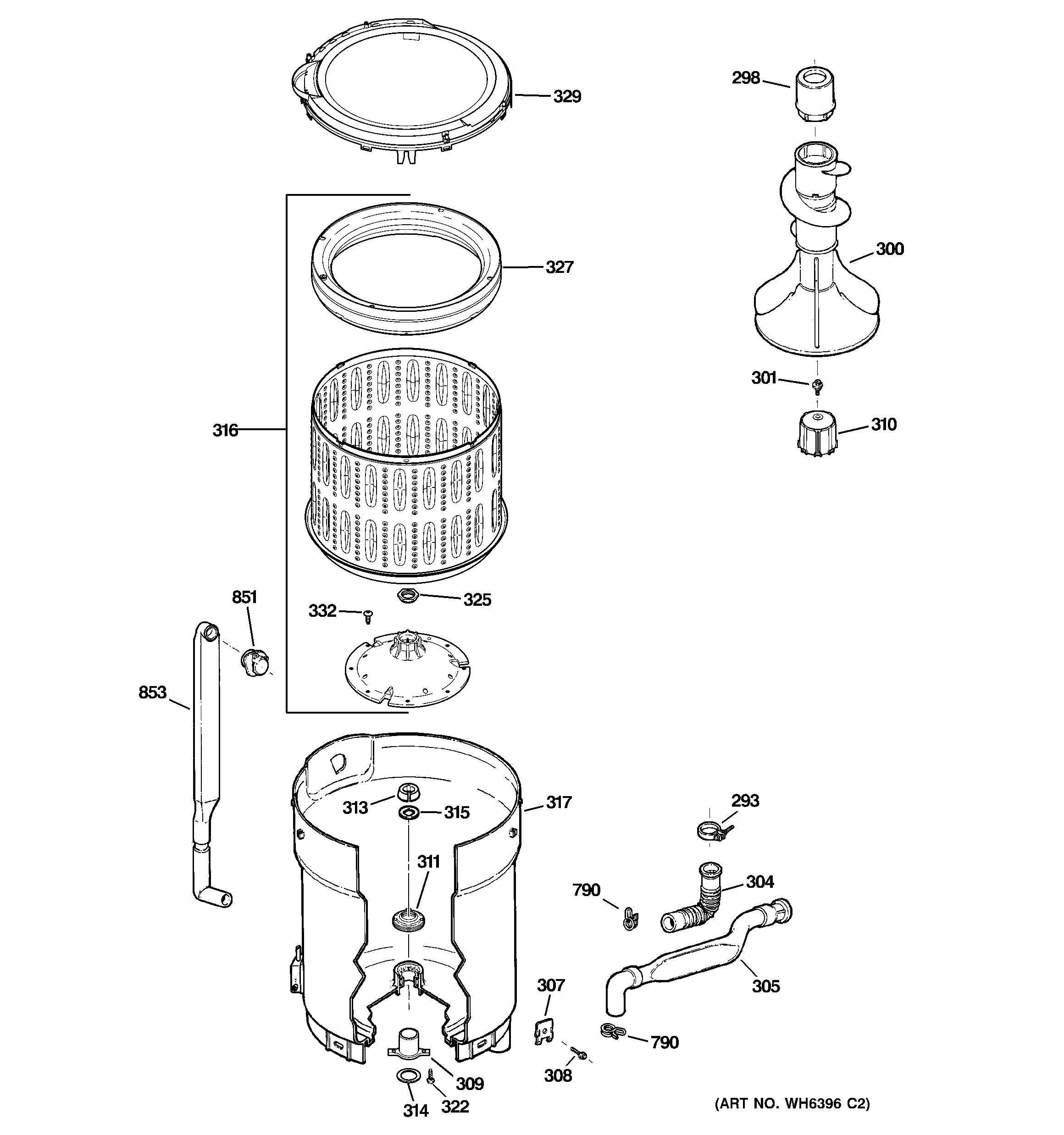

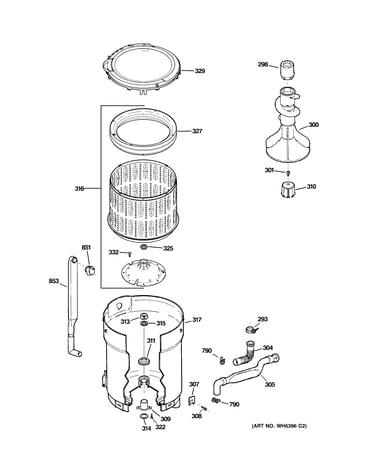

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.54
15% OFF Phone Price : $6.54
In Stock
Washer Agitator (replaces Wh43x25442) WH43X10034
#300

Tub, basket & agitator diagram

Washer agitator (replaces wh43x25442)

Part #WH43X10034

BEST SELLER
$57.83
8% OFF Phone Price : $62.83
In Stock
Washer Timer WH12X10478
#100

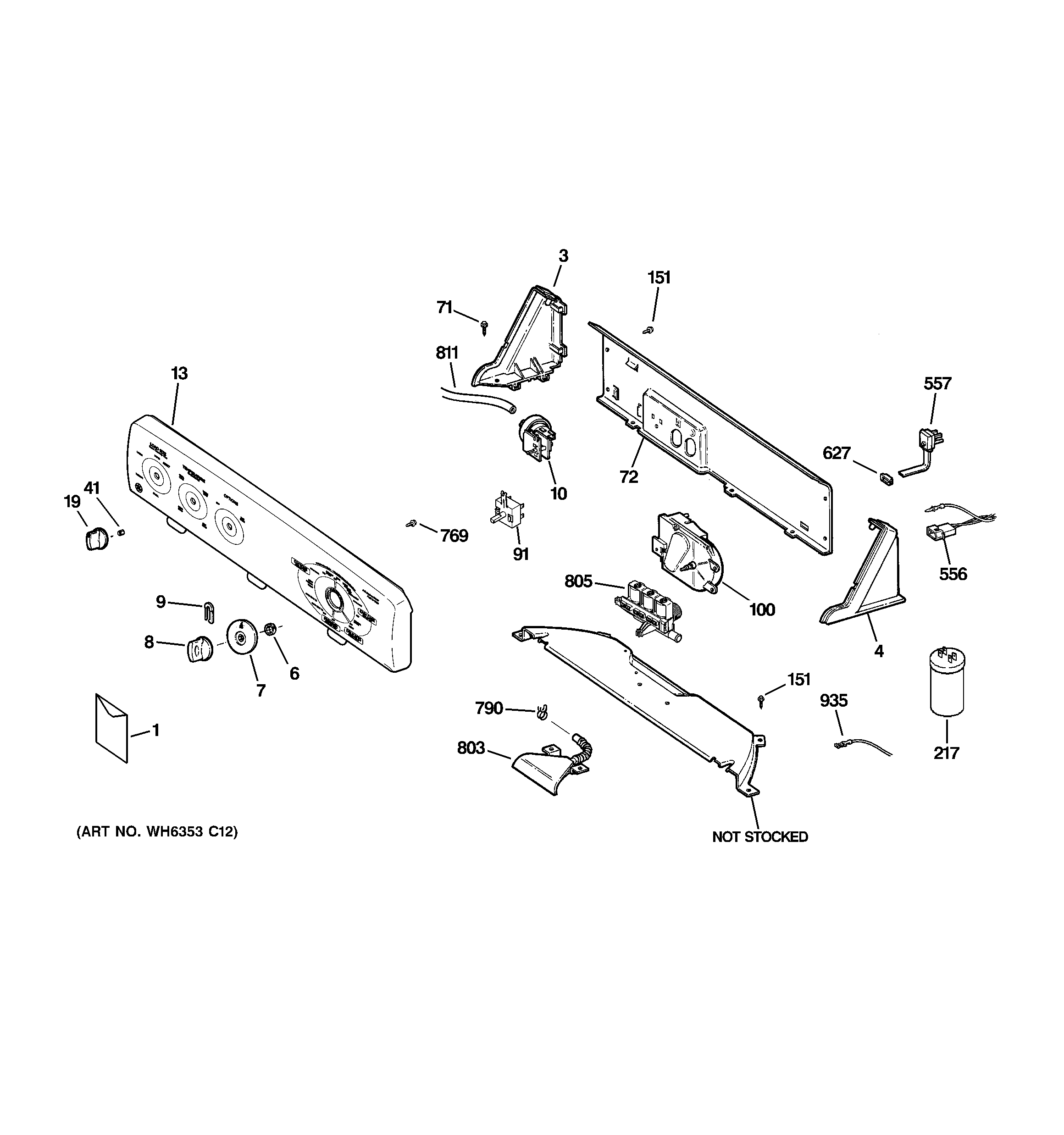

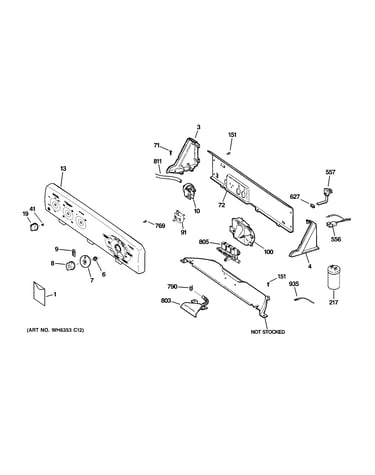

Controls & backsplash diagram

Washer timer

Part #WH12X10478

BEST SELLER
$84.60
6% OFF Phone Price : $89.60
In Stock
Washer Timer Knob (replaces Wh01x10061) WH01X10310
#8

Controls & backsplash diagram

Washer timer knob (replaces wh01x10061)

Part #WH01X10310

BEST SELLER
$7.37
12% OFF Phone Price : $8.37
In Stock
Washer/dryer Control Knob And Clip WH01X10460
#19

Controls & backsplash diagram

Washer/dryer control knob and clip

Part #WH01X10460

Replaced by #WE01X20378

?
Manufacturer substitution
This part replaces WH01X10460. Substitute parts can look different from the original.
BEST SELLER
$30.33
14% OFF Phone Price : $35.33
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.54
15% OFF Phone Price : $6.54
In Stock
Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$49.30
9% OFF Phone Price : $54.30
In Stock
Belt WH01X2026
#603

Suspension, pump & drive components diagram

Belt

Part #WH01X2026

Replaced by #WH1X2026

?
Manufacturer substitution
This part replaces WH01X2026. Substitute parts can look different from the original.
$7.73
11% OFF Phone Price : $8.73
In Stock
Washer Water Inlet Valve WH13X10048
#805

Controls & backsplash diagram

Washer water inlet valve

Part #WH13X10048

Replaced by #WH13X23974

?
Manufacturer substitution
This part replaces WH13X10048. Substitute parts can look different from the original.
$44.09
10% OFF Phone Price : $49.09
In Stock
Lid Switch WH12X10275
#388

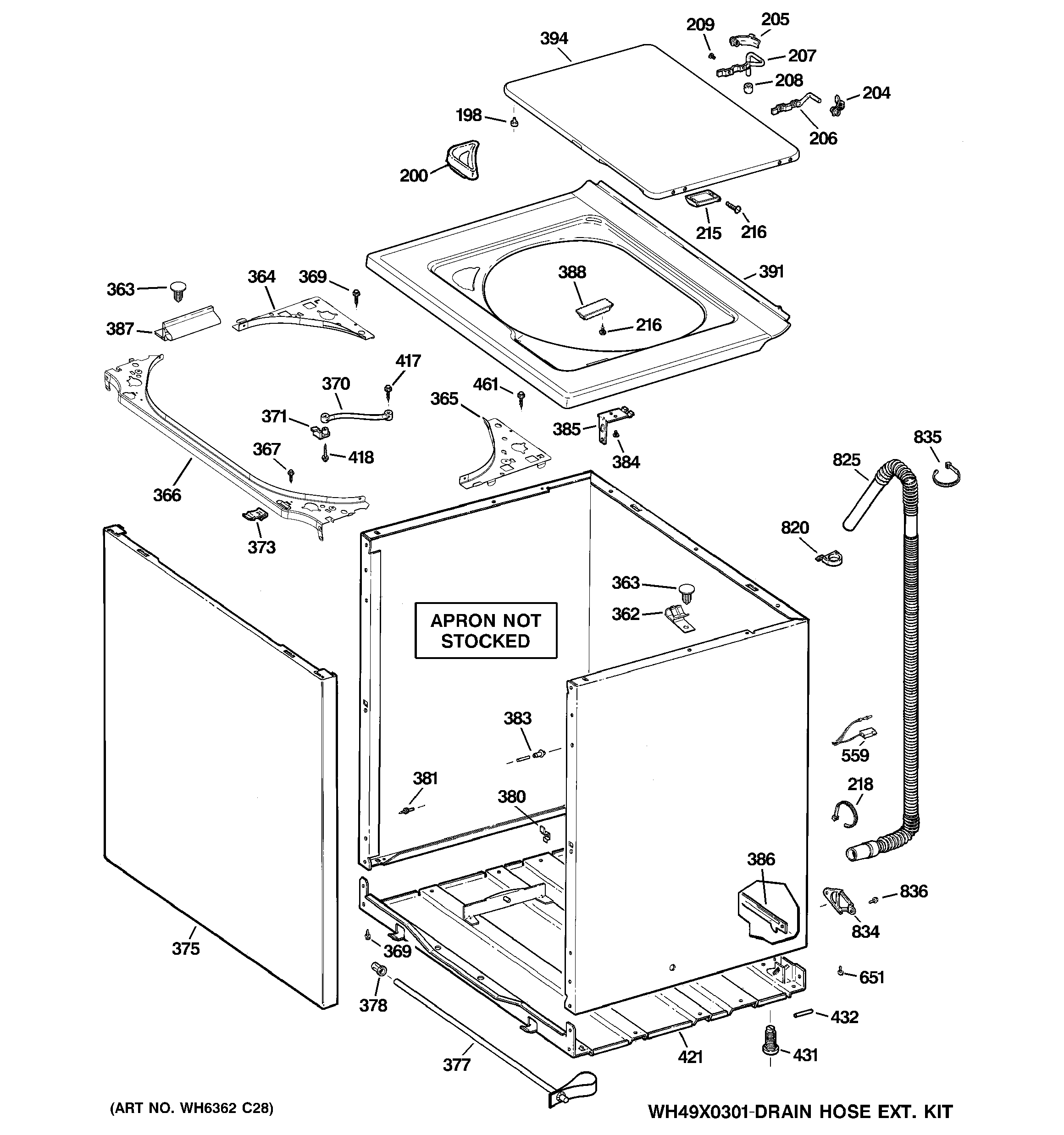

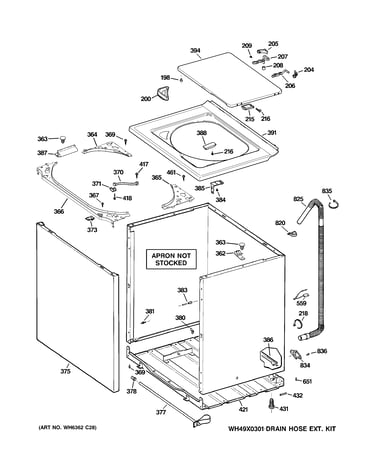

Cabinet, cover & front panel diagram

Lid switch

Part #WH12X10275

Replaced by #WH12X10531

?
Manufacturer substitution
This part replaces WH12X10275. Substitute parts can look different from the original.
$23.33
18% OFF Phone Price : $28.33
In Stock
