Model # UH70603 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover UH70603 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Vacuum Light Bulb 27313107
#18

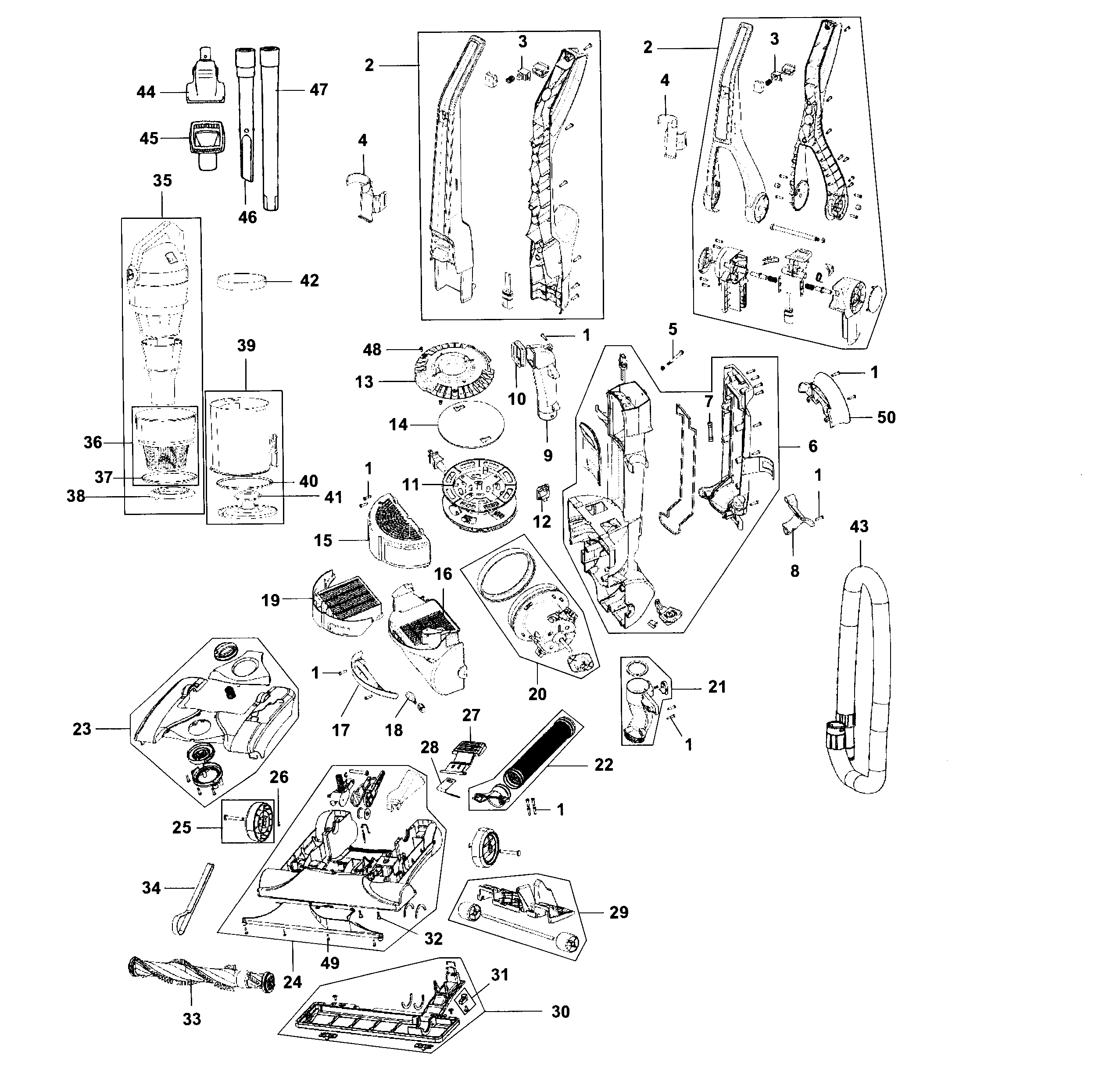

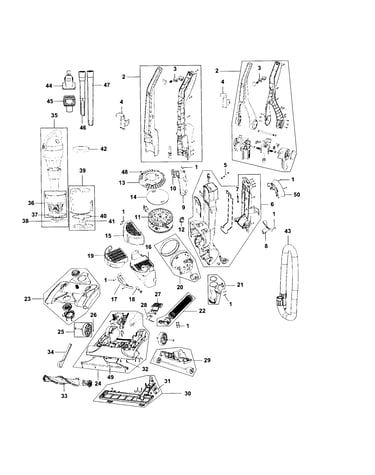

Main assy diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 522553001
#13

Main assy diagram

Fan cover

Part #522553001

The manufacturer no longer makes this part, and there's no substitute part

Fuse Wire 290467001
#7

Main assy diagram

Fuse wire

Part #290467001

The manufacturer no longer makes this part, and there's no substitute part

Tool Clip 521025001
#4

Main assy diagram

Tool clip

Part #521025001

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 961151028
#NI

Main assy diagram

Owner's manual

Part #961151028

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt, 2-pack AH20065
#34A

Main assy diagram

Vacuum beater bar belt, 2-pack

Part #AH20065

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 304079001
#43

Main assy diagram

Vacuum hose assembly

Part #304079001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle Assembly 440002859
#24A

Main assy diagram

Vacuum nozzle assembly

Part #440002859

The manufacturer no longer makes this part, and there's no substitute part

Cord Cover 522743001
#15

Main assy diagram

Cord cover

Part #522743001

The manufacturer no longer makes this part, and there's no substitute part

Hose Wrap 521088001
#8

Main assy diagram

Hose wrap

Part #521088001

The manufacturer no longer makes this part, and there's no substitute part
