Kenmore
Microwave/Hood Combo

Model # 79089393510 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 79089393510 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

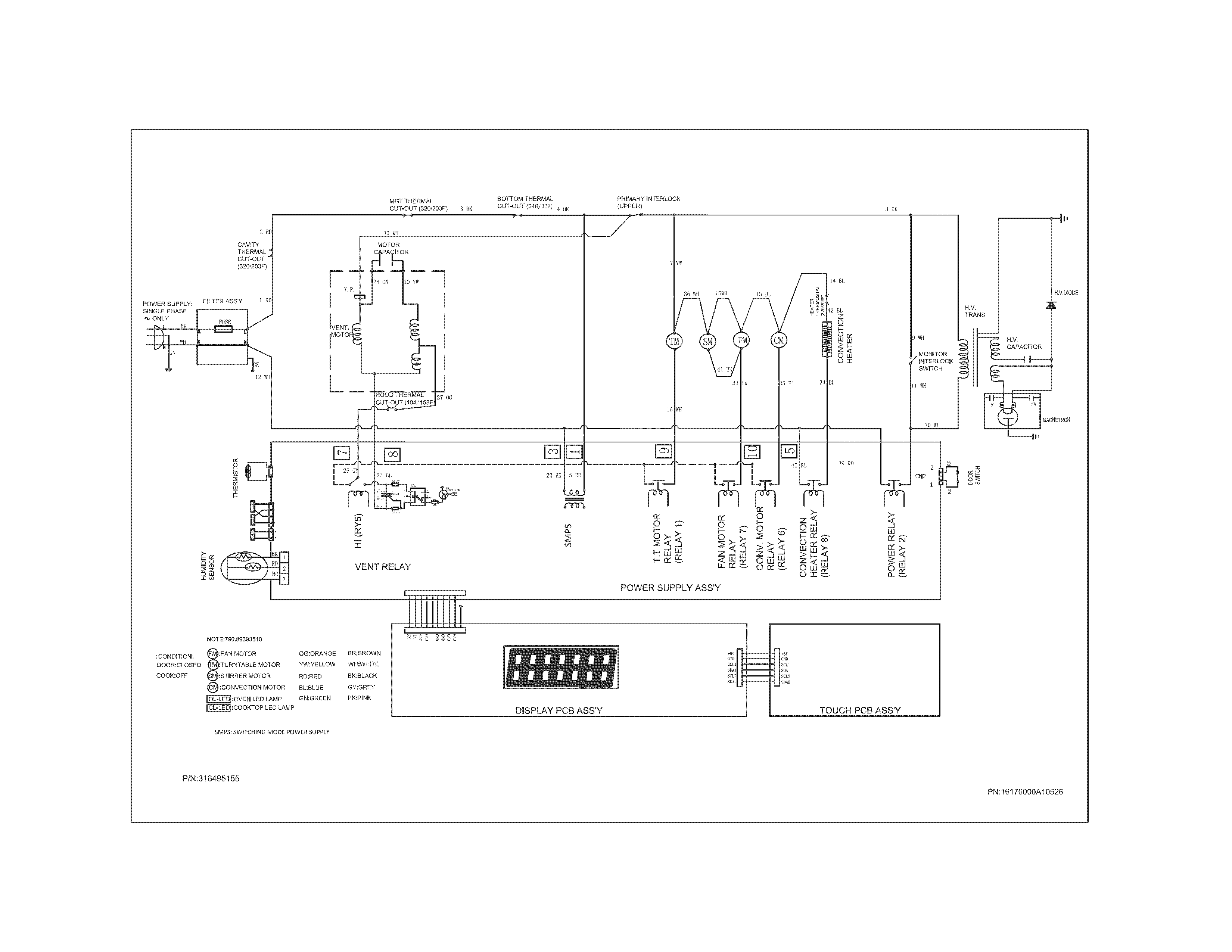

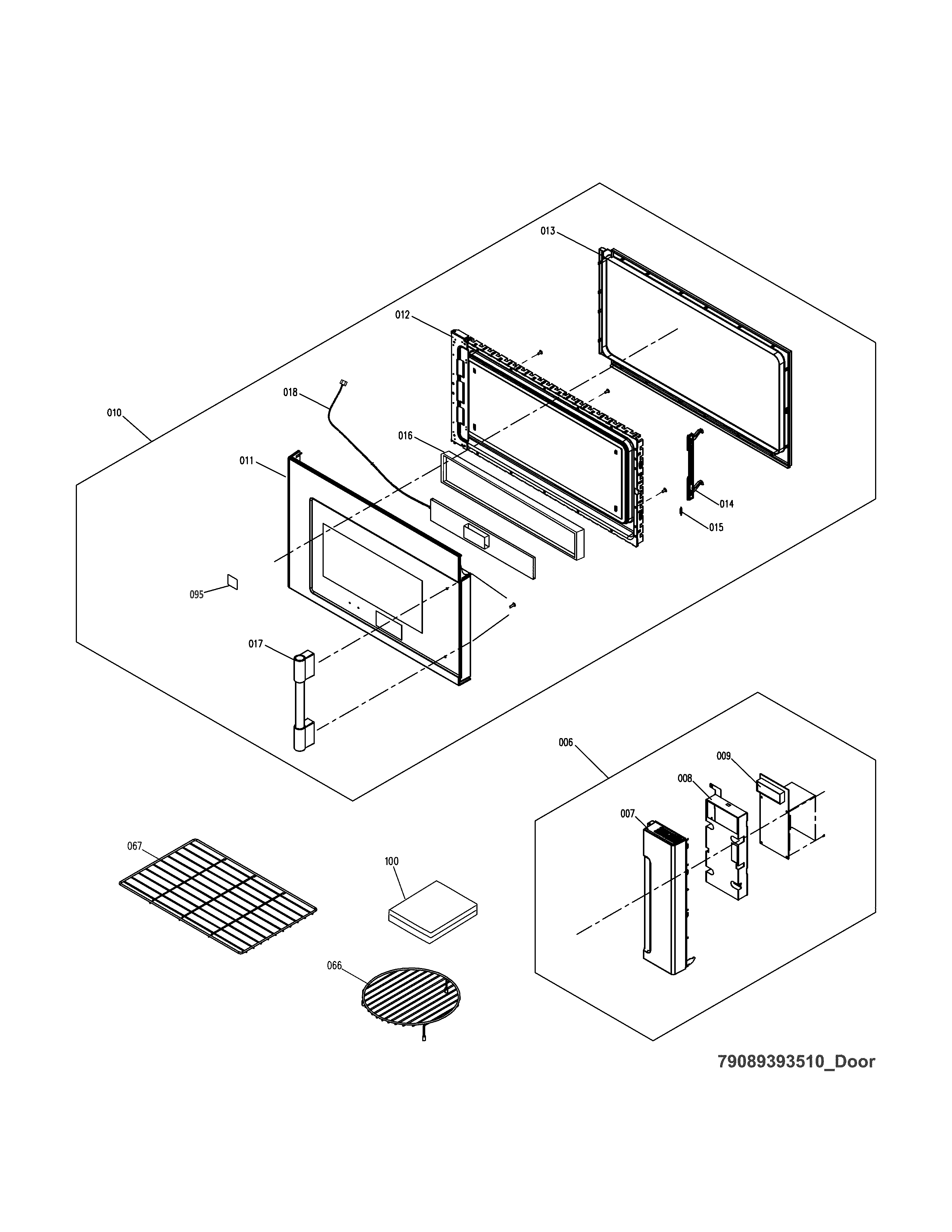

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |

Microwave Waveguide Cover 5304464061
#2

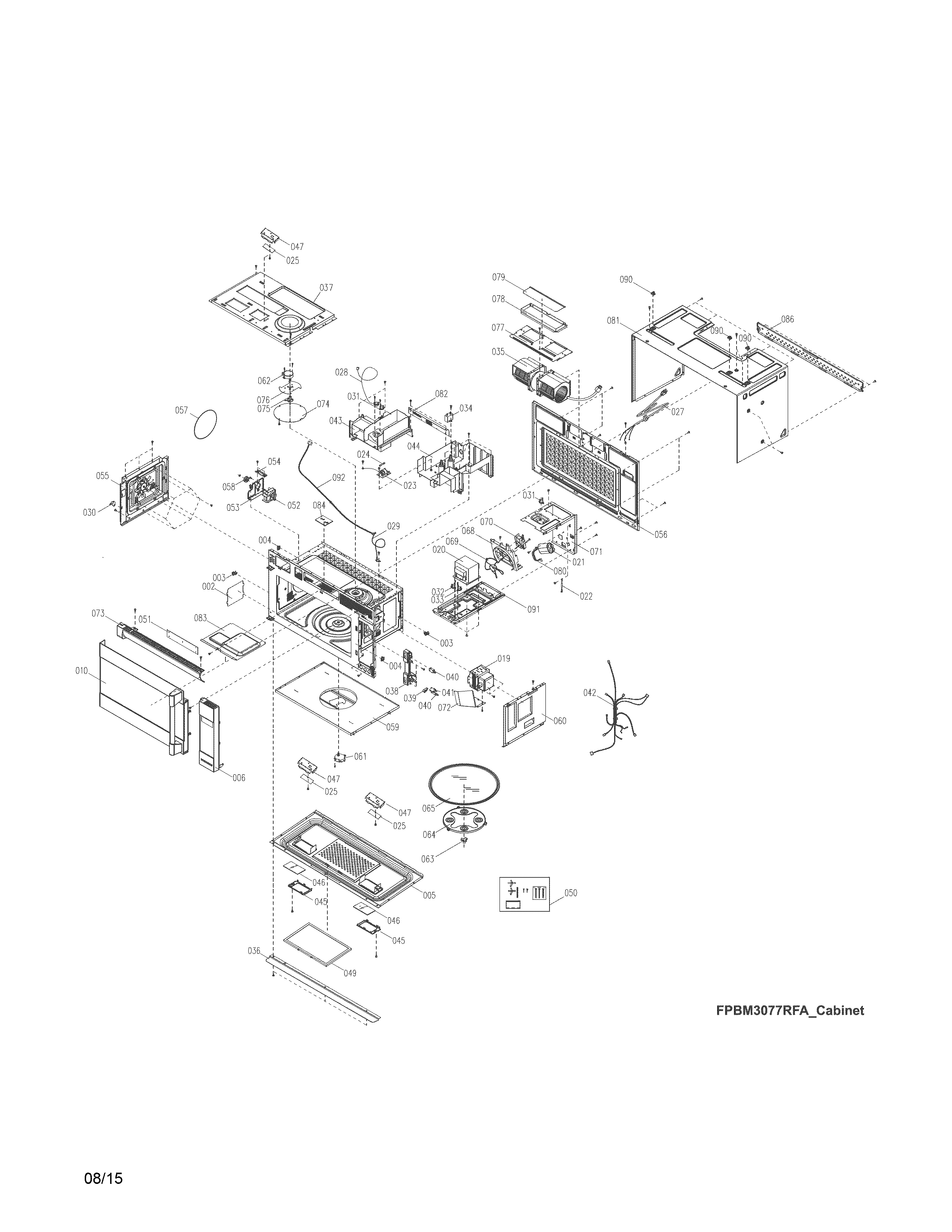

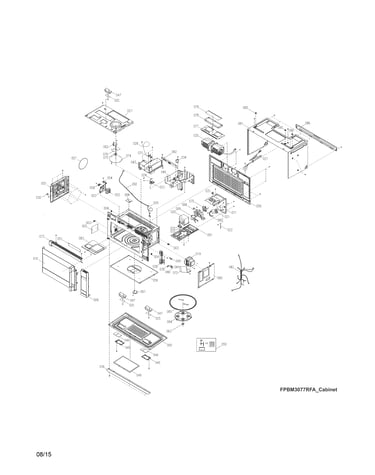

Oven,cabinet diagram

Microwave waveguide cover

Part #5304464061

Replaced by #5304509435

?
Manufacturer substitution
This part replaces 5304464061. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.89
12% OFF Phone Price : $16.89
In Stock
Microwave Door Switch 5304464098
#41

Oven,cabinet diagram

Microwave door switch

Part #5304464098

Replaced by #5304509459

?
Manufacturer substitution
This part replaces 5304464098. Substitute parts can look different from the original.
BEST SELLER
$40.14
11% OFF Phone Price : $45.14
In Stock
Microwave Mounting Plate, Rear 5304488426
#86

Oven,cabinet diagram

Microwave mounting plate, rear

Part #5304488426

BEST SELLER
$41.41
11% OFF Phone Price : $46.41
In Stock
Microwave Vent Damper Door 5304464119
#79

Oven,cabinet diagram

Microwave vent damper door

Part #5304464119

Replaced by #5304509486

?
Manufacturer substitution
This part replaces 5304464119. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$28.05
15% OFF Phone Price : $33.05
In Stock
Microwave Latch Body 5304499580
#38

Oven,cabinet diagram

Microwave latch body

Part #5304499580

Replaced by #5304509457

?
Manufacturer substitution
This part replaces 5304499580. Substitute parts can look different from the original.
BEST SELLER
$48.02
9% OFF MSRP : $53.00
In Stock
Microwave Turntable Motor 5304464113
#61

Oven,cabinet diagram

Microwave turntable motor

Part #5304464113

BEST SELLER
$66.79
7% OFF Phone Price : $71.79
In Stock
Microwave Turntable Motor Coupler 5304499600
#63

Oven,cabinet diagram

Microwave turntable motor coupler

Part #5304499600

Replaced by #5304513472

?
Manufacturer substitution
This part replaces 5304499600. Substitute parts can look different from the original.
$19.99
9% OFF Phone Price : $21.99
In Stock
Microwave/hood Switch 5304464097
#39

Oven,cabinet diagram

Microwave/hood switch

Part #5304464097

Replaced by #5304509458

?
Manufacturer substitution
This part replaces 5304464097. Substitute parts can look different from the original.
This item is not returnable
$6.84
43% OFF MSRP : $12.00
In Stock
Microwave Door Interlock Switch 5304464099
#40

Oven,cabinet diagram

Microwave door interlock switch

Part #5304464099

$43.98
10% OFF Phone Price : $48.98
In Stock
Thermostat 5304464093
#32

Oven,cabinet diagram

Thermostat

Part #5304464093

Replaced by #5304509474

?
Manufacturer substitution
This part replaces 5304464093. Substitute parts can look different from the original.
$19.99
9% OFF Phone Price : $21.99
In Stock
