Hotpoint
Side-By-Side Refrigerator

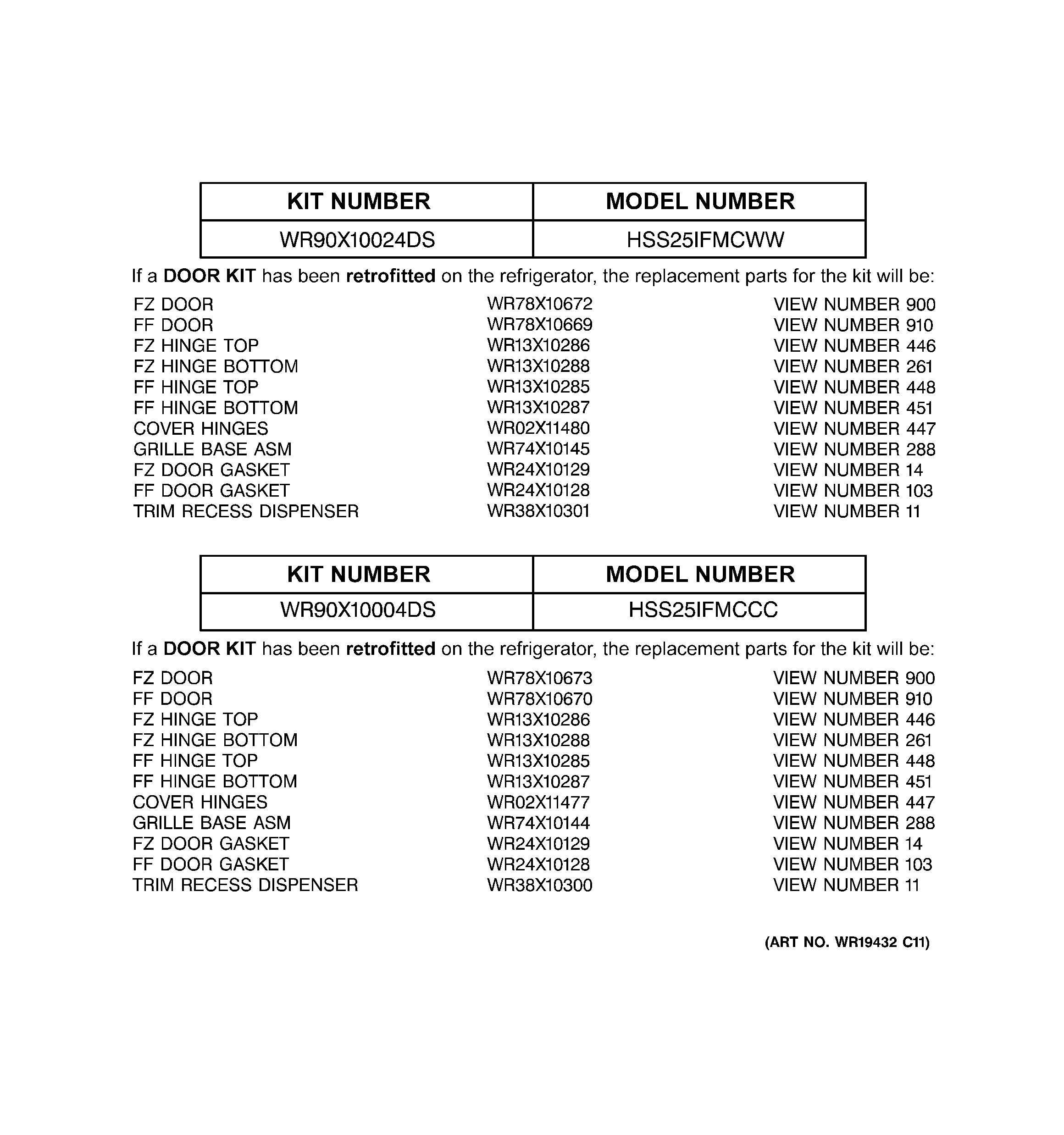

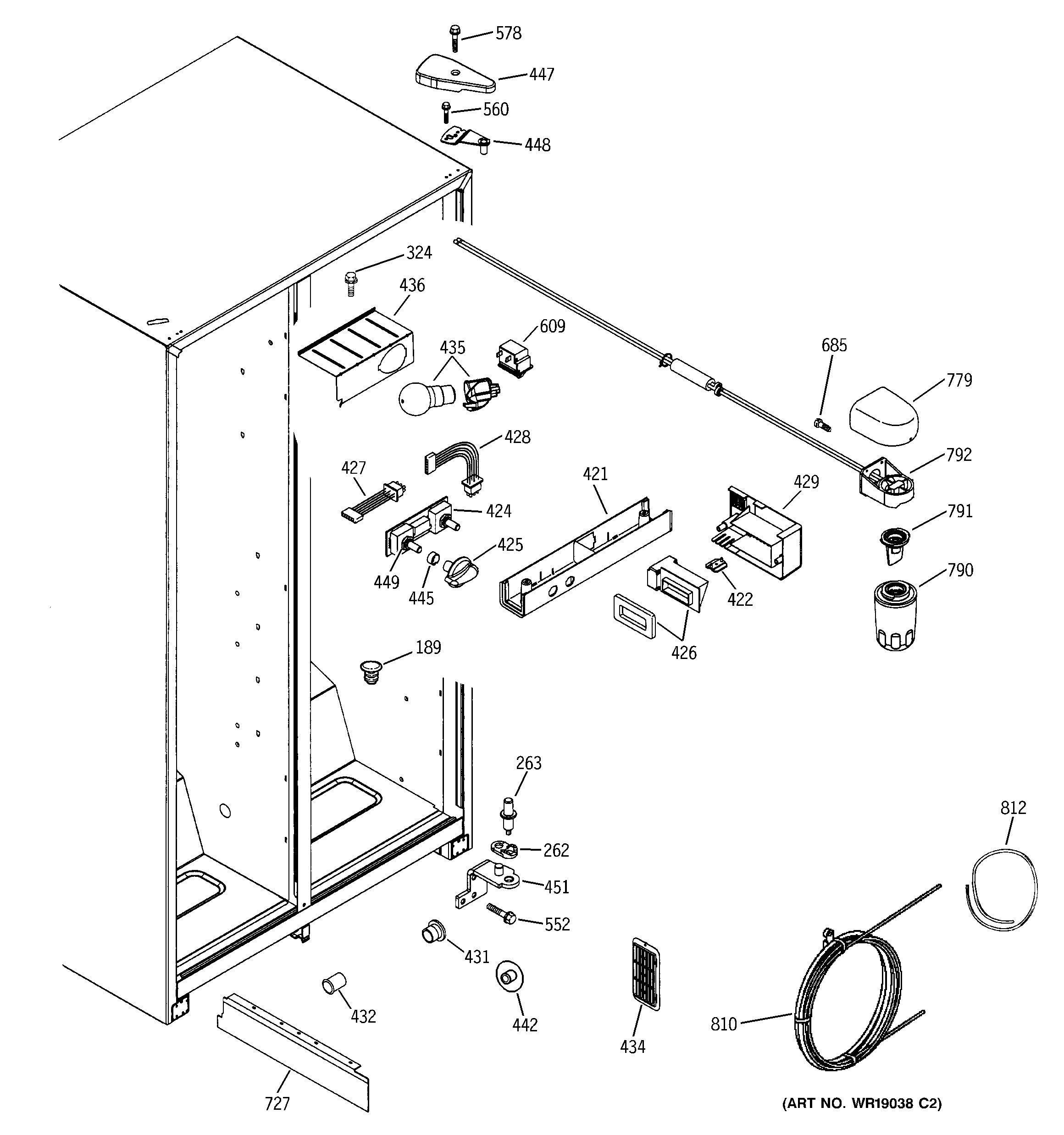

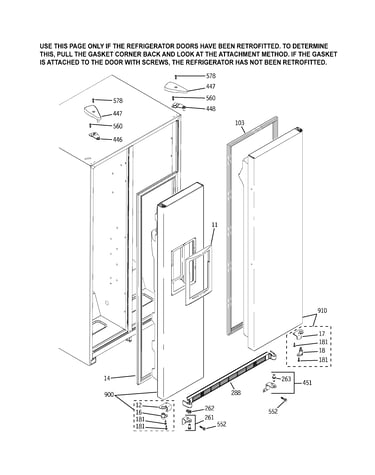

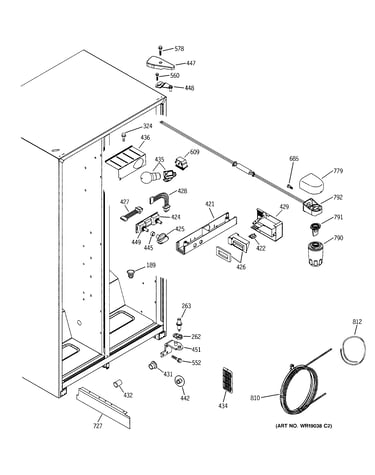

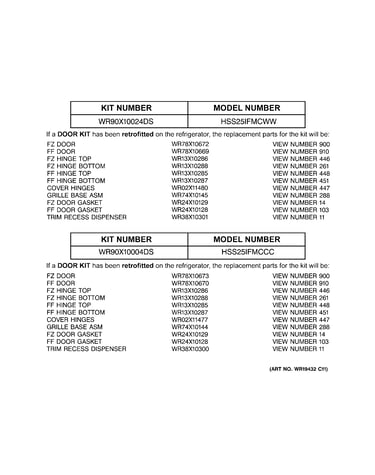

Model #HSS25IFMCCC Hotpoint refrigerator

Here are the diagrams and repair parts for Hotpoint HSS25IFMCCC refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 278 parts

    Refrigerator Defrost Heater

    #230

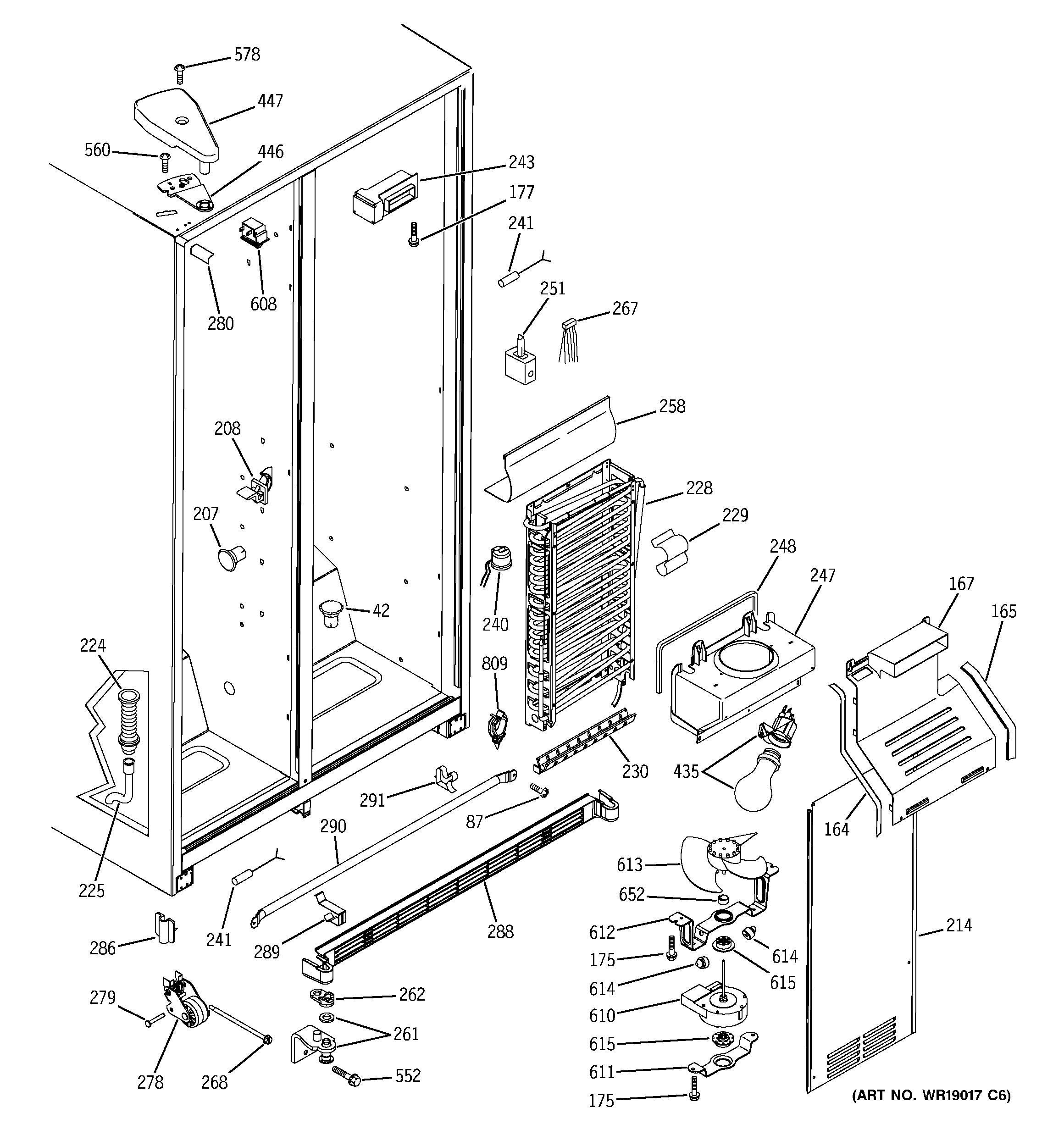

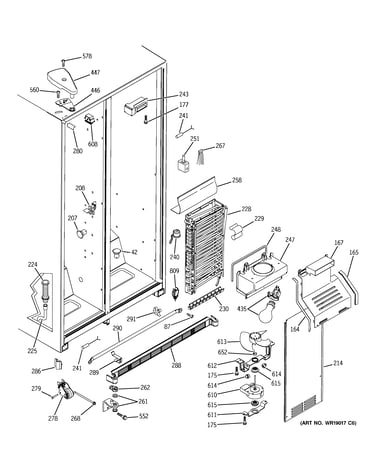

    Freezer section Diagram

    $45.09

    In Stock

    Refrigerator Dispenser Lever Spring

    #63

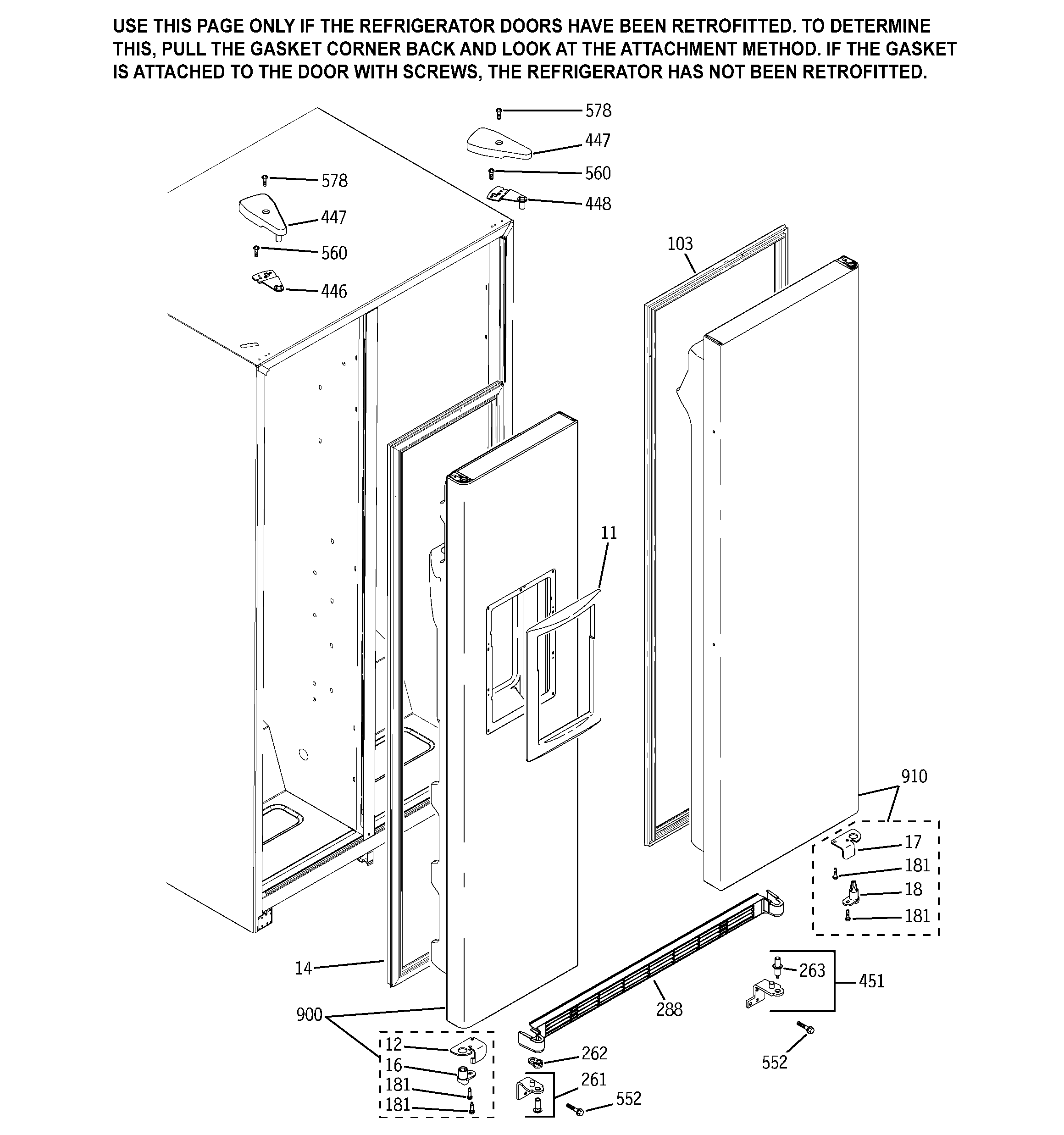

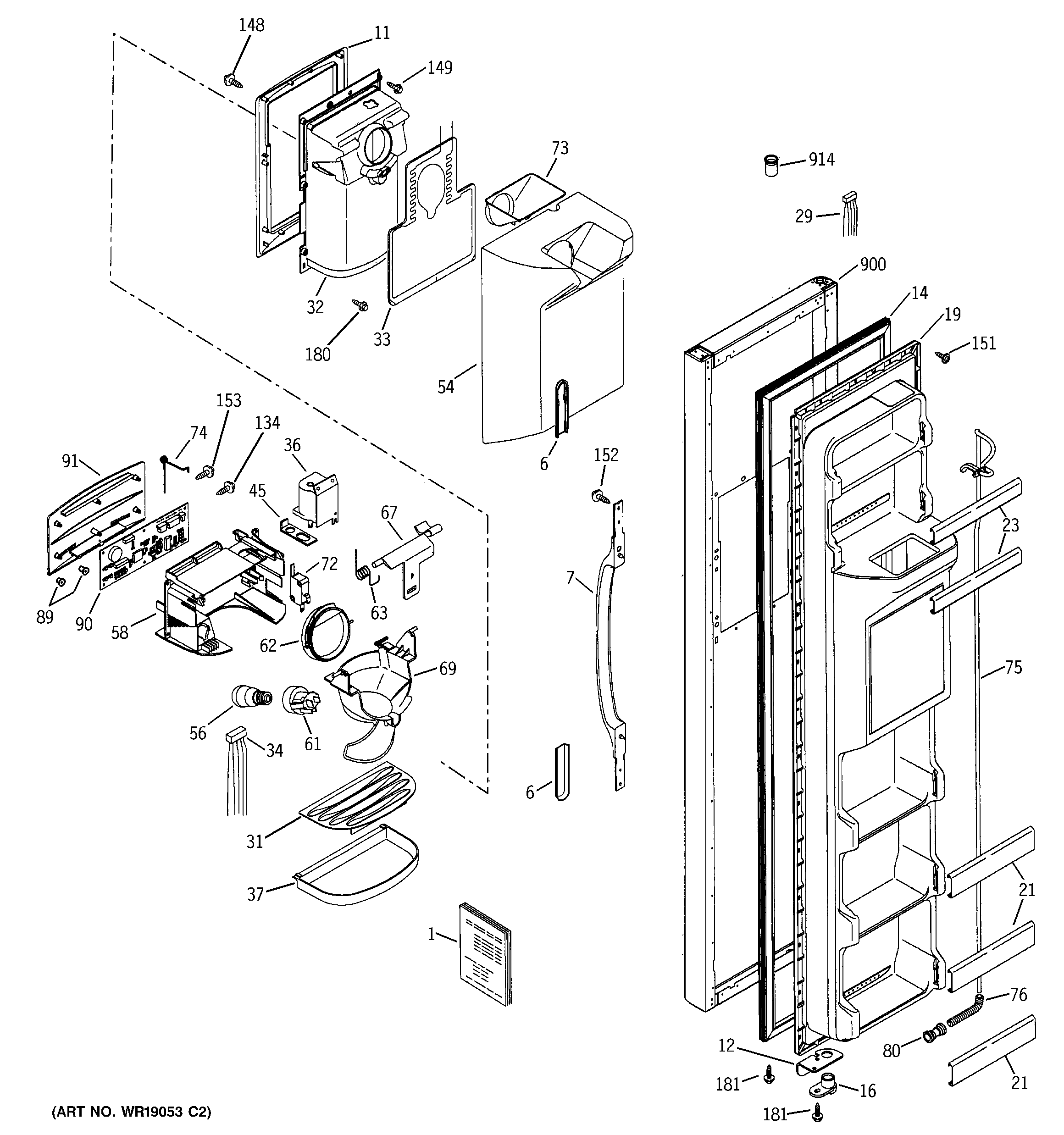

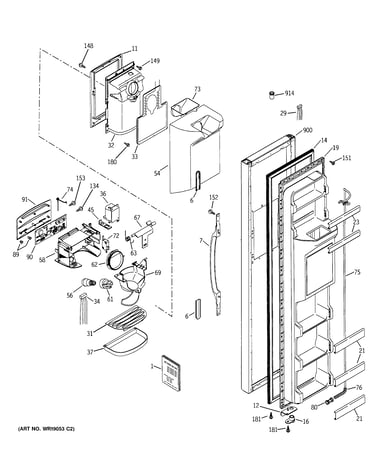

    Freezer door Diagram

    $7.59

    In Stock

    Refrigerator Water Inlet Valve Assembly

    #800

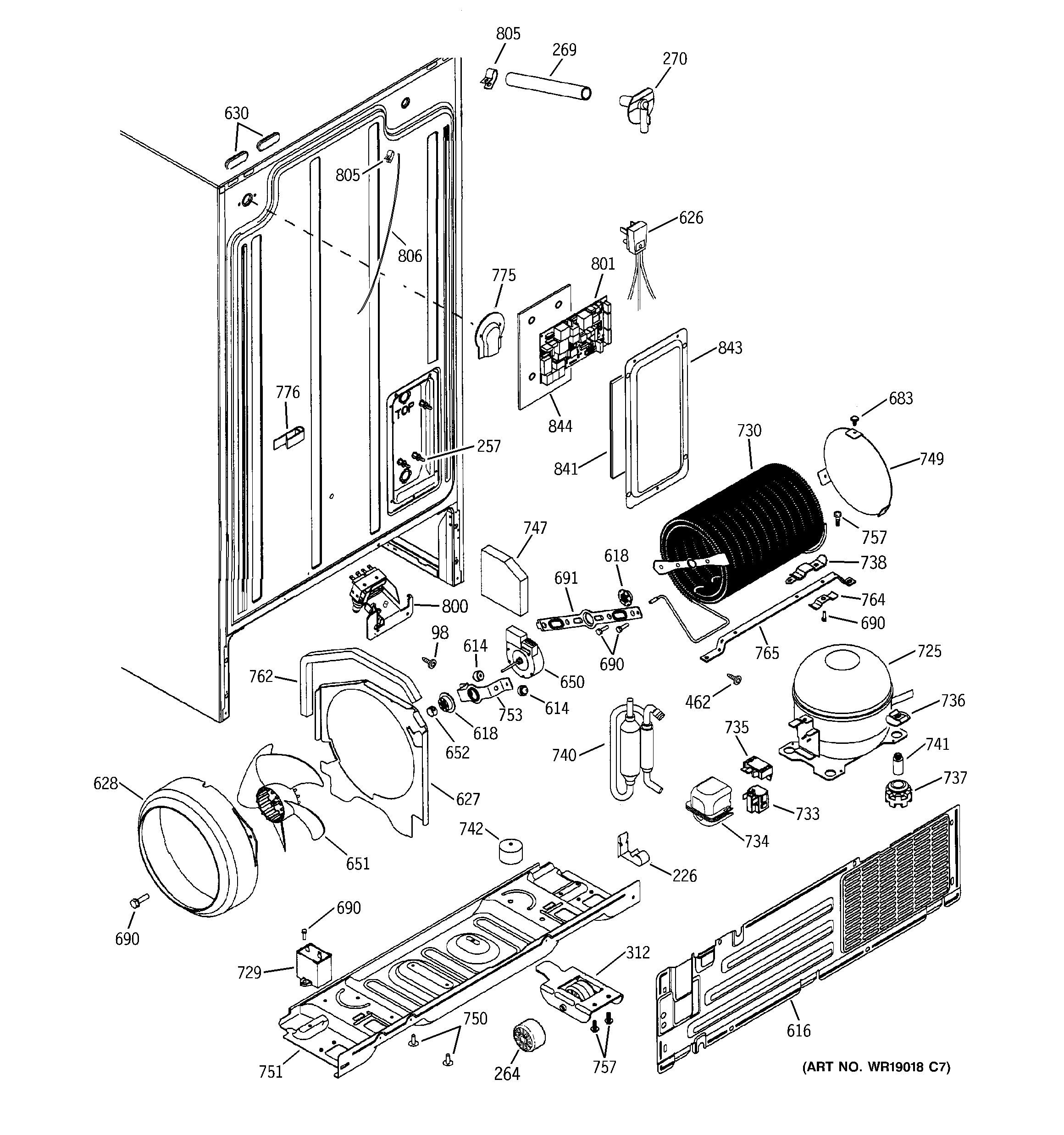

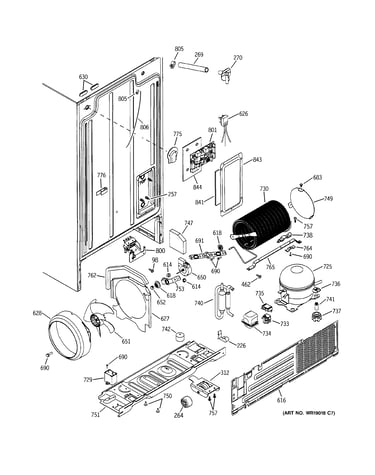

    Sealed system & mother board Diagram

    $51.99

    In Stock

    Refrigerator Dairy Bin Cover

    #106

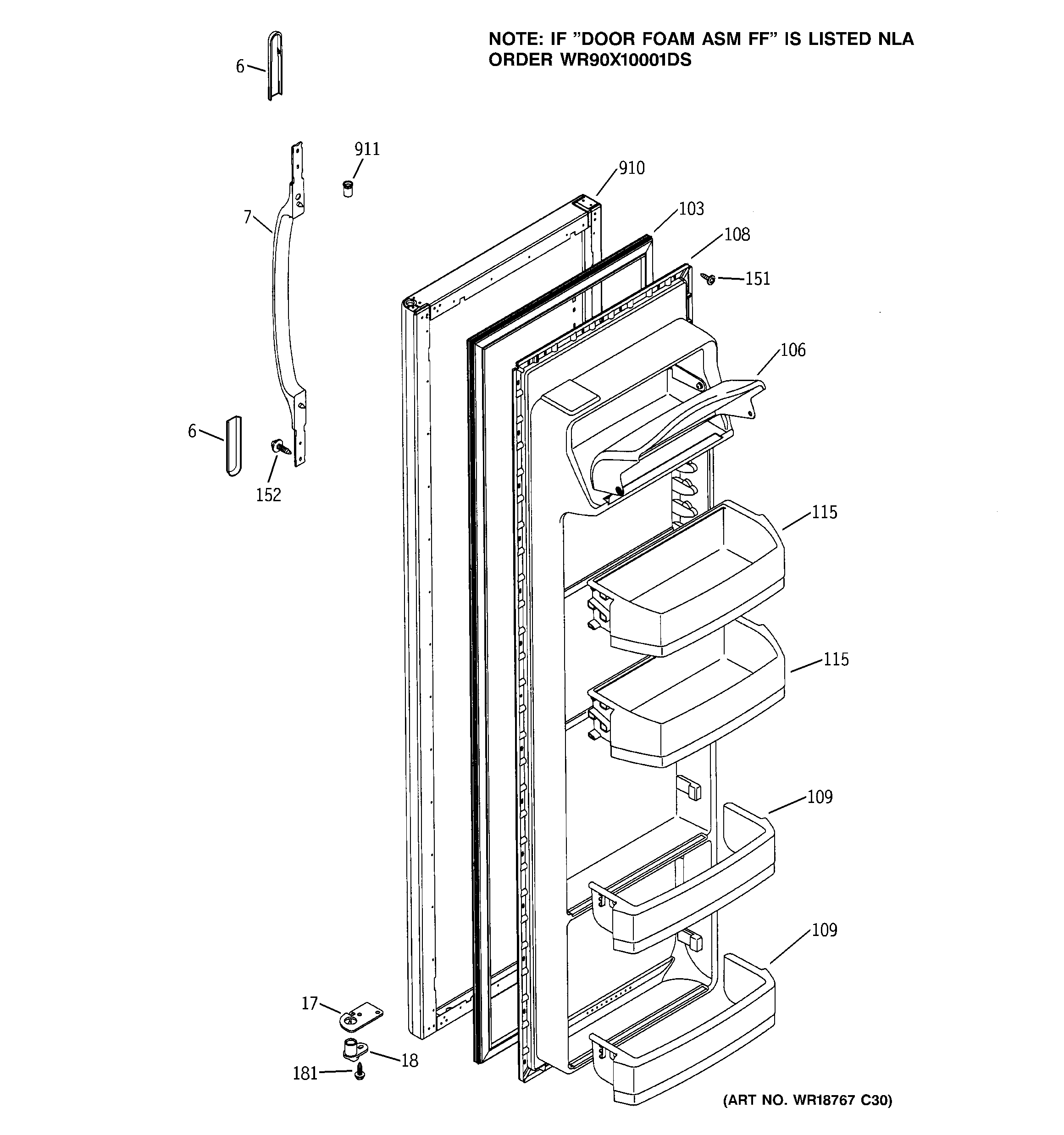

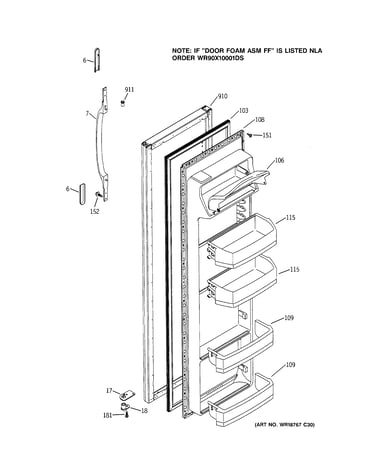

    Fresh food door Diagram

    $15.99

    In Stock

    Refrigerator Crisper Pan Rail Slide Bearing

    #468

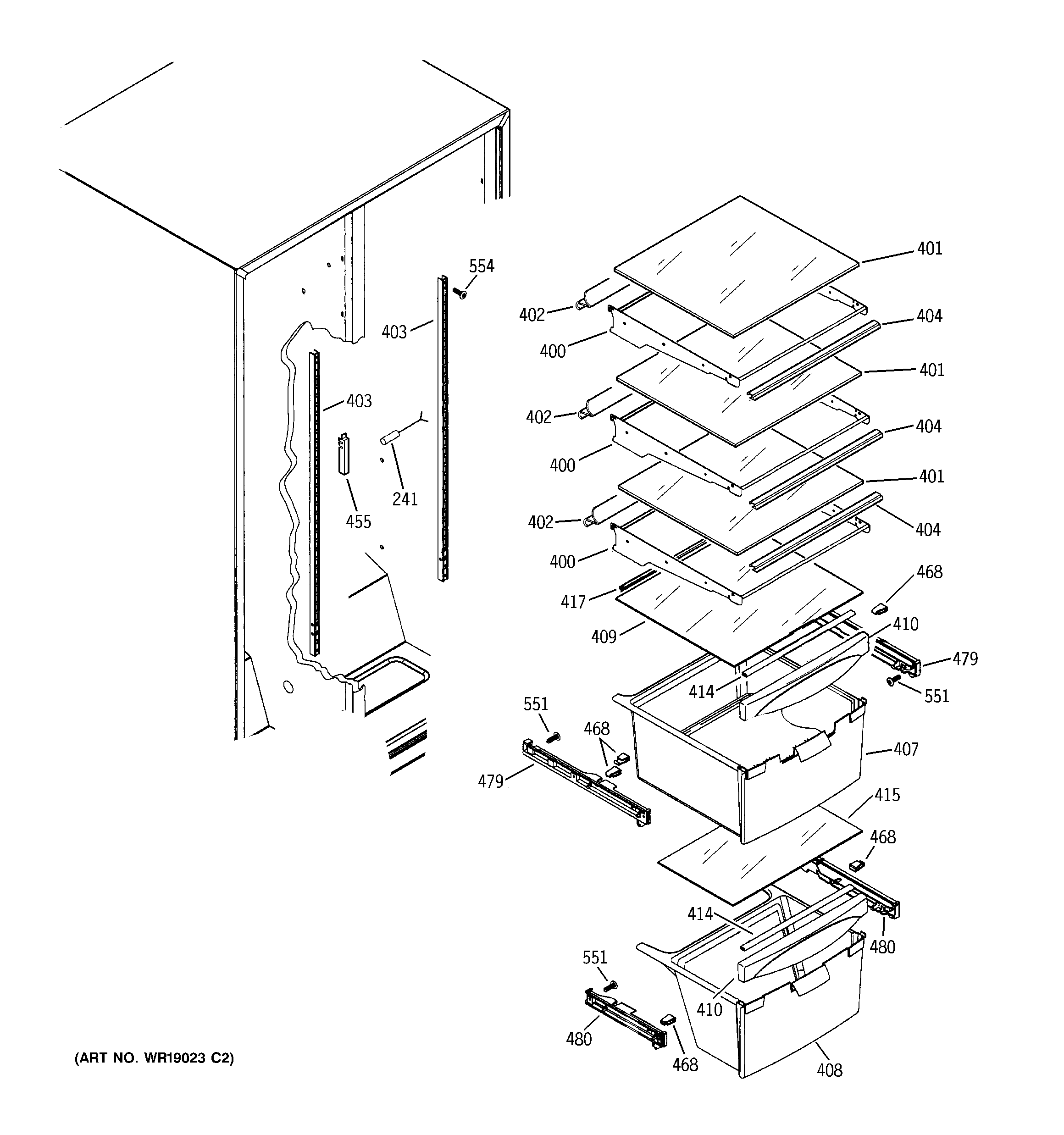

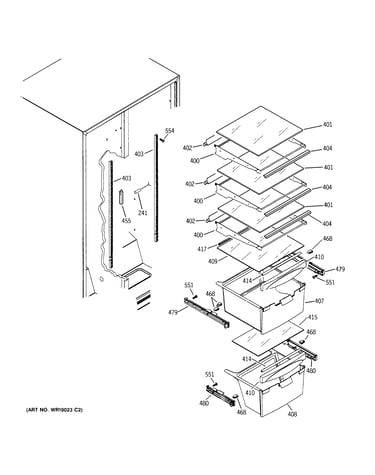

    Fresh food shelves Diagram

    Refrigerator crisper pan rail slide bearing

    Part #WR01X2048
    This item is not returnable
    $6.59

    In Stock

    Refrigerator Evaporator Fan Motor Grommet

    #615

    Freezer section Diagram

    Refrigerator evaporator fan motor grommet

    Part #WR02X10519
    This item is not returnable
    $3.19

    In Stock

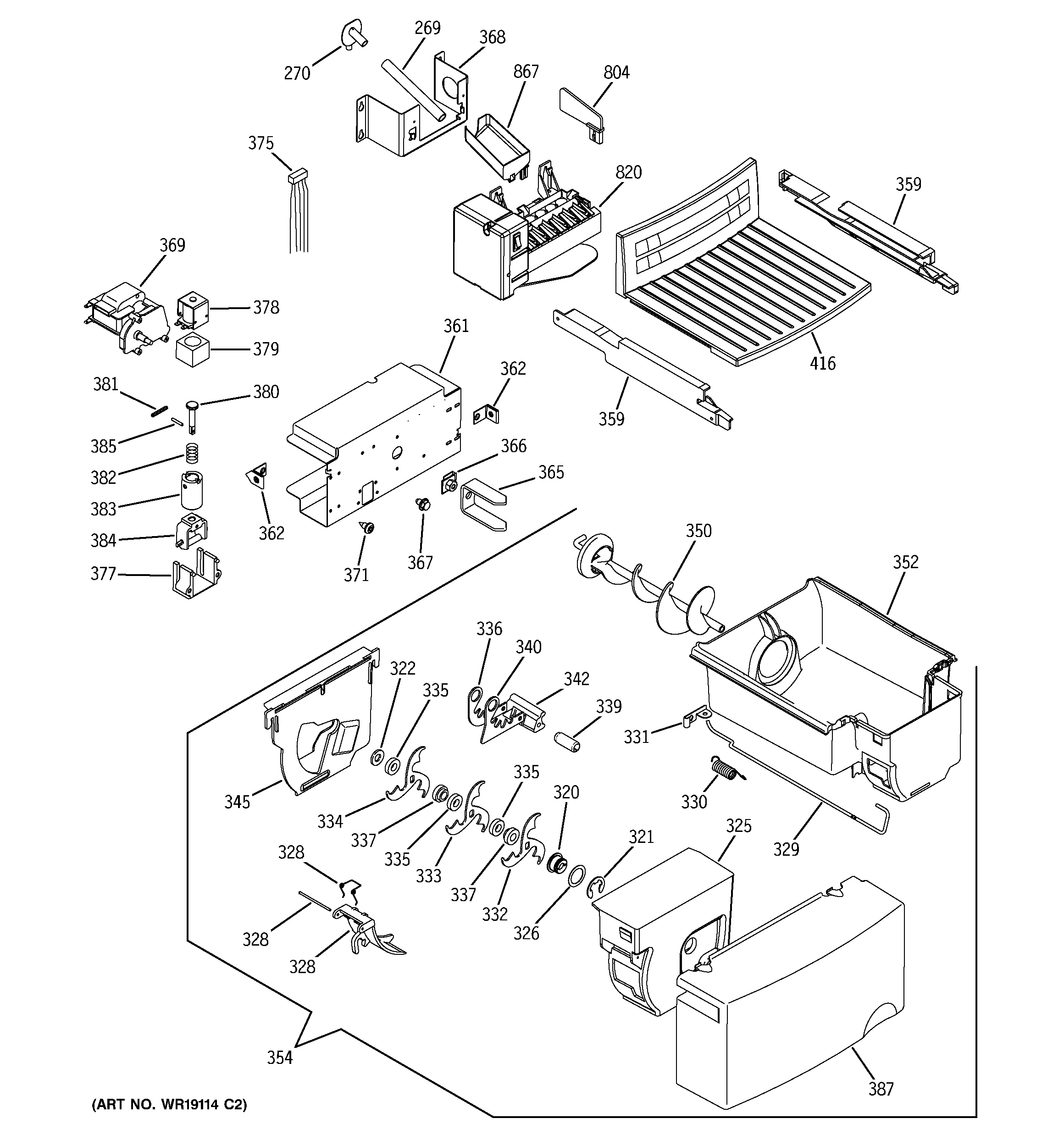

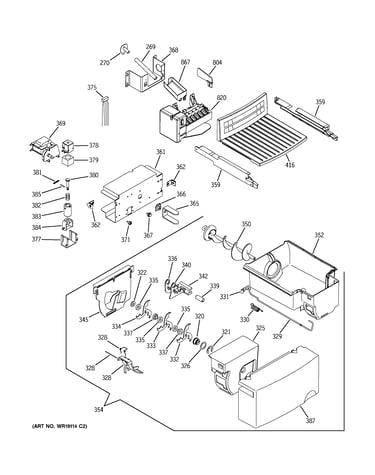

    Refrigerator Ice Maker Fill Tube

    #270

    Sealed system & mother board Diagram

    $25.99

    In Stock

    Refrigerator Evaporator Fan Motor

    #610

    Freezer section Diagram

    $92.99

    In Stock

    Refrigerator Freezer Basket

    #211

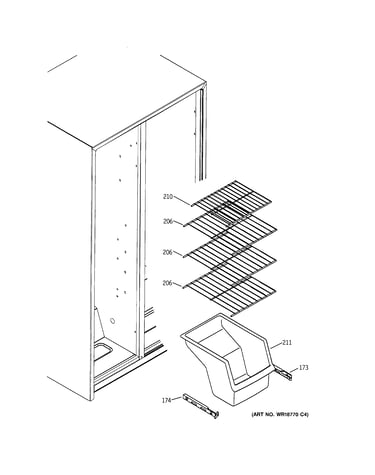

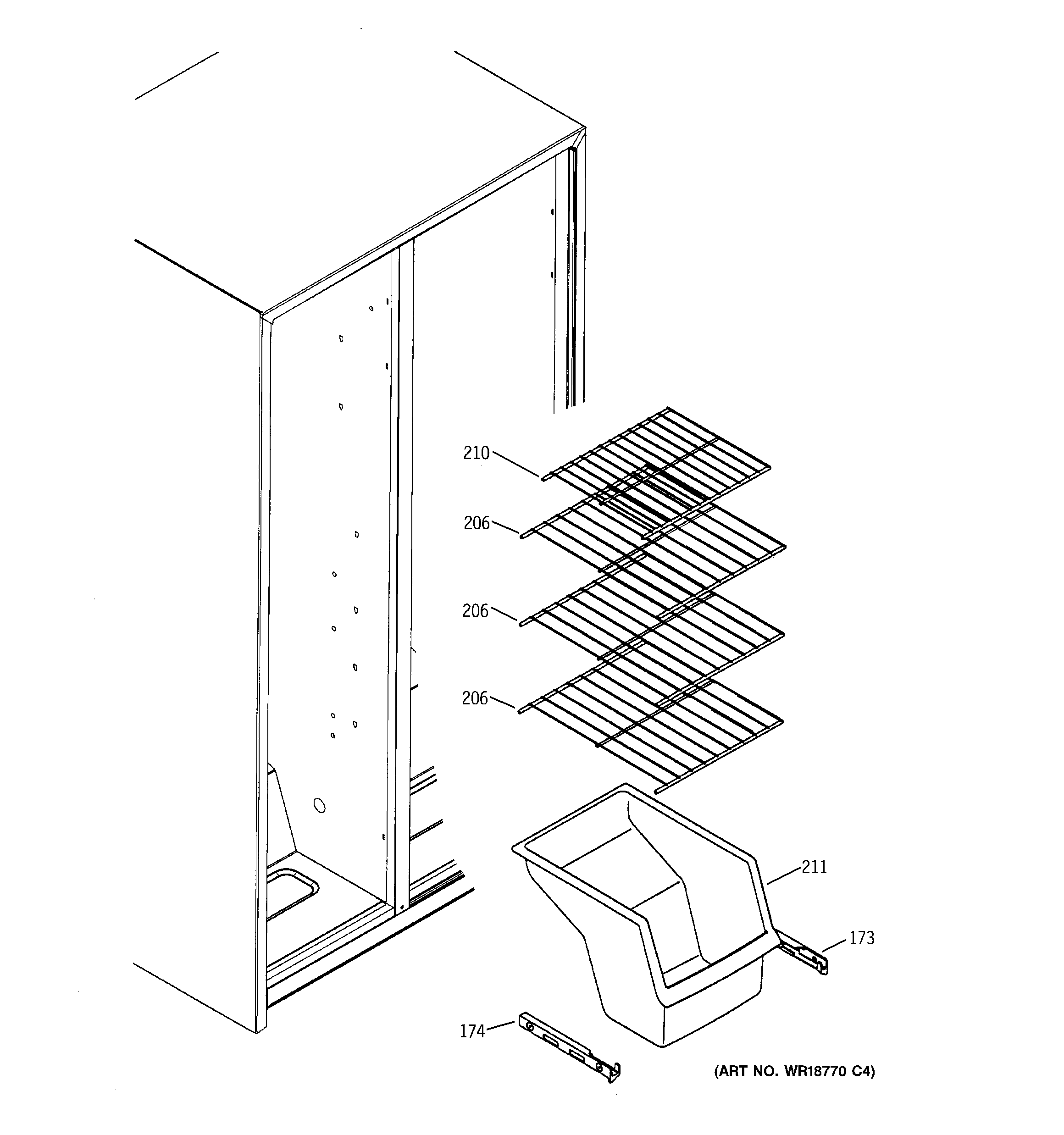

    Freezer shelves Diagram

    $51.99

    In Stock

    Refrigerator Light Cover

    #258

    Freezer section Diagram

    Refrigerator light cover

    Part #WR17X10724
    $12.57

    In Stock

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
