Model # 31517400 Official Craftsman double insulated router

Here are the diagrams and repair parts for Official Craftsman 31517400 double insulated router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Handle Assembly 6-611458-00
#52

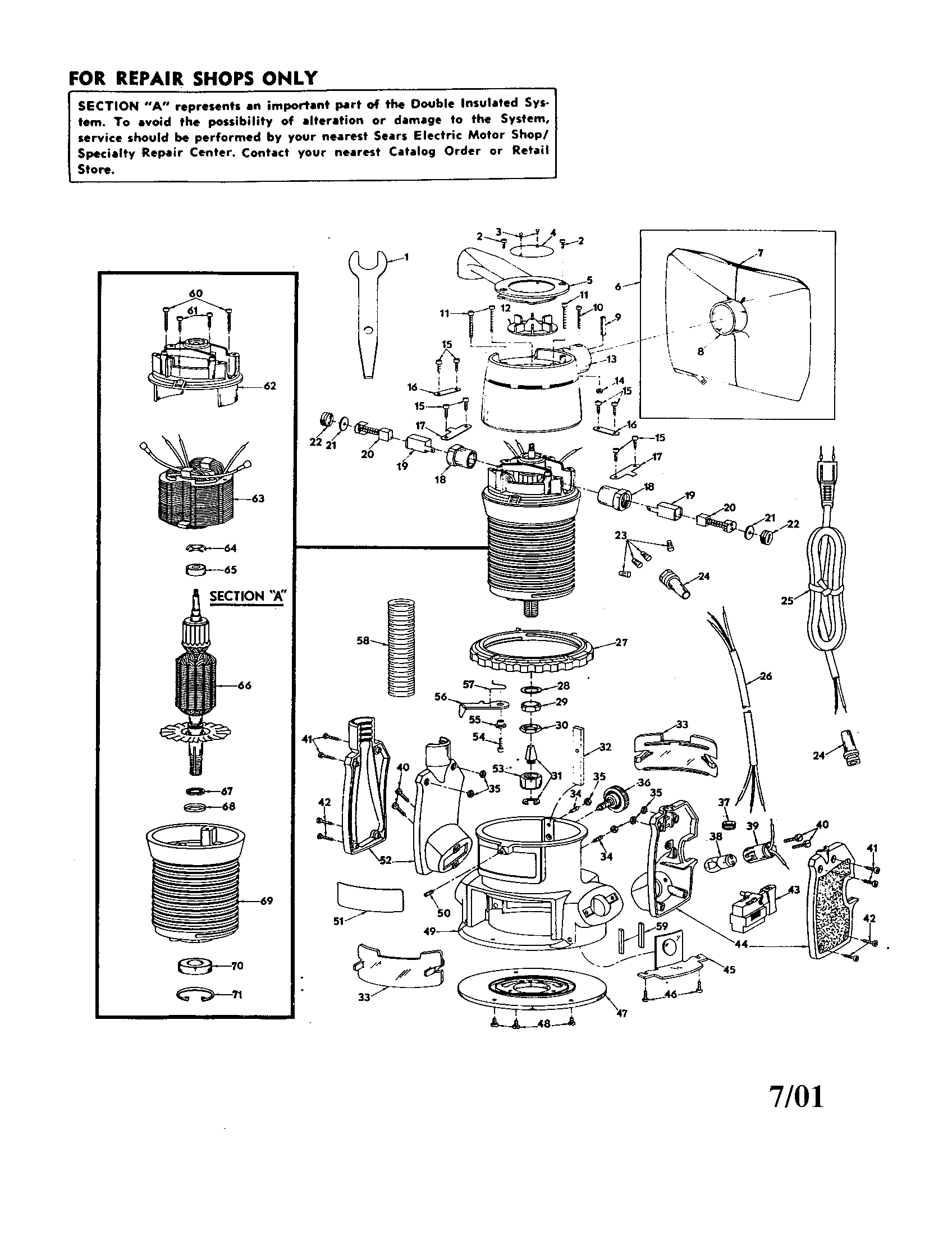

Router diagram

Handle assembly

Part #6-611458-00

The manufacturer no longer makes this part, and there's no substitute part

Eye Shield 2-606688-01
#33

Router diagram

Eye shield

Part #2-606688-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-614658-10
#46

Router diagram

Screw

Part #1-614658-10

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 1-617721-01
#50

Router diagram

Set screw

Part #1-617721-01

The manufacturer no longer makes this part, and there's no substitute part

Grommet 1-623782-01
#37

Router diagram

Grommet

Part #1-623782-01

The manufacturer no longer makes this part, and there's no substitute part

Wrench 1-623813-03
#1

Router diagram

Wrench

Part #1-623813-03

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-615972-01
#70

Router diagram

Ball bearing

Part #1-615972-01

The manufacturer no longer makes this part, and there's no substitute part

End Cap 2-610963-01
#13

Router diagram

End cap

Part #2-610963-01

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 2-610966-01
#58

Router diagram

Vacuum hose

Part #2-610966-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-714096-807
#60

Router diagram

Screw

Part #1-714096-807

The manufacturer no longer makes this part, and there's no substitute part
