Electrolux E23CS78HPS2 refrigerator Parts
Here are the diagrams and repair parts for Electrolux E23CS78HPS2 refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

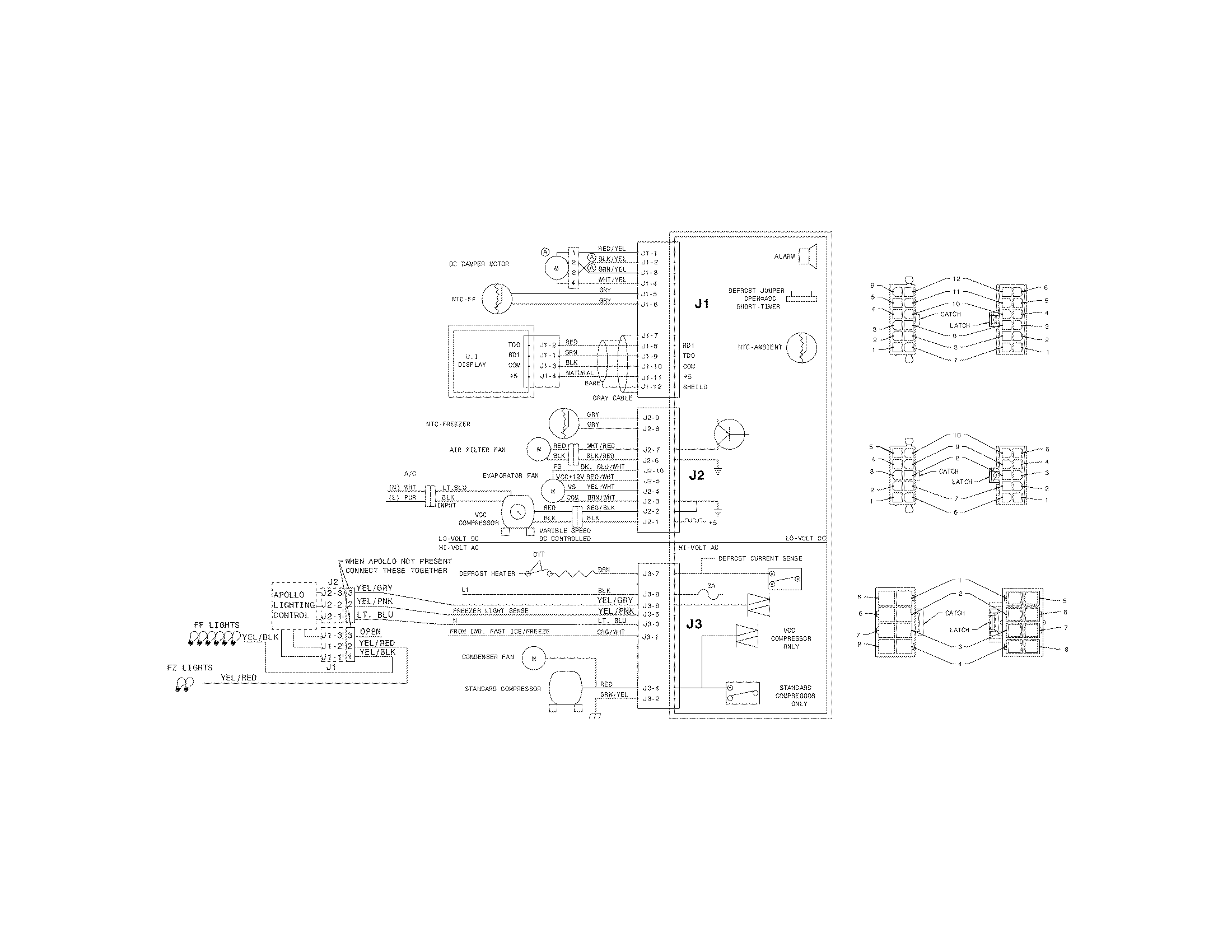

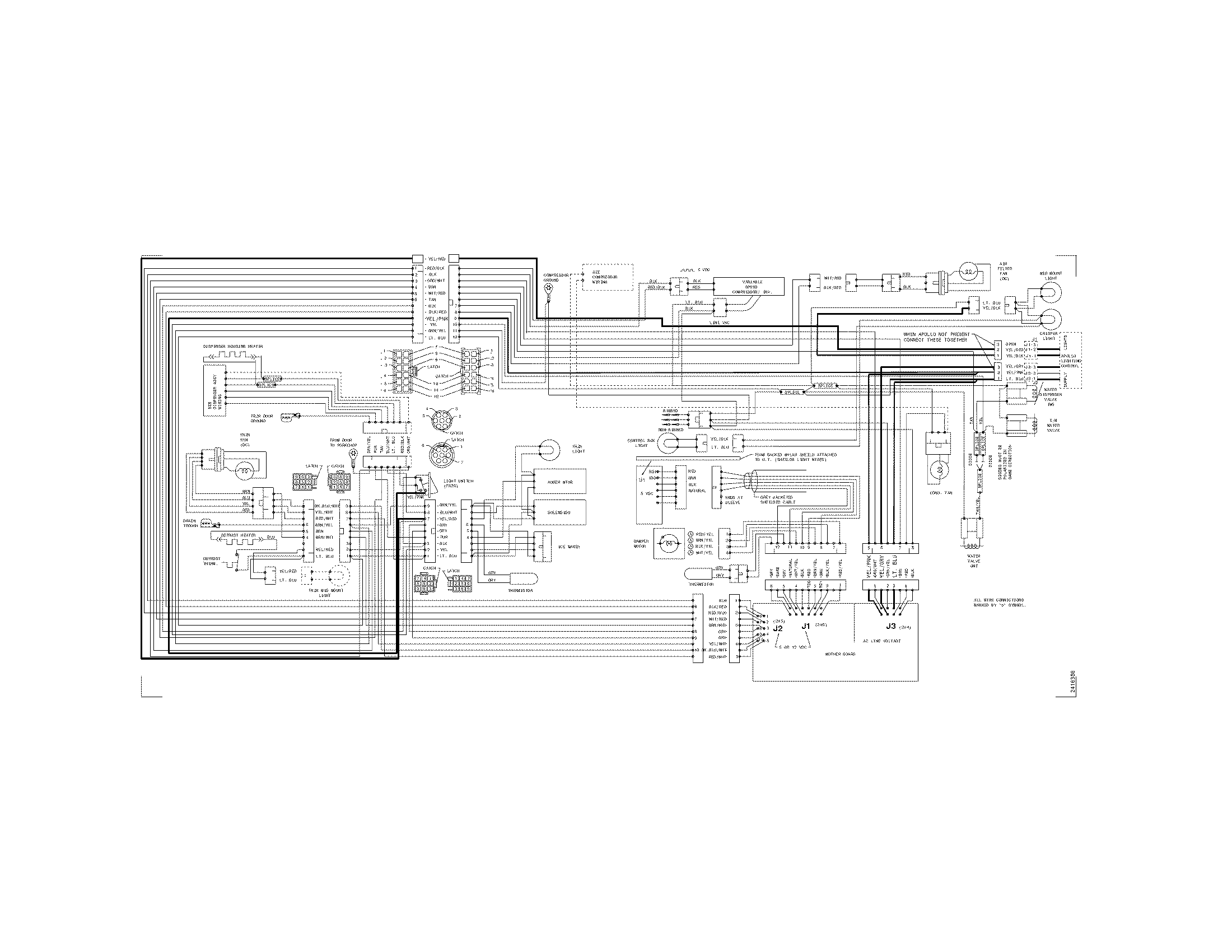

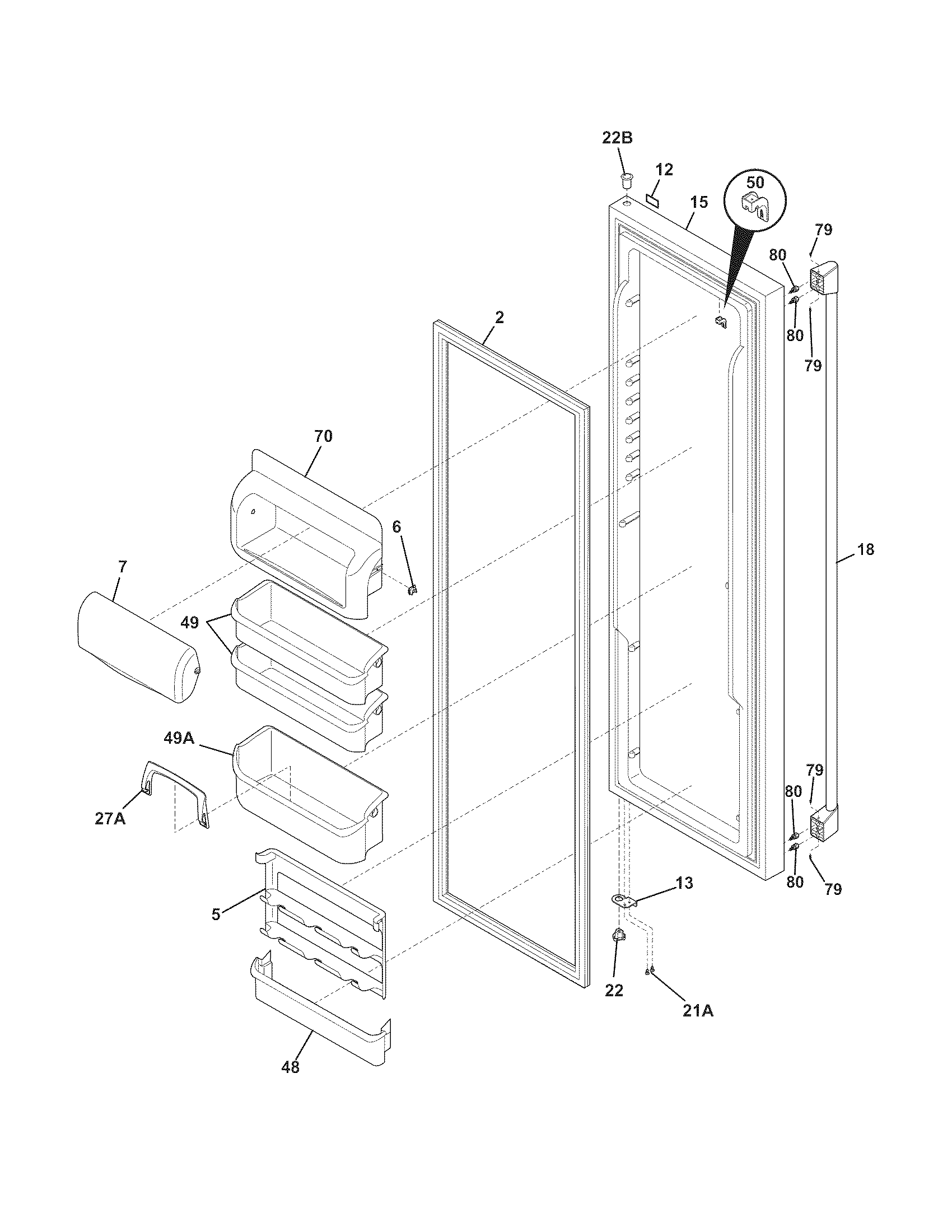

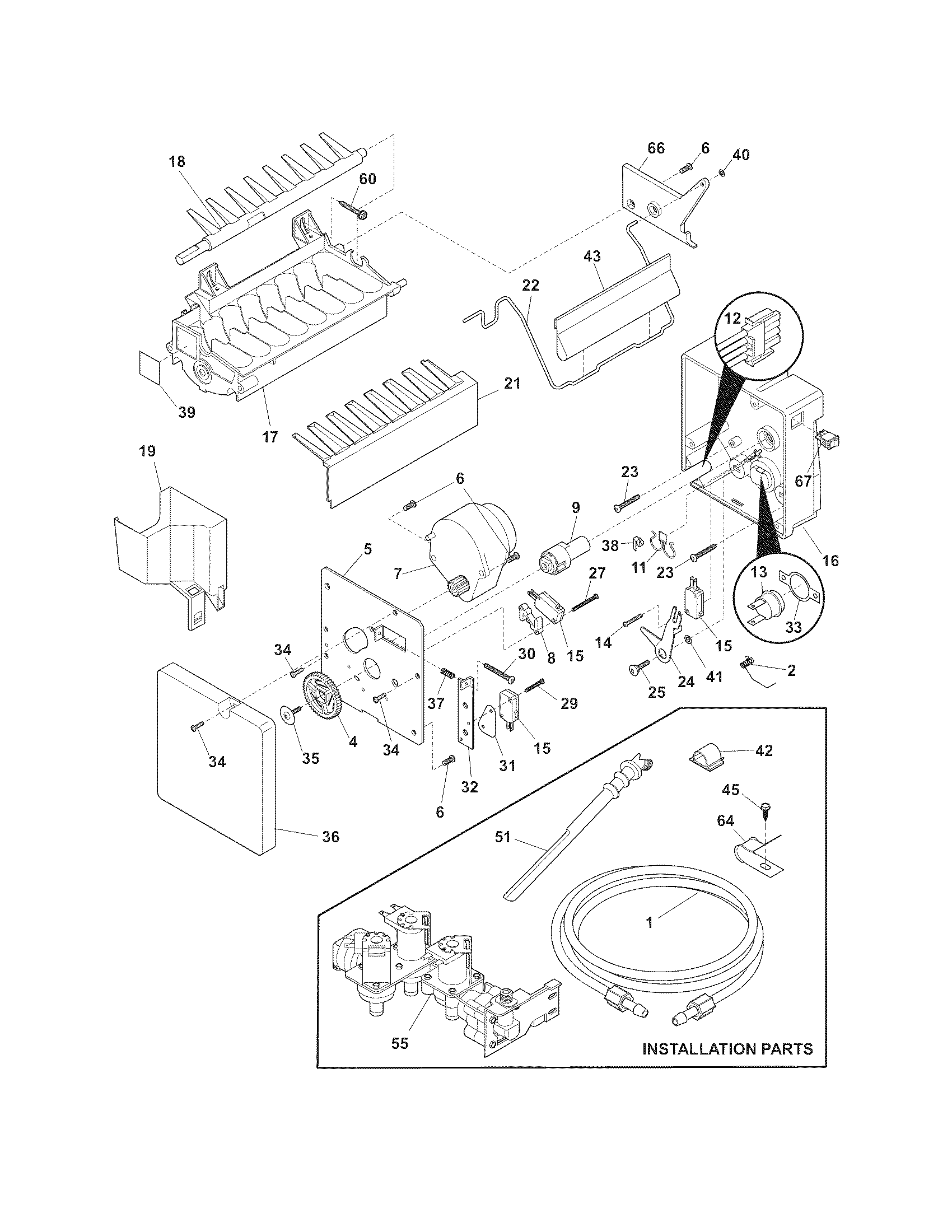

SELECT DIAGRAM
Browse Parts for E23CS78HPS2 Refrigerators

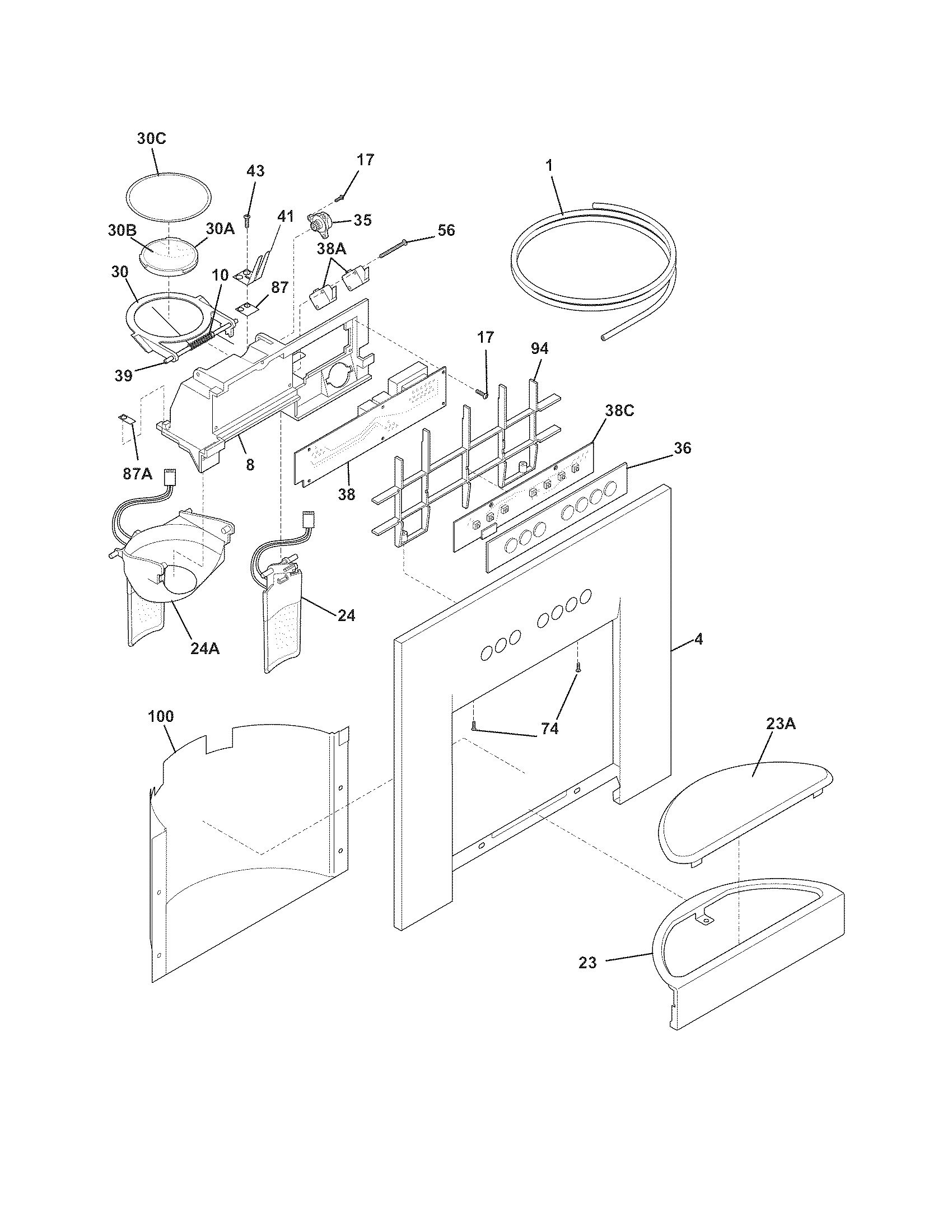

Ice & water dispenser diagram
Actuator,lig
Part #7241685704Replaced by #241685704
Manufacturer substitutionThis part replaces 7241685704. Substitute parts can look different from the original.In Stock$124.109% OFF Phone Price : $136.10
Qty

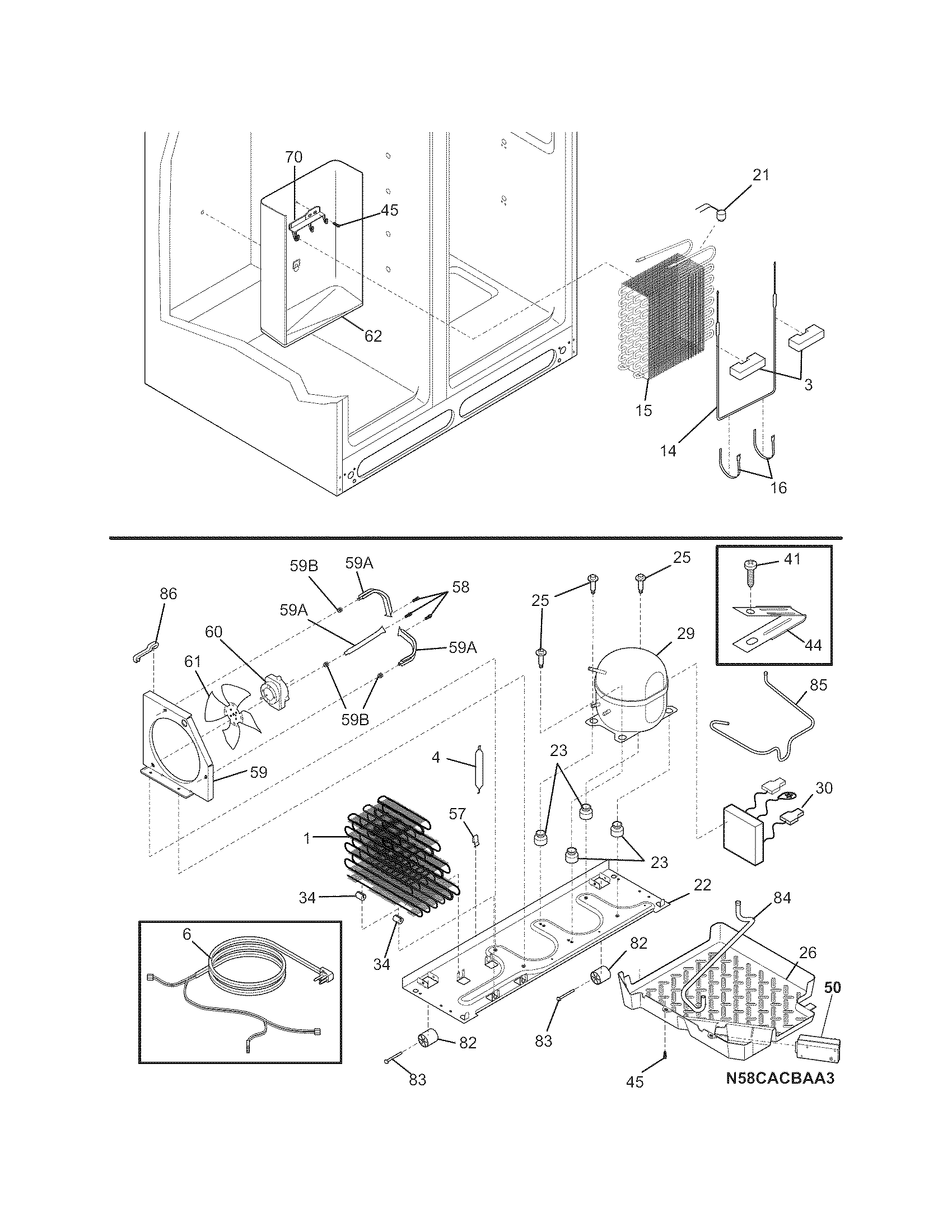

System diagram
Grommet
Part #7218513300Replaced by #218513300

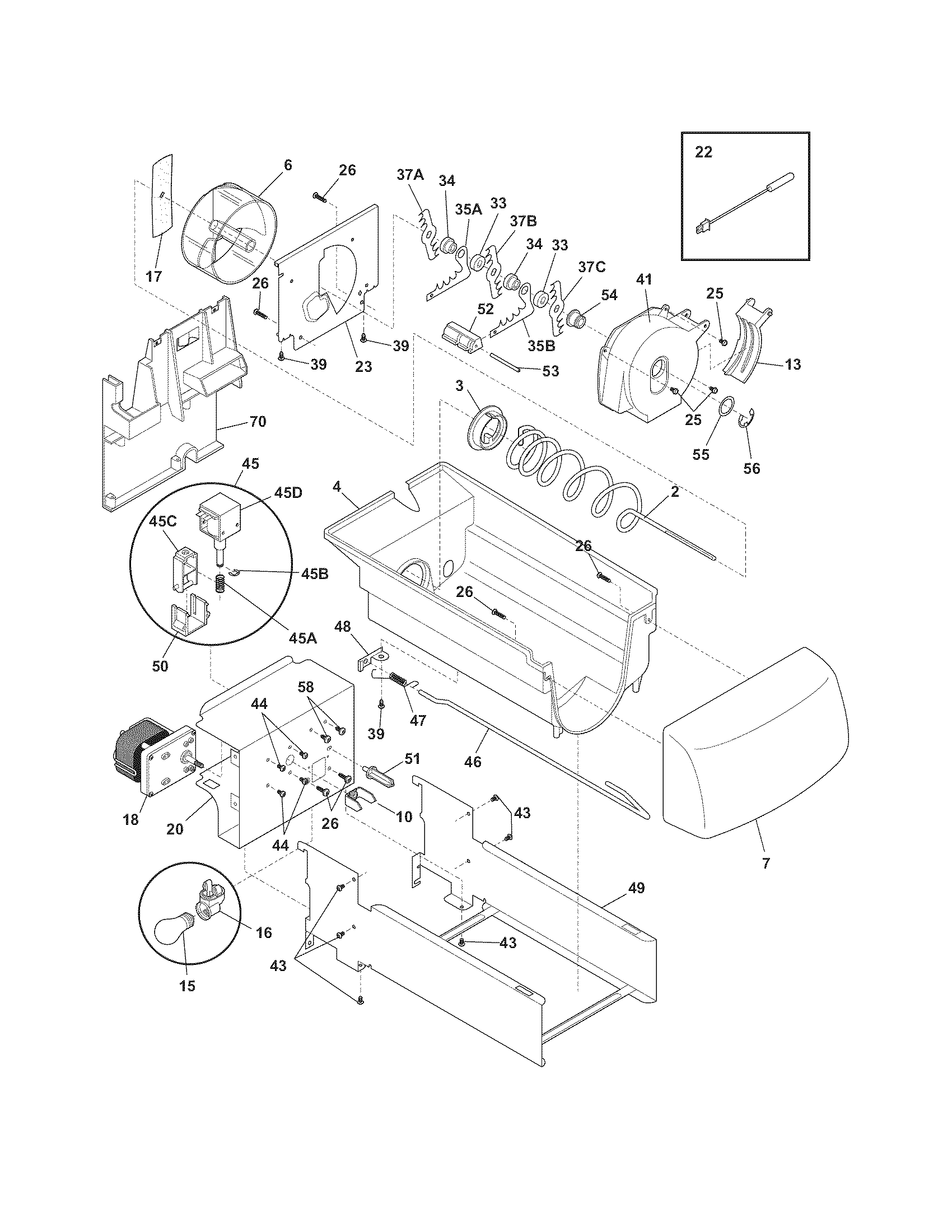

Manufacturer substitutionThis part replaces 7218513300. Substitute parts can look different from the original.In Stock$41.8913% OFF Phone Price : $47.89QtyIce container diagram
Refrigerator Blade
Part #7241684103Replaced by #241684109

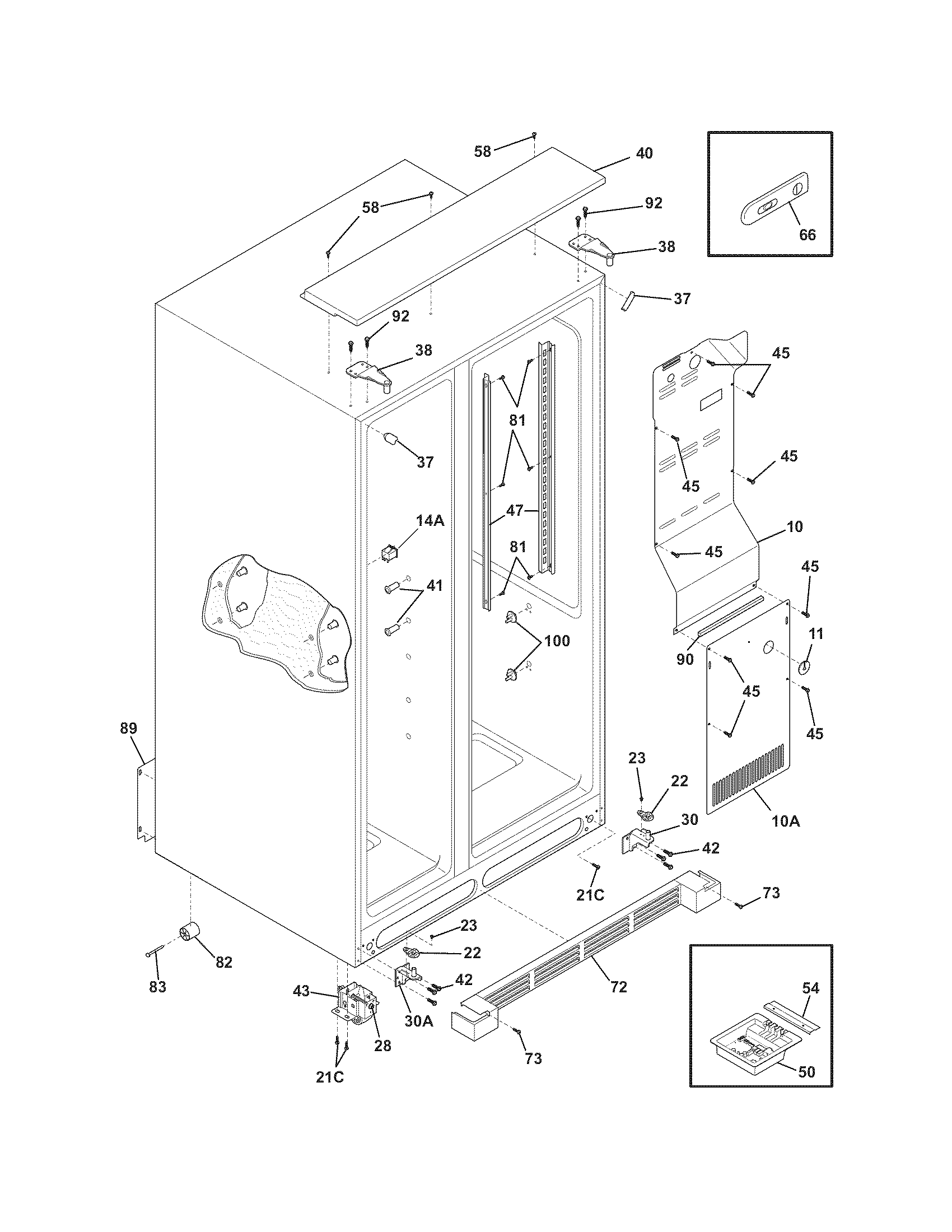

Manufacturer substitutionThis part replaces 7241684103. Substitute parts can look different from the original.This item is not returnableIn Stock$22.5421% OFF Phone Price : $28.54QtyCabinet diagram
Screw
Part #7240335502Replaced by #5304499445
Manufacturer substitutionThis part replaces 7240335502. Substitute parts can look different from the original.In Stock$31.1016% OFF Phone Price : $37.10QtySystem diagram
Screw
Part #7240433203Replaced by #241953902

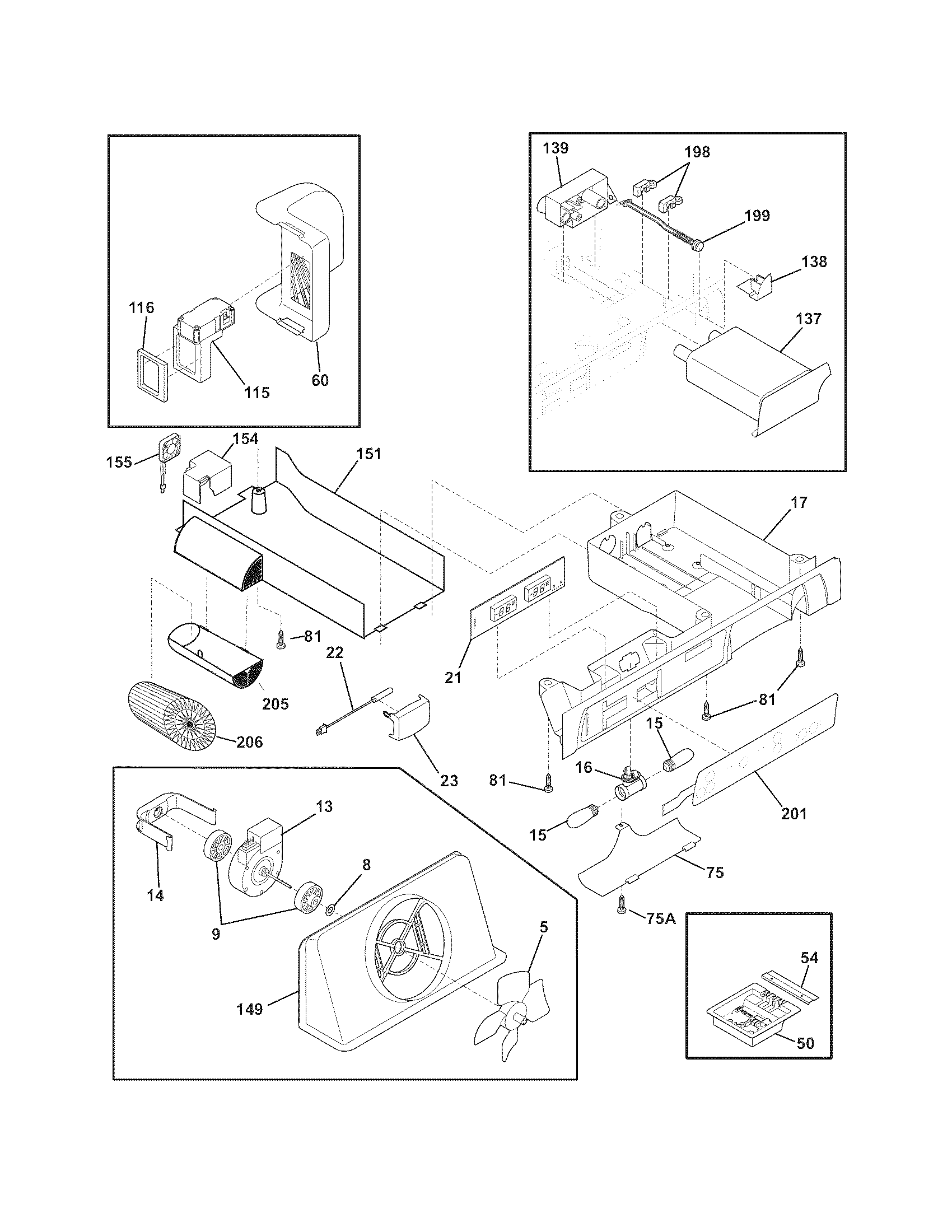

Manufacturer substitutionThis part replaces 7240433203. Substitute parts can look different from the original.This item is not returnableIn Stock$21.8822% OFF Phone Price : $27.88QtyControls diagram
Refrigerator Bushing
Part #7241518301Replaced by #241518301

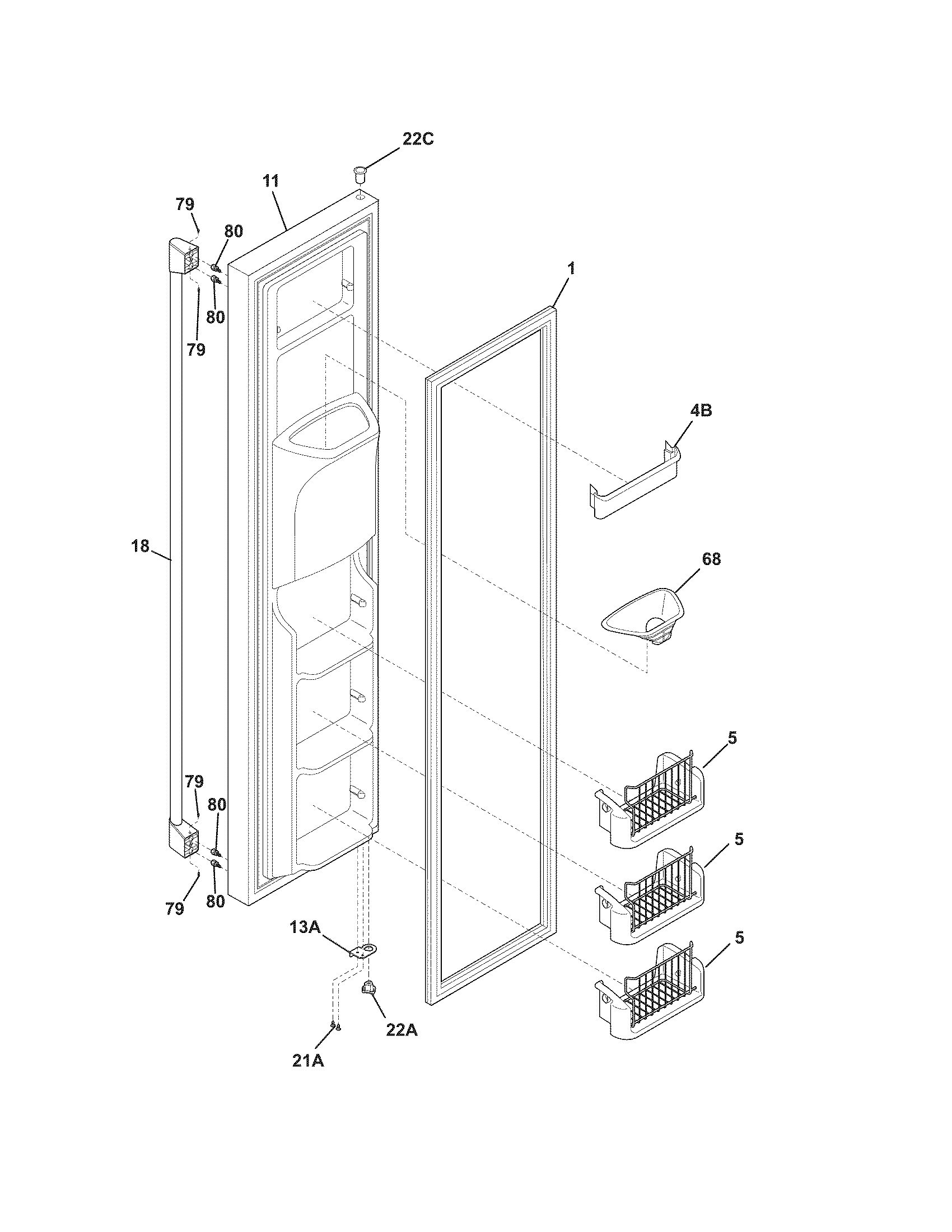

Manufacturer substitutionThis part replaces 7241518301. Substitute parts can look different from the original.In Stock$120.62QtyFreezer door diagram
Door Stop,bl
Part #7240581906Replaced by #240581906
Manufacturer substitutionThis part replaces 7240581906. Substitute parts can look different from the original.In Stock$69.818% OFF Phone Price : $75.81QtyShelves diagram
Refrigerator Shoulder
Part #7240579807Replaced by #240579821
Manufacturer substitutionThis part replaces 7240579807. Substitute parts can look different from the original.In Stock$91.216% OFF Phone Price : $97.21QtyShelves diagram
Ice Shelf
Part #7241691701Replaced by #241691701
Manufacturer substitutionThis part replaces 7241691701. Substitute parts can look different from the original.In Stock$64.559% OFF Phone Price : $70.55QtyShelves diagram
Refrigerator Hanger Basket
Part #7241514601Replaced by #241514601
Manufacturer substitutionThis part replaces 7241514601. Substitute parts can look different from the original.In Stock$68.608% OFF Phone Price : $74.60Qty
