Whirlpool WRF736SDAM10 refrigerator Parts

The most common Whirlpool refrigerator problem is poor cooling caused by restricted airflow, most often from dirty condenser coils. On Whirlpool model WRF736SDAM10, the same basics apply: keep coils clean, confirm fans run, and make sure doors seal tightly to hold temperature.

Quick checks we recommend first

• Clean the condenser coils and the area around the condenser fan.
• Confirm the evaporator fan runs when the doors are closed (you should hear airflow).
• Check door gaskets for gaps, rips, or areas that do not grip the cabinet.
• Verify the temperature settings were not accidentally changed.
• Make sure vents inside the fresh food section are not blocked by food packages.
• If you have water or ice issues, check for a restricted filter or low water supply.

Common causes and what they look like

Symptom	Most likely cause	What to do next
Fridge warm, freezer OK	Dirty condenser coils	Clean coils; recheck temps after 24 hours
Both sections warm	Fan not running or control issue	Listen for fans; check for error codes
Frost buildup, weak airflow	Defrost system problem	Inspect for heavy frost; defrost and monitor
Sweating or warm edges, long run time	Door not sealing	Inspect gasket and door alignment

Parts that often come up in these repairs

If troubleshooting points to a failed component, these are common on this model family:

• Refrigerator water inlet valve assembly WPW10341329 (water dispenser or ice maker not filling)
• Refrigerator defrost heater WP12729128 (heavy frost, poor airflow)
• Refrigerator ice maker assembly W11577195 (no ice or intermittent ice)
• Refrigerator electronic control board WPW10479155 (erratic temps, intermittent operation)

Why it matters

Dirty coils and airflow problems force the compressor to run longer, which raises energy use and can lead to temperature swings that spoil food faster. Catching the cause early also helps you avoid replacing parts that are still good.

Model-specific references

For WRF736SDAM10 cleaning points, temperature setting guidance, and diagnostic steps, follow the WRF736SDAM10 owner's manual. If you need access instructions for the rear/bottom service area, use the WRF736SDAM10 installation guide.

Last updated: February 2026

On the Whirlpool WRF736SDAM10 bottom-mount refrigerator, a leak at the bottom right front is usually meltwater that cannot drain during defrost; it backs up, freezes, then spills out near the front. The most common cause is a clogged or frozen defrost drain path.

Quick checks that fix most leaks

• Unplug the refrigerator before working near wiring or the evaporator area.

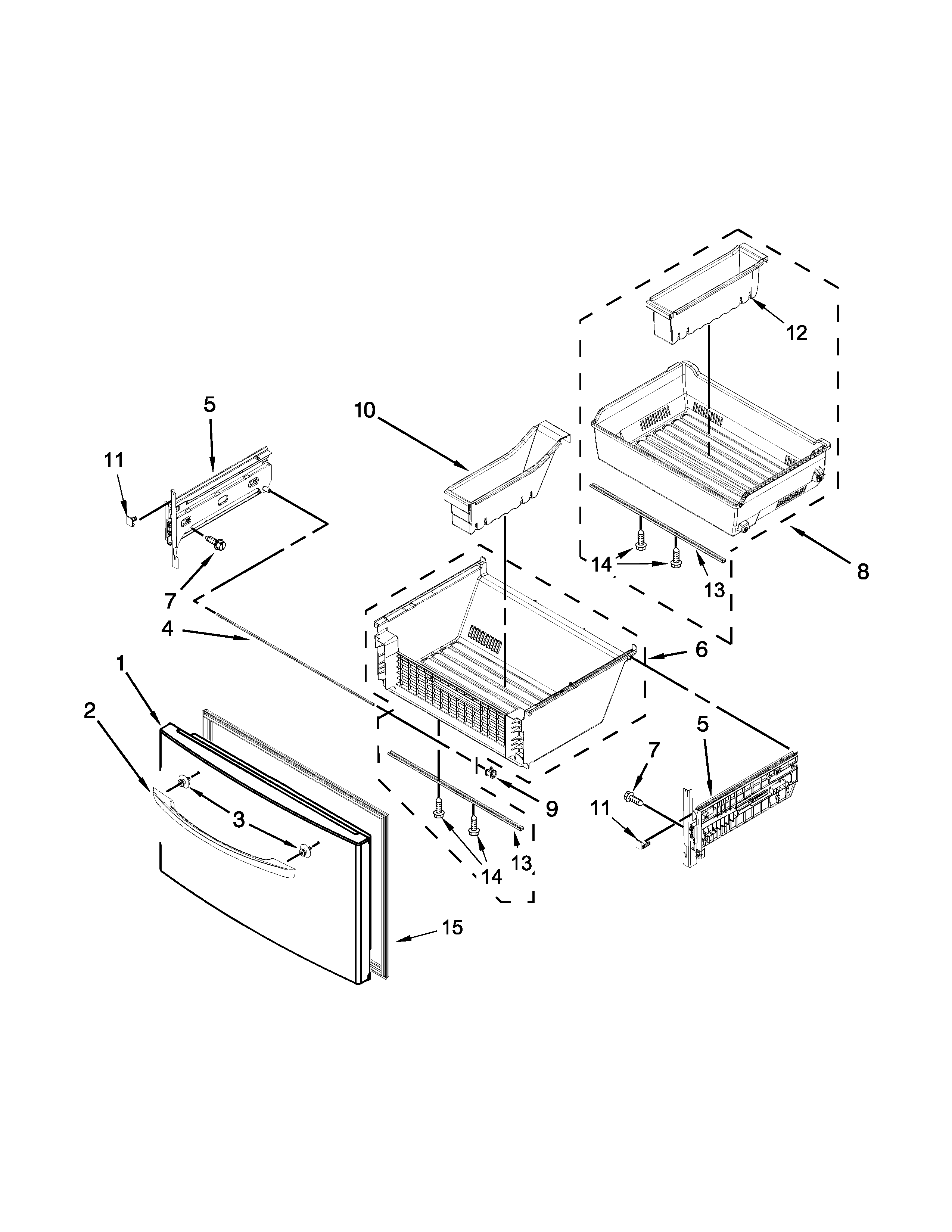

• Remove the freezer drawer and look for a sheet of ice on the freezer floor.
• Thaw the ice with a hair dryer on low (keep heat moving) or warm towels.
• Clear the drain opening and drain tube with hot water using a turkey baster.
• Clean the drain pan area and confirm the unit is level (slightly higher in front is typical).

What typically causes a bottom-right-front leak

Likely cause	What you’ll notice	What to do
Defrost drain clogged or frozen	Ice on freezer floor, water after defrost	Thaw and flush the drain with hot water
Door not sealing well	Frost buildup, moisture, longer run times	Inspect gasket for gaps and warm/reshape if needed
Ice maker or water line seep	Drips near back, wet under unit	Check fittings and valve area for moisture
Drain pan shifted/cracked	Water under front after compressor run	Re-seat pan; replace if damaged

Parts that can be involved

If you find the leak is tied to the water supply (not defrost water), these model-matched parts are common suspects:

• Refrigerator water inlet valve assembly WPW10341329 (can seep or not close fully)
• Refrigerator ice maker assembly W11577195 (fill tube or connections can leak)

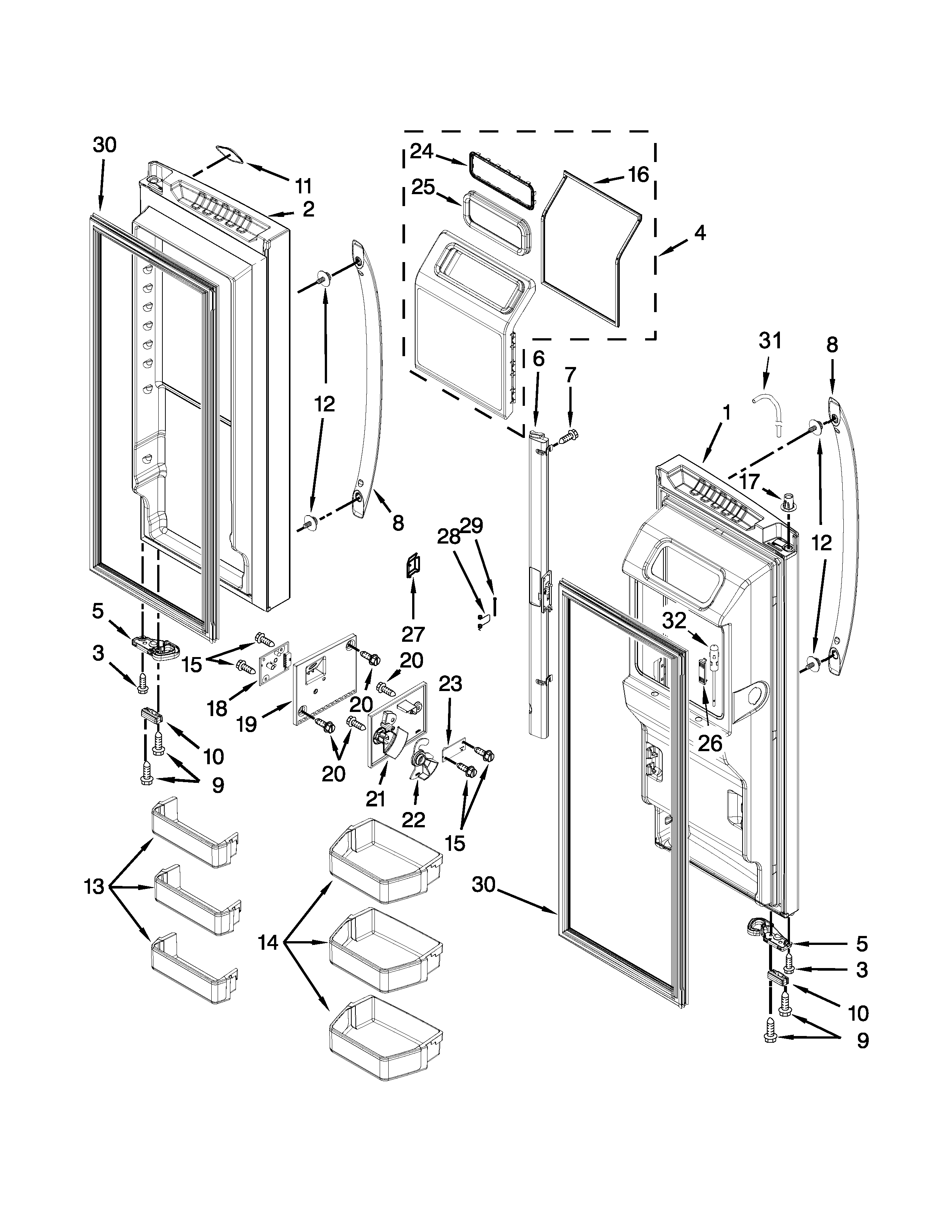

• Refrigerator gasket panel W10407216 (poor seal can drive heavy frost and drain icing)

Why it matters

A recurring leak can refreeze into a thick ice layer that blocks airflow, warms food, and can damage flooring. Clearing the drain and correcting door sealing prevents repeat icing and water spills.

Model-specific reference

Use the WRF736SDAM10 owner's manual for the exact freezer disassembly steps and drain/drip pan locations for your configuration.

Last updated: February 2026

Most Whirlpool refrigerators, including the Whirlpool WRF736SDAM10 bottom-mount style, last 10 to 15 years with normal household use. Consistent temperature settings, clean airflow paths, and on-time filter changes help you stay closer to the high end of that range; see the WRF736SDAM10 owner's manual for model-specific care guidance.

What affects lifespan the most

• Condenser and airflow cleanliness (dust buildup makes the compressor work harder)
• Door seal condition (warm air leaks increase run time and frost)
• Ice maker and water system health (leaks and clogs create avoidable strain)
• Stable temperatures (avoid frequent warm-ups from long door openings)
• Routine filter maintenance (helps airflow and odor control)

Quick maintenance checklist (best ROI)

• Keep refrigerator at 37°F and freezer at 0°F (typical targets).
• Clean door gaskets with mild soap and water; replace if torn or not sealing.
• Replace the air filter on schedule; the refrigerator air filter W10311524 helps reduce odors that can linger in a sealed cabinet.
• If you have slow ice production or no water, test household water supply and consider the refrigerator water inlet valve assembly WPW10341329 if the valve is not opening consistently.
• Vacuum dust from the grille and surrounding areas several times per year.

What “normal” vs “short” lifespan looks like

Lifespan outcome	What you typically see	Common contributors
10 to 15 years (typical)	Steady temps, normal noise	Regular cleaning, good seals
Under 10 years (short)	Warm temps, heavy frost, frequent repairs	Dirty airflow, leaking gasket, water issues
15+ years (excellent)	Few repairs, stable cooling	Consistent maintenance, gentle use

Why it matters

A refrigerator that is running longer cycles to overcome dust, air leaks, or restricted airflow wears the compressor and control components faster. Small upkeep steps protect cooling performance and reduce the chance of expensive failures.

Last updated: February 2026

Yes. The Whirlpool WRF736SDAM10 bottom-mount refrigerator is designed to use an ice maker, and an ice maker assembly is a supported replacement part for this model. For the exact configuration and feature settings, follow the WRF736SDAM10 owner's manual.

How to confirm it is installed and turned on

• Look for the ice maker module in the freezer compartment and the ice bin/container.
• Make sure the ice maker power switch (or arm, depending on configuration) is in the ON position.
• Confirm the freezer temperature is set cold enough (target 0°F to 5°F).
• Verify the household water supply valve is open and the water line is not kinked.
• If the unit was just installed or the water was shut off, purge air from the water system.

Parts that commonly affect ice production on this model

If the refrigerator is supposed to make ice but is not producing, these model-supported parts are common suspects:

Symptom	Most likely area	Example model-supported part

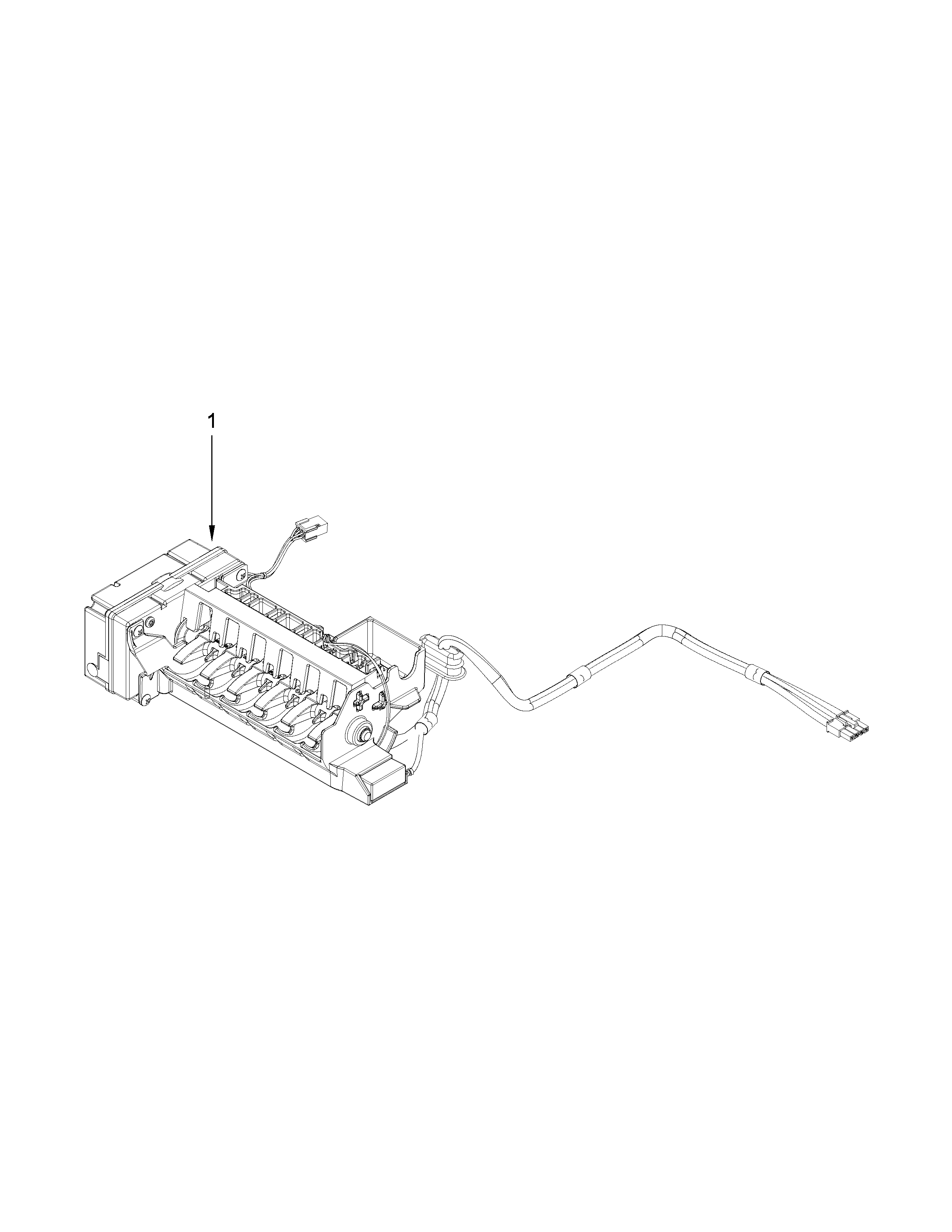

No ice at all	Ice maker not cycling	Refrigerator ice maker assembly W11577195
Slow or hollow cubes	Water supply issue	Refrigerator water inlet valve assembly WPW10341329

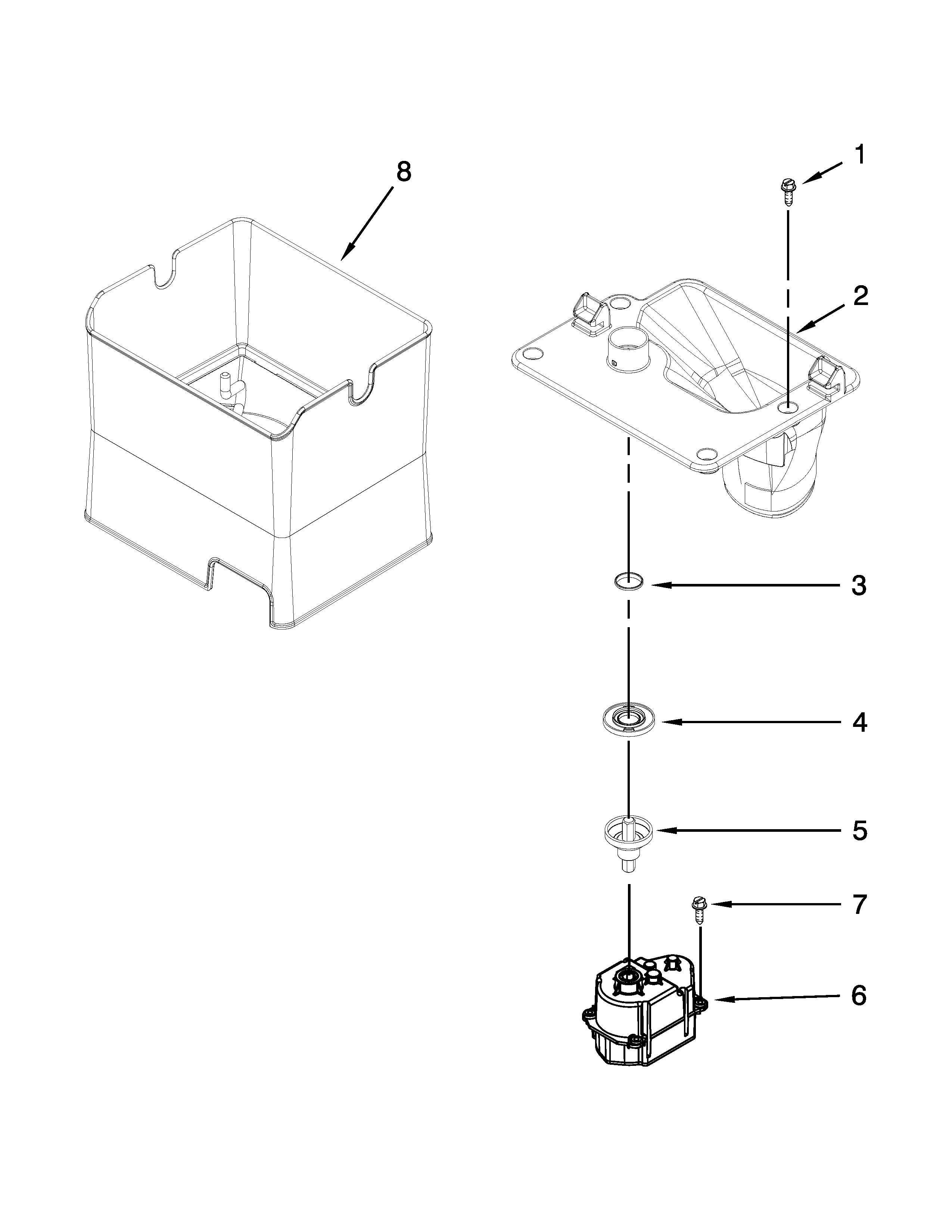

Ice clumps or dispensing issues	Bin/drive components	Refrigerator ice container WPW10347093

Why it matters

Knowing the WRF736SDAM10 supports an ice maker helps you troubleshoot correctly: most “no ice” complaints come from temperature, water supply, or a failed ice maker module, not from the sealed cooling system.

Helpful DIY guidance

For step-by-step prevention and troubleshooting tips, use how to prevent water dispenser and ice maker problems.

Last updated: February 2026
