Kenmore 6289468214 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289468214 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 6289468214 Ranges

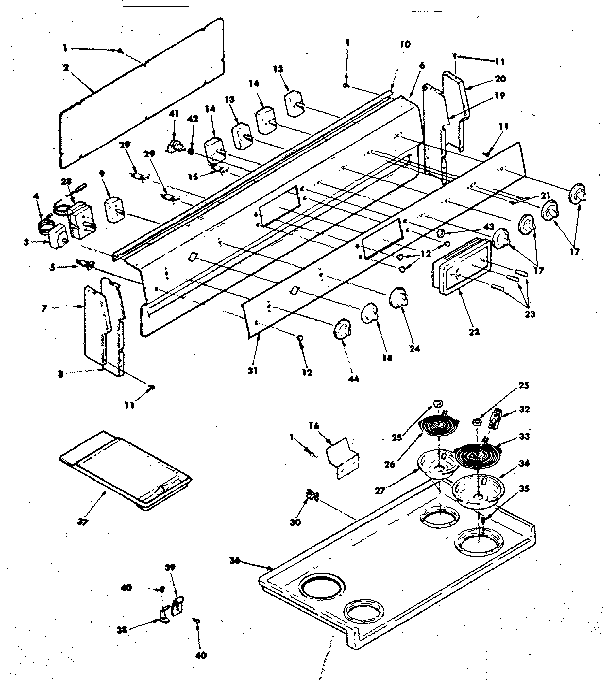

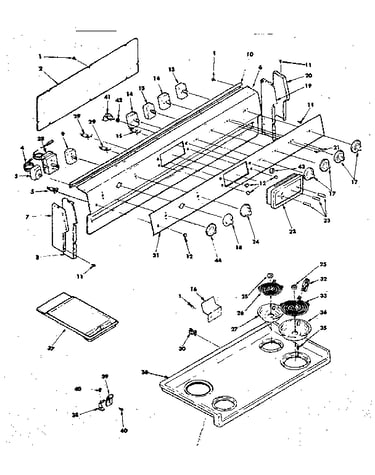

Backguard and cooktop assembly diagram
Surface Unit
Part #1314950Replaced by #318372210
Manufacturer substitutionThis part replaces 1314950. Substitute parts can look different from the original.In Stock$51.6910% OFF Phone Price : $57.69
Qty
Screw
Part #5126601Replaced by #5308014215

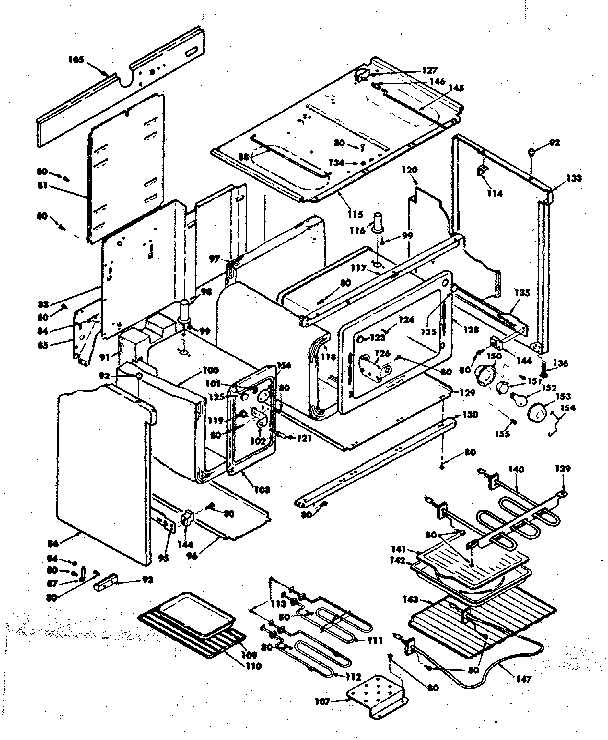

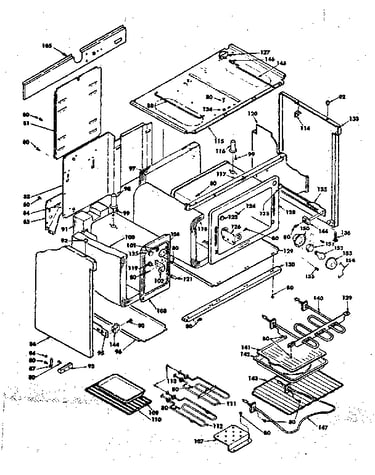

Manufacturer substitutionThis part replaces 5126601. Substitute parts can look different from the original.This item is not returnableIn Stock$2.6627% OFF Phone Price : $3.66QtyBody assembly diagram
Bracket
Part #1311369Replaced by #3051552

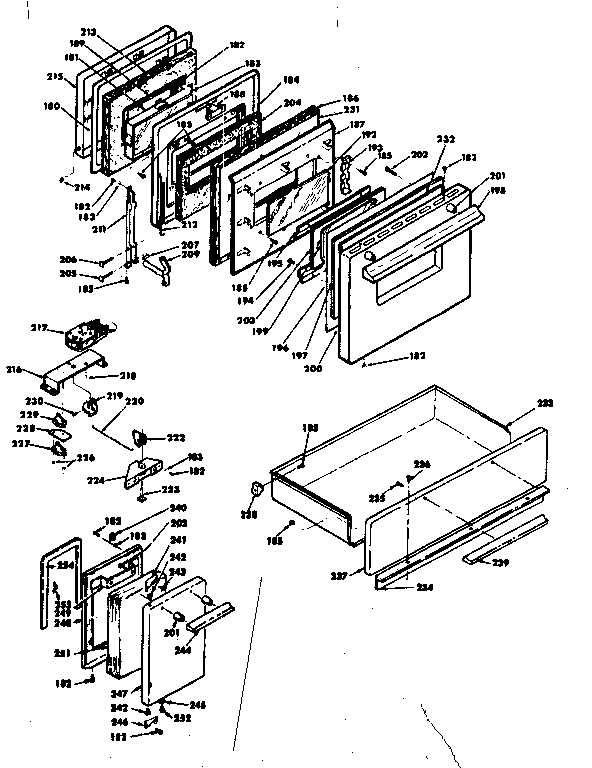

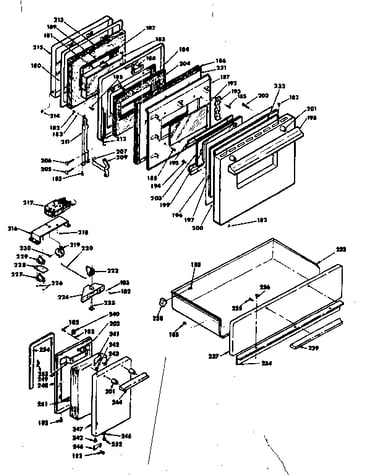

Manufacturer substitutionThis part replaces 1311369. Substitute parts can look different from the original.In Stock$29.02QtyDoors, latch mechanism and drawer assemblies diagram
Molding
Part #1313568Replaced by #5301313568
Manufacturer substitutionThis part replaces 1313568. Substitute parts can look different from the original.In Stock$95.28QtyDoors, latch mechanism and drawer assemblies diagram
Spacer
Part #1318024Replaced by #5301318024
Manufacturer substitutionThis part replaces 1318024. Substitute parts can look different from the original.In Stock$27.51QtyDoors, latch mechanism and drawer assemblies diagram
Tie Bar
Part #5271201Replaced by #3051649
Manufacturer substitutionThis part replaces 5271201. Substitute parts can look different from the original.In Stock$27.35QtyDoors, latch mechanism and drawer assemblies diagram
Drawer Panel (almond)
Part #1322709Replaced by #5301322709
Manufacturer substitutionThis part replaces 1322709. Substitute parts can look different from the original.In Stock$98.77QtyBody assembly diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30QtyDoors, latch mechanism and drawer assemblies diagram
Spacer
Part #1306686Replaced by #5301306686
Manufacturer substitutionThis part replaces 1306686. Substitute parts can look different from the original.In Stock$28.11QtyBackguard and cooktop assembly diagram
Medallion
Part #1167679Replaced by #5301167679
Manufacturer substitutionThis part replaces 1167679. Substitute parts can look different from the original.In Stock$38.36Qty
