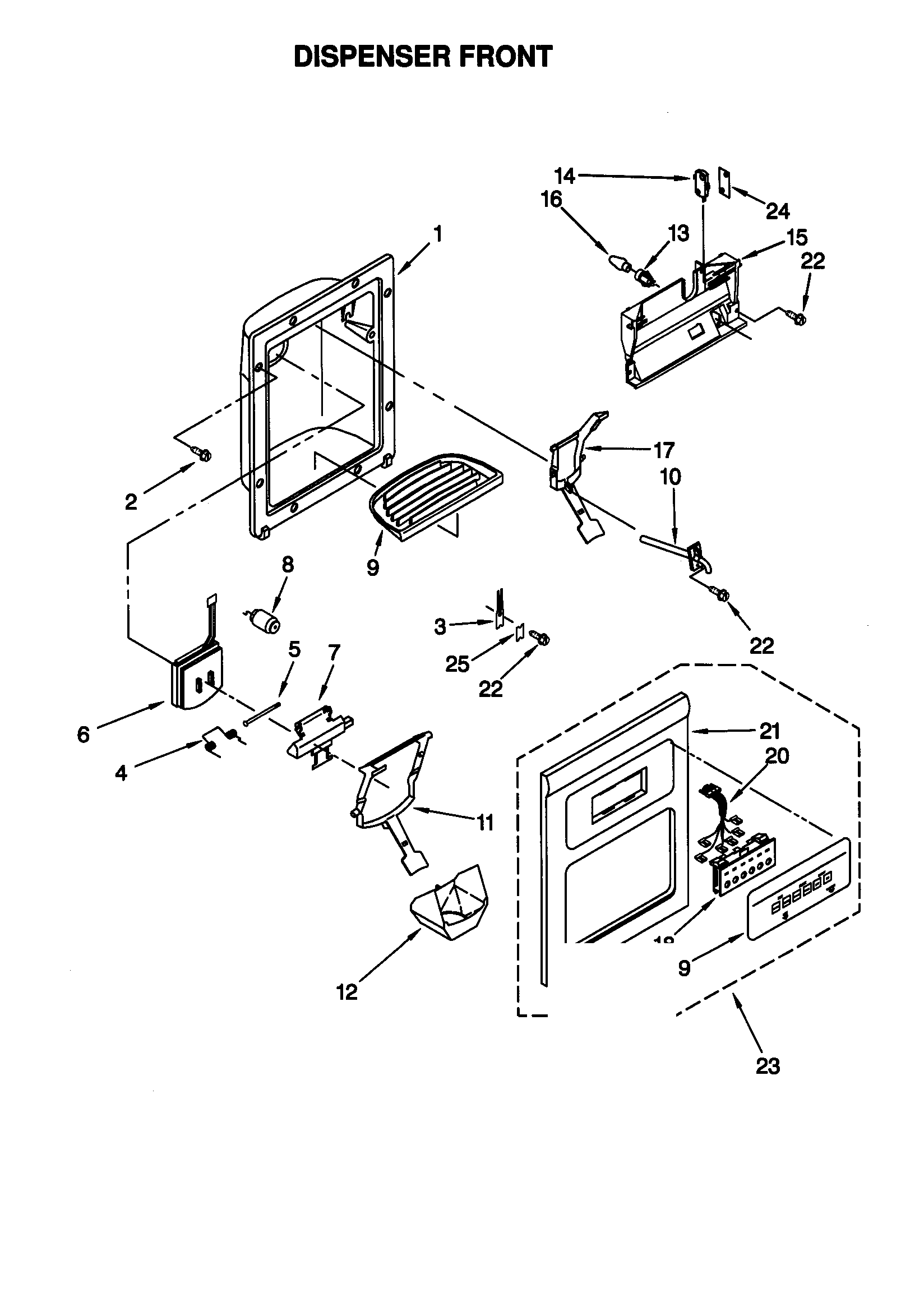

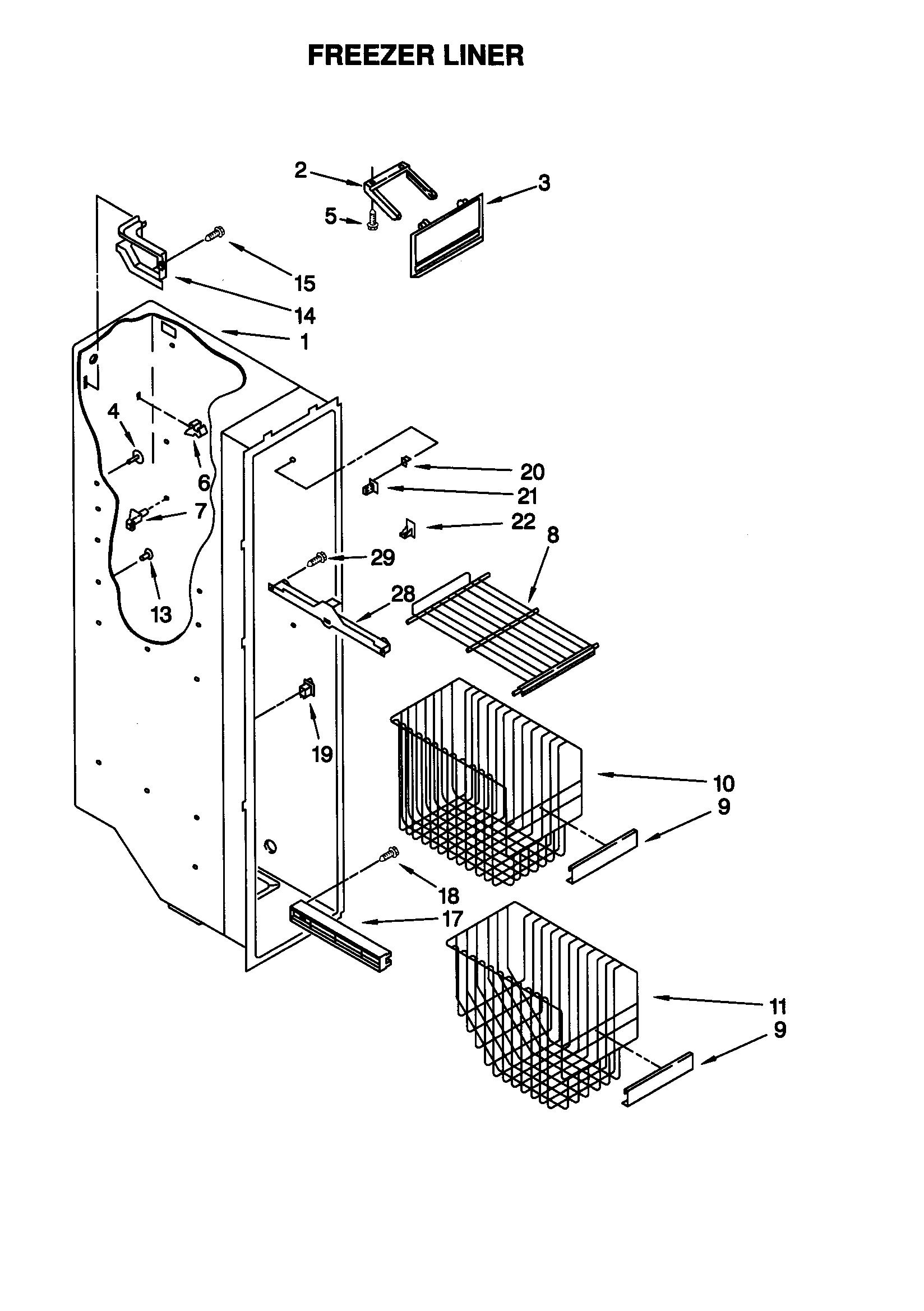

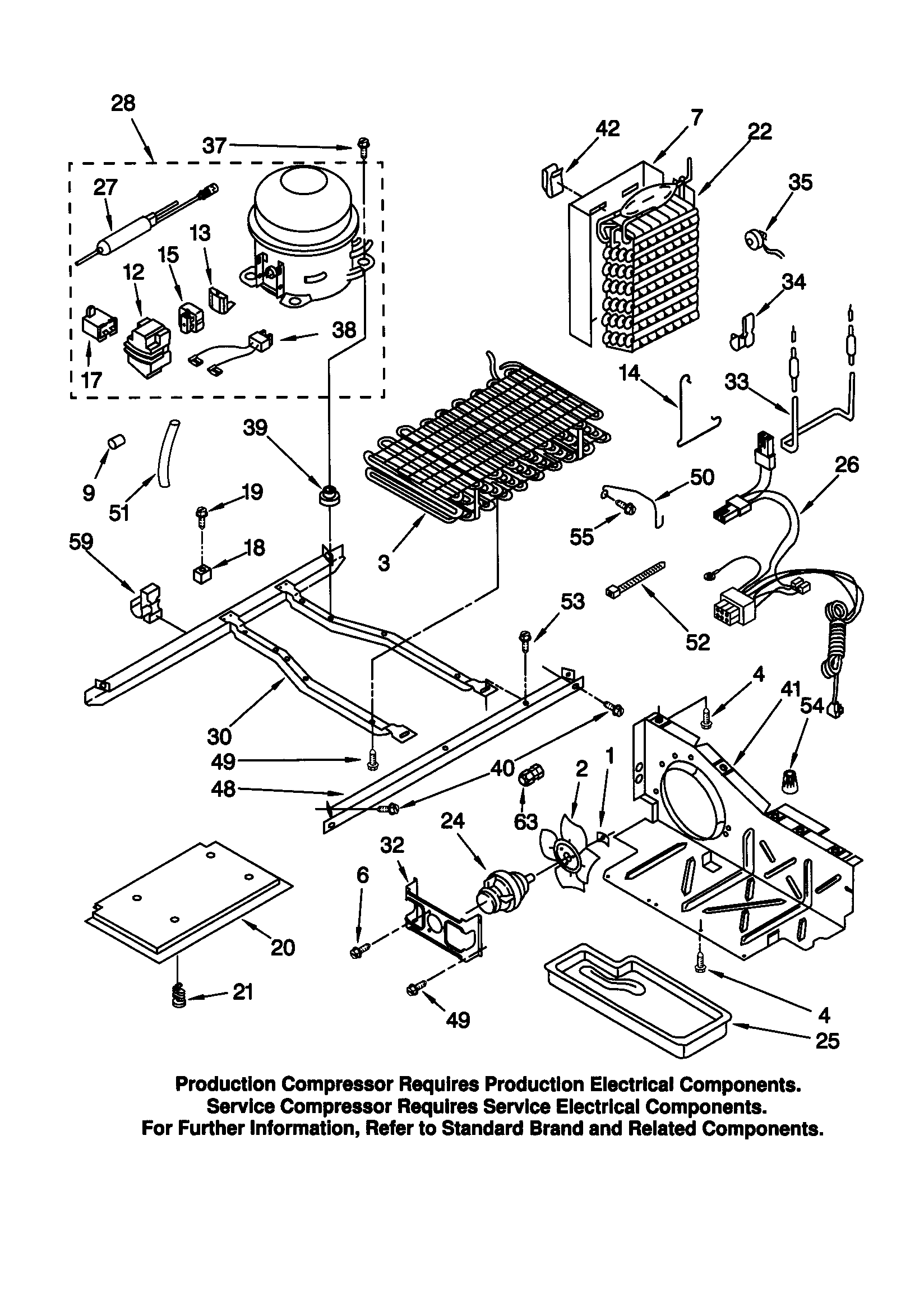

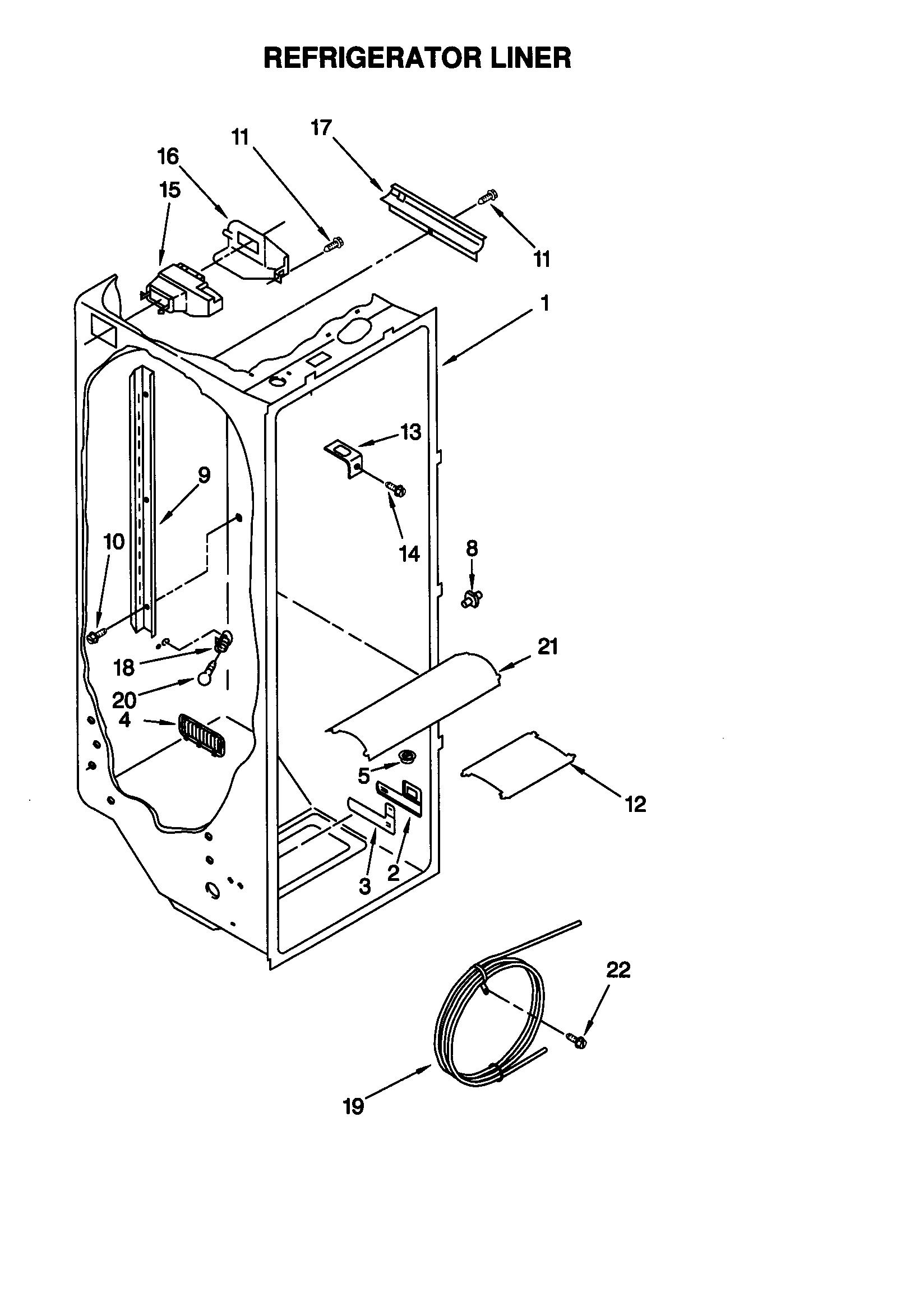

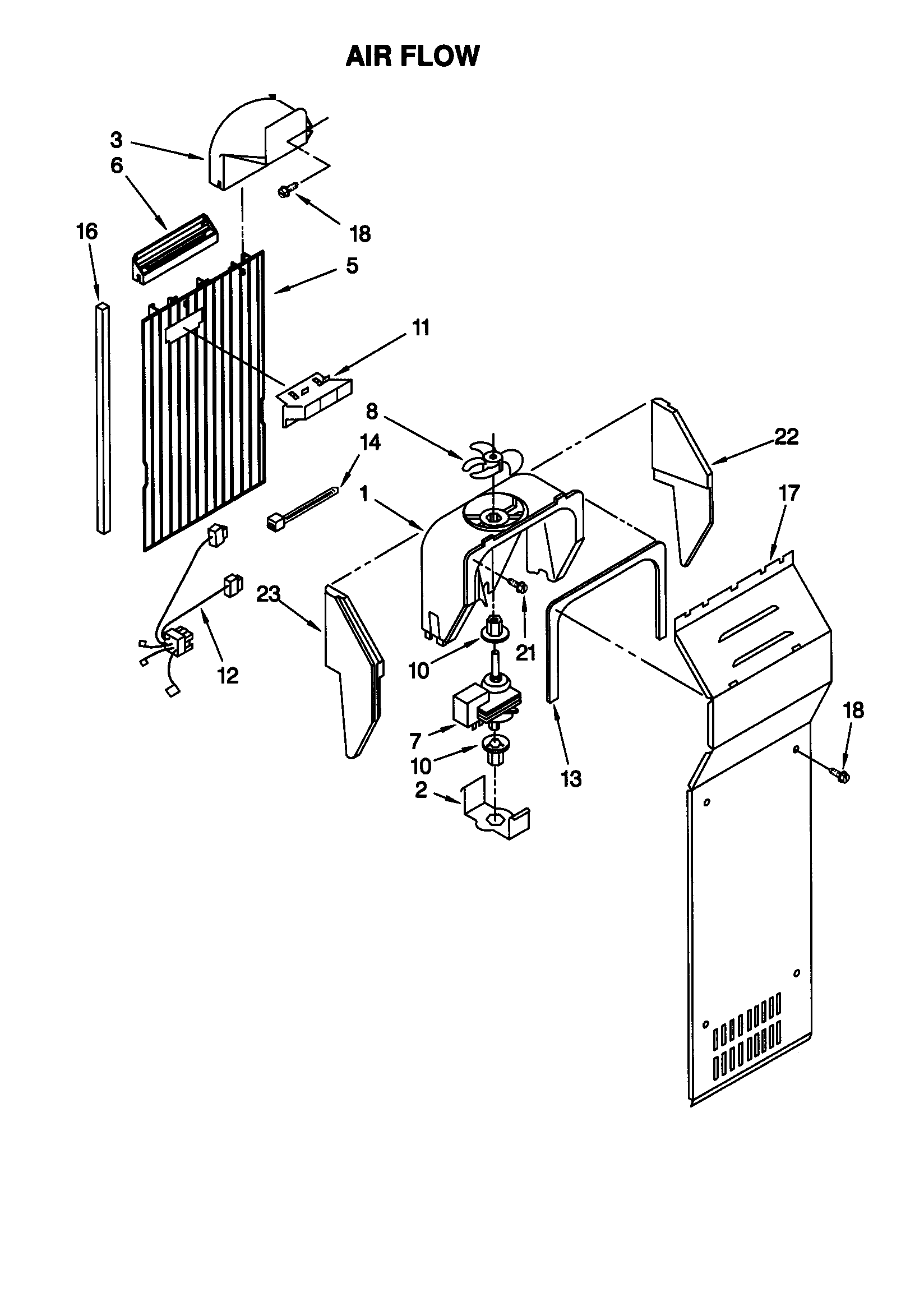

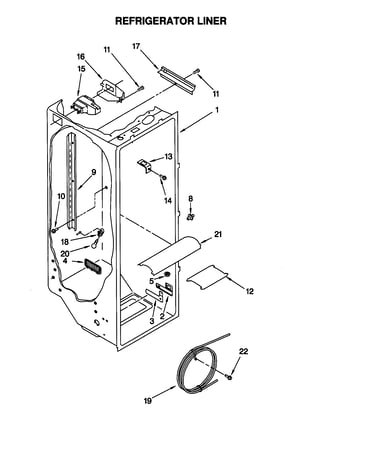

Model #10658287892 Kenmore side-by-side refrigerator

Here are the diagrams and repair parts for Kenmore 10658287892 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

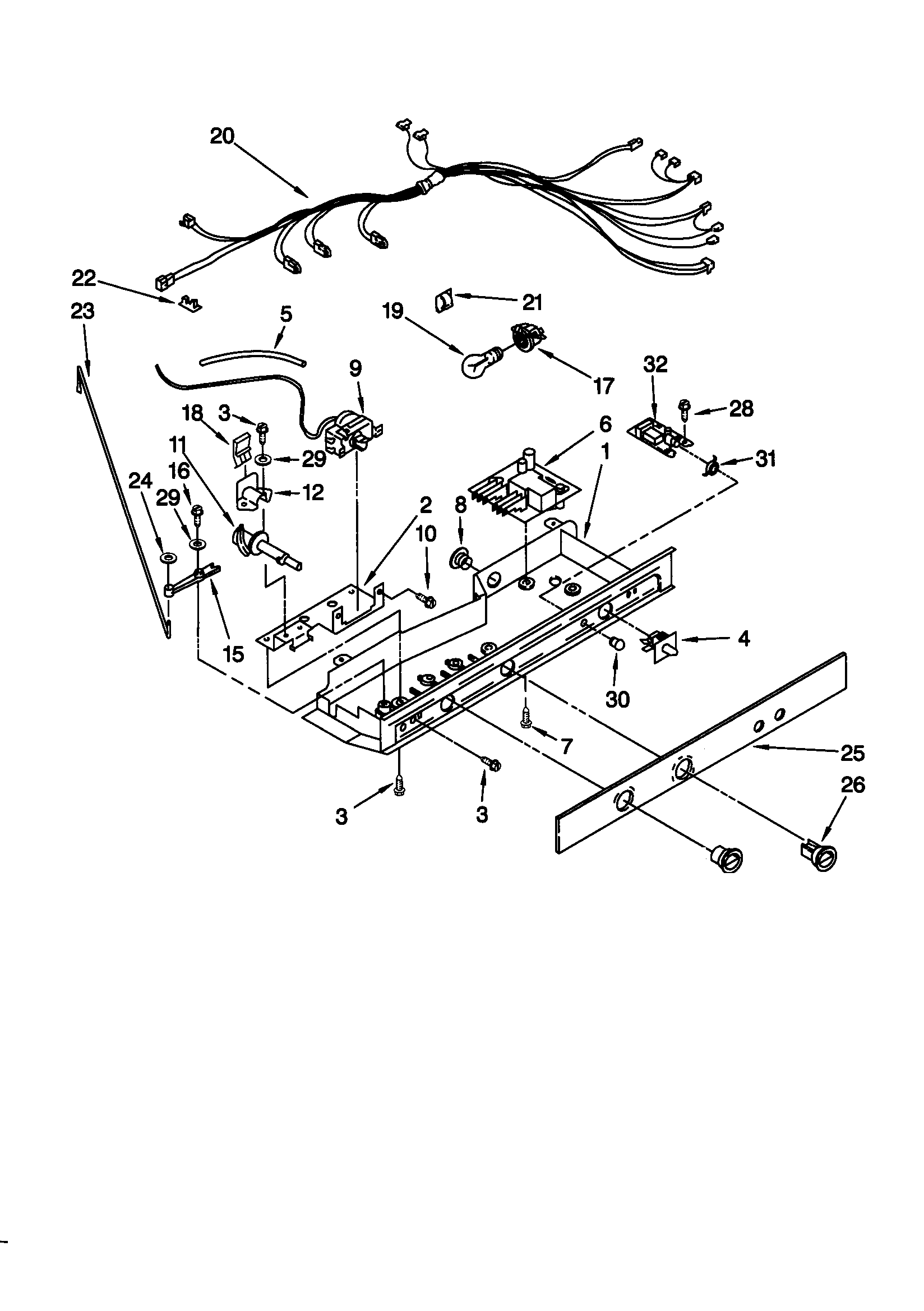

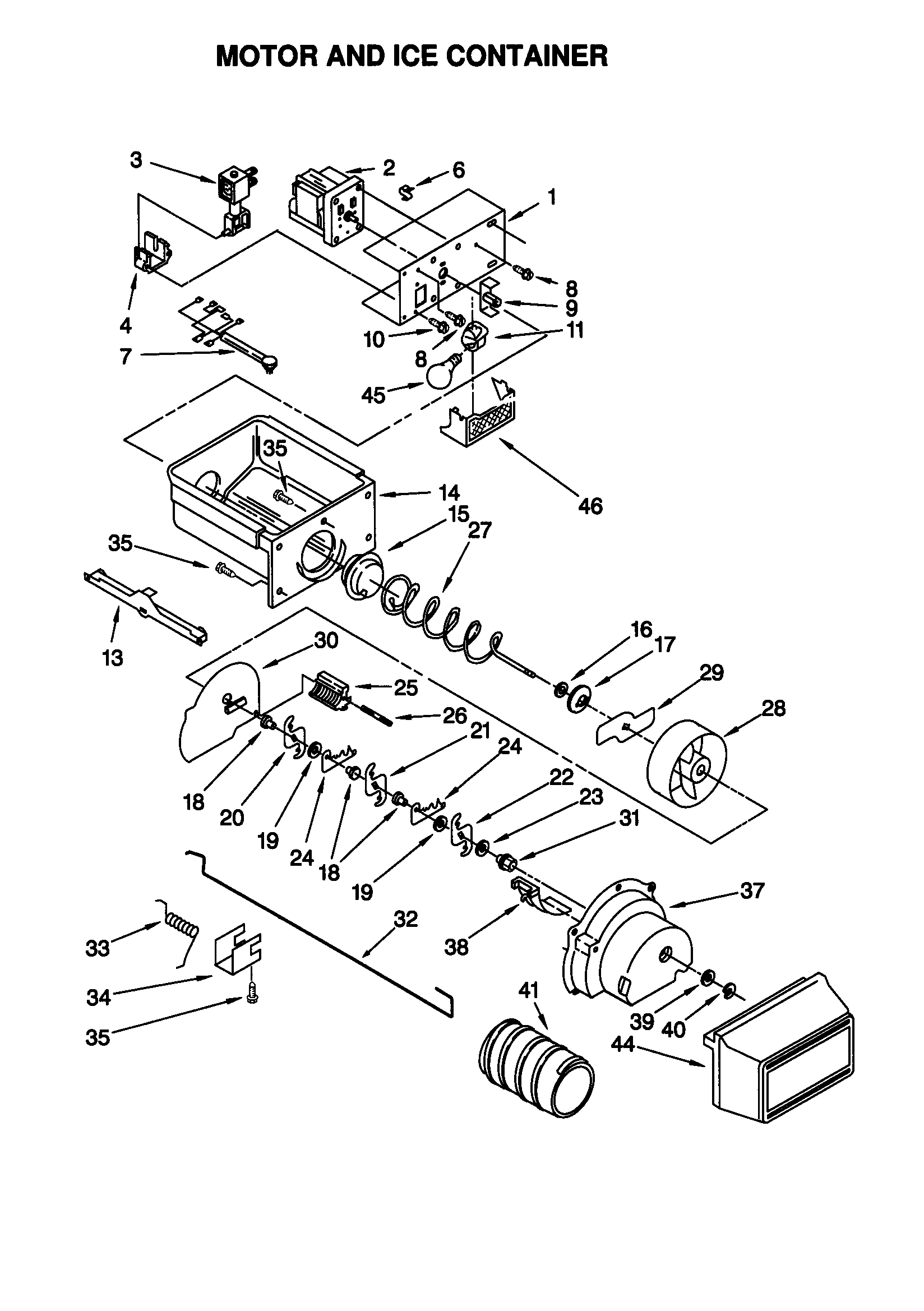

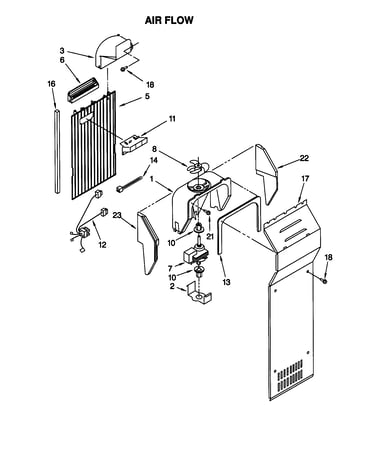

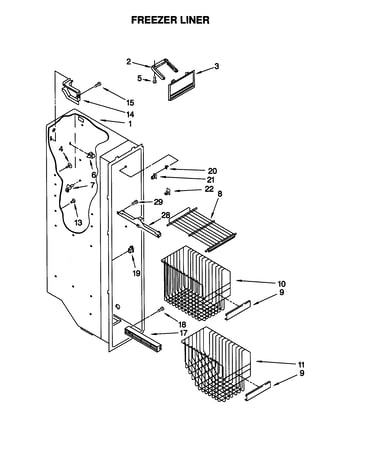

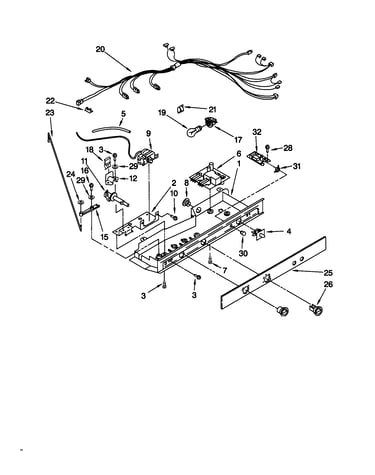

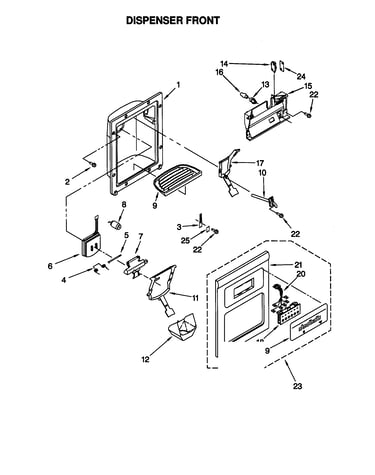

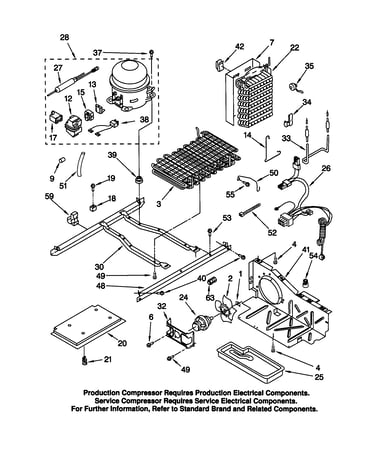

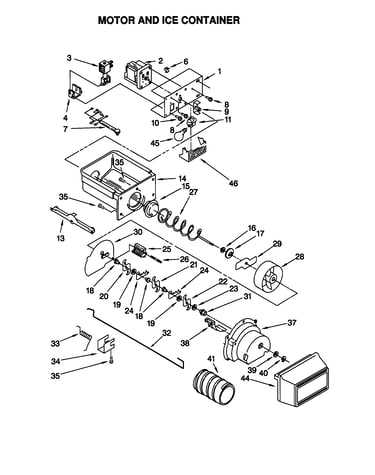

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 364 parts

    Genuine Kenmore Refrigerator Water Filter#29

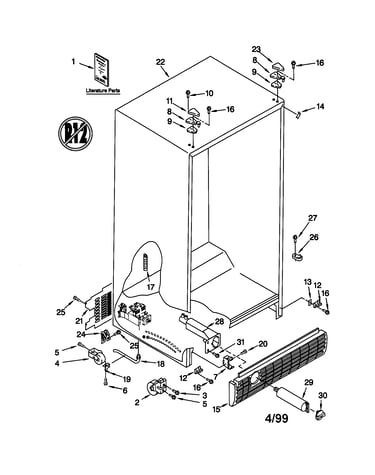

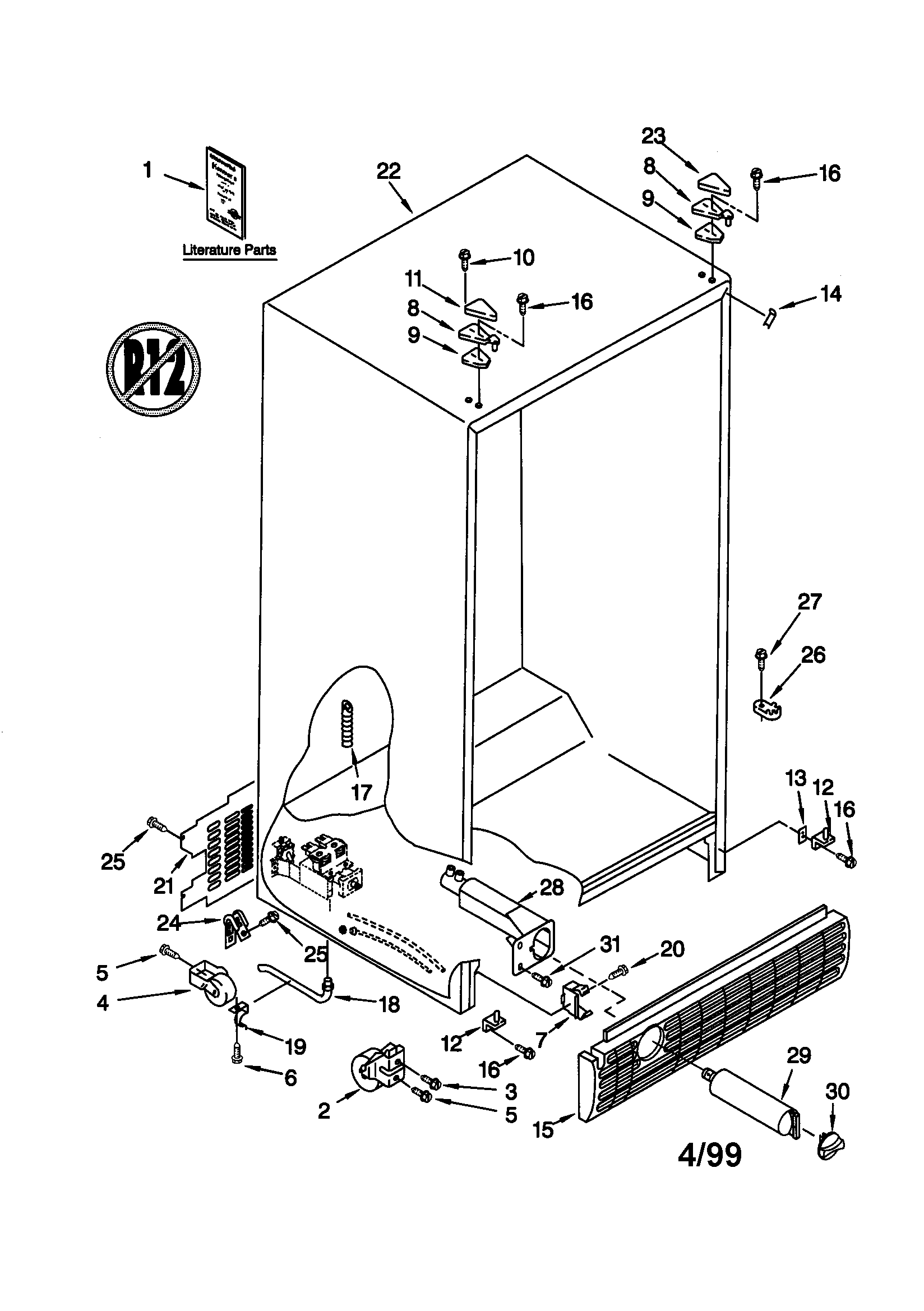

    Cabinet Diagram

    Refrigerator water filter

    Part #2203980
    Replaced by #9085
    ?
    Manufacturer substitution
    This part replaces 2203980. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $54.98
    Refrigerator Crisper Drawer#10

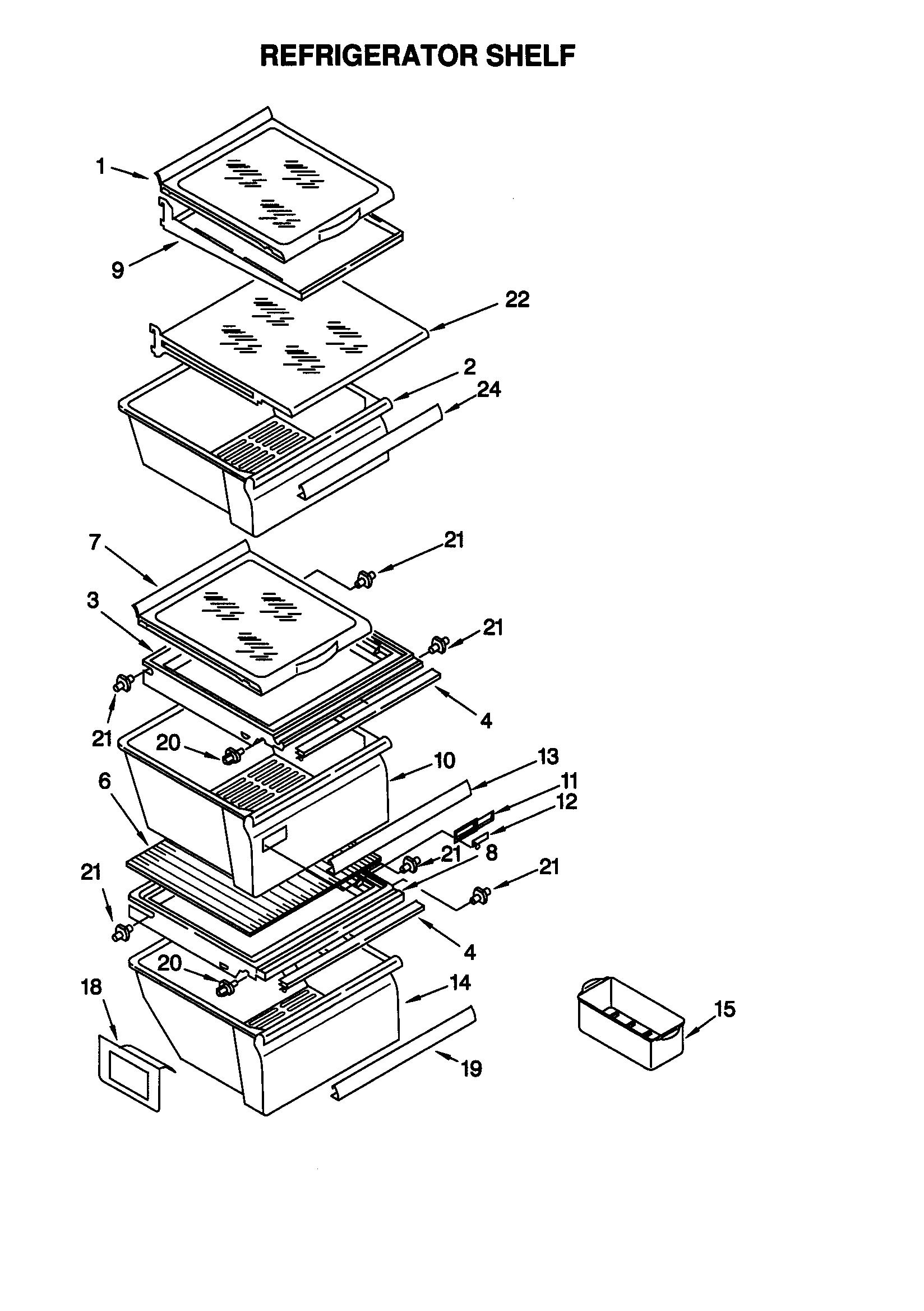

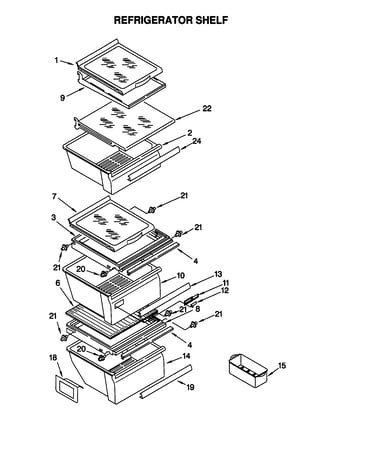

    Refrigerator shelf Diagram

    Refrigerator crisper pan

    Part #2196230
    Replaced by #WP2188656
    ?
    Manufacturer substitution
    This part replaces 2196230. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $62.09 |
    10% OFF
    Was: $68.99
    Refrigerator Door Closer Cam#12

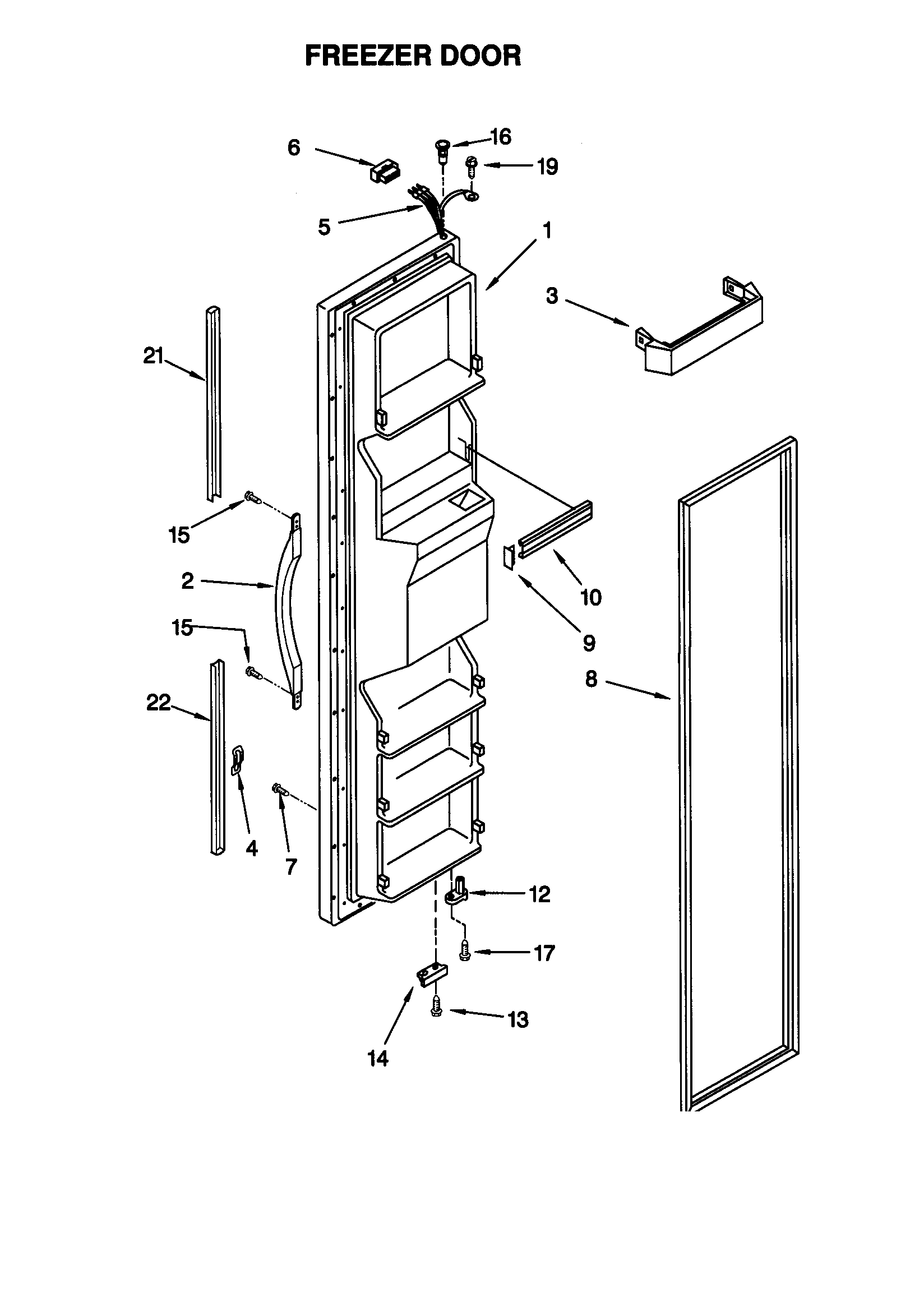

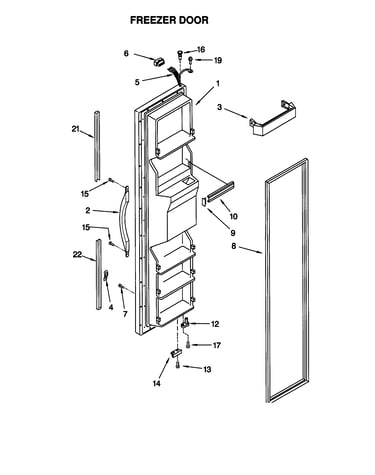

    Freezer door Diagram

    Refrigerator door closer cam

    Part #2182179
    Replaced by #WP2182179
    ?
    Manufacturer substitution
    This part replaces 2182179. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.79 |
    9% OFF
    Was: $6.39
    Refrigerator Door Closer Cam#10

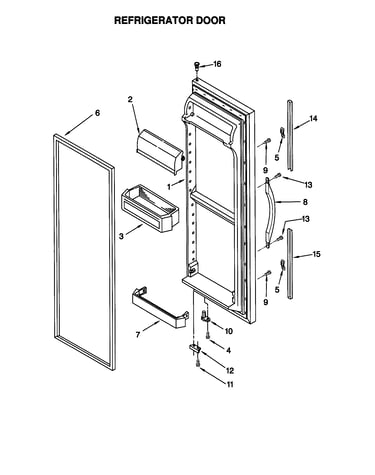

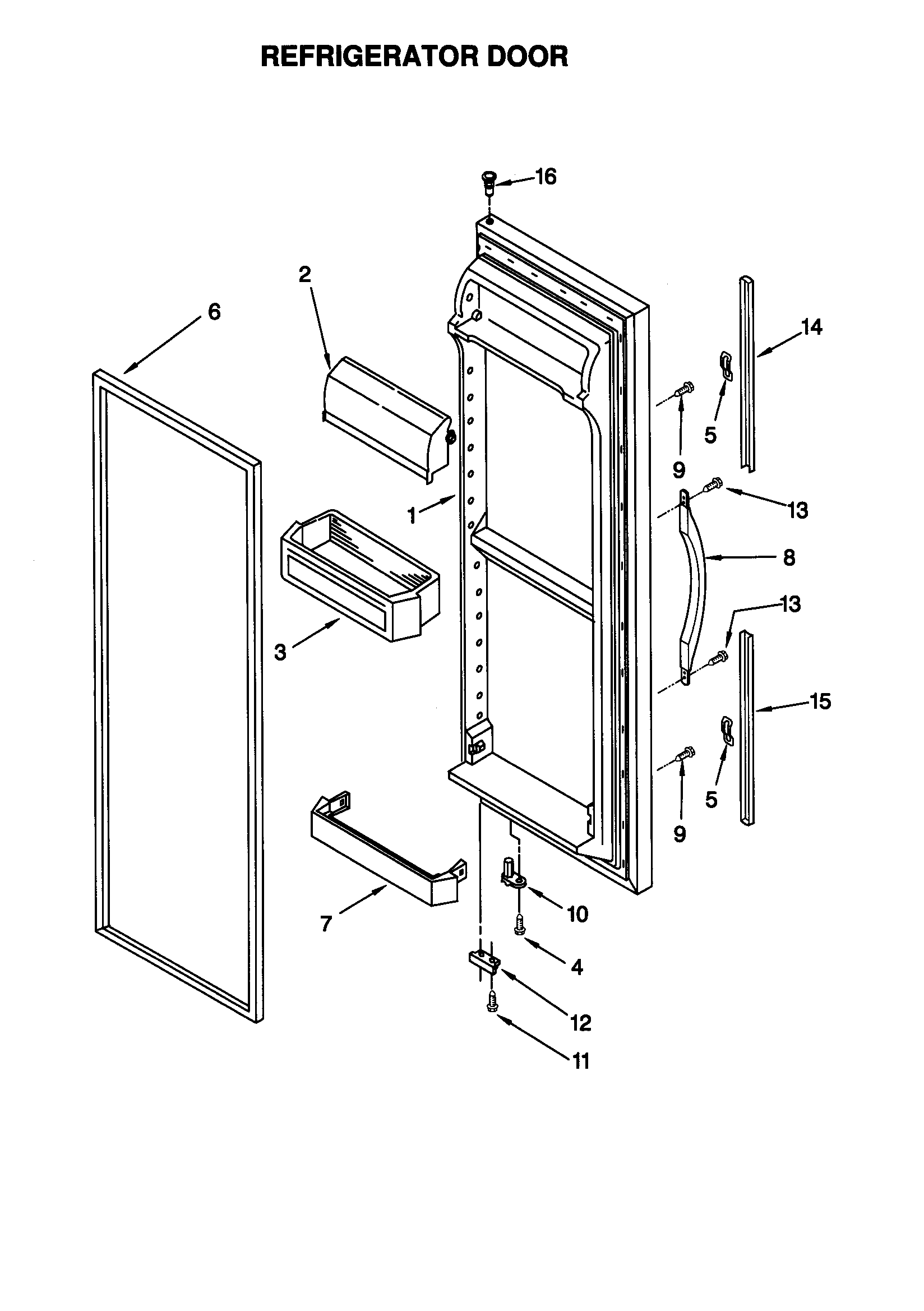

    Refrigerator doot Diagram

    Refrigerator door cam (black)

    Part #2182178
    Replaced by #WP2182179
    ?
    Manufacturer substitution
    This part replaces 2182178. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.79 |
    9% OFF
    Was: $6.39
    Refrigerator Door Bin#3

    Refrigerator doot Diagram

    Refrigerator cantilever shelf

    Part #2179575
    Replaced by #WPW10321304
    ?
    Manufacturer substitution
    This part replaces 2179575. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $39.69 |
    10% OFF
    Was: $44.09
    Refrigerator Deli Drawer#14

    Refrigerator shelf Diagram

    Refrigerator meat pan

    Part #2196228
    Replaced by #WP2188664
    ?
    Manufacturer substitution
    This part replaces 2196228. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $122.09 |
    10% OFF
    Was: $135.69
    Appliance Light Bulb, 40-watt

    See All Related Diagrams

    Light bulb

    Part #527949
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 527949. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39
    Refrigerator Door Closer Cam#26

    Cabinet Diagram

    Refrigerator door closer cam

    Part #2155311
    Replaced by #WPW10329686
    ?
    Manufacturer substitution
    This part replaces 2155311. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.09 |
    11% OFF
    Was: $5.69
    Refrigerator Ice Maker#100

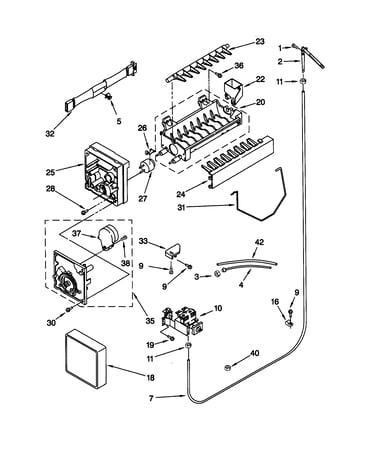

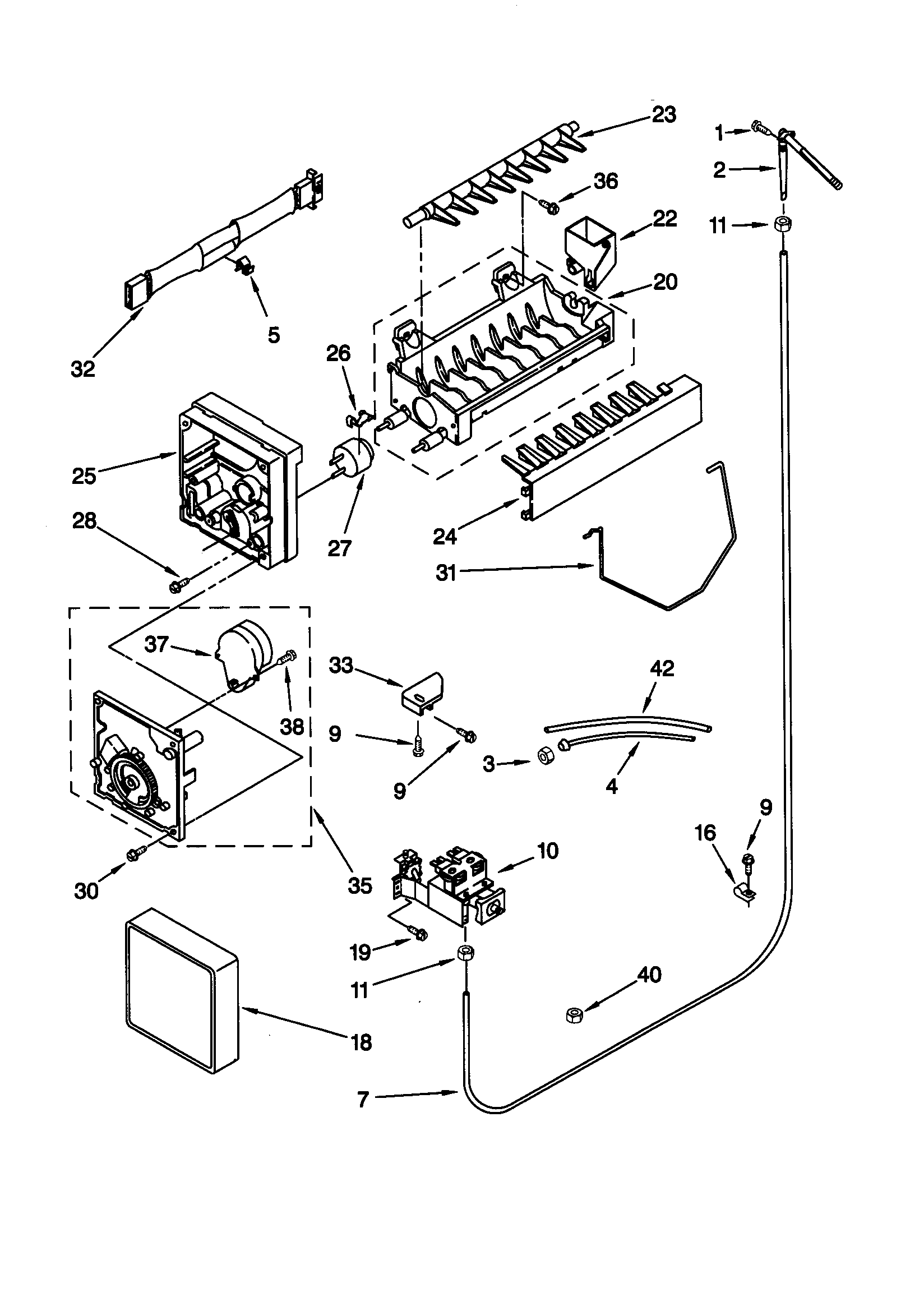

    Icemaker Diagram

    Refrigerator ice maker

    Part #4317943
    BEST SELLER
    In Stock
    $157.99
    Refrigerator Water Inlet Valve Kit#10

    Icemaker Diagram

    Refrigerator inlet valve

    Part #2186486
    Replaced by #W10408179
    ?
    Manufacturer substitution
    This part replaces 2186486. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $95.99
