Kenmore
Canister Vacuum

Model # 1162945982 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162945982 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Pedal 4151390
#1

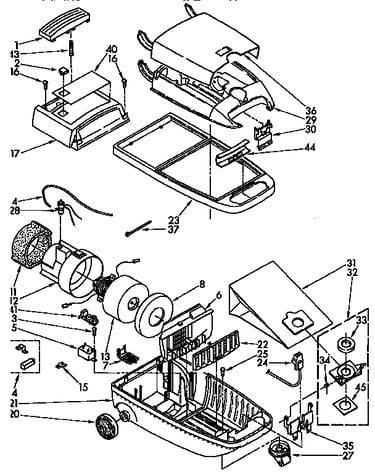

Vacuum cleaner parts diagram

Pedal

Part #4151390

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4152415
#9

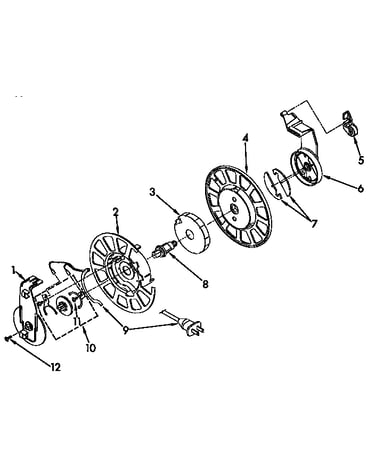

Power cord reel parts diagram

Power cord

Part #4152415

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4152915

#NI

All parts diagram

Parts list

Part #LIT4152915

The manufacturer no longer makes this part, and there's no substitute part

Indicator 676419
#28

Vacuum cleaner parts diagram

Indicator

Part #676419

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 4152388
#44

Vacuum cleaner parts diagram

Handle grip

Part #4152388

The manufacturer no longer makes this part, and there's no substitute part

Hose 4153696
#1

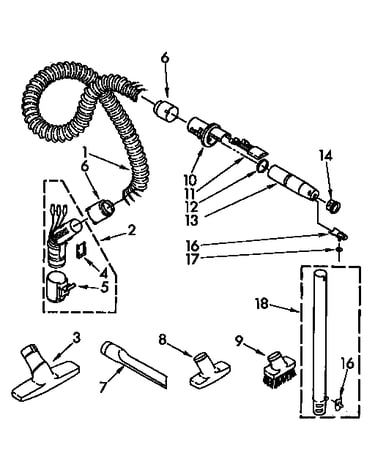

Hose and attachment parts diagram

Hose

Part #4153696

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Indicator Light Lens 4151920
#2

Vacuum cleaner parts diagram

Vacuum indicator light lens

Part #4151920

The manufacturer no longer makes this part, and there's no substitute part

Spring 725419
#16

Hose and attachment parts diagram

Spring

Part #725419

The manufacturer no longer makes this part, and there's no substitute part

Screw 487474
#11

Power cord reel parts diagram

Screw

Part #487474

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Reel Spring And Keeper 4369019
#3

Power cord reel parts diagram

Vacuum cord reel spring and keeper

Part #4369019

The manufacturer no longer makes this part, and there's no substitute part
