Model #EIMGD60LT0 Electrolux dryer

Here are the diagrams and repair parts for Electrolux EIMGD60LT0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 133 parts

    Dryer Drum Belt

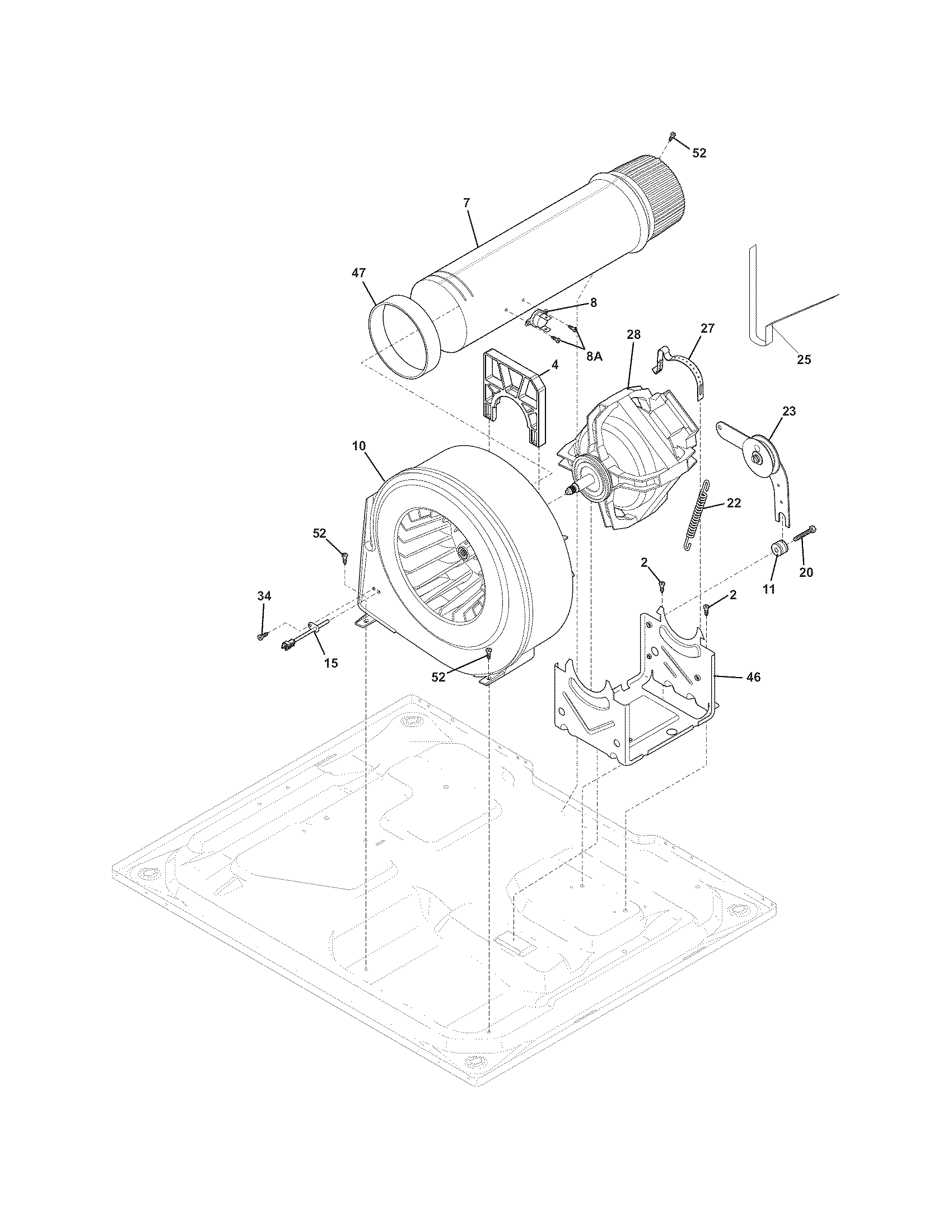

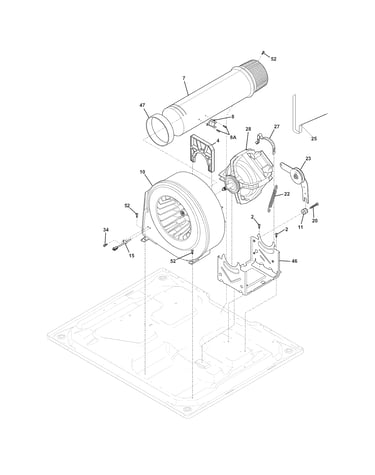

    Motor Diagram

    Dryer drum belt

    Part #134719300

    In Stock

    Dryer Blower Wheel and Housing Assembly


    Motor Diagram


    In Stock

    Laundry Appliance Screw, #8-18 x 31/100-in

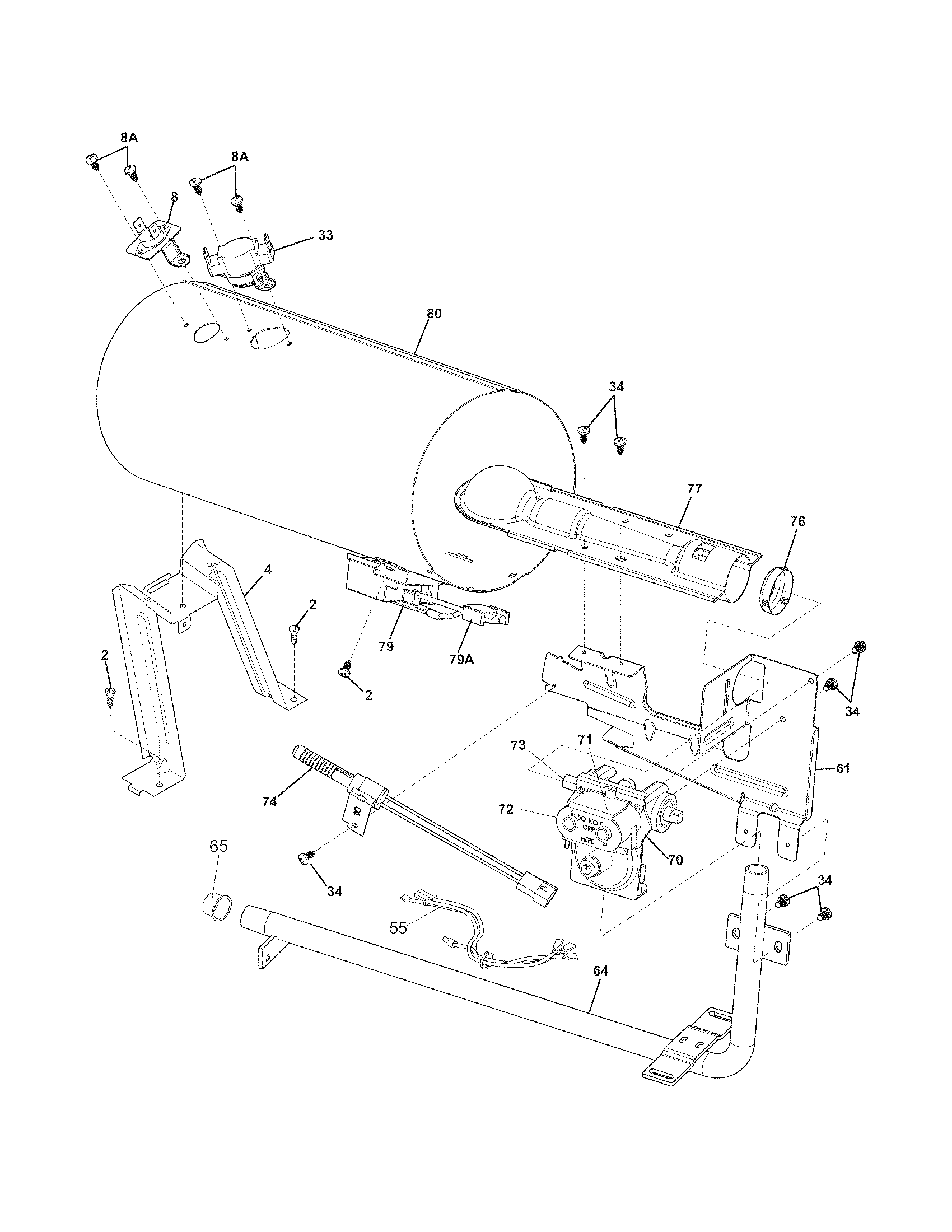

    Burner Diagram


    In Stock

    Dryer Thermistor


    Motor Diagram

    Dryer thermistor

    Part #134711300
    $31.99 |
    14% OFF
    MSRP: $37.00

    In Stock

    Washer Screw

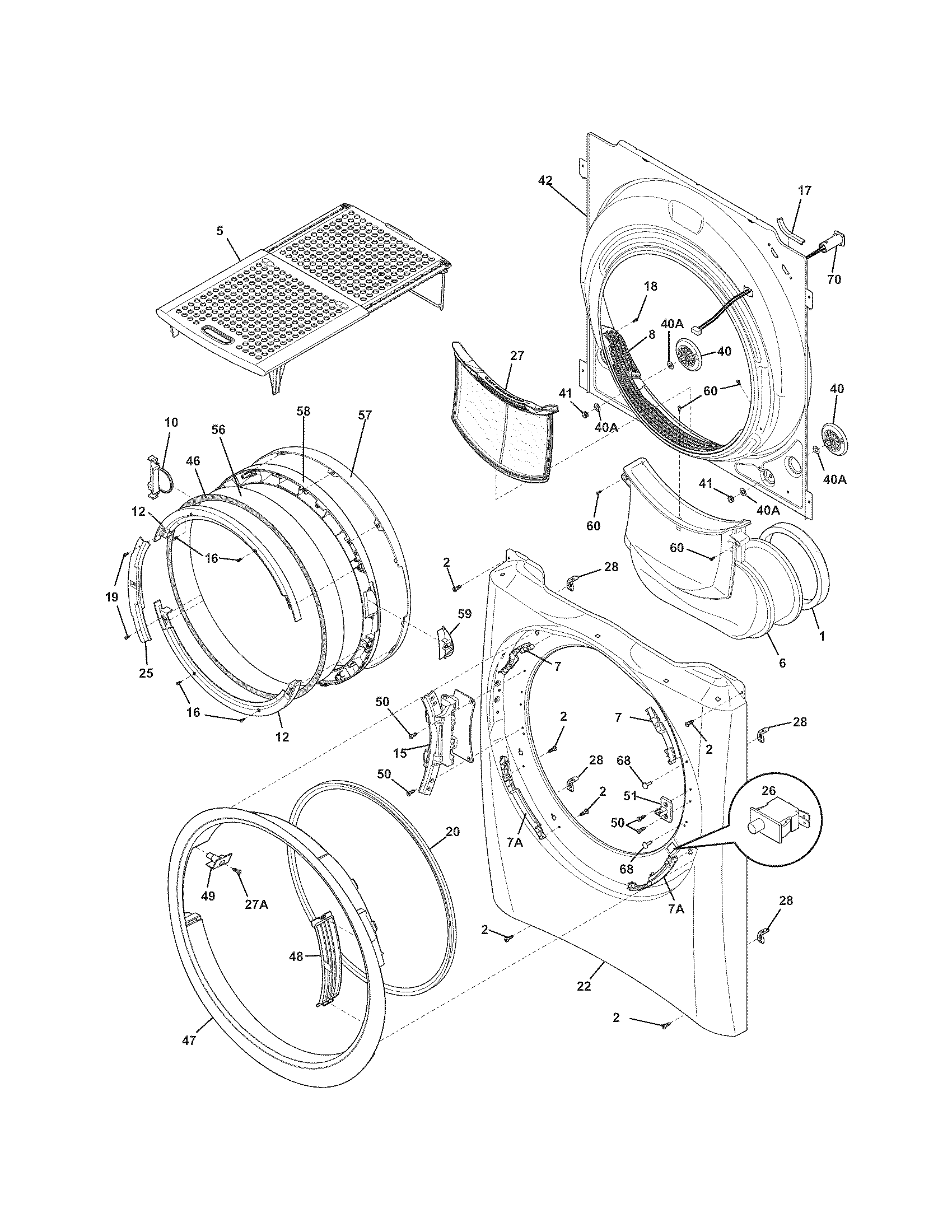

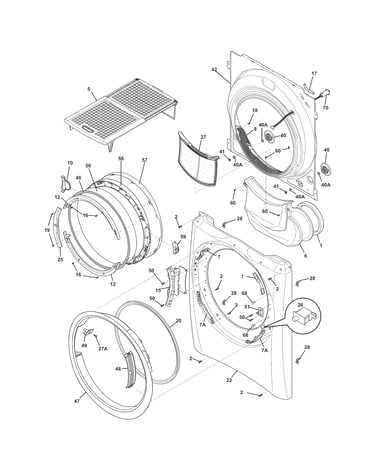

    Front panel/lint filter Diagram

    Washer screw

    Part #137380600
    This item is not returnable

    In Stock

    Dryer High-Limit Thermostat


    Burner Diagram


    In Stock

    Dryer Radiant Sensor


    Burner Diagram

    Dryer radiant sensor

    Part #5303281135
    $40.99 |
    24% OFF
    MSRP: $54.00

    In Stock

    Dryer Burner


    Burner Diagram

    Dryer burner

    Part #134197700
    $29.99 |
    33% OFF
    MSRP: $45.00

    In Stock

    Dryer Exhaust Duct Seal


    Motor Diagram

    Dryer exhaust duct seal

    Part #131633300
    $32.99 |
    30% OFF
    MSRP: $47.00

    In Stock

    Dryer Drum Seal

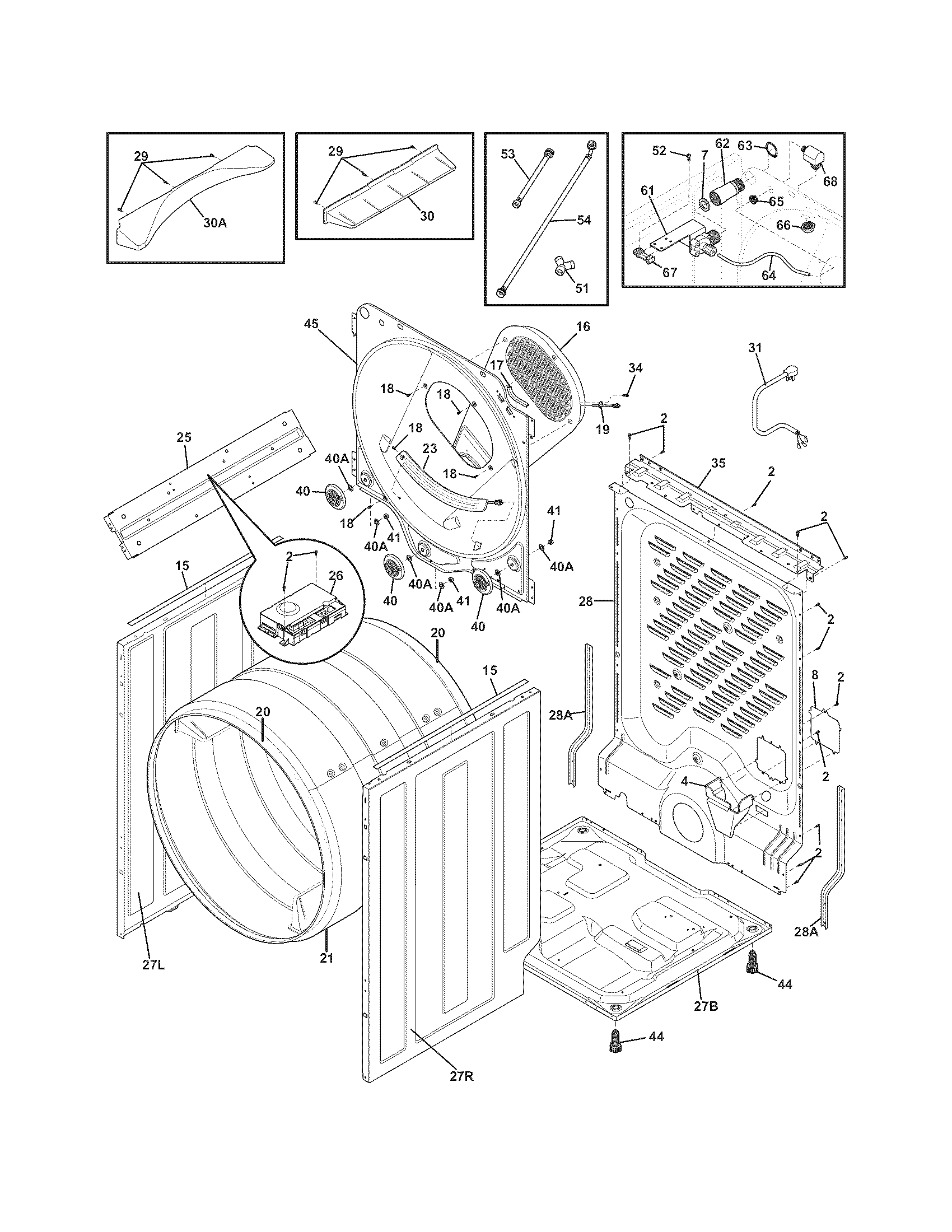

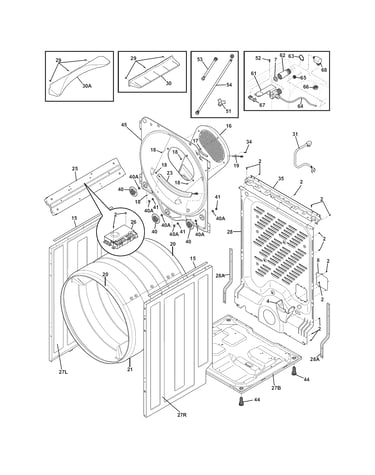

    Cabinet/drum Diagram

    Dryer drum seal

    Part #134705900
    $32.99 |
    31% OFF
    MSRP: $48.00

    In Stock

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: damaged door strike, worn door catch
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
