Whirlpool WMH31017HZ3 microwave/hood combo Parts

The Whirlpool WMH31017HZ3 is a microwave/hood combo (an over-the-range microwave with a built-in vent hood and cooktop light) designed to mount above your range. For model-specific operation and installation details, use the WMH31017HZ3 owner's manual and WMH31017HZ3 installation guide.

A microwave/hood combo combines two functions in one appliance:

• Microwave cooking in the upper cabinet space

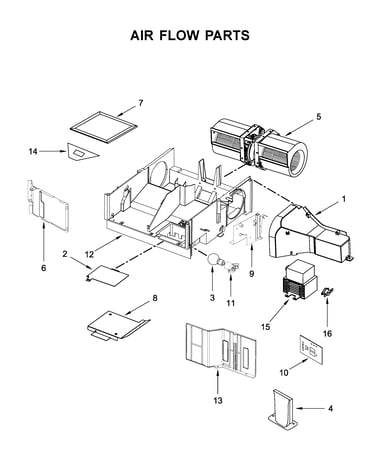

• Ventilation fan to help remove smoke, steam, and odors from the cooktop
• Cooktop lighting underneath the unit
• Grease filtering (and sometimes charcoal filtering if set up for recirculating)

These are typical service and maintenance items for WMH31017HZ3-STYLE over-the-range microwaves:

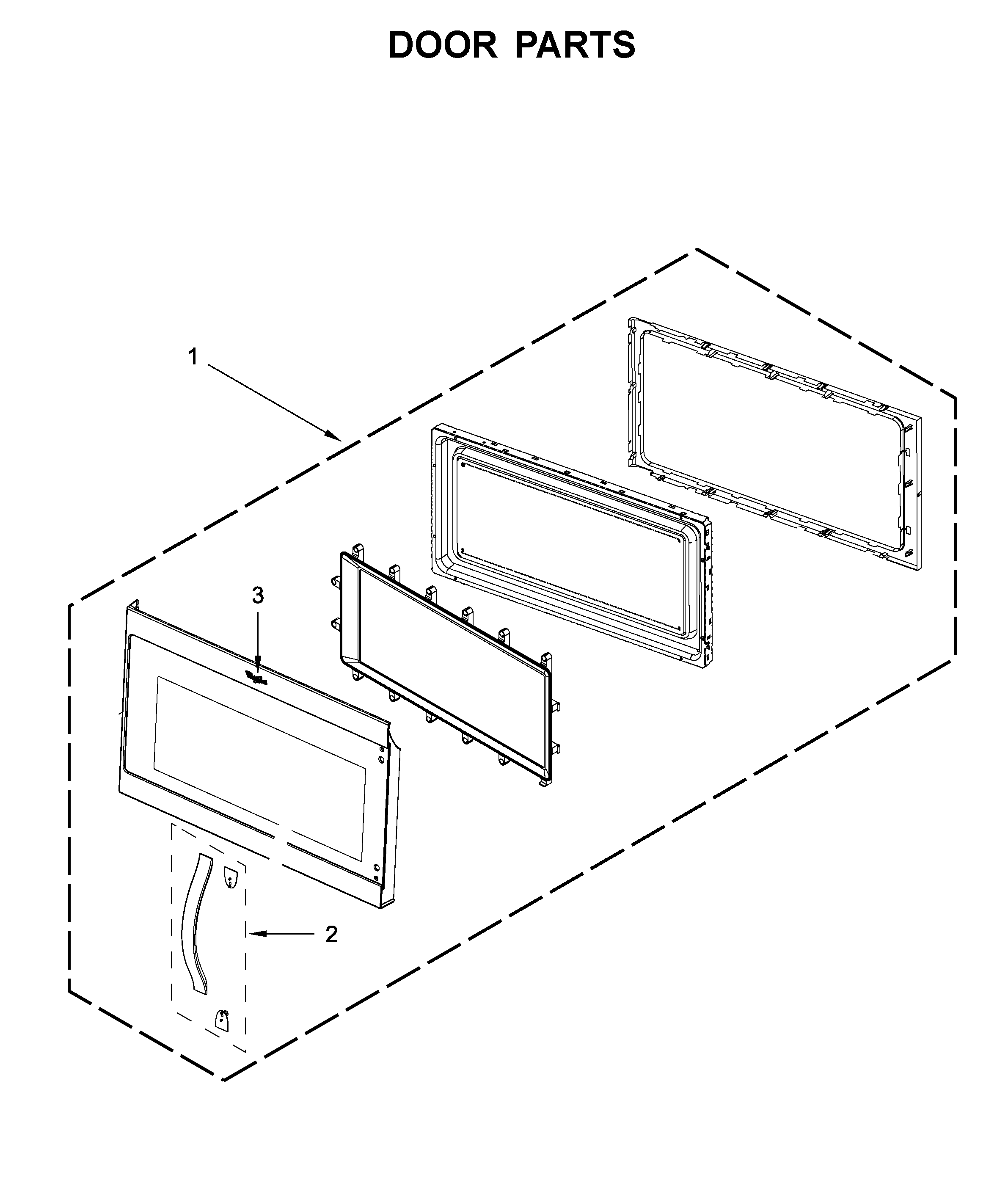

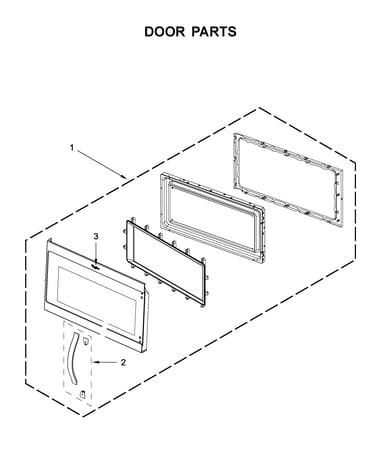

• Door safety interlock components (switches and mounts)

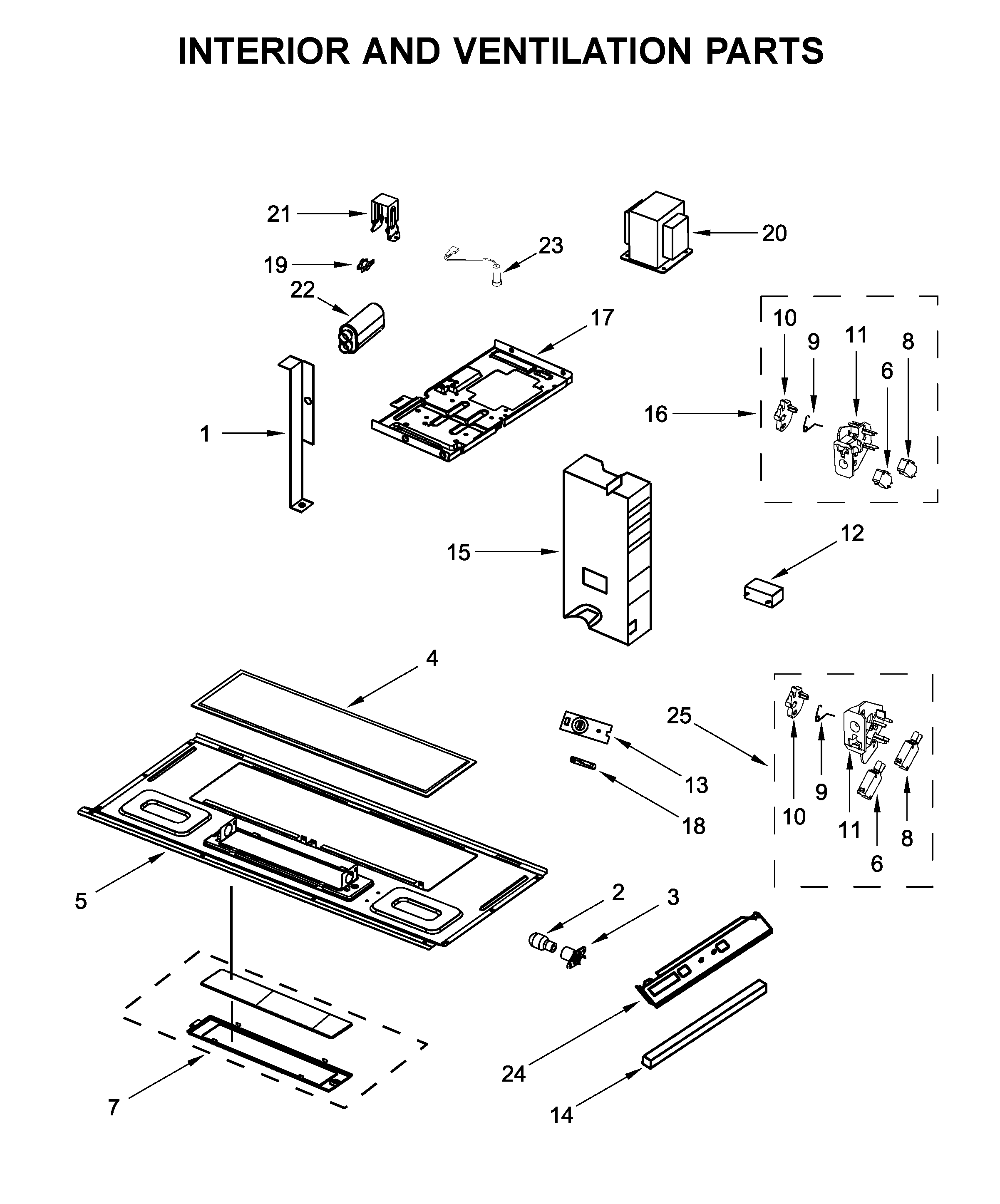

• Cooktop light bulb and light socket

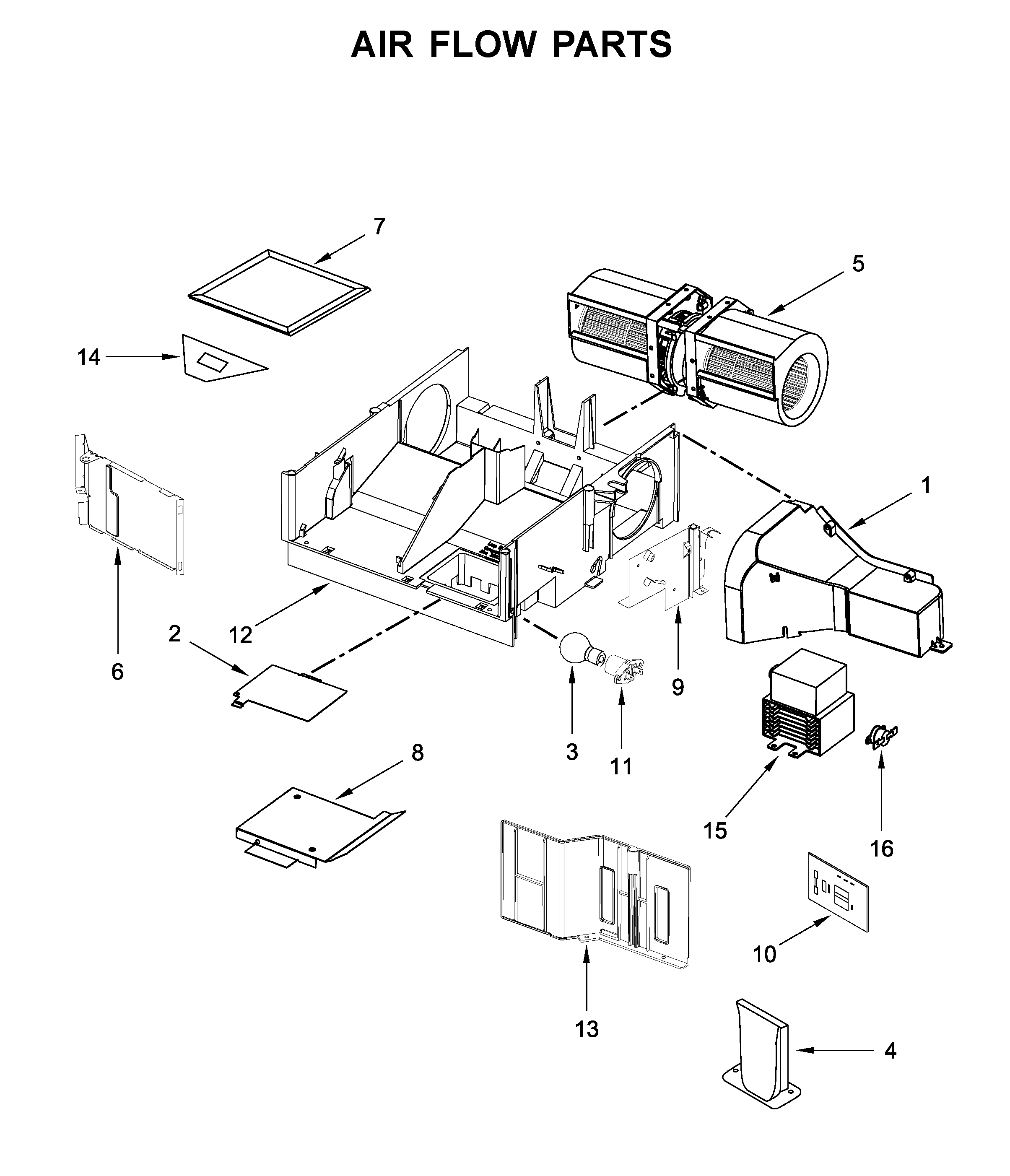

• Hood fan motor

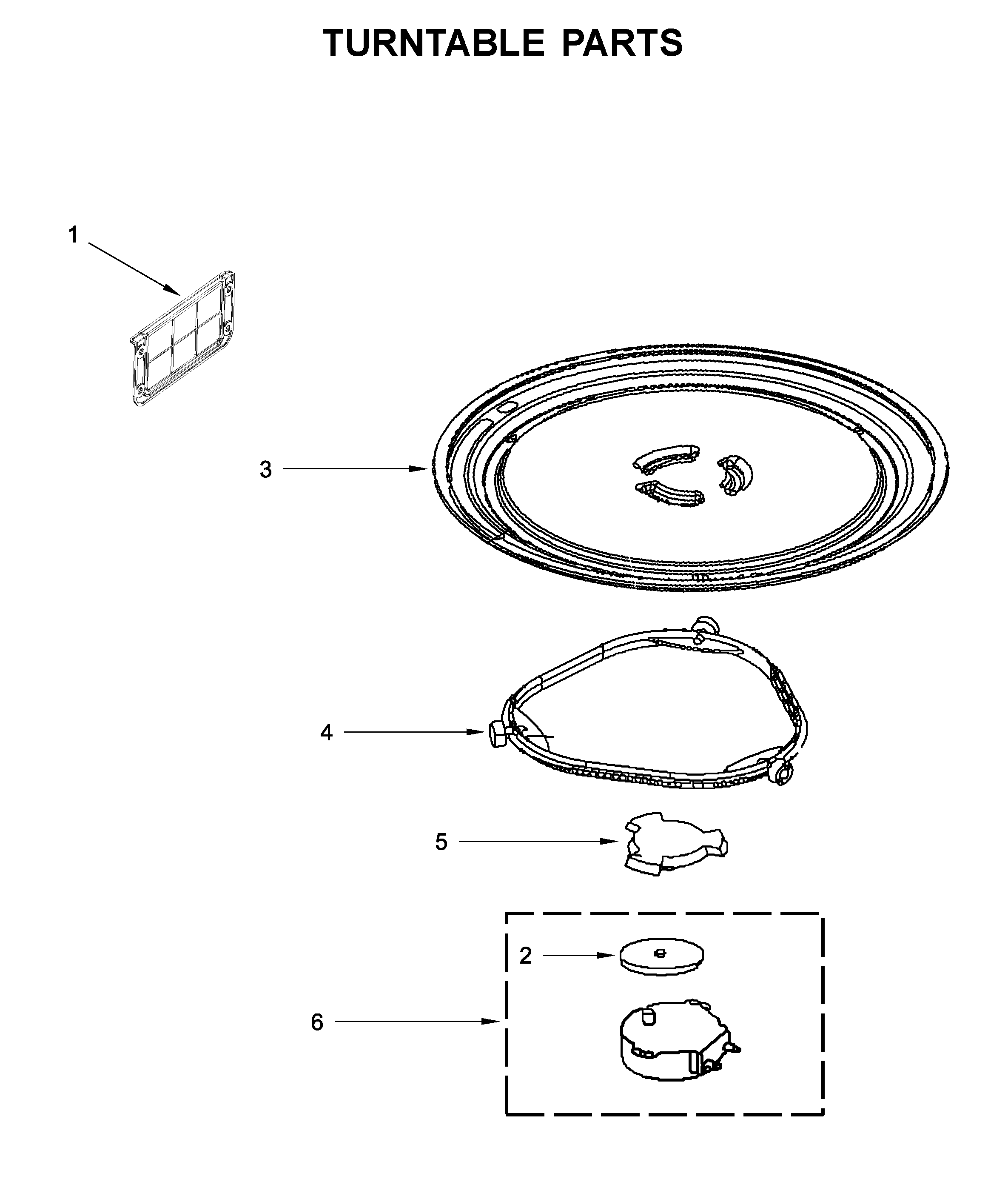

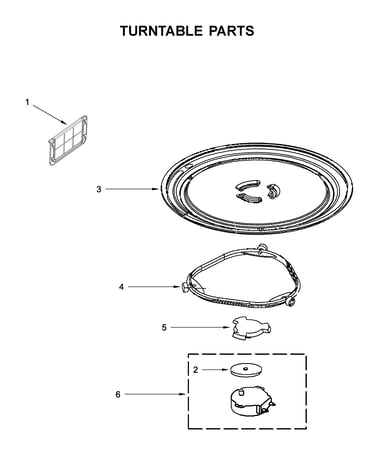

• Turntable motor and glass tray

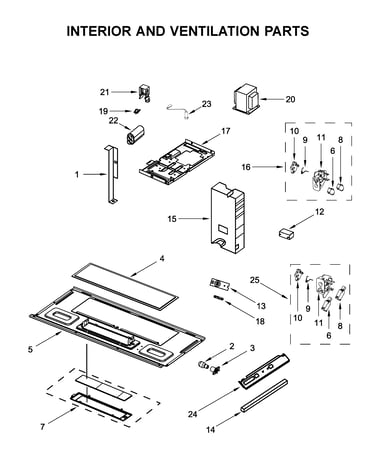

• High-voltage heating components (used in “not heating” repairs)

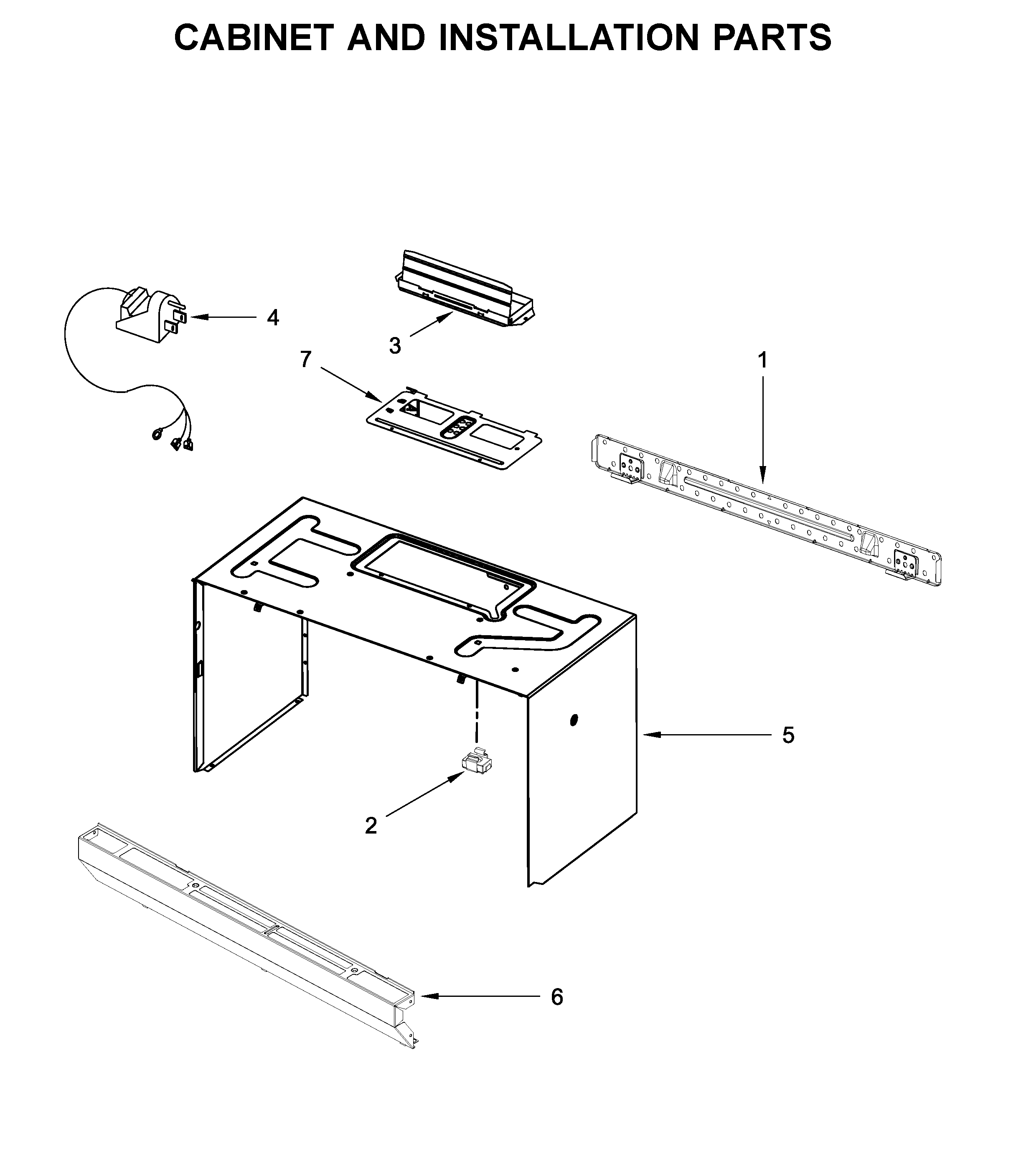

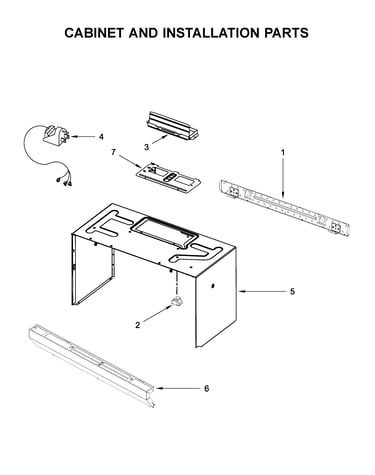

Knowing WMH31017HZ3 is a microwave/hood combo helps you choose the right parts and instructions, especially for venting setup, mounting hardware, and cooktop light and fan repairs.

Last updated: February 2026

Common problems we see with Whirlpool microwaves (including the Whirlpool WMH31017HZ3 microwave/hood combo) are: the microwave won’t run, it runs but doesn’t heat, the turntable stops spinning, the keypad won’t respond, or the hood lights and fan act up. Many “won’t start” complaints trace back to power supply issues or the door not fully latching.

• Microwave will not operate at all: tripped breaker, blown household fuse, or a door interlock problem
• Runs but does not heat: high-voltage circuit issue (magnetron, diode, capacitor, transformer) or a safety thermostat opening
• Starts then stops: overheating protection, airflow restriction, or a failing interlock switch
• Turntable not rotating: turntable motor or drive components

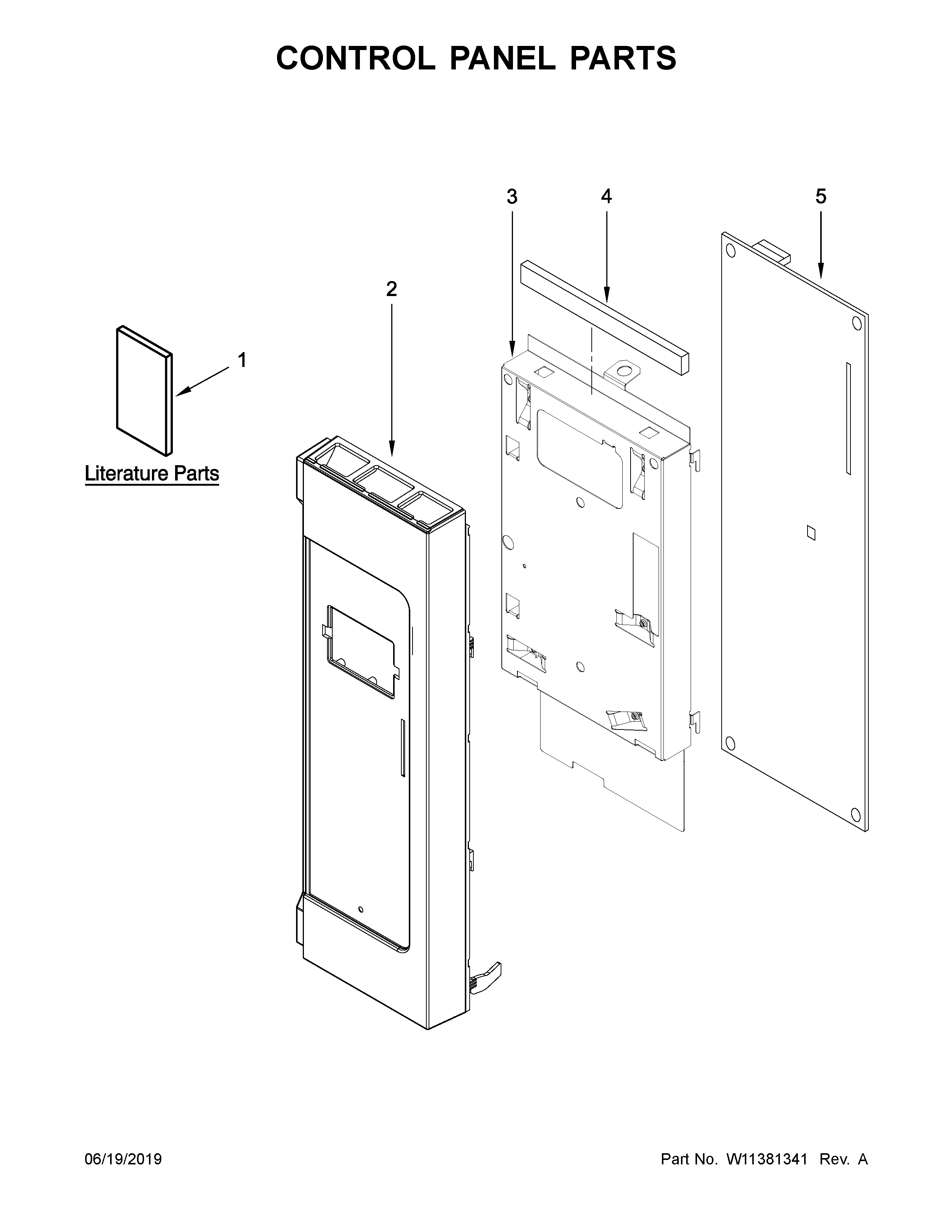

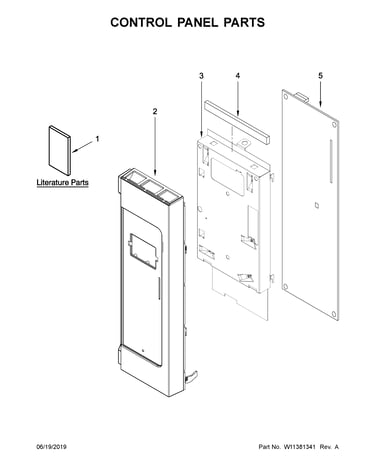

• Buttons not working or display acting odd: control panel or electronic control
• Sparking/arcing: food debris, damaged waveguide cover area, or metal in the cavity

For model-specific operating checks and troubleshooting steps, use the owner's manual.

1. Confirm power: verify the outlet has power and reset the household breaker if needed.
2. Check the door close: open and firmly re-close the door; a misaligned latch can prevent operation.
3. Test heating correctly: heat 1 cup of cold water for 2 minutes on High; if it doesn’t heat, the manual’s troubleshooting path is the right next step.
4. Look for airflow issues: grease buildup in filters and blocked vents can trigger overheating shutoffs.
5. Rule out simple causes of sparking: remove twist ties, foil, or metal-trimmed dishes; clean splatter.

Microwave “no heat” and “won’t start” problems often involve safety interlocks or high-voltage components. Correct diagnosis prevents repeat failures and helps you replace only what’s needed.

Last updated: February 2026

Yes. The Whirlpool WMH31017HZ3 microwave/hood combo is designed for straightforward day-to-day cooking with simple controls, a turntable for common dish sizes, and built-in safety guidance for normal household use. For the exact control layout and feature steps, use the WMH31017HZ3 owner's manual.

• Turntable cooking helps heat food more evenly in typical bowls and plates.
• Preset cooking options reduce guesswork for common items.
• Over-the-range hood functions let you run the fan and cooktop light from the same unit.
• Clear safety instructions help you avoid common misuse (sealed containers, damaged cord, etc.).
• Model and serial label location is easy to access (behind the door opening) for service or parts matching.

1. Confirm the unit is installed and grounded correctly (installation requirements matter for safe operation).
2. Keep the door and sealing surfaces clean so the door closes and seals properly.
3. Use microwave-safe cookware and avoid heating sealed containers.
4. If you notice unusual operation after closing the door, check the door latching action before continued use.

A microwave/hood combo is easiest to use when it is installed correctly and the door closes smoothly. That protects cooking performance and helps prevent nuisance issues like poor heating, noise, or intermittent operation.

Last updated: February 2026

A Whirlpool microwave typically lasts 7 to 10 years. For an over-the-range microwave/hood combo like Whirlpool WMH31017HZ3, lifespan depends most on daily run time, keeping the venting and filters clean, and avoiding overheating events that stress high-voltage parts.

• Usage frequency and cook time (multiple long heat cycles per day shortens life)
• Ventilation and airflow (grease buildup restricts cooling)
• Door closing and latch wear (slamming can damage interlock components)
• Power quality (repeated breaker trips or blown fuses can indicate electrical issues)
• Cleaning habits (steam and grease left inside can lead to corrosion and arcing)

• Runs but does not heat consistently
• Loud humming or unusual buzzing during heating
• Intermittent operation when opening or closing the door
• Burning smell, arcing, or scorch marks inside the cavity
• Hood fan or lights becoming unreliable

Knowing the typical 7 to 10 year lifespan helps you decide whether to repair or replace. If your WMH31017HZ3 is in that range and showing heating or door-interlock symptoms, checking the most common failure areas first can save time and prevent repeat breakdowns.

For model-specific care and maintenance intervals (filters, cleaning, and operating tips), follow the WMH31017HZ3 owner's manual.
