Frigidaire FPHG2399PF1 refrigerator Parts

Frigidaire Gallery is not considered “high end” in the luxury-appliance sense; it is a strong mid-range line. For a Frigidaire refrigerator like model FPHG2399PF1, Gallery typically means upgraded styling and features compared to basic models, without the premium pricing of true luxury brands.

How Frigidaire Gallery fits in the lineup

We generally see Frigidaire positioned like this:

• Frigidaire (base line): practical features, value-focused
• Frigidaire Gallery: more features and finish upgrades, better overall package for most homes
• Frigidaire Professional: more premium look and performance-focused features (closer to “high end”)

What “high end” usually means for refrigerators

“High end” usually refers to a mix of premium materials, tighter temperature control, quieter operation, and higher-end fit and finish.

Common high-end expectations include:

• Dual evaporators or advanced humidity management
• Very quiet compressor and fan operation
• Higher-end interior lighting and shelving systems
• More robust door hardware and alignment
• Longer warranty coverage and premium service networks

Quick comparison

Line	Typical positioning	Best for
Frigidaire	Entry to mid	Budget-friendly replacement
Frigidaire Gallery	Mid-range	Feature upgrades without luxury pricing
Frigidaire Professional	Upper mid to premium	More premium design and performance

Why it matters when buying parts or planning repairs

Knowing the product tier helps set expectations for maintenance costs and feature complexity. For example, Gallery models often use more filtration and airflow components that need routine replacement.

If you are maintaining odor and air quality, the refrigerator door air filter EAFCBF is a common Gallery-style upkeep item. For water and ice quality, the refrigerator water filter ULTRAWF is the matched filter option for this model.

Related DIY help we recommend:

• How to replace the water filter in a Frigidaire refrigerator
• How to get rid of refrigerator smells
• How to install refrigerator air filter

Last updated: February 2026

The most common problem we see on Frigidaire refrigerators like model FPHG2399PF1 is a cooling complaint, often “freezer is cold but the fresh food section is warm.” The most frequent causes are restricted airflow (evaporator fan or ice buildup), dirty condenser coils, or a temperature-sensing/control issue.

Most common symptoms (what you notice)

• Fresh food section warms up while freezer still freezes
• Temperature swings (too warm, then too cold)
• Frost or ice buildup on the back wall or inside the freezer
• Louder-than-normal fan noise or no fan sound at all
• Ice maker or water dispenser performance problems

Top causes to check first (in order)

• Airflow problem in the freezer compartment: a failing fan blade or fan system can stop cold air from moving to the refrigerator section (see refrigerator evaporator fan blade 5308000010).
• Dirty condenser coils: reduced heat release makes the whole system struggle, especially in warm kitchens.
• Defrost problem: ice buildup on the evaporator can block airflow and mimic a “not cooling” failure.
• Temperature sensing issue: a bad sensor can misread temps and cause poor regulation (see refrigerator temperature sensor 240597220).
• Water and ice issues: a clogged filter can reduce flow and affect dispenser and ice production (see how to replace the water filter in a Frigidaire refrigerator).

Quick triage: what to do in 10 minutes

• Confirm settings: fridge about 37°F, freezer about 0°F.
• Listen for airflow: open the freezer and listen for the evaporator fan running.
• Check for frost: heavy frost suggests a defrost or airflow restriction.
• Clean condenser area: vacuum coils and the condenser fan area.
• If water is slow: replace the filter (see refrigerator water filter ULTRAWF) and purge air.

Common problem vs. likely fix

What’s happening	Most likely area	Typical next step
Freezer OK, fridge warm	Airflow/defrost	Check for frost; inspect evaporator fan system
Both sections warm	Condenser/compressor/control	Clean coils; verify condenser fan; check controls
Temps fluctuate	Sensor/control	Test/replace temperature sensor
Bad odors	Air filter/cleaning	Replace air filter; clean interior

Why it matters

Cooling problems usually start as airflow or maintenance issues; catching them early helps prevent food spoilage and reduces strain on the compressor and control boards.

Last updated: February 2026

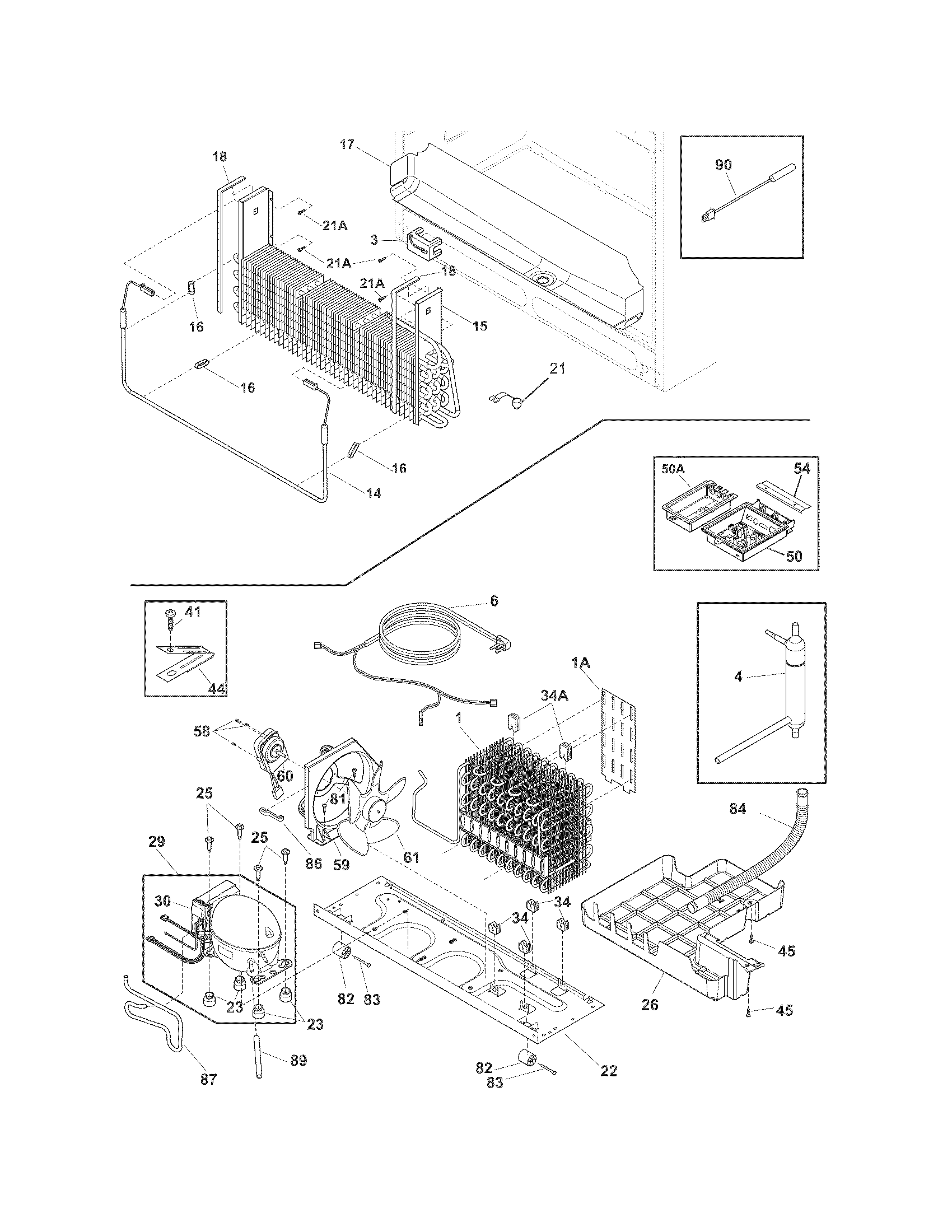

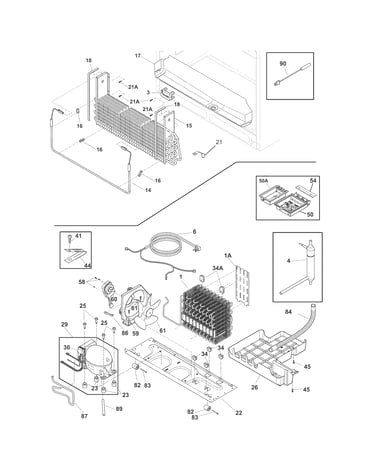

On a Frigidaire bottom-mount refrigerator like model FPHG2399PF1, the “bottom part” most people mean is the machine compartment (the area that houses the cooling system). The main component down there is the compressor, along with fans and electrical controls.

What you might be referring to

Depending on what you’re seeing or hearing, the bottom area can mean different parts:

• Compressor: the pump that circulates refrigerant and drives cooling
• Condenser fan and motor: moves air across the condenser coils to remove heat
• Control boards: manage temperatures, defrost, and compressor operation
• Drain system: routes defrost water to an evaporator pan area
• Condenser coils (often underneath or behind a lower cover): release heat from the sealed system

Common “bottom area” parts for FPHG2399PF1

If you’re troubleshooting noise, warm temps, or no cooling, these model-matched parts are often involved:

Symptom	Bottom-area part to check	Example model-matched part
Loud humming or clicking, poor cooling	Compressor and controls	Refrigerator inverter control board 241577505
Rattling or buzzing near the floor	Condenser fan motor or blade	Refrigerator condenser fan motor 242018301
Water pooling under the unit	Drain tube or drain path	Refrigerator drain tube 241830904

Why it matters

Calling it the right thing helps you troubleshoot faster. For example, a “noise at the bottom” is often a condenser fan issue, while “not cooling” can point to the compressor, inverter board, or airflow problems.

Quick checks we recommend before replacing parts

• Make sure the refrigerator is level and not touching cabinets (vibration noise)
• Listen: steady fan noise differs from compressor clicking or relay chatter
• Check for airflow at the toe-kick or rear lower area (condenser fan running)
• Look for dust buildup on the lower condenser area (restricted heat removal)
• If you have a display error, use Frigidaire refrigerator error codes to narrow the cause

Last updated: February 2026

Yes, a bottom-mount refrigerator like the Frigidaire FPHG2399PF1 is better for many kitchens because the fresh-food section sits at eye and waist level, so you reach for everyday items less often and with less bending. The tradeoff is that freezer access is lower and often organized in pull-out baskets.

When a bottom-mount fridge is the better choice

• You use fresh foods more than frozen foods (produce, dairy, drinks)
• You want easier access to refrigerator shelves and crisper drawers
• You prefer wide refrigerator storage with fewer deep bends
• You like freezer organization in drawers and baskets
• You want a layout that works well for meal prep and frequent cooking

When another style may be better

• You access frozen foods multiple times per day (top-freezer can be quicker)
• You want the lowest purchase price (top-freezer models are often simpler)
• You prefer full-width freezer shelves instead of stacked drawers

Quick comparison

Style	Best for	Typical downside
Bottom-mount	Fresh-food convenience and ergonomics	Freezer items sit lower
Top-freezer	Value and simple freezer access	Fresh-food section sits lower
Side-by-side	Narrow door swing, equal access	Narrower shelf width

Why it matters

Refrigerator layout affects daily comfort, food visibility, and how evenly you use space. If your household reaches into the refrigerator far more than the freezer, bottom-mount designs usually feel more efficient over time.

Helpful upgrades for everyday use

If you want the bottom-mount layout to perform its best, these maintenance items help with taste, odors, and airflow:

• Replace the refrigerator water filter ULTRAWF on schedule for better-tasting water and ice
• Swap the refrigerator door air filter EAFCBF to reduce food odors in the fresh-food section
• Keep door seals clean and sealing evenly to prevent temperature swings

Last updated: February 2026
