Kenmore
Upright Vacuum

Model # 11638612891 Official Kenmore upright vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11638612891 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |

Kenmore Vacuum Hepa Bag, Type O, 2-pack 50690
#16A

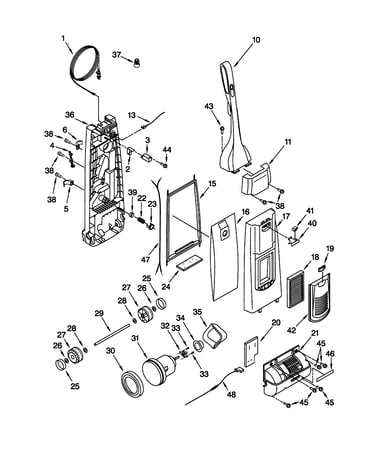

Dust compartment/motor diagram

Kenmore vacuum hepa bag, type o, 2-pack

Part #50690

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Drive Belt 4369591
#29

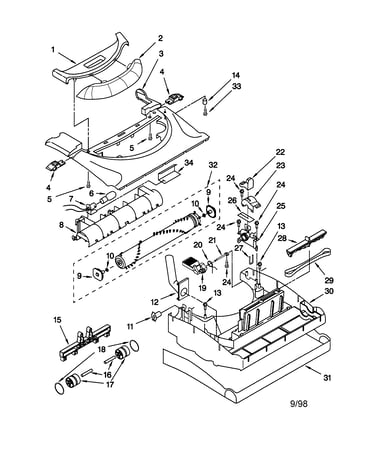

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

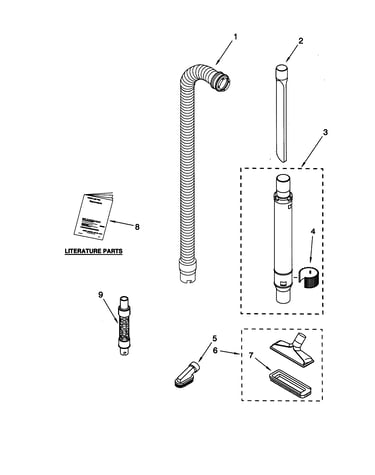

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#3

Dust compartment/motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Adjuster Foot Pedal Shaft 4370259
#21

Nozzle diagram

Vacuum height adjuster foot pedal shaft

Part #4370259

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Owner's Manual LIT4370827
#8

Hose and attachment diagram

Vacuum owner's manual

Part #LIT4370827

The manufacturer no longer makes this part, and there's no substitute part

Window-lgt 4370504
#1

Nozzle diagram

Window-lgt

Part #4370504

The manufacturer no longer makes this part, and there's no substitute part

Guard 4370391
#31

Nozzle diagram

Guard

Part #4370391

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Pipe 4370263
#12

Nozzle diagram

Nozzle pipe

Part #4370263

The manufacturer no longer makes this part, and there's no substitute part
