Model # WFMC6401UC/03 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFMC6401UC-03 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

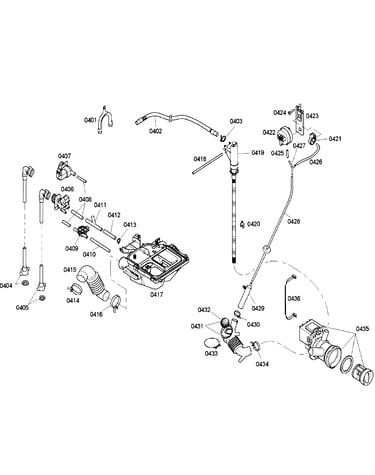

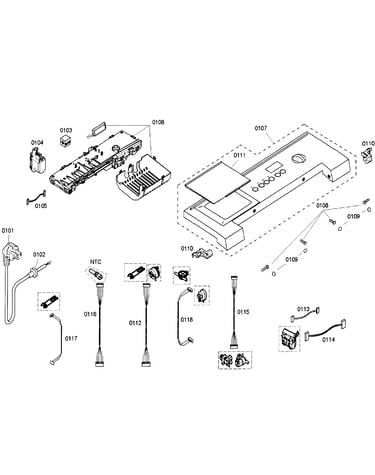

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

Washer Damper 00642112
#329

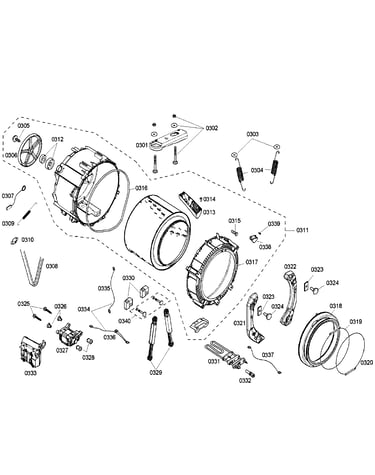

Drum diagram

Washer damper

Part #00642112

$68.79
8% OFF Phone Price : $74.79
In Stock
Washer Drive Motor (replaces 660487) 00660487
#327

Drum diagram

Washer drive motor (replaces 660487)

Part #00660487

$255.29
$12.00 OFF Phone Price : $267.29
In Stock
Washer Door Hinge Bushing 00422204
#221

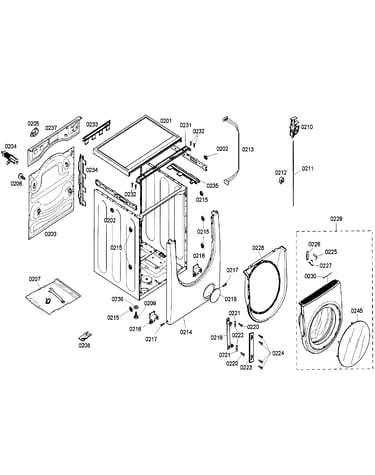

Cabinet diagram

Washer door hinge bushing

Part #00422204

This item is not returnable
In Stock
Clamp Spring 00491625
#319

Drum diagram

Clamp spring

Part #00491625

Replaced by #00648264

?
Manufacturer substitution
This part replaces 00491625. Substitute parts can look different from the original.
$15.09
12% OFF Phone Price : $17.09
In Stock
Drum 00243085
#311

Drum diagram

Drum

Part #00243085

The manufacturer no longer makes this part, and there's no substitute part

Tub 00244326
#317

Drum diagram

Tub

Part #00244326

The manufacturer no longer makes this part, and there's no substitute part

Washing Machine Flat Washer, 10 X 20.5-mm 00605059
#236

Cabinet diagram

Washing machine flat washer, 10 x 20.5-mm

Part #00605059

This item is not returnable
In Stock
Washer Door Hinge Screw (replaces 422242) 00422242
#220

Cabinet diagram

Washer door hinge screw (replaces 422242)

Part #00422242

This item is not returnable
In Stock
Washer Shock Absorber Mounting Bracket 00491695
#330

Drum diagram

Washer shock absorber mounting bracket

Part #00491695

In Stock
Washer Counterweight, Left 00143681
#321

Drum diagram

Washer counterweight, left

Part #00143681

$100.05
11% OFF Phone Price : $112.05
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
