If your Haier HLC1700AXS stacked laundry center is not draining, the most common causes are an incorrect drain hose setup (height or hose end sitting in water) or a clogged button trap/pump area. The HLC1700AXS owner's manual also notes an E1 error when the unit cannot drain within 4 minutes.

Quick checks we recommend first

• Make sure the drain hose support bracket is hooked over a sink or into a standpipe.
• Confirm the standpipe height is between 2 ft 6 in and 3 ft 3 in.
• Verify the end of the drain hose is not immersed in water (this can cause siphoning or no-drain symptoms).
• Clean the button trap (lint, coins, and debris commonly block draining).
• Listen for the drain pump operational sound during the drain portion of the cycle.

When it points to a drain pump problem

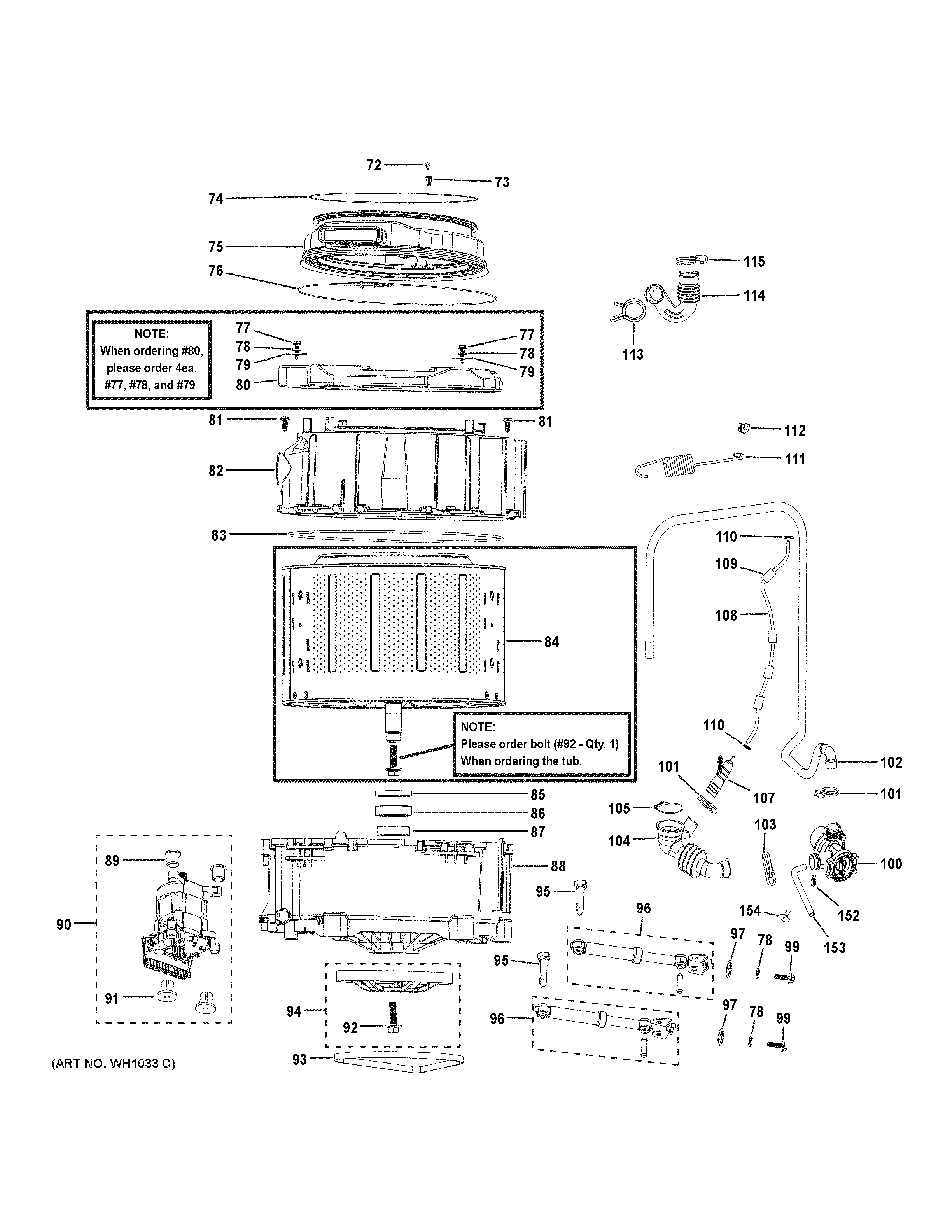

If the hose setup is correct and the button trap is clean, the drain pump can be jammed or failing. A pump that hums but does not move water often has debris in the impeller area or a worn motor.

If you need a replacement pump for this model, match by model number and part ID; a common drain pump listing for this unit is the ge washer drain pump WH23X26327.

Error code and symptom guide

What you see	What it usually means	What to do
Water stays in tub	Drain path restricted	Check hose height, hose end, button trap
E1 error	Not draining within 4 minutes	Clear pump area, recheck drain setup
Loud pump noise	Debris in pump/coin trap	Remove obstruction, reassemble carefully

Why it matters

A no-drain condition can leave clothes soaking wet, trigger error codes, and strain the pump motor. Fixing the drain hose setup and clearing the trap/pump area restores normal draining and helps prevent repeat clogs.

Parts and repair help

We list model-matched parts for HLC1700AXS on this page, and you can also search by model number on Sears PartsDirect. For step-by-step DIY help, use our how to replace a laundry center washer drain pump guide.

Last updated: February 2026

On the Haier HLC1700AXS stacked laundry center, the FC error means the washer is not getting a feedback signal from the driver unit. The unit typically stops the cycle and indicates service is needed; follow the troubleshooting steps in the HLC1700AXS owner's manual.

What to do right away

• Press Pause/Cancel (or Power) to stop the cycle.
• Wait 1 minute, then restart the cycle to see if the code clears.
• Unplug the laundry center for 2 to 5 minutes, then restore power (this resets the control).
• If the tub is full of water, run Drain/Spin if available; if it will not drain, stop and address draining first.
• If FC returns, plan for a repair; FC points to a control or drive feedback problem.

Common causes of an FC code

FC is a “no feedback” condition, so the most common causes are electrical or drive-control related:

• Loose or damaged wiring connections between the control and drive components
• A failing drive motor or motor feedback circuit
• A problem with the electronic control board
• Intermittent power issues (outlet, cord, or internal connection)

Parts that are often involved (when diagnosis confirms)

These parts are commonly replaced when testing shows a failure:

Symptom you notice	What it often points to	Example part on this model page
Washer will not tumble or spin and FC appears	Drive system fault	Washer/dryer combo drive motor assembly WH18X27723

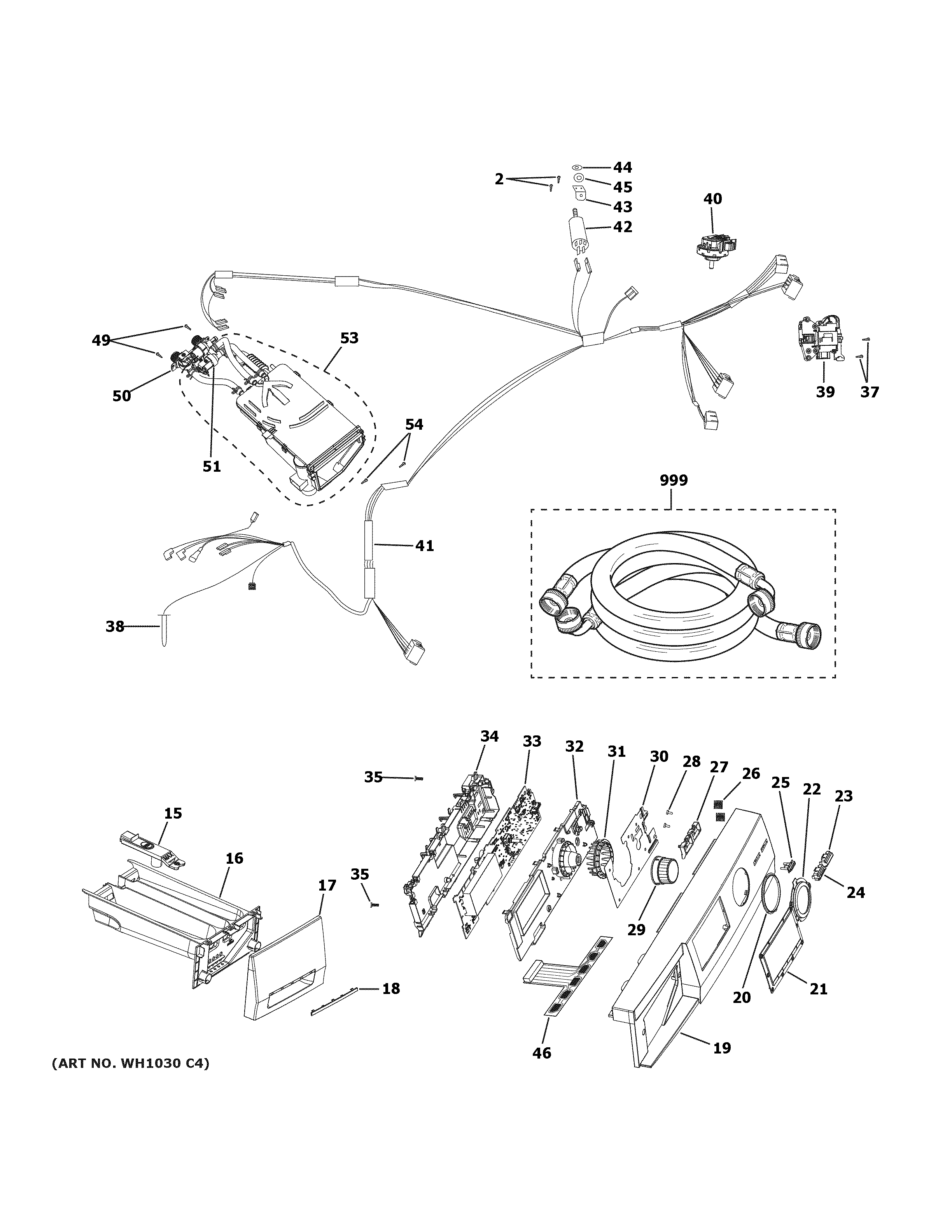

Random FC, dead display, or erratic operation	Control issue	Laundry center electronic control board WH18X27222

Why it matters

Continuing to run cycles with an FC error can leave loads unfinished, cause repeated stoppages, and can lead to additional electrical damage if a harness or control component is failing.

You can order replacement parts for your HLC1700AXS from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Water leaks on a Haier HLC1700AXS stacked laundry center usually come from loose or misrouted drain connections, leaking inlet hose connections, or a door seal issue. Start by checking the drain hose height and securing it, then inspect inlet hoses and the door boot for drips.

Quick checks that fix most leaks

• Verify the drain hose is looped and supported; use the supplied support bracket method shown in the HLC1700AXS owner's manual.
• Confirm the standpipe or sink rim height is about 2 ft 6 in to 3 ft 3 in from the bottom of the washer.
• Make sure the end of the drain hose is not immersed in water.
• Fully open the water faucets and check for drips at both ends of each inlet hose.
• Tighten hose couplings snugly (pliers are OK), but do not over-tighten.

Where the leak is coming from (symptom to source)

Where you see water	Most likely cause	What to do next
Back of unit	Inlet hose connection seep	Reseat hose, confirm flat washer is in place, retighten
Back of unit during drain	Drain hose loose, standpipe splash-back	Secure hose to standpipe, confirm correct height and fit
Front, under door	Door seal (boot) torn or not sealing	Inspect for rips, debris, or a gap; replace if damaged
Only when drying	Condensing system water supply issue	Ensure only cold water is supplied to the condenser valve during drying

Parts that commonly solve leak problems

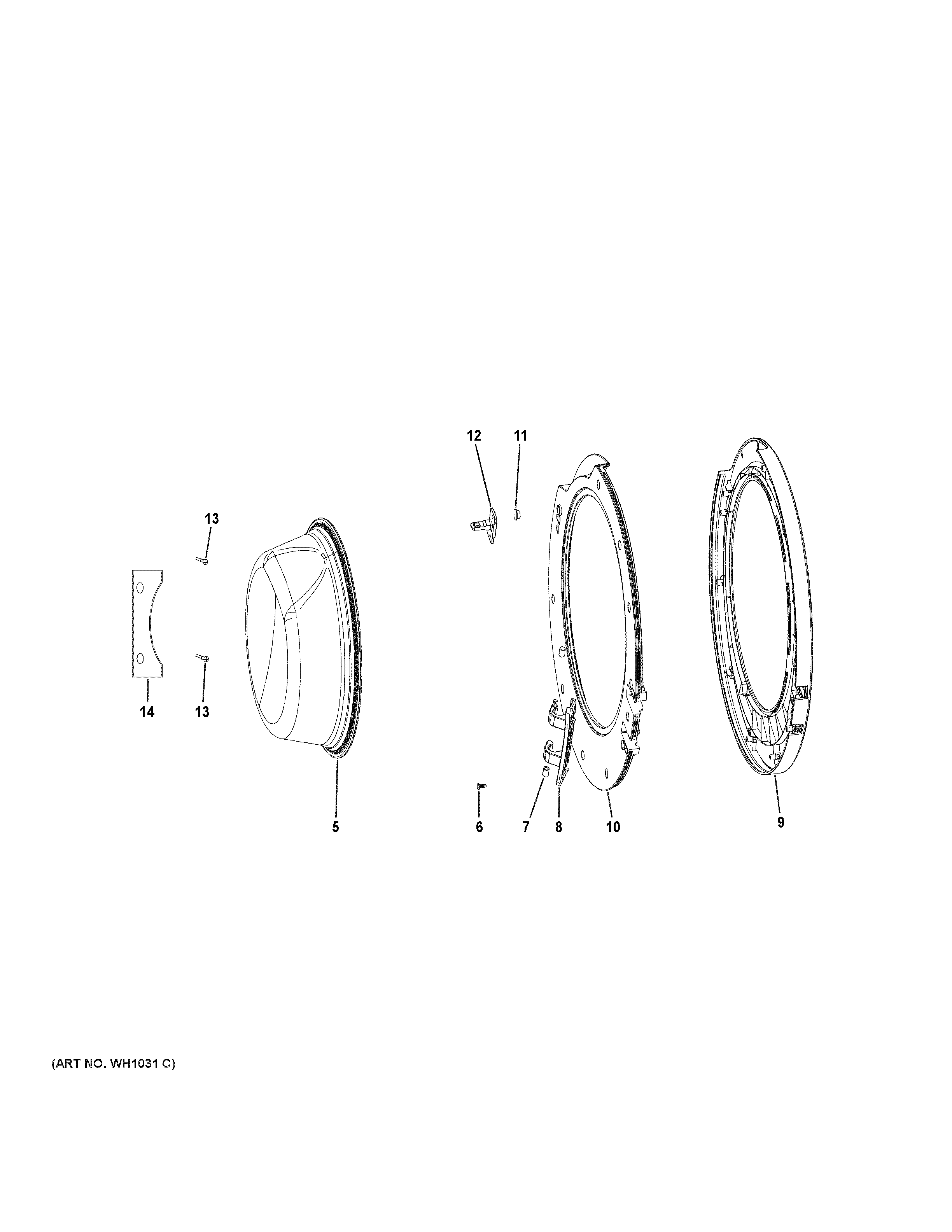

If you find the leak is coming from the door area or the unit will not seal at the front, the door boot is a common fix for this model: washer door boot WH10X27131.

Why it matters

Leaks can cause floor damage and can also lead to drain errors or poor drying performance if the drain hose is installed incorrectly (especially if the hose end sits in water).

For step-by-step repair and troubleshooting paths, we also use the laundry center repair guides landing page. If you need to order parts beyond the ones listed here, search by model number on Sears PartsDirect.

Last updated: February 2026

For a Haier HLC1700AXS stacked laundry center, you typically need the correct water supply hoses, a drain connection, and a safe dryer venting setup; your exact list depends on whether you have electric or gas service and what hookups are already in place. For the model-specific supplied items and installation steps, use the HLC1700AXS owner's manual.

Basic hookup parts most installs need

These are the common items we see customers replace or add during installation:

• Water hoses (2) for hot and cold supply (the manual lists water hoses as supplied for this unit)
• Drain hose and a secure standpipe or laundry tub connection
• Dryer duct/vent (rigid or semi-rigid metal is preferred) and vent clamps
• Leveling support (a level and wrench are used to set the unit solidly and reduce vibration)
• Electrical outlet access (a grounded outlet within reach of the power cord)

What the HLC1700AXS manual says is included

The installation section for this combination washer/dryer lists these as supplied items.

Item	Purpose	Notes
Water hoses (2)	Connects to hot/cold faucets	Flat washers are pre-installed (per manual)
Drain hose (with support bracket)	Routes water to standpipe/tub	Secure it to prevent siphoning or leaks
Wrench	Setup and shipping bolt removal	Used to tighten locknuts and remove transportation bolts

Dryer-specific items (depends on your home)

Your laundry center’s dryer side still needs proper venting and the correct utility connection.

• Vent hood/outlet to the outside (if not already installed)
• Duct length and elbows as needed to reach the vent
• Power cord or wiring method appropriate for your outlet (electric setups)
• Gas flex line and shutoff only if your unit is gas (many stacked units are electric, so confirm before buying gas parts)

Why it matters

Correct hoses, drain routing, and venting prevent leaks, vibration, and poor drying. The manual also notes that drying works best with smaller loads; for drying, the drum should be about half full so clothes can tumble freely.

Helpful repair and DIY resources

If you are installing because the unit is not working correctly, we use this guide to narrow symptoms fast: laundry center repair guides landing page.

If you need replacement parts for common issues (like draining problems), you can order model-matched parts from the list for HLC1700AXS, or search by model on Sears PartsDirect.

Last updated: February 2026
