Frigidaire
Upright Freezer

Model # LFFU1765DW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire LFFU1765DW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Filter Drier 216634500
#4

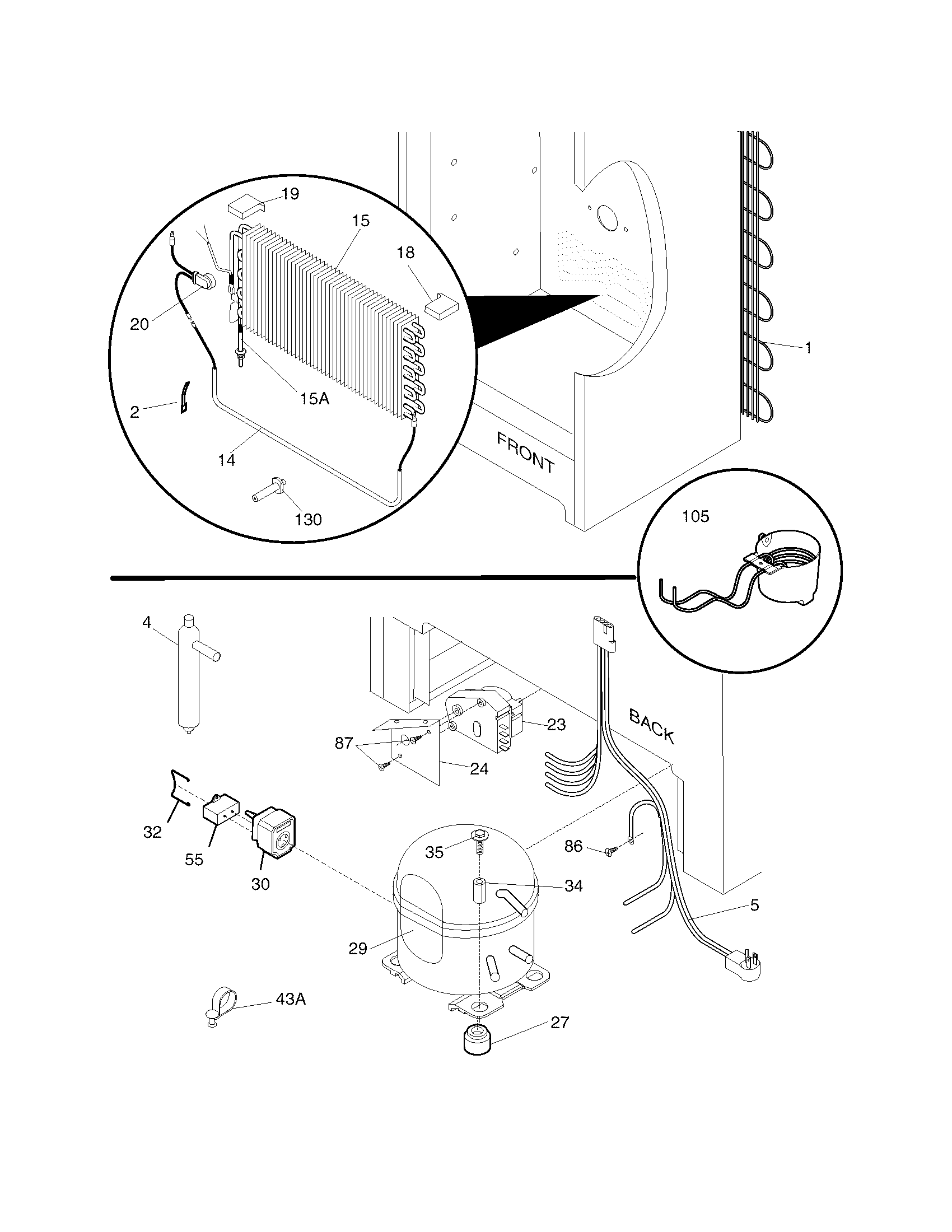

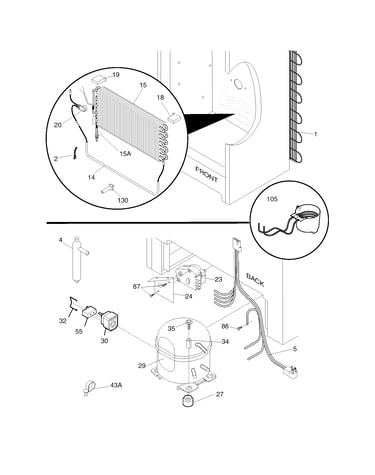

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Evaporator 216737300
#15

System diagram

Evaporator

Part #216737300

Replaced by #297414901

?
Manufacturer substitution
This part replaces 216737300. Substitute parts can look different from the original.
BEST SELLER
$87.43
6% OFF Phone Price : $93.43
In Stock
Freezer Door Key 216702900
#5

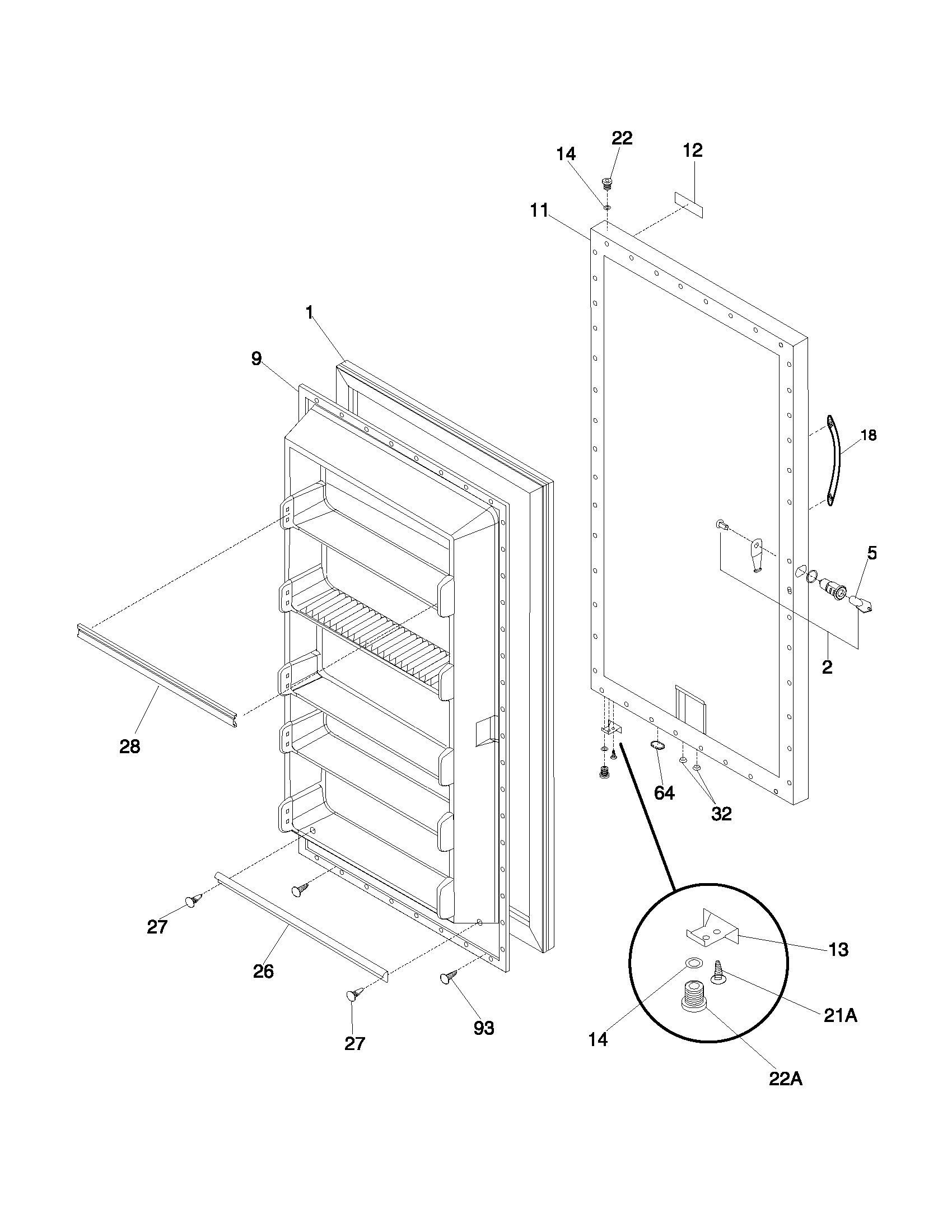

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25
10% OFF Phone Price : $10.25
In Stock
Freezer Door Gasket 216522309
#1

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27
9% OFF Phone Price : $128.27
In Stock
Compressor 216941800
#29

System diagram

Compressor

Part #216941800

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 216941800. Substitute parts can look different from the original.
BEST SELLER
$363.07
$12.00 OFF Phone Price : $375.07
In Stock
Chest Freezer Run Capacitor 218909913
#55

System diagram

Chest freezer run capacitor

Part #218909913

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909913. Substitute parts can look different from the original.
BEST SELLER
$47.29
11% OFF Phone Price : $53.29
In Stock
Freezer Door Closer Bearing 216503300
#26

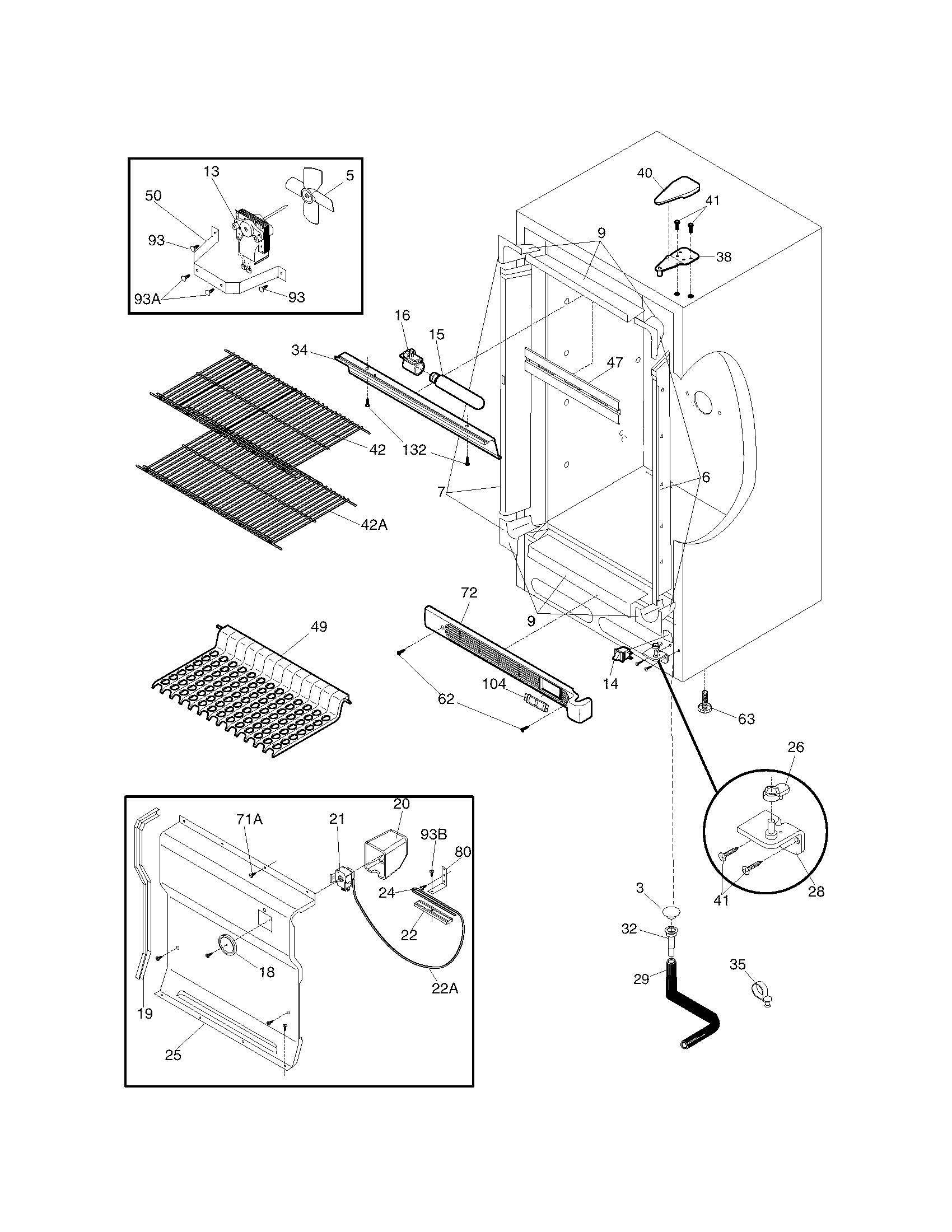

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49
11% OFF Phone Price : $9.49
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04
23% OFF Phone Price : $26.04
In Stock
Temperature Control 216715200
#21

Cabinet diagram

Temperature control

Part #216715200

Replaced by #297216033

?
Manufacturer substitution
This part replaces 216715200. Substitute parts can look different from the original.
BEST SELLER
$73.28
8% OFF Phone Price : $79.28
In Stock
Sec, Gasket 216524200
#26

Door diagram

Sec, gasket

Part #216524200

Replaced by #216524201

?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
This item is not returnable
$36.81
14% OFF Phone Price : $42.81
In Stock

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
