Samsung RF263TEAESG/AA-02 refrigerator Parts

Most bottom-freezer refrigerators typically last 15 to 20 years with normal household use and basic maintenance. For your Samsung RF263TEAESG, keeping airflow clear, doors sealing tightly, and the defrost and water systems maintained helps you reach the high end of that range; see the RF263TEAESG owner's manual for model-specific care guidance.

A bottom-mount (bottom-freezer) refrigerator has more moving parts than a basic top-freezer, so maintenance and usage habits matter.

• 15 to 20 years is the normal lifespan range for bottom-freezer units
• Heavy use (large household, frequent door openings) shortens life
• Poor ventilation around the cabinet increases compressor run time
• Ice maker and dispenser use adds wear to motors, valves, and seals
• Hard water and infrequent filter changes can strain the water system

These steps reduce compressor workload and prevent common failures.

• Vacuum condenser area and keep rear and toe-kick vents clear
• Keep doors aligned and close them fully every time
• Clean and inspect door gaskets; replace if torn or not sealing
• Replace the water filter on schedule; a clogged filter can reduce flow and affect ice production
• Clear ice clumps in the bin and keep the ice room area dry to prevent jams

A refrigerator usually fails early from heat stress (restricted airflow, dirty coils) or moisture and ice buildup (defrost drain issues, gasket leaks). Preventing those conditions protects major components like the compressor and evaporator system.

If you are doing preventive maintenance or fixing a performance issue, these are common wear items for this model family:

• Refrigerator water filter DA29-00020B (water flow, taste, ice quality)
• Refrigerator temperature sensor DA32-10104N (temperature regulation)
• Refrigerator defrost heater DA47-00244U (prevents frost buildup)

For additional replacement parts by model number, search on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Samsung refrigerators like model RF263TEAESG are cooling issues (warm fresh-food section or freezer) and ice maker troubles (no ice, clumping, or freezing up). These symptoms usually trace back to airflow, defrost, or ice-room components; see the RF263TEAESG owner's manual for model-specific indicators and settings.

• Cooling not keeping up: fridge warms, food spoils faster, freezer softens
• Frost or ice buildup: heavy frost on the evaporator cover, reduced airflow
• Ice maker problems: no ice, small cubes, jammed auger, ice clumps in the bin
• Water leaks or puddles: water under crisper drawers or on the floor
• Temperature swings: unit seems fine, then warms again

1. Confirm the doors seal and close fully; a small air leak can cause frost and poor cooling.
2. Make sure vents inside the refrigerator are not blocked by food containers.
3. If the ice maker is slow or stops, replace the water filter on schedule and purge air from the line.
4. If you see water under the fridge section, check for a frozen or clogged drain path.
5. If an error code is showing, match it to the symptom before replacing parts.

Cooling and ice maker complaints often share the same root cause: restricted airflow or a defrost problem that lets frost build up and choke circulation. Catching it early helps protect food, reduce compressor run time, and prevent repeat icing.

• Why your Samsung fridge stopped making ice and how to fix it
• Samsung rf26 model french door refrigerator error codes

If you need to order replacement parts for RF263TEAESG, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

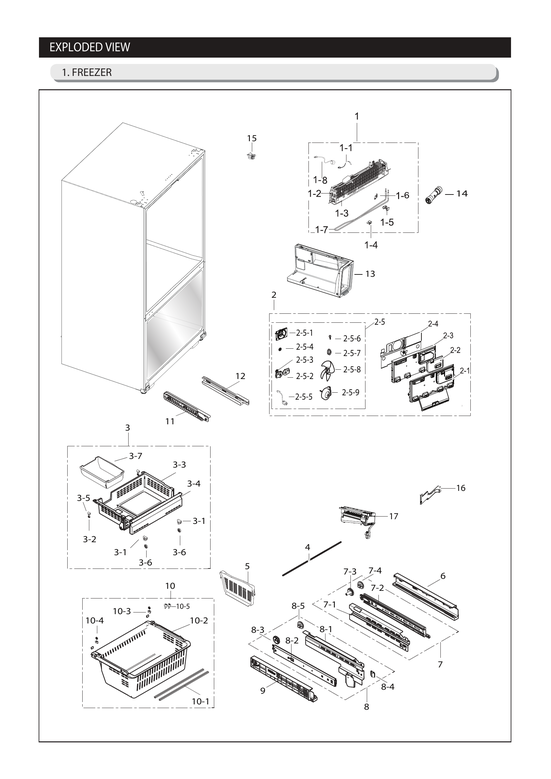

Bottom ice buildup in your Samsung RF263TEAESG freezer happens when meltwater from the defrost cycle cannot drain away and refreezes on the freezer floor; the most common causes are a clogged/iced defrost drain, warm air leaks at the door seal, or a freezer drawer that is not closing fully. Check the steps in the RF263TEAESG owner's manual for your exact layout and access points.

• Look for a sheet of ice under the bottom bin: this points to a drain that is frozen or blocked.
• Check drawer closing: bins overfilled or rails out of alignment can leave a small gap.
• Inspect the door gasket: rips, hardened spots, or debris can let humid air in.
• Confirm temperatures: freezer set too warm increases moisture and frost.
• Check for water trails: streaks or a frozen “waterfall” on the back wall often tracks back to the drain path.

1. Unplug the refrigerator.
2. Remove the freezer drawer/bins to expose the bottom panel area.
3. Melt the ice at the bottom using warm air (hair dryer on low) or warm towels.
4. Flush the drain opening with hot water (a turkey baster works well) until it flows freely.
5. Reassemble and restore power; monitor for 24 to 48 hours.

If you find heavy frost on the evaporator cover or repeated drain freeze-ups, a defrost control issue can be involved.

Model-matched parts that may apply depending on what you find include the refrigerator cabinet drain tube assembly DA97-04049H and the defrost components refrigerator defrost heater DA47-00244U and refrigerator protector DA47-00243B.

When water cannot drain, it refreezes and can block the drawer, reduce airflow, and force longer run times. Fixing the drain and sealing issues restores normal defrost drainage and helps prevent repeat ice buildup.

If you need to order parts for your Samsung RF263TEAESG, use the parts list for this model or search by model number on Sears PartsDirect.
