Kenmore 6289468211 electric range Parts
Here are the diagrams and repair parts for Kenmore 6289468211 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

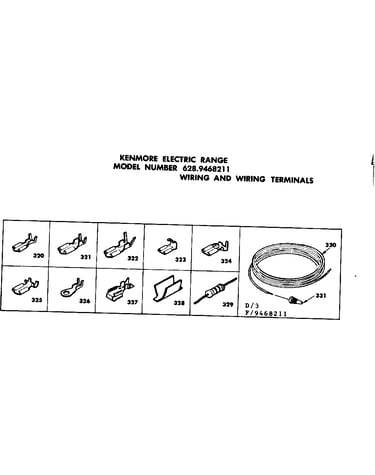

SELECT DIAGRAM
Browse Parts for 6289468211 Ranges

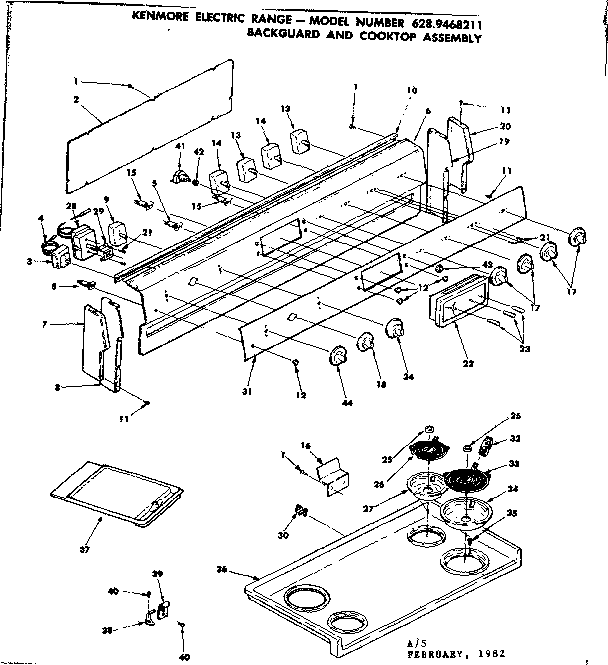

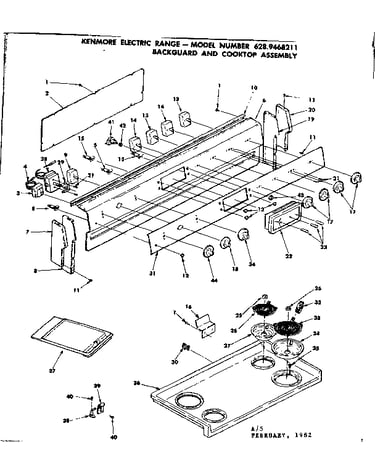

Backguard and cooktop assembly diagram
Pan
Part #1307595Replaced by #316048414
Manufacturer substitutionThis part replaces 1307595. Substitute parts can look different from the original.In Stock$10.7416% OFF Phone Price : $12.74
Qty

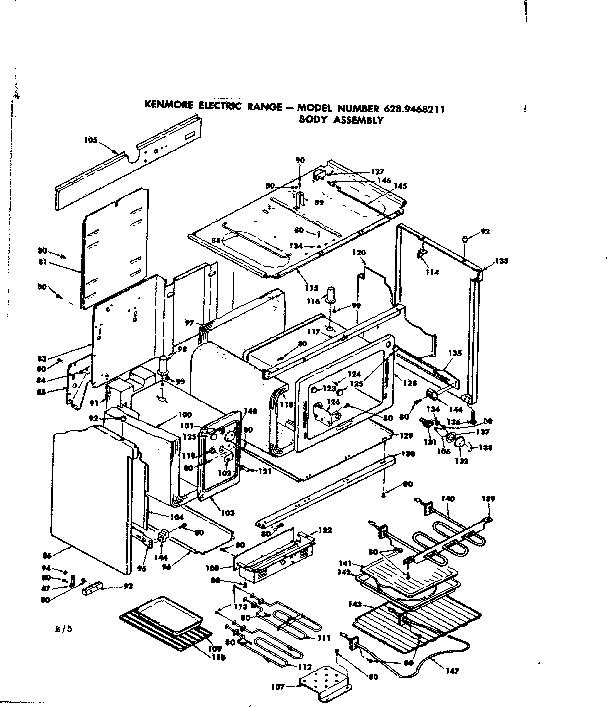

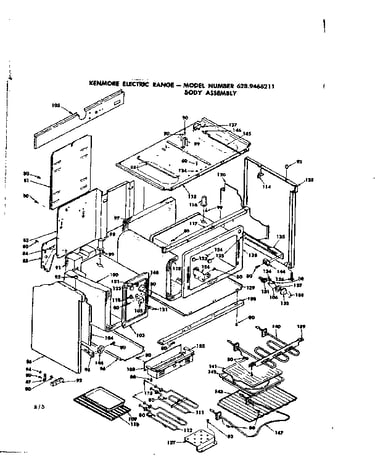

Body assembly diagram
Bake Unit
Part #1312853Replaced by #5303051519
Manufacturer substitutionThis part replaces 1312853. Substitute parts can look different from the original.In Stock$31.9316% OFF Phone Price : $37.93QtyRange Screw
Part #1164479This item is not returnableIn Stock$3.3023% OFF Phone Price : $4.30QtyOptional pan and rings diagram
Range Drip Pan, Small
In Stock$46.60QtyBackguard and cooktop assembly diagram
Main Top (almond)
Part #1319059Replaced by #08011984

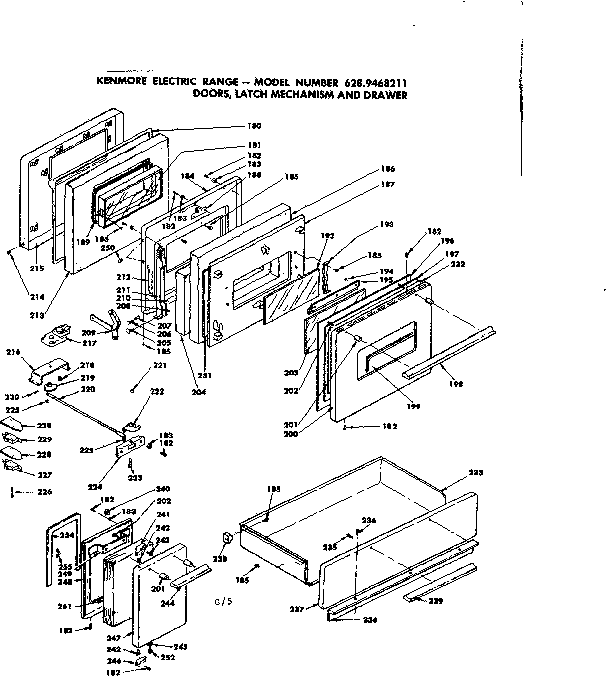

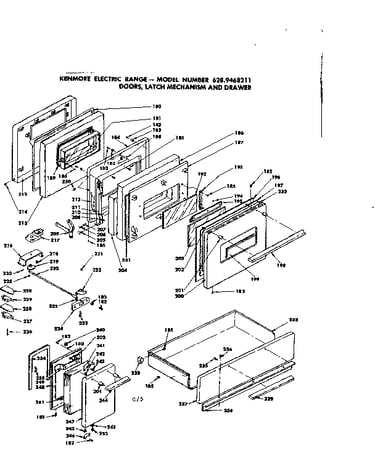

Manufacturer substitutionThis part replaces 1319059. Substitute parts can look different from the original.In Stock$329.73QtyDoors, latch mechanism and drawer diagram
Screw
Part #1164550Replaced by #5303051859
Manufacturer substitutionThis part replaces 1164550. Substitute parts can look different from the original.In Stock$27.82QtyDoors, latch mechanism and drawer diagram
Clip
Part #1309666Replaced by #5301309666
Manufacturer substitutionThis part replaces 1309666. Substitute parts can look different from the original.In Stock$28.64QtyBody assembly diagram
Terminal Block
Part #1189558Replaced by #5304409888
Manufacturer substitutionThis part replaces 1189558. Substitute parts can look different from the original.In Stock$24.5620% OFF Phone Price : $30.56QtyDoors, latch mechanism and drawer diagram
Drawer Panel (almond)
Part #1167667Replaced by #5301322709
Manufacturer substitutionThis part replaces 1167667. Substitute parts can look different from the original.In Stock$98.77QtyBody assembly diagram
Push Rod
Part #1323421Replaced by #3051645
Manufacturer substitutionThis part replaces 1323421. Substitute parts can look different from the original.In Stock$36.76Qty
