Kenmore 9113658815 30" gas range

Kenmore 9113658815 30" gas range Parts

Here are the diagrams and repair parts for Kenmore 9113658815 30" gas range, as well as links to manuals and error code tables, if available.

By Schematic

By Part

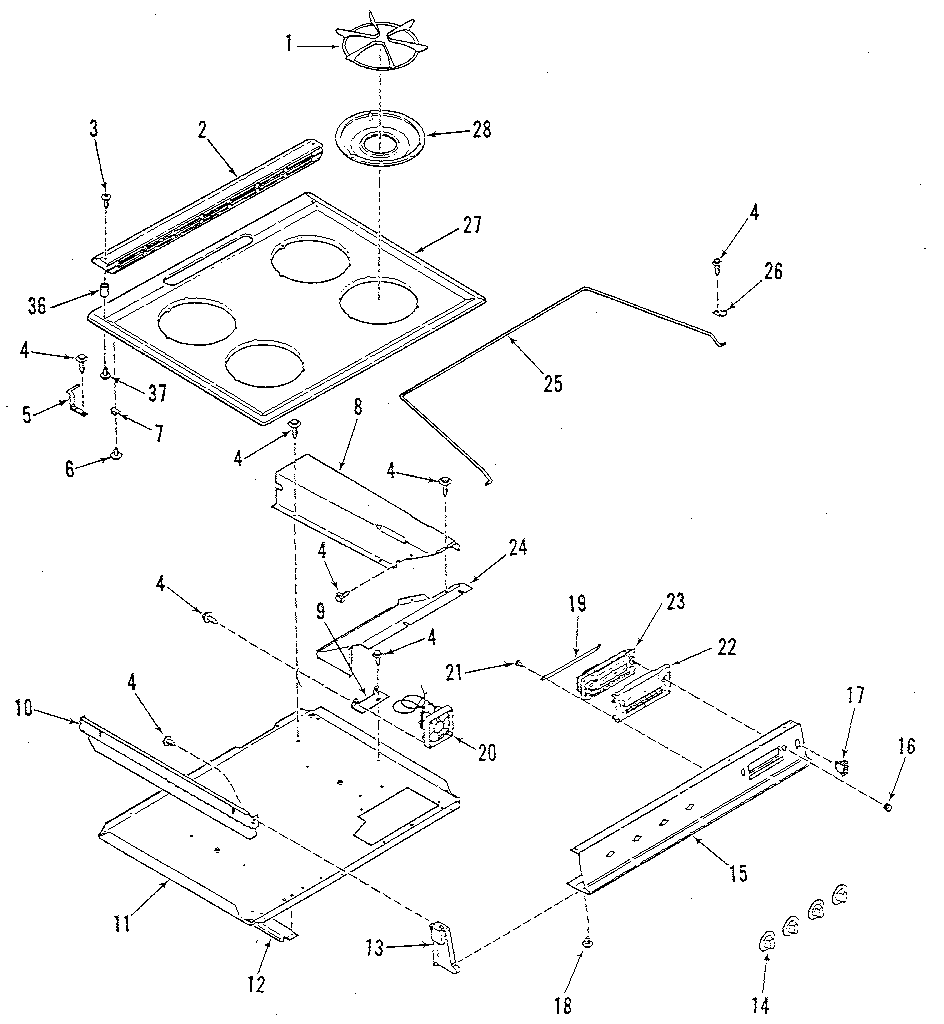

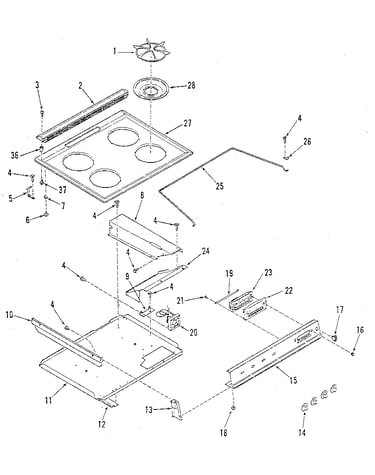

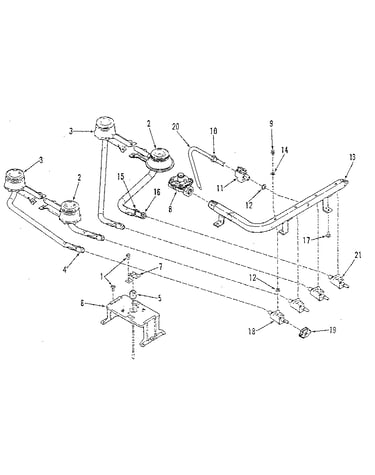

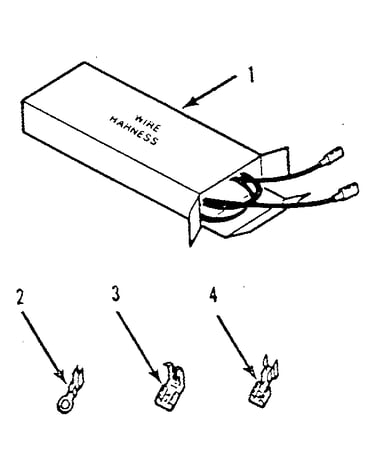

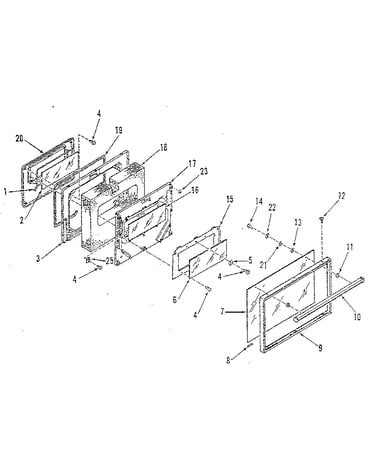

SELECT DIAGRAM

Browse Parts for 9113658815 Ranges

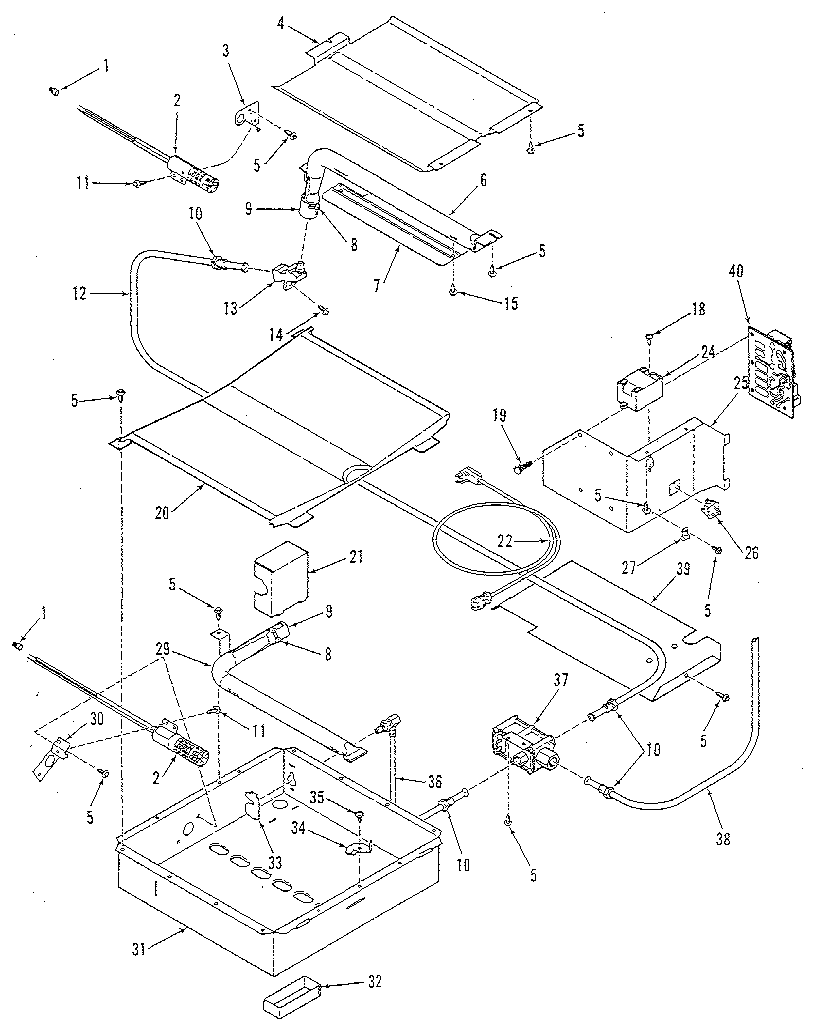

Broiler and oven burner section diagram
Igniter
Part #337263
Replaced by #WB2X9154
Manufacturer substitution
This part replaces 337263. Substitute parts can look different from the original.
In Stock
$83.29
7% OFF Phone Price : $89.29
Qty

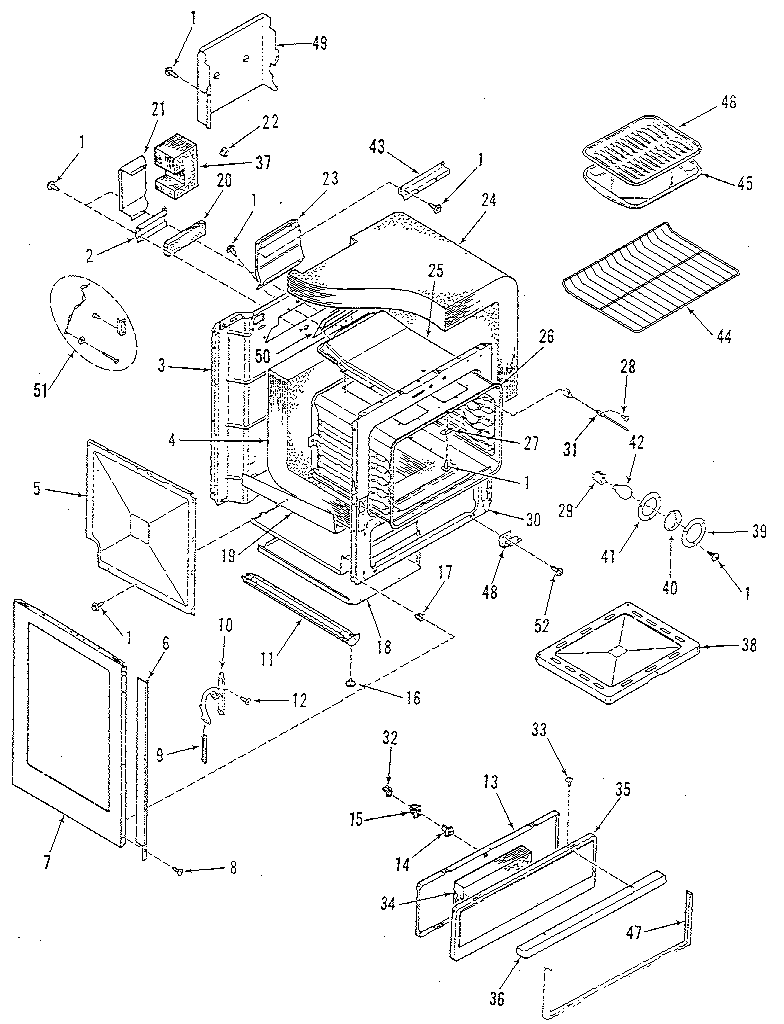

Oven body section diagram
Sensor
Part #334300
Replaced by #WB21X5301
Manufacturer substitution
This part replaces 334300. Substitute parts can look different from the original.
In Stock
$128.50
9% OFF Phone Price : $140.50
Qty
Broiler and oven burner section diagram
Connector
Part #103595
Replaced by #WB1X371D
Manufacturer substitution
This part replaces 103595. Substitute parts can look different from the original.
In Stock
$42.25
Qty
Oven body section diagram
Door Hinge
Part #332346
Replaced by #WB14X103
Manufacturer substitution
This part replaces 332346. Substitute parts can look different from the original.
In Stock
$47.10
20% OFF Was : $59.15
Qty
Oven body section diagram
Lamp Holder
Part #344111
Replaced by #WB8X303
Manufacturer substitution
This part replaces 344111. Substitute parts can look different from the original.
In Stock
$41.28
13% OFF Phone Price : $47.28
Qty
Broiler and oven burner section diagram
Screw
Part #343720
Replaced by #WB1X1424D
Manufacturer substitution
This part replaces 343720. Substitute parts can look different from the original.
In Stock
$7.68
12% OFF Phone Price : $8.68
Qty

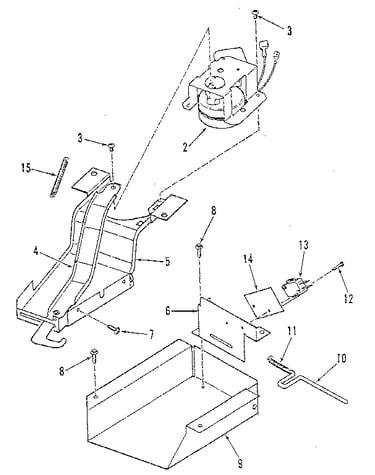

Door lock section diagram
Drive Switch Bracket
Part #343239
In Stock
$29.79
Qty
Broiler and oven burner section diagram
Screw
Part #97217
In Stock
$31.10
Qty
Broiler and oven burner section diagram
Bracket
Part #311689
In Stock
$37.03
Qty
Oven body section diagram
Ge Screw
Part #120855
In Stock
$31.10
Qty
