Samsung DVE45T6200W/A3-00 dryer Parts

A Samsung dryer typically lasts 10 to 15 years. For your Samsung DVE45T6200W, consistent airflow and basic maintenance (especially lint and vent care) are the biggest factors that keep the heater, thermostats, and motor from running hotter and wearing out early; see the DVE45T6200W owner's manual.

• Vent restriction (long runs, too many elbows, crushed duct) that traps heat
• Lint buildup in the lint filter area, blower housing, and exhaust duct
• Overloading that strains the drum belt, rollers, and drive motor
• High heat cycles used constantly instead of sensor/normal cycles
• Installation clearances and ducting choices (rigid metal duct is best)

• Clean the lint screen every load.
• Inspect and clean the vent duct and outside hood regularly.
• Keep the area around the dryer clean so lint does not get pulled into airflow.
• Avoid chronic overloading; dry heavy items in smaller loads.
• If drying times increase, address airflow first before replacing parts.

A dryer’s heater and safety thermostats are designed to run within a safe temperature range. When airflow is restricted, the dryer runs hotter and longer, which shortens the life of key components and can turn a 15-year dryer into a much shorter-lived one.

Last updated: February 2026

For your Samsung dryer model DVE45T6200W, we find the correct part number by matching the dryer’s model number (and sometimes the serial number) to the parts list. On most Samsung dryers, the model/serial tag is on the front frame behind the door; a backup tag is often on the back panel.

Check these common locations first:

• Front frame behind the dryer door opening (most common)
• Back of the dryer cabinet (often a second label)
• Inside the door area near the lint filter housing (varies by design)
• Your purchase paperwork or registration confirmation (if saved)

Use the model number exactly as printed on the tag when searching parts for DVE45T6200W.

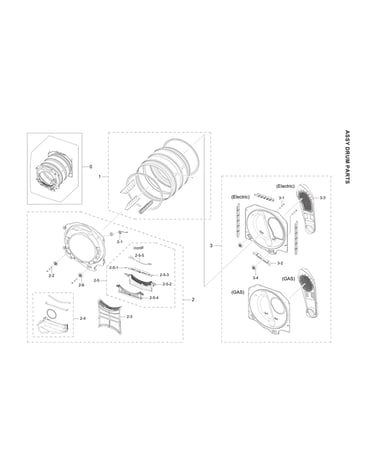

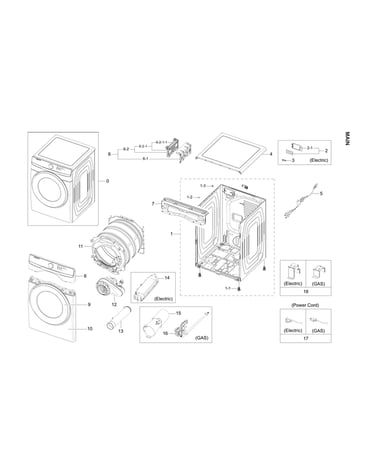

Once you have the model number, use it to identify the exact component in the exploded-view parts list and then confirm the manufacturer part number.

Typical steps:

• Locate the model/serial label and write the model number clearly
• Open the parts diagram for the correct section (door, heater, drum, controls, etc.)
• Match the part by name and location in the diagram
• Confirm the manufacturer part number before ordering

These are examples of parts you might see listed for DVE45T6200W; always match by diagram position and description:

If you’re troubleshooting an error or information code first, use our Samsung dryer error codes guide to narrow down which part to look up.

Samsung often uses similar-looking parts across multiple dryer series, but wiring, mounting, and temperature ratings can differ. Matching the exact model number (DVE45T6200W) prevents ordering a part that does not fit or does not resolve the symptom.

For model-specific diagrams, safety notes, and troubleshooting checkpoints, use the DVE45T6200W owner’s manual.

Last updated: February 2026

Yes; for Samsung model DVE45T6200W, replacing the heating element is usually worth it when the dryer otherwise runs normally (tumbles, controls work, airflow is good). This model’s heater rating is 5300 W, so restoring proper heat typically brings drying performance back without the cost of a new dryer; confirm the real failure first using the DVE45T6200W owner’s manual.

We recommend replacing the heating element when these are true:

• The drum tumbles and the dryer runs, but clothes stay cool or take much longer to dry
• The vent path is clear and airflow is strong (lint filter and exhaust duct are clean)
• You have stable power to the dryer (electric dryers typically need a 30-amp circuit)
• The problem is not intermittent due to a loose connection or overheating shutdown
• Basic checks point to a heat circuit issue (element, thermostats, thermal cut-off)

On DVE45T6200W, a no-heat symptom is often caused by a safety device opening due to overheating or restricted airflow. These parts are common suspects:

• Samsung dryer heating element assembly DC93-00154A
• Dryer thermal cut-off thermostat DC47-00016A
• Dryer high-limit thermostat DC47-00018A
• Dryer thermal cut-off fuse DC47-00015A
• Dryer thermistor DC32-00007A

A heating element can fail on its own, but overheating from poor airflow can also take out the thermal cut-off or high-limit thermostat. If you replace only the element without correcting airflow, the new part can fail again.

Last updated: February 2026
