Amana
Dishwasher

Model # ADW662EAB-PADW662EAB0 Official Amana dishwasher

Here are the diagrams and repair parts for Official Amana ADW662EAB-PADW662EAB0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

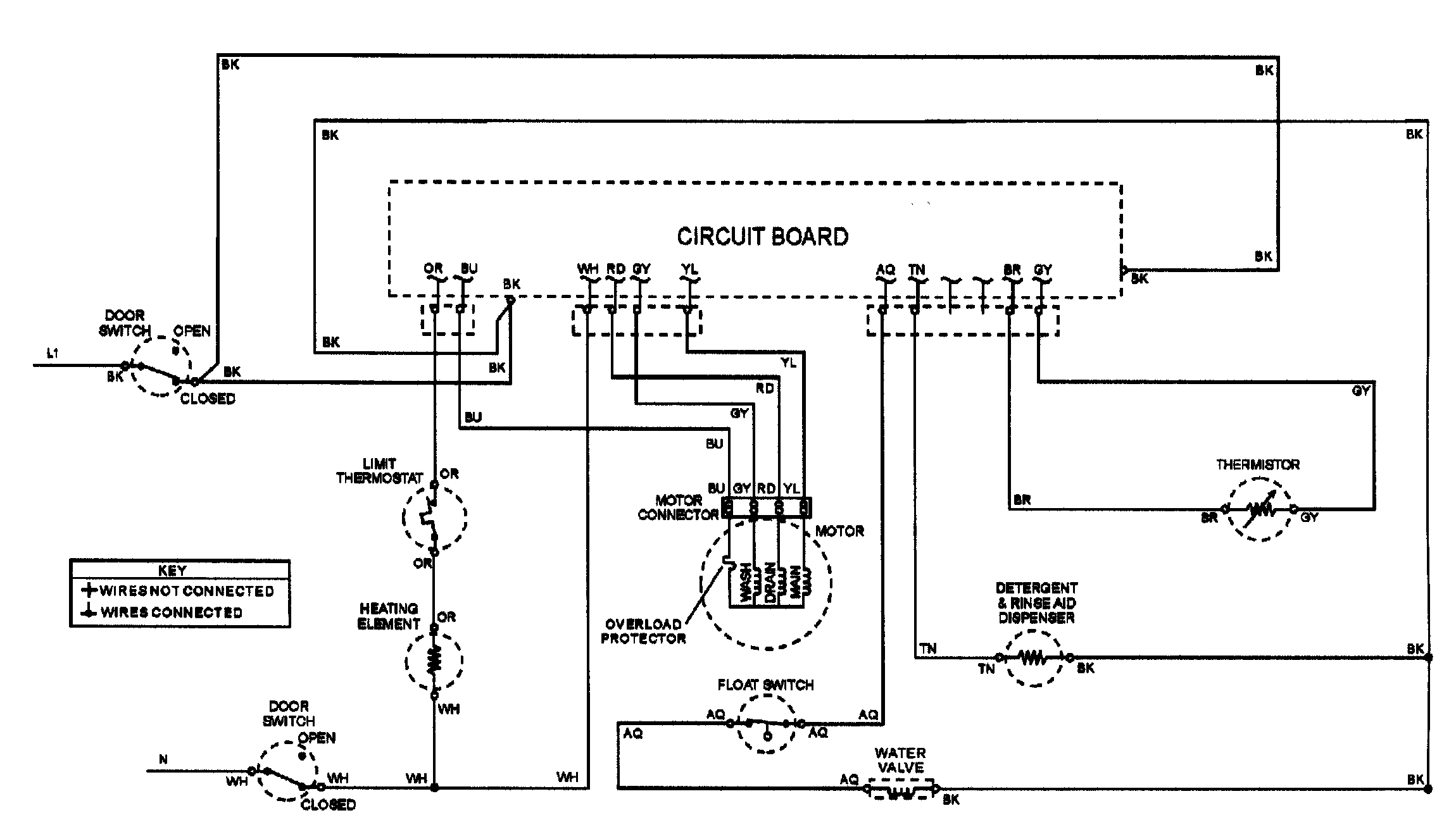

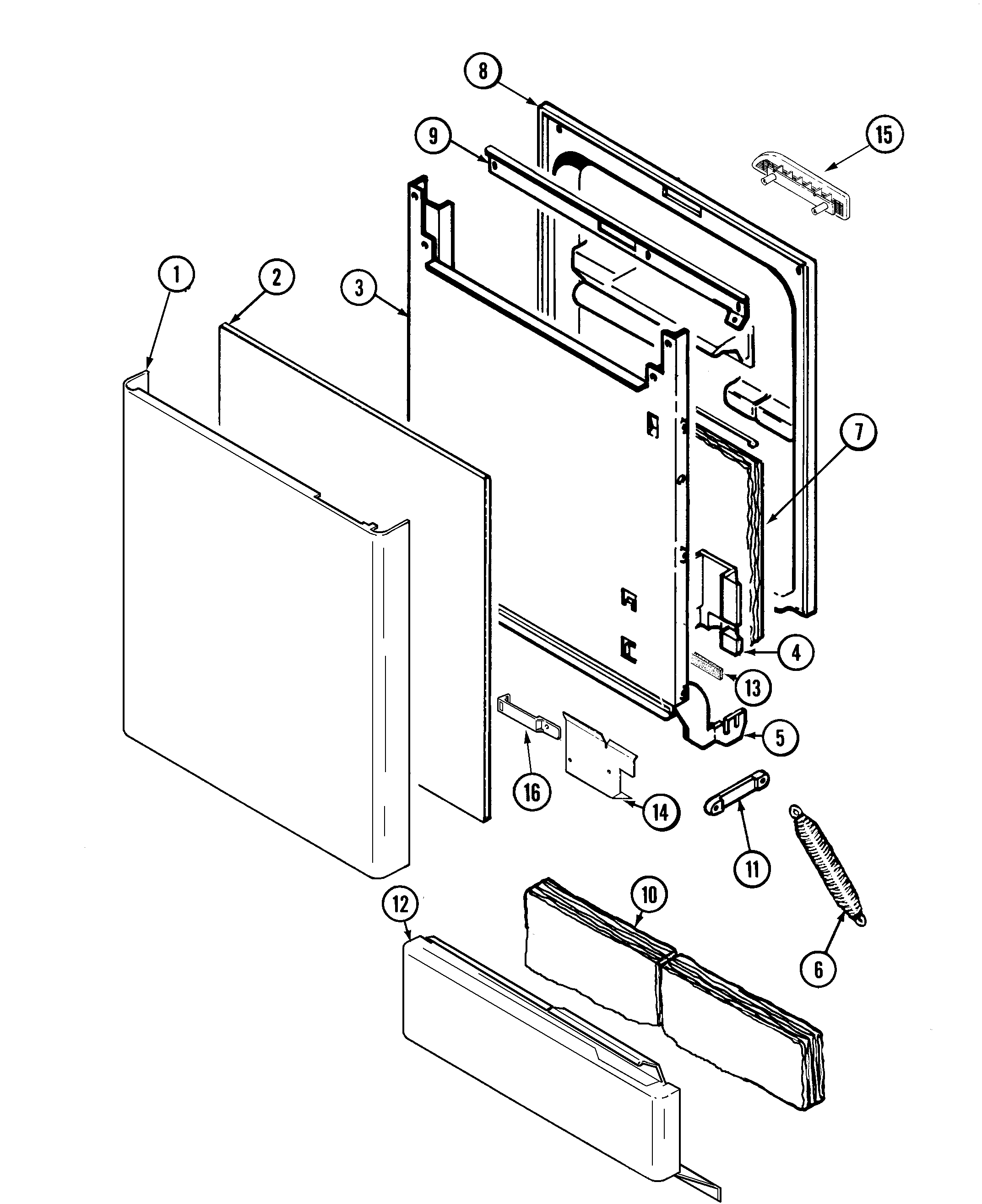

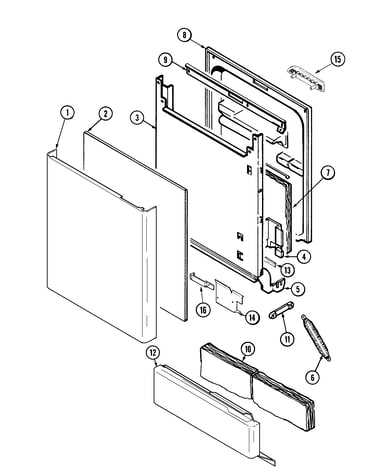

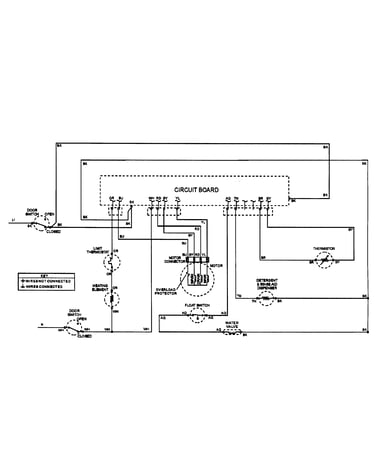

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |

Dishwasher Door Seal 902894
#1

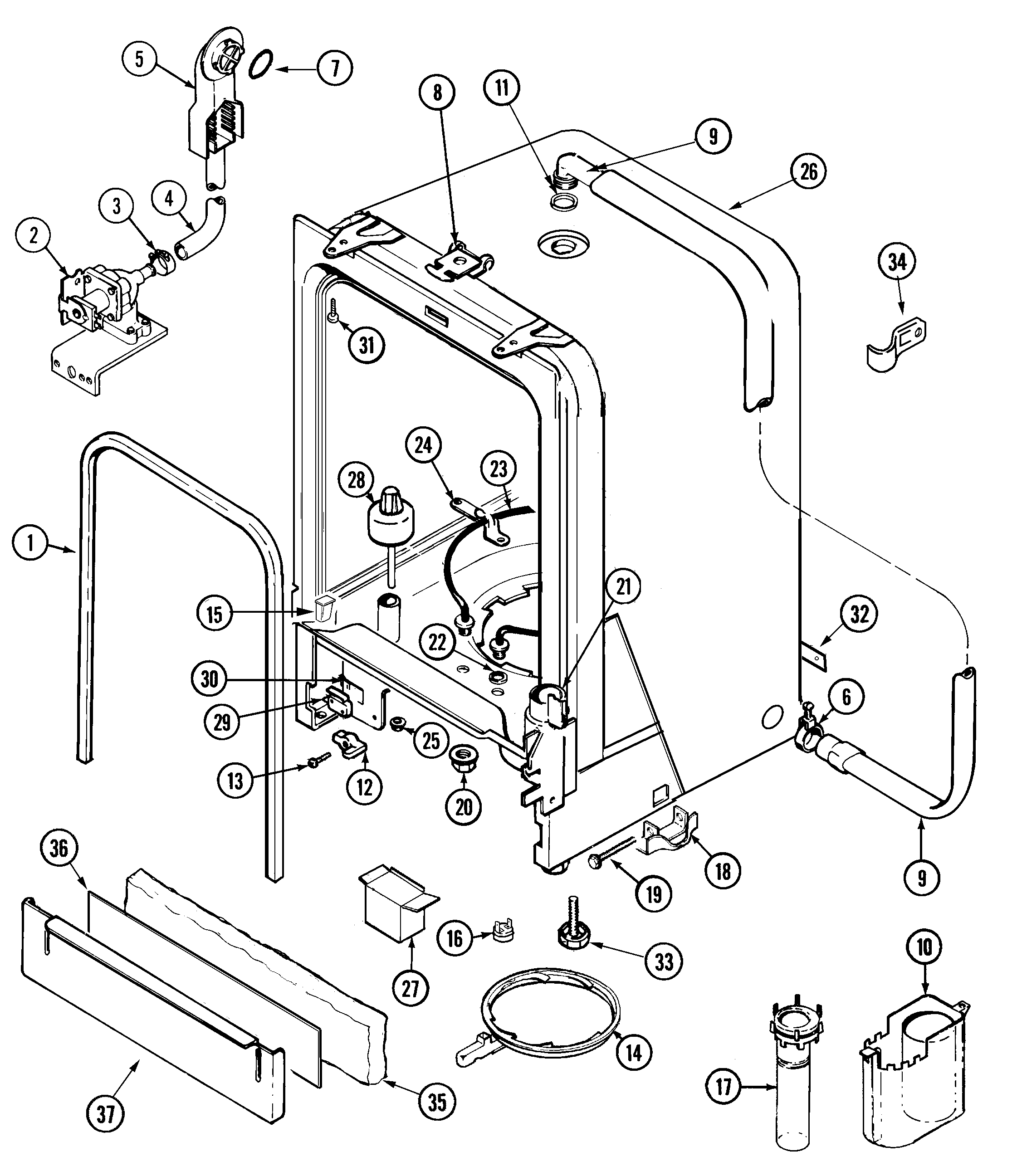

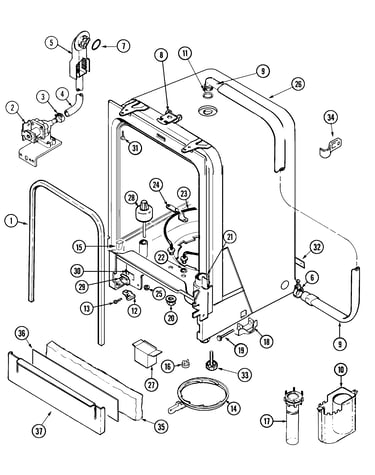

Tub diagram

Dishwasher door seal

Part #902894

Replaced by #WP902894

?
Manufacturer substitution
This part replaces 902894. Substitute parts can look different from the original.
BEST SELLER
$59.55
12% OFF MSRP : $68.00
In Stock
Silverware Basket 99001751
#6

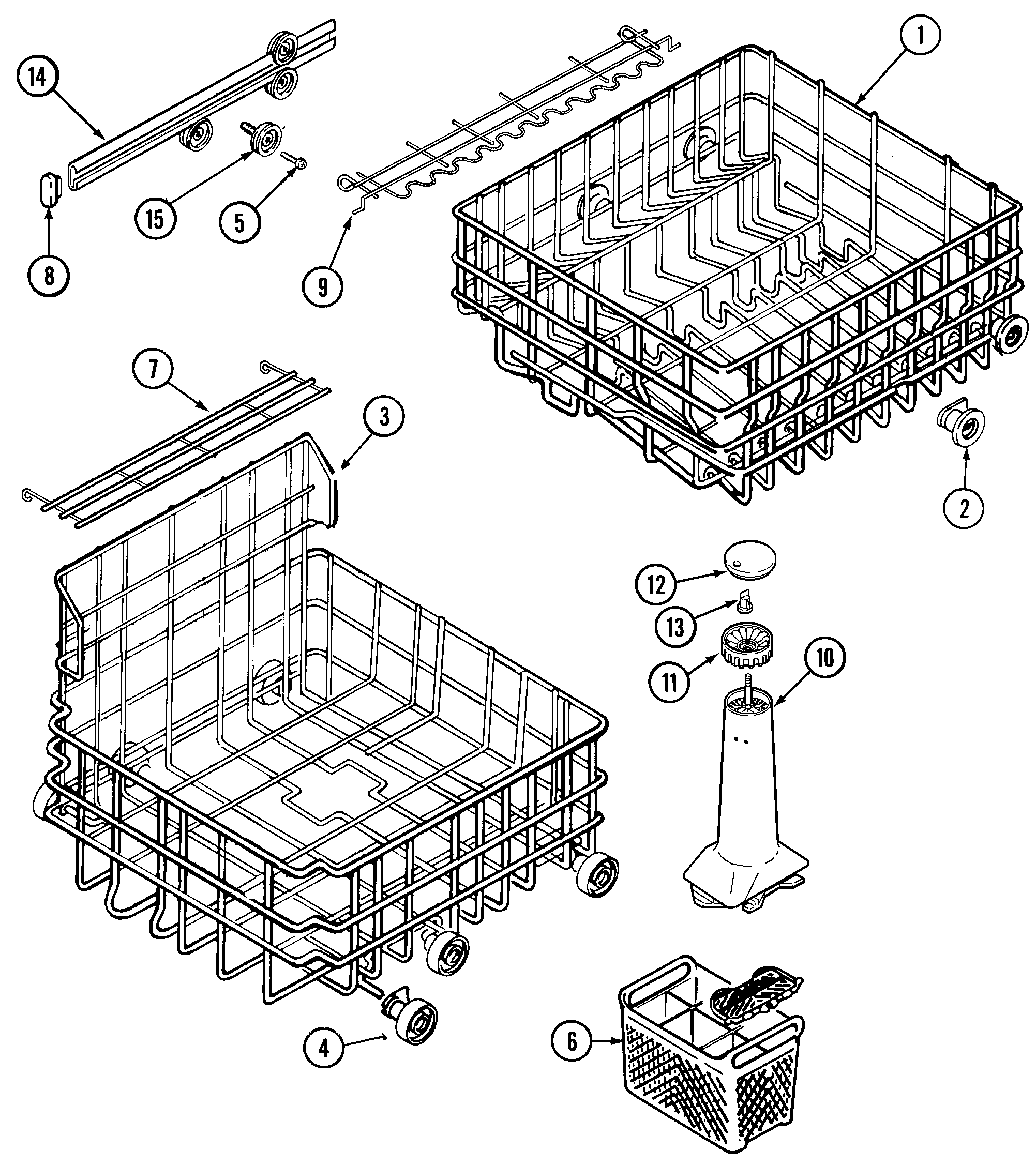

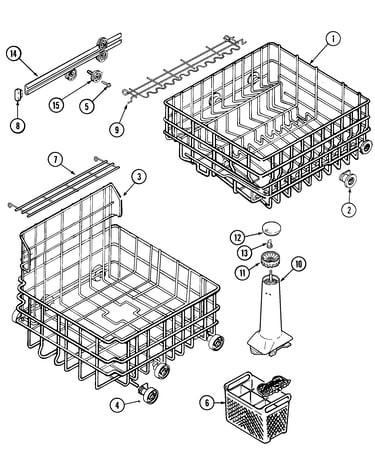

Track & rack assembly diagram

Silverware basket

Part #99001751

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 99001751. Substitute parts can look different from the original.
$20.61
20% OFF Phone Price : $25.61
In Stock
Hose Clamp 99001774
#29

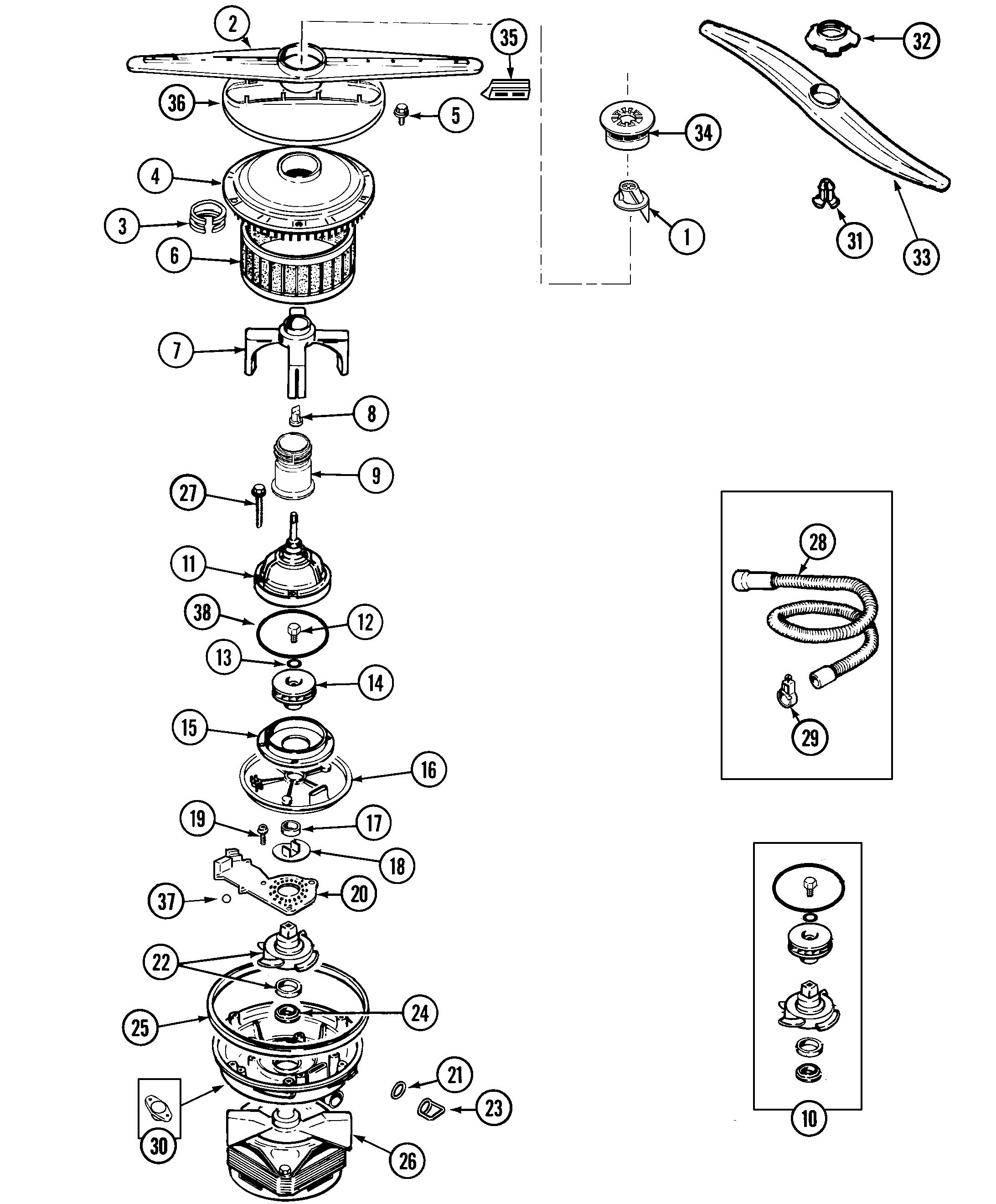

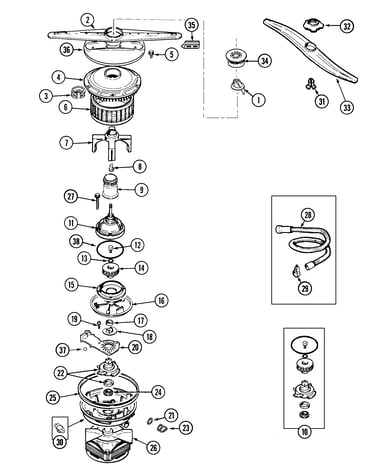

Pump & motor diagram

Hose clamp

Part #99001774

The manufacturer no longer makes this part, and there's no substitute part

Door Screw 912620
Door screw

Part #912620

Replaced by #WPY912620

?
Manufacturer substitution
This part replaces 912620. Substitute parts can look different from the original.
This item is not returnable
$3.95
20% OFF Phone Price : $4.95
In Stock
Dishwasher Water Inlet Valve 99001359
#2

Tub diagram

Dishwasher water inlet valve

Part #99001359

Replaced by #WP99001359

?
Manufacturer substitution
This part replaces 99001359. Substitute parts can look different from the original.
$36.79
12% OFF MSRP : $42.00
In Stock
Deflector, W 99001885
#15

Tub diagram

Deflector, w

Part #99001885

Replaced by #WP99001885

?
Manufacturer substitution
This part replaces 99001885. Substitute parts can look different from the original.
This item is not returnable
$7.79
11% OFF Phone Price : $8.79
In Stock
Float 99002363
#28

Tub diagram

Float

Part #99002363

Replaced by #WP99002363

?
Manufacturer substitution
This part replaces 99002363. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Wax Motor 902899
#1

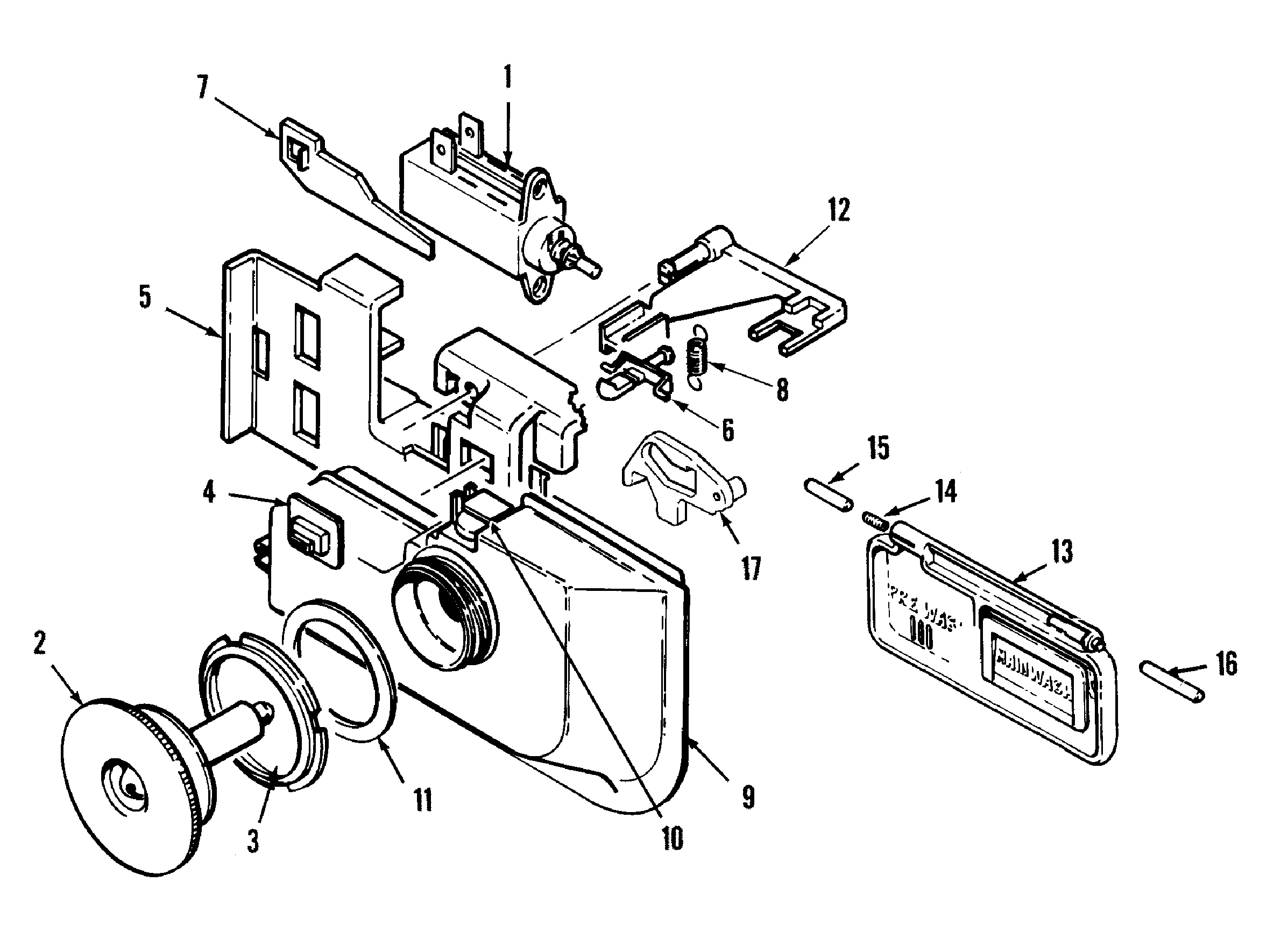

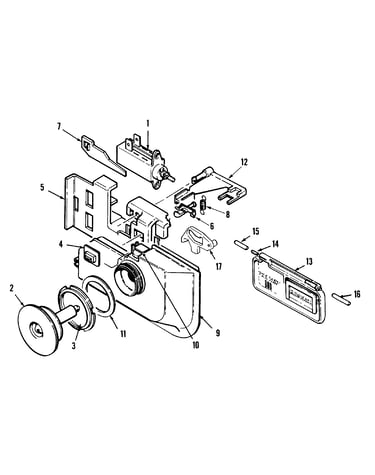

Rinse aid & soap dispenser diagram

Wax motor

Part #902899

Replaced by #WP902899

?
Manufacturer substitution
This part replaces 902899. Substitute parts can look different from the original.
$37.61
12% OFF Phone Price : $42.61
In Stock
Dishwasher Lower Spray Arm Cap 99001428
#34

Pump & motor diagram

Dishwasher lower spray arm cap

Part #99001428

Replaced by #WP99001428

?
Manufacturer substitution
This part replaces 99001428. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Dishwasher Door Handle 99002084
#4

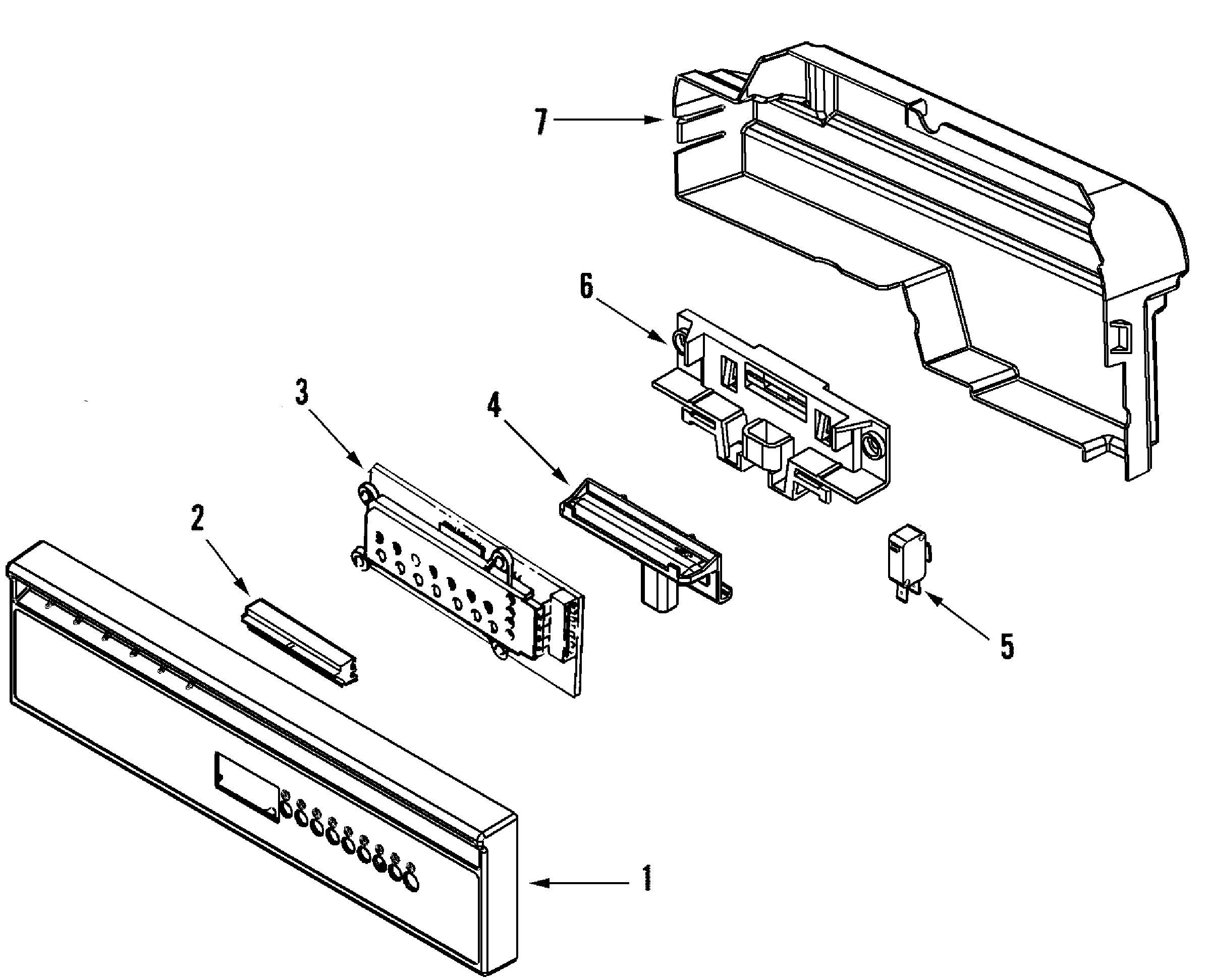

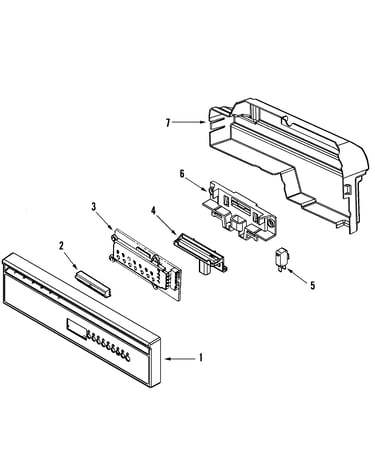

Control panel diagram

Dishwasher door handle

Part #99002084

Replaced by #W10834433

?
Manufacturer substitution
This part replaces 99002084. Substitute parts can look different from the original.
$56.79
8% OFF Phone Price : $61.79
In Stock
