On the GE GFD28GBLCTS bottom-mount refrigerator, the bottom grille (base grille/toe grille) typically comes off by releasing its retaining clips and pulling the grille straight out from the bottom front of the cabinet. If your grille uses screws, remove them first, then slide the grille off and reinstall the same way.

Before you start (safety and access)

• Unplug the refrigerator or switch off power at the breaker if you will work near wiring.
• If you need more room, raise the front leveling legs slightly before pulling the unit forward.
• Pull the refrigerator straight out (not sideways) to avoid floor damage.
• Watch the water supply line and power cord so you do not pinch or roll over them.
• Keep screws and clips together so reassembly is quick.

Step-by-step: removing the bottom grille

1. Look along the top edge and corners of the grille for fasteners.
2. If you see screws, remove them with a Phillips screwdriver or nut driver (depending on the head).
3. Grip the grille at both ends.
4. Pull the grille straight toward you to pop it free from the clips.
5. If it resists, press in gently near the clip locations and pull again (avoid bending the plastic).

Reinstalling the grille

Line the grille up with the mounting tabs, then push or slide it into place until it seats. Reinstall any screws you removed.

What you see	What it usually means	What to do
No visible screws	Clip-on grille	Pull straight out to release clips
Screws at ends or along top	Screw-retained grille	Remove screws first, then pull/slide off
Grille won’t budge	Clips still engaged or unit not level	Press near clips; raise leveling legs slightly

Why it matters

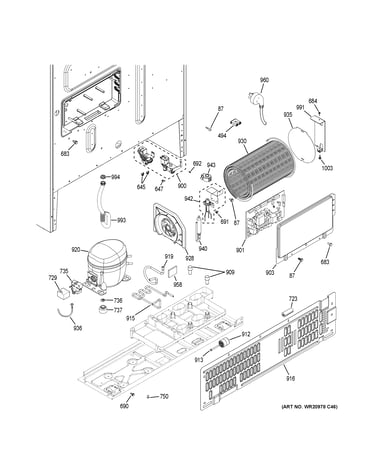

Removing the bottom grille gives you access for cleaning dust from the condenser area and checking for water leaks or drain pan issues, which helps cooling performance and prevents puddles.

For model-specific diagrams and any grille fastener notes, use the owner's manual.

Last updated: February 2026

The most common GE refrigerator issue we see is not cooling properly, usually caused by airflow problems (dirty condenser coils, a failed evaporator fan, or frost buildup) or a temperature control issue. On the GE GFD28GBLCTS, start with basic airflow and temperature checks from the owner's manual.

Quick checks first (5 to 10 minutes)

• Confirm the controls are set correctly: 37°F fresh food and 0°F freezer are typical targets.
• Make sure vents inside both compartments are not blocked by food packages.
• Check that the doors close fully and the gaskets seal all the way around.
• Listen for the evaporator fan: it should run when the compressor is running (often you can hear it with the door closed).
• Clean dust from the condenser area (unplug the refrigerator first).

Other very common GE refrigerator problems

Symptom	What it usually points to	What to do next
Warm fridge, freezer OK	Airflow from freezer to fridge restricted	Check vents, frost buildup, fan operation
Ice maker not working	Water supply issue, filter restriction, inlet valve problem	Verify water supply, replace filter if overdue
Water dispenser slow	Clogged filter or air in the line	Replace filter, purge air from dispenser
Water on floor	Defrost drain issue or supply line leak	Inspect drain area, check tubing connections
Door alarm keeps beeping	Door not fully closed or switch issue	Reset and confirm door alignment

Why it matters

Cooling and airflow problems can quickly lead to food spoilage and can also make the compressor run longer than normal. Catching a dirty coil, blocked vent, or failing fan early helps restore stable temperatures and reduces wear on key components.

Helpful GE-specific DIY guides

• If the door alarm is the issue, use how to reset the door alarm on a GE refrigerator.
• If you suspect a fan problem, follow how to fix your evaporator cooling fan.
• If you see an error code, check GE refrigerator error codes.

Last updated: February 2026

A GE GFD28GBLCTS bottom-mount refrigerator typically lasts 12 to 15 years with normal household use. With consistent maintenance (clean airflow paths, stable temperatures, and timely repairs), it commonly reaches the upper end of that range.

Typical lifespan and what affects it

Most modern bottom-freezer refrigerators fall into a similar lifespan range; the biggest differences come from heat load, airflow, and how hard the sealed system and fans have to work.

• Condenser and compressor workload (hot kitchens, dusty coils, tight clearances shorten life)
• Door seal condition (air leaks force longer run times)
• Ice maker and water system upkeep (filter changes, avoiding clogs)
• Temperature stability (frequent door opening, overpacking, blocked vents)
• Power quality (surges and repeated outages stress electronics)

Maintenance checklist to help it last longer

Use these habits to reduce run time and prevent common failures:

• Keep the refrigerator set near the recommended 37°F and the freezer near 0°F
• Avoid blocking interior air vents; keep space around the air tower
• Keep doors closing tightly; clean and inspect gaskets regularly
• Replace the water filter on schedule and reset the filter indicator
• Clean spills quickly to prevent odors and drain issues

Quick reference: lifespan expectations

Item	Typical expectation	What you can do
Overall refrigerator lifespan	12 to 15 years	Maintain airflow, seals, and temps
Water filter cartridge	Replace regularly	Follow the schedule in the manual
Sealed system (compressor, condenser, evaporator)	Long-life component	Keep coils clean, ensure ventilation

Why it matters

A refrigerator that runs longer to hold temperature uses more energy and wears out parts faster. Keeping airflow clear and temperatures steady helps your GE GFD28GBLCTS cool efficiently and reduces strain on the compressor and fans.

Helpful model-specific resources

• For recommended temperature settings, filter reset steps, and care routines, use the owner's manual.
• If your door alarm is sounding often (a common sign of a door not sealing or closing fully), follow how to reset the door alarm on a GE refrigerator.

Last updated: February 2026
