Model # 139663653 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663653 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 103 parts |

#15

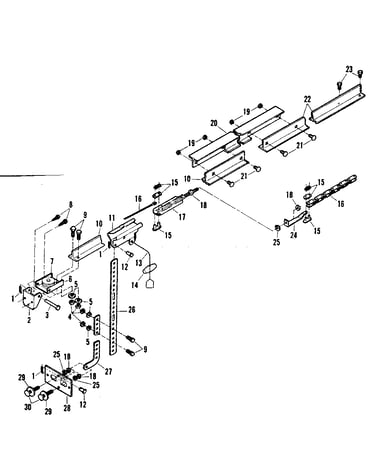

Rail assembly parts list diagram

Master link

Part #4A1008

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107

#23

Rail assembly parts list diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

#19

Rail assembly parts list diagram

Lock nut

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

#25

Rail assembly parts list diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

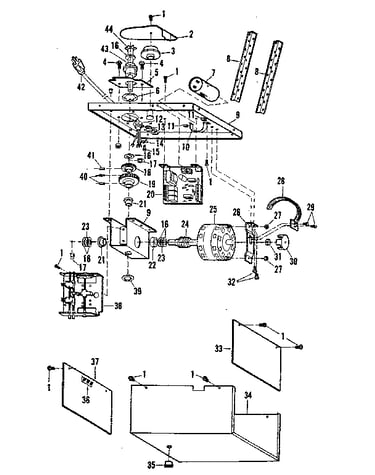

Chassis assembly diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Chassis assembly

Part #4A1258

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Transmitter

Part #6634

The manufacturer no longer makes this part, and there's no substitute part

#38E

Chassis assembly diagram

Gear shaft

Part #1A2456

The manufacturer no longer makes this part, and there's no substitute part

#24

Rail assembly parts list diagram

Bracket

Part #12A197

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Ret spacer

Part #4A1273

The manufacturer no longer makes this part, and there's no substitute part
