Kenmore 6651569580 dishwasher Parts

Yes, you can still get replacement parts for many Kenmore dishwashers, including model 6651569580. Availability depends on the exact part, but common service items like racks, hoses, seals, clamps, and some pump components are still sold and can be ordered by model number.

How to confirm you are buying the right part

We recommend matching by model number first (6651569580), then verifying the part name and ID.

• Find the part in the model parts list and compare the photo and description
• Match the part ID exactly (letters and numbers)
• Check where the part installs (rack, drain path, door, pump area)
• If you are replacing a leak-related part, inspect nearby hoses and clamps at the same time
• If the dishwasher is showing an error, look up the code before ordering parts

Common parts that are often still available for this model

These are examples of parts currently listed for Kenmore 6651569580:

What you are fixing	Example part you may need	What it affects

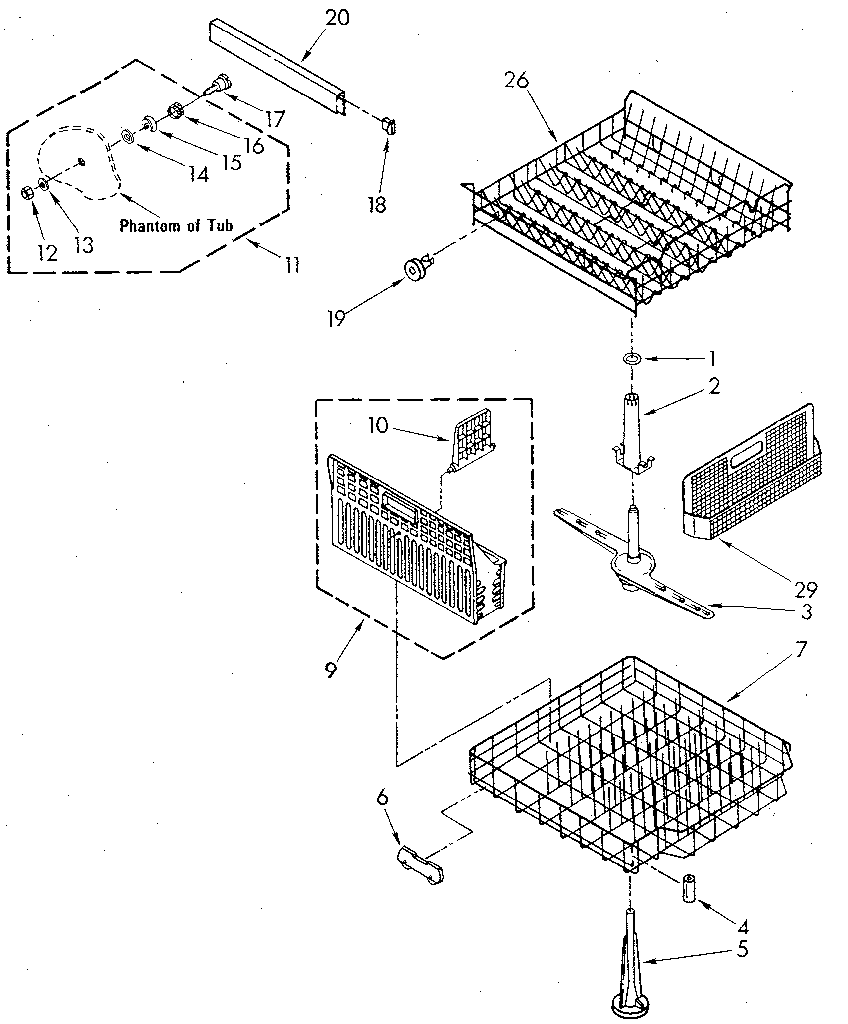

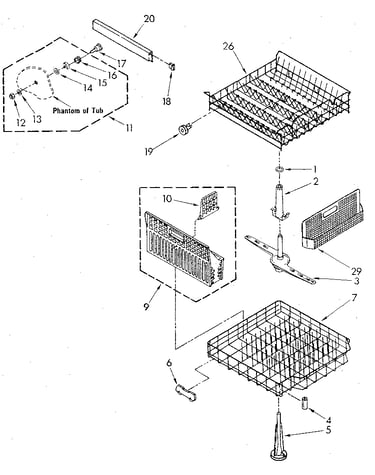

Rack damage or rust	Dishrack W11169039	Upper rack fit and sliding
Poor draining or leaks at the drain line	Drain hose 675544	Drain flow and leak prevention

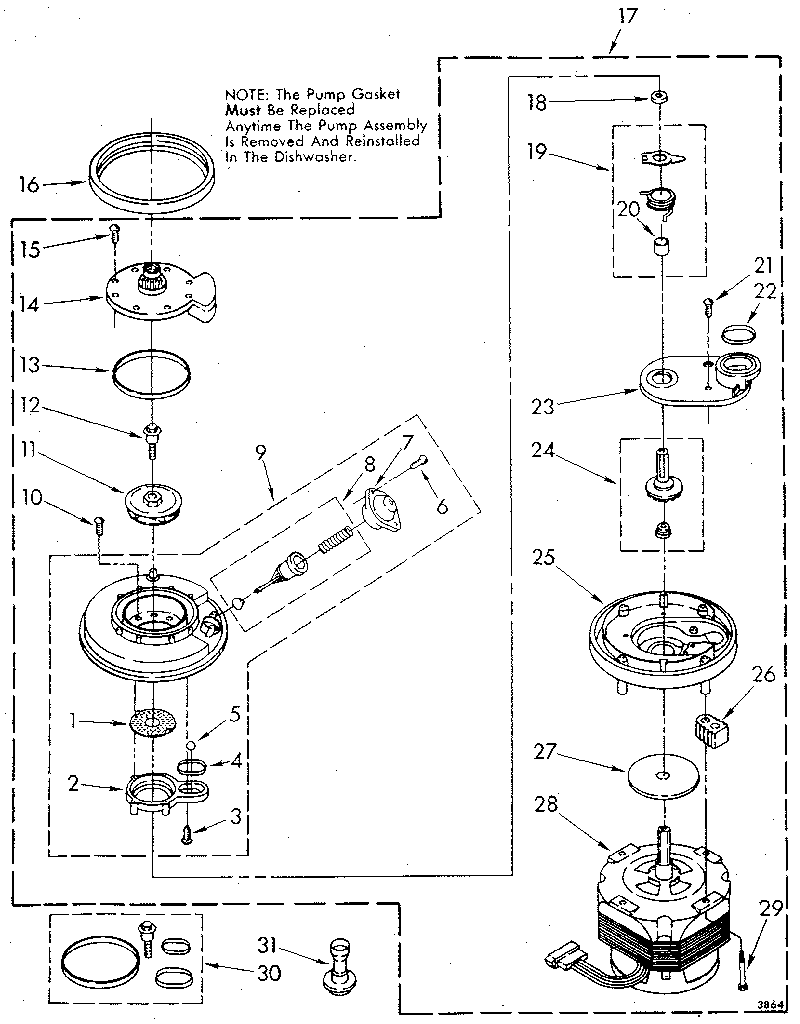

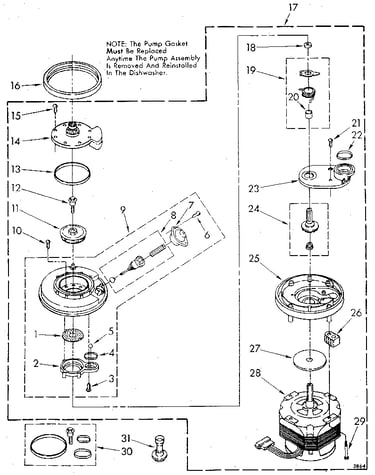

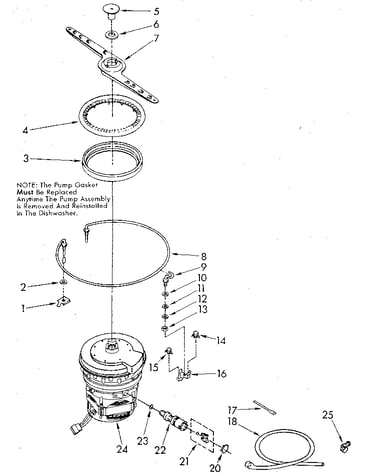

Leaks at pump outlet	Dishwasher pump outlet seal WP302711	Sealing between pump and outlet

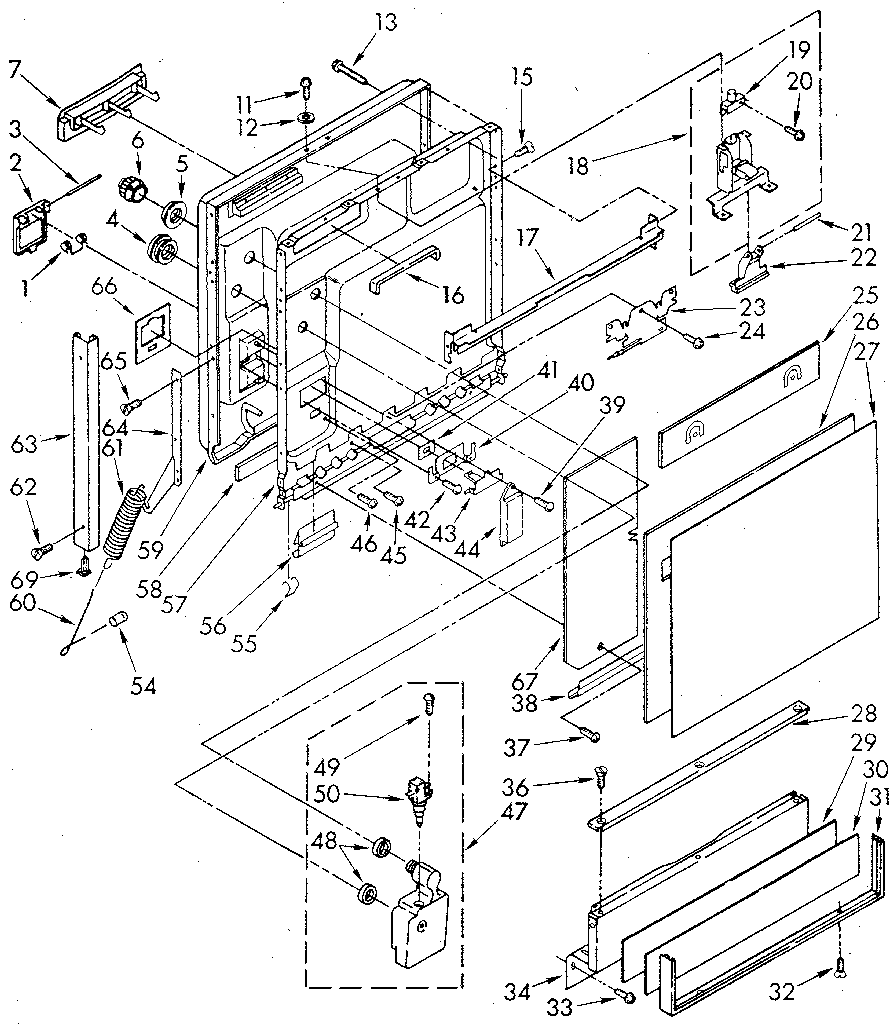

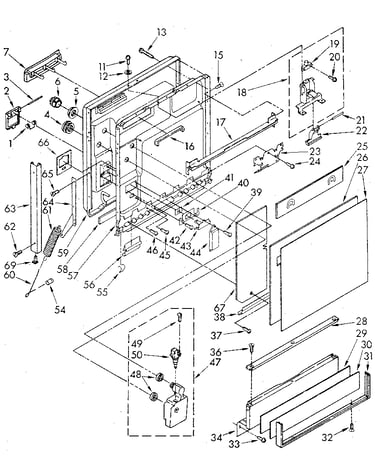

Door dropping or not balancing	Dishwasher door spring retainer WP716401	Door spring connection

Why it matters

Ordering by the exact Kenmore model number (6651569580) helps prevent returns and downtime. Dishwashers often have similar-looking parts across 665-series models, but small design changes can affect fit, sealing, and wash performance.

If you are troubleshooting (not sure which part failed)

Start with symptoms, then narrow down the system involved.

• Not draining: check drain hose routing, clogs, and the sink/disposer connection
• Leaking: look for wetness at the pump outlet seal, hose connections, and clamps
• Poor cleaning: check spray action and loading, then consider pump/impeller issues
• Door slams or won’t stay open: inspect door spring hardware

For code-based problems, use Kenmore 665 model dishwasher error codes to identify the most likely failure area before you order parts.

Last updated: February 2026

To tell what Kenmore dishwasher model you have, find the model and serial label on the dishwasher and copy the model number exactly as printed. For the dishwasher covered here, the model number you want to match is 6651569580.

Where to find the model number label

On most Kenmore built-in dishwashers, the model and serial tag is in one of these locations:

• Along the top edge of the door (visible when the door is open)
• On the left or right inner door frame near the latch
• On the rim of the tub opening (door open, look around the opening)
• Behind the lower toe-kick panel (use a flashlight)

What to write down (and why)

Copy the model number and serial number exactly; a single digit difference can change parts and diagrams.

Item to record	What it looks like	Why it matters
Model number	6651569580	Matches the correct parts list and diagrams
Serial number	Letters and numbers	Helps identify production run details
Any suffix/prefix	Extra characters (if present)	Can affect compatibility on some units

Quick checks before ordering parts

Use these checks to prevent mismatches when selecting Kenmore dishwasher parts:

• Confirm you are reading the line labeled MODEL (not only SERIAL)
• Match every digit; do not shorten or round the number
• If the label is faded, take a photo and zoom in to verify characters
• Once confirmed, use the model number to choose model-matched parts such as the dishwasher dishrack W10311986

Why it matters

Kenmore dishwashers often share the same exterior styling across multiple models, but internal components (racks, pump seals, drain parts, and hardware) vary by model number. Using the exact model number keeps fit and function correct.

Last updated: February 2026

Yes, repairing your Kenmore dishwasher model 6651569580 is worth it when the failure is limited to a common wear item (leak, drain issue, door balance, rack damage) and the total repair cost stays well below the cost of a new dishwasher. Replacement makes sense when multiple major systems fail at once.

Quick decision checklist

• If the dishwasher is under 10 years old, repair is the better value.
• If the problem is one clear symptom (leak, won’t drain, door won’t stay up), repair is usually straightforward.
• If the estimate is over 50% of replacement cost, replacement is usually the smarter spend.
• If you have multiple symptoms (won’t start plus won’t wash plus leaking), expect a larger repair.
• If racks are broken but the machine runs well, replacing racks often extends life for years.

Common repairs that are often worth it

Symptom	Often-related area	Typical repair scope
Water on floor	Hose connections, pump outlet seal, clamps	Reseat or replace small sealing parts
Won’t drain well	Drain hose, drain path restrictions	Clear blockage or replace hose
Poor wash performance	Pump/impeller area, spray path clogs	Clean out debris, replace worn pump parts
Door drops open	Door spring/retainer hardware	Replace spring or retainer

Model-matched examples of parts used in these repairs include the drain hose 675544, dishwasher pump outlet seal WP302711, and dishwasher door spring retainer WP716401.

When replacement is the better call

• The dishwasher needs a major pump/motor repair plus additional parts.
• You have repeat leaks from multiple locations (seals, hoses, clamps) over a short time.
• The tub or door structure has ongoing sealing or alignment problems.
• You want a meaningful upgrade in noise level and cycle efficiency.

Why it matters

A targeted repair on the Kenmore 6651569580 fixes the specific failure point (like a drain restriction or a worn seal) and restores reliable cleaning; replacement only pays off when repair scope and cost stack up.

Last updated: February 2026

A Kenmore Elite dishwasher typically lasts 10 years with normal household use. For Kenmore model 6651569580, consistent cleaning, correct loading, and fixing small leaks or draining issues early are what most often determine whether it reaches that 10-year mark.

Typical lifespan and what changes it

Most dishwashers land in a similar range, but day-to-day conditions make a big difference.

• Hard water shortens life by building scale on the heater, pump, and spray system
• Heavy use (multiple loads daily) increases wear on the motor and seals
• Poor draining strains the pump and can lead to odors and standing water
• Overloading blocks spray arms and increases rack and roller wear
• Small leaks that go unchecked can damage wiring, the motor, and flooring

Quick maintenance that helps you hit 10 years

These habits reduce stress on the circulation system, drain path, and door seals.

• Clean the filter area and sump regularly (remove debris, labels, glass)
• Run hot water at the sink before starting a cycle for better wash performance
• Use the right detergent amount; too much can cause residue and foaming
• Check the door seal area for food buildup and wipe it clean
• Inspect the drain hose routing for kinks and ensure the high loop/air gap is correct

Parts that commonly affect longevity

If you are seeing leaks, weak washing, or poor draining, these are common wear items on many Kenmore dishwashers.

Symptom	Common area involved	Example part for model 6651569580
Water leaking under unit	Pump seals, hose connections	Dishwasher pump outlet seal WP302711
Not draining well	Drain path, hose, check valve	Drain hose 675544

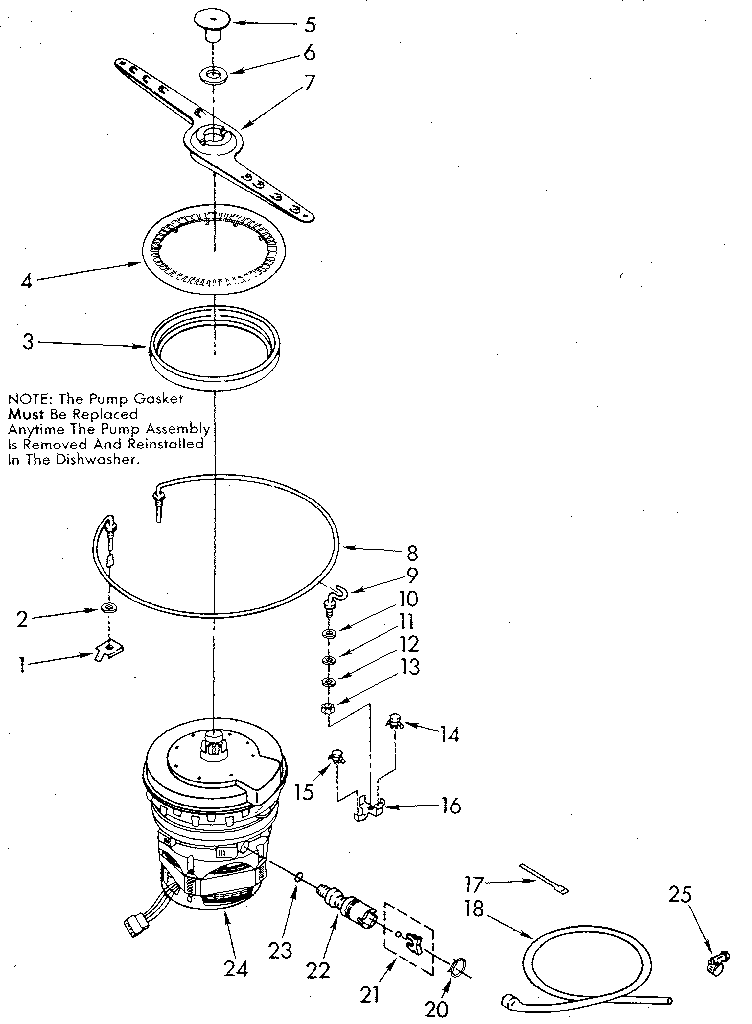

Poor wash or grinding noise	Pump/impeller area	Impeller 675806

Why it matters

A dishwasher that is close to end-of-life often shows up as longer cycle times, inconsistent drying, recurring leaks, or repeated drain problems. Addressing those early usually costs less than replacing major components after secondary damage occurs.

Last updated: February 2026

Kenmore is a brand name, and Kenmore dishwasher model 6651569580 is part of the 665 model prefix family that is widely associated with Whirlpool-built Kenmore dishwashers. When you’re buying replacement parts or troubleshooting, using the full model number 6651569580 helps match the correct Kenmore/Whirlpool-style components.

How to confirm the manufacturer on your exact unit

We recommend checking the dishwasher’s model/serial tag (typically on the tub frame near the door) and looking for:

• A model number starting with 665 (you already have this)
• A serial number format consistent with Whirlpool-built units
• A manufacturer code or wording on the tag (varies by production run)

If you’re ordering parts, matching by model number is the most reliable method.

Parts and repair implications (what changes and what doesn’t)

Even when the unit is Whirlpool-built, it is still serviced and parts-matched as a Kenmore model. In practice, that means:

• Use 6651569580 when searching diagrams and parts lists
• Many parts cross to Whirlpool-style components
• Hardware and seals are model-specific; don’t substitute by appearance alone
• Common leak and drain issues often trace to hoses, clamps, and pump seals

Example parts you might see for this model

Repair need	Example part type	Example model-matched part
Drain leak or loose connection	Hose clamp	Clamp WP596669
Pump outlet seep/drip	Pump outlet seal	Dishwasher pump outlet seal WP302711
Not draining or poor wash circulation symptoms	Drain hose	Drain hose 675544

Why it matters

Knowing the 665 prefix is Whirlpool-associated helps set expectations for design, error-code families, and common repair patterns. It also reduces ordering mistakes when you’re comparing Kenmore and Whirlpool dishwasher parts.

For troubleshooting by symptom or flashing lights, use our Kenmore 665 model dishwasher error codes reference to narrow down the failure area before replacing parts.

Last updated: February 2026
