Model #DWU7400AAE Official Maytag dishwasher

Here are the diagrams and repair parts for Maytag DWU7400AAE dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

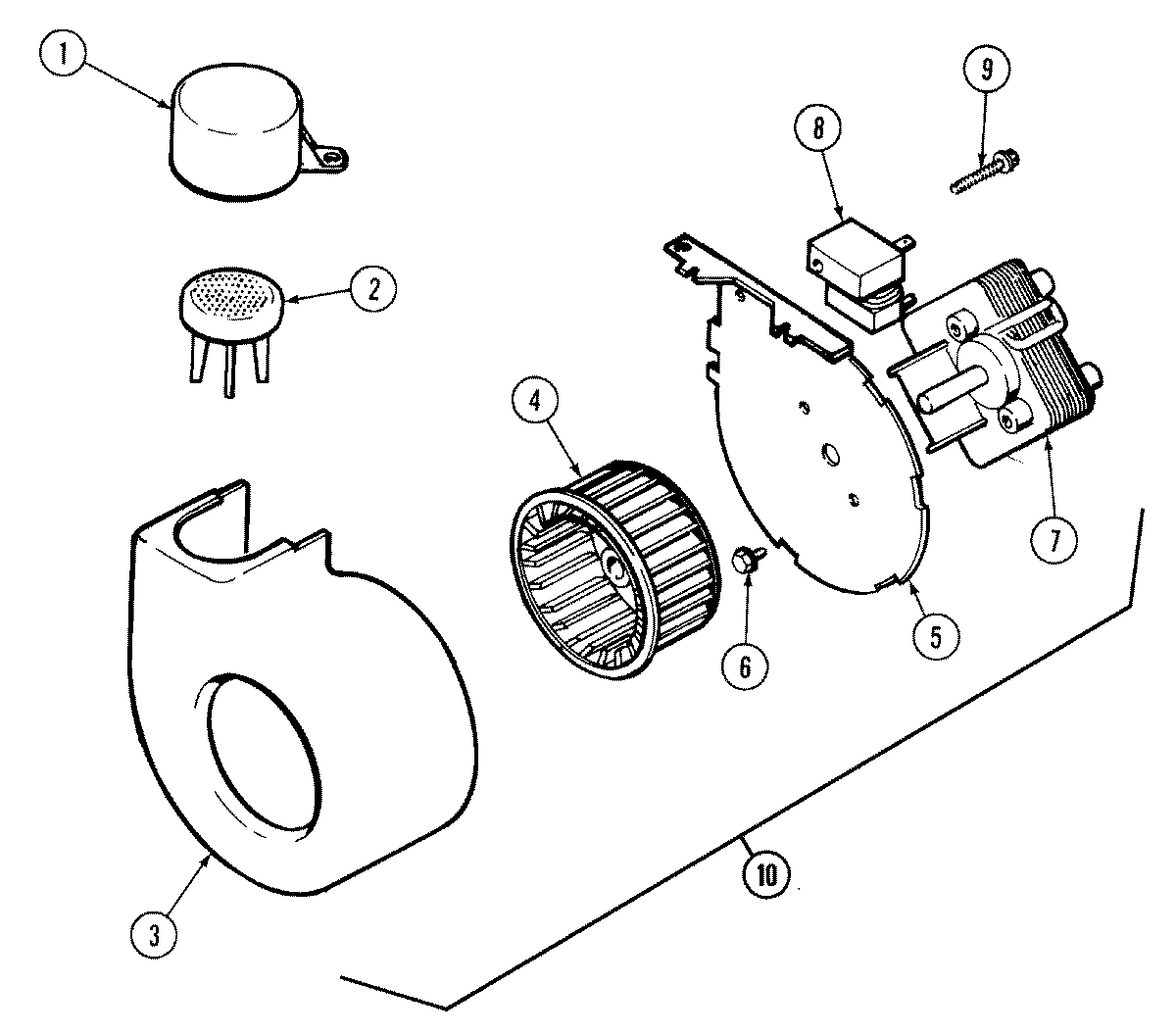

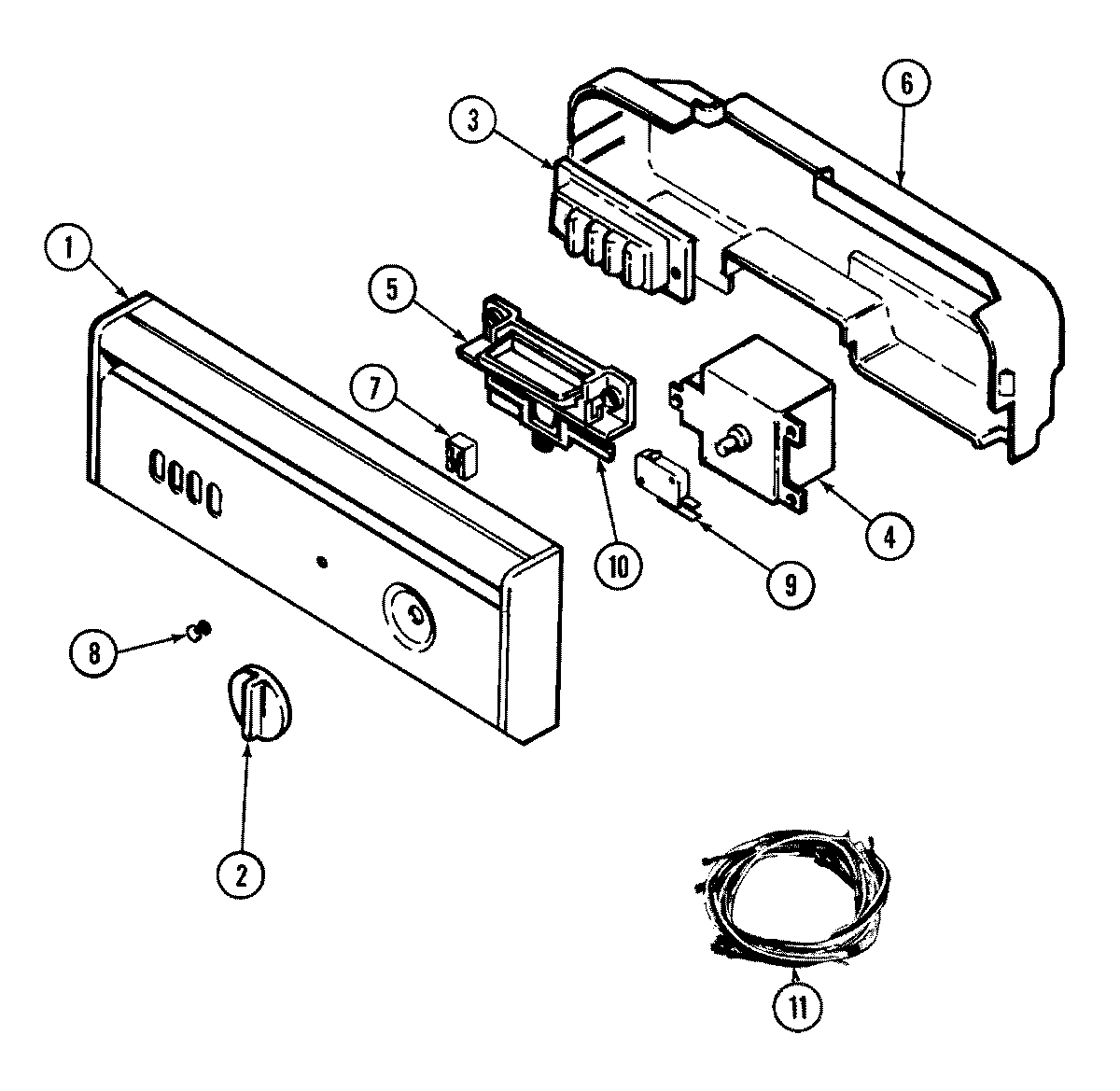

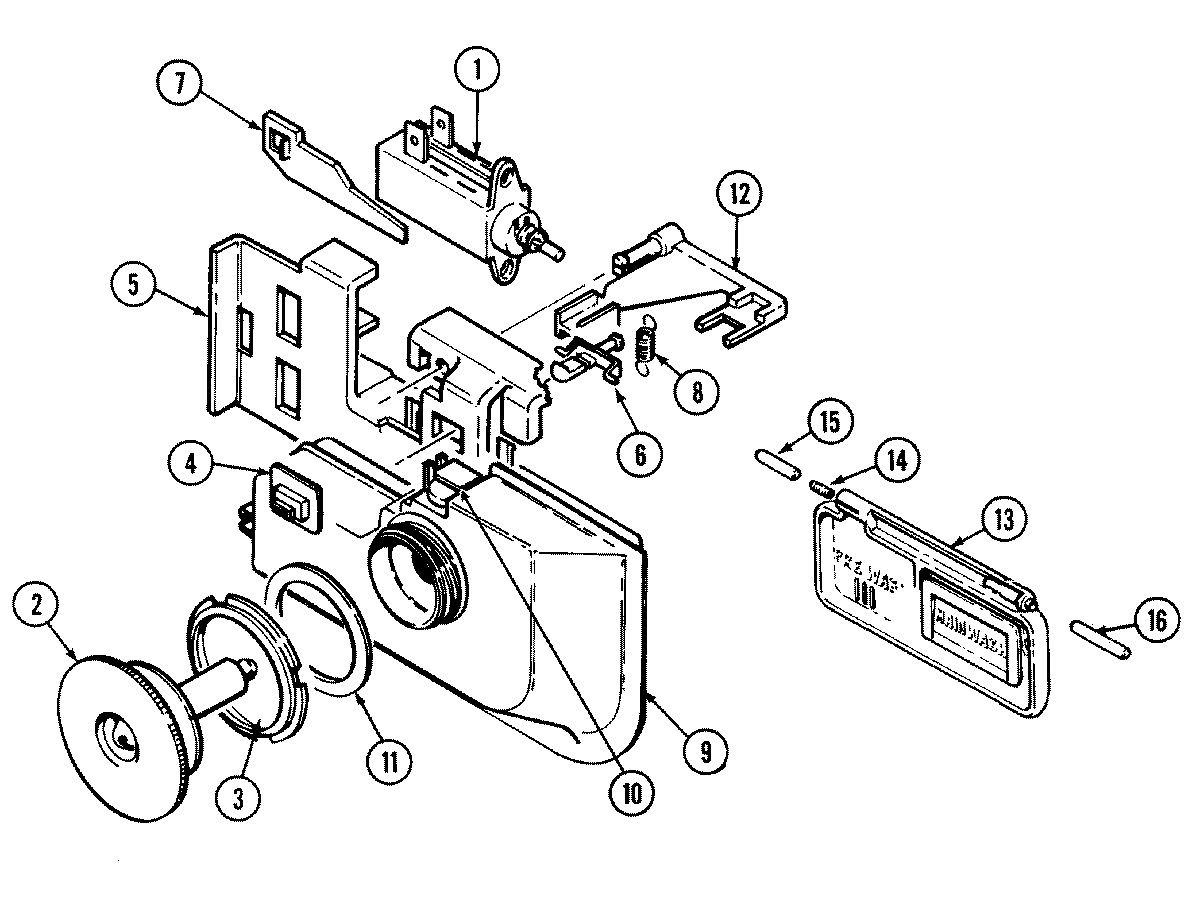

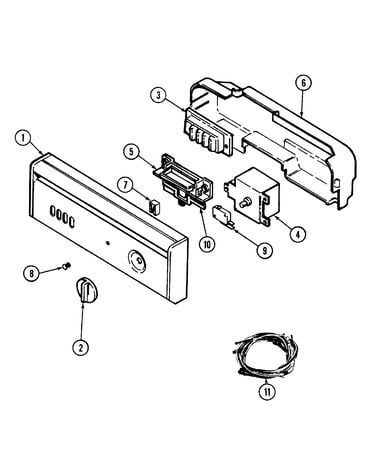

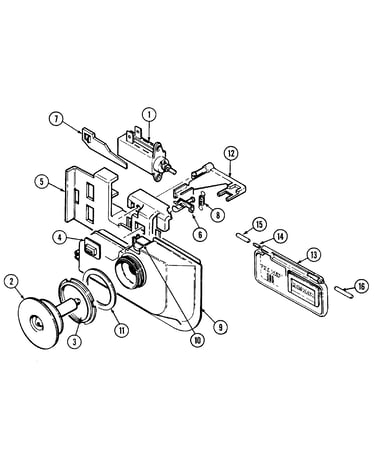

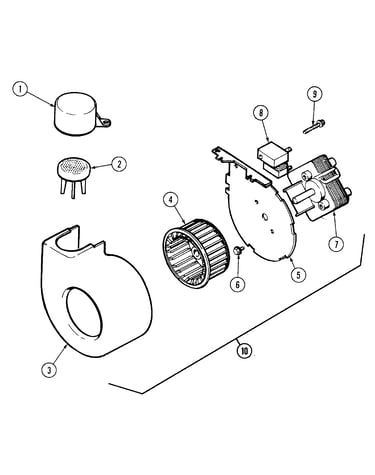

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 171 parts

Dishwasher Door Seal (replaces 902894)#1

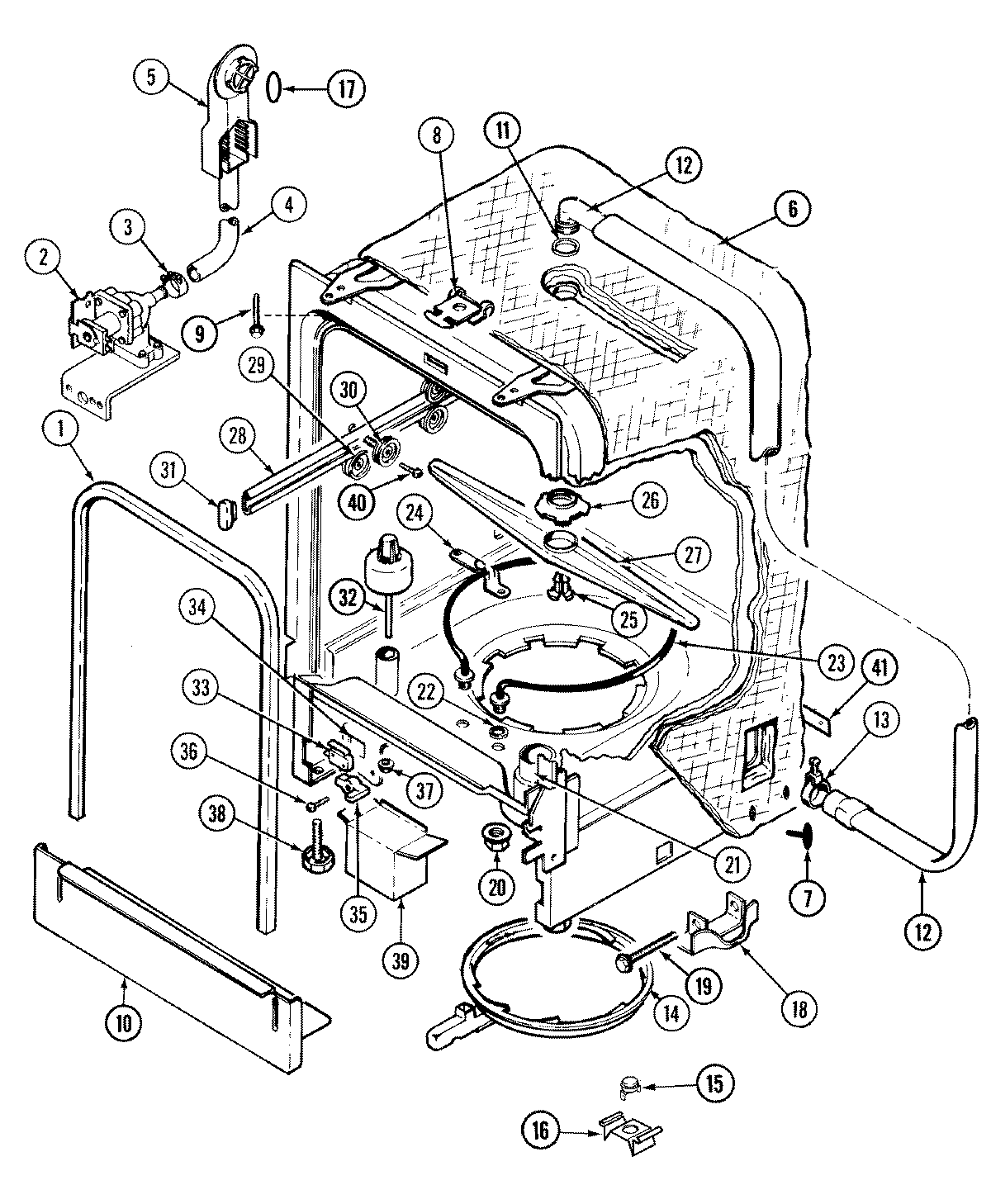

Tub Diagram

Dishwasher door seal

Part #902894
Replaced by #WP902894
?
Manufacturer substitution
This part replaces 902894. Substitute parts can look different from the original.
BEST SELLER
In Stock
$55.61 |
10% OFF
Was: $61.79
Dishwasher Circulation Impeller#14

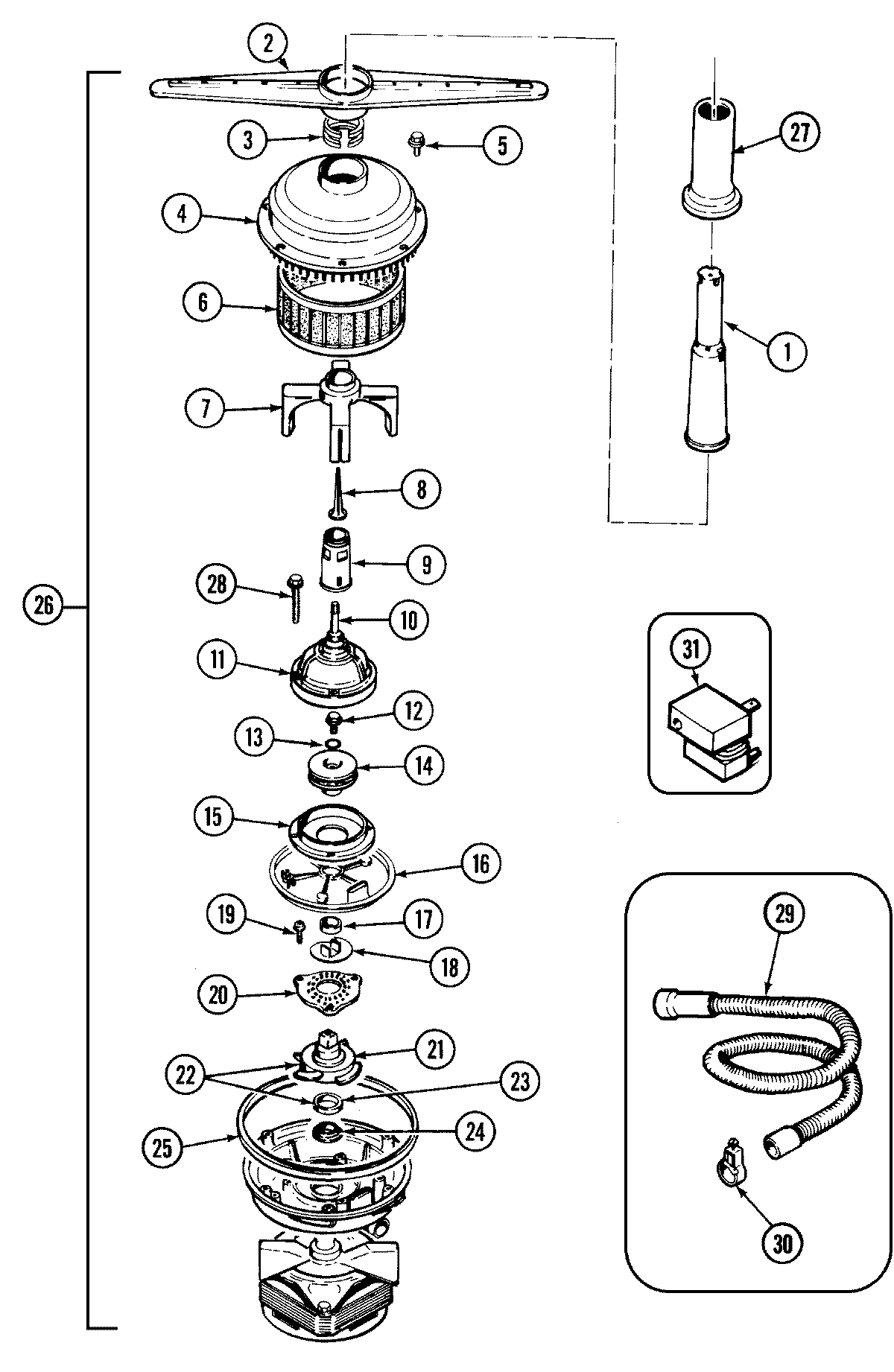

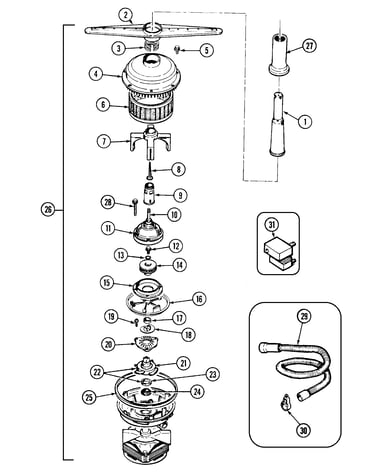

Pump & motor Diagram

Circulating

Part #902461
Replaced by #WP902461
?
Manufacturer substitution
This part replaces 902461. Substitute parts can look different from the original.
In Stock
$29.09 |
15% OFF
Phone Price: $34.09
Dishwasher Door Insulation#20

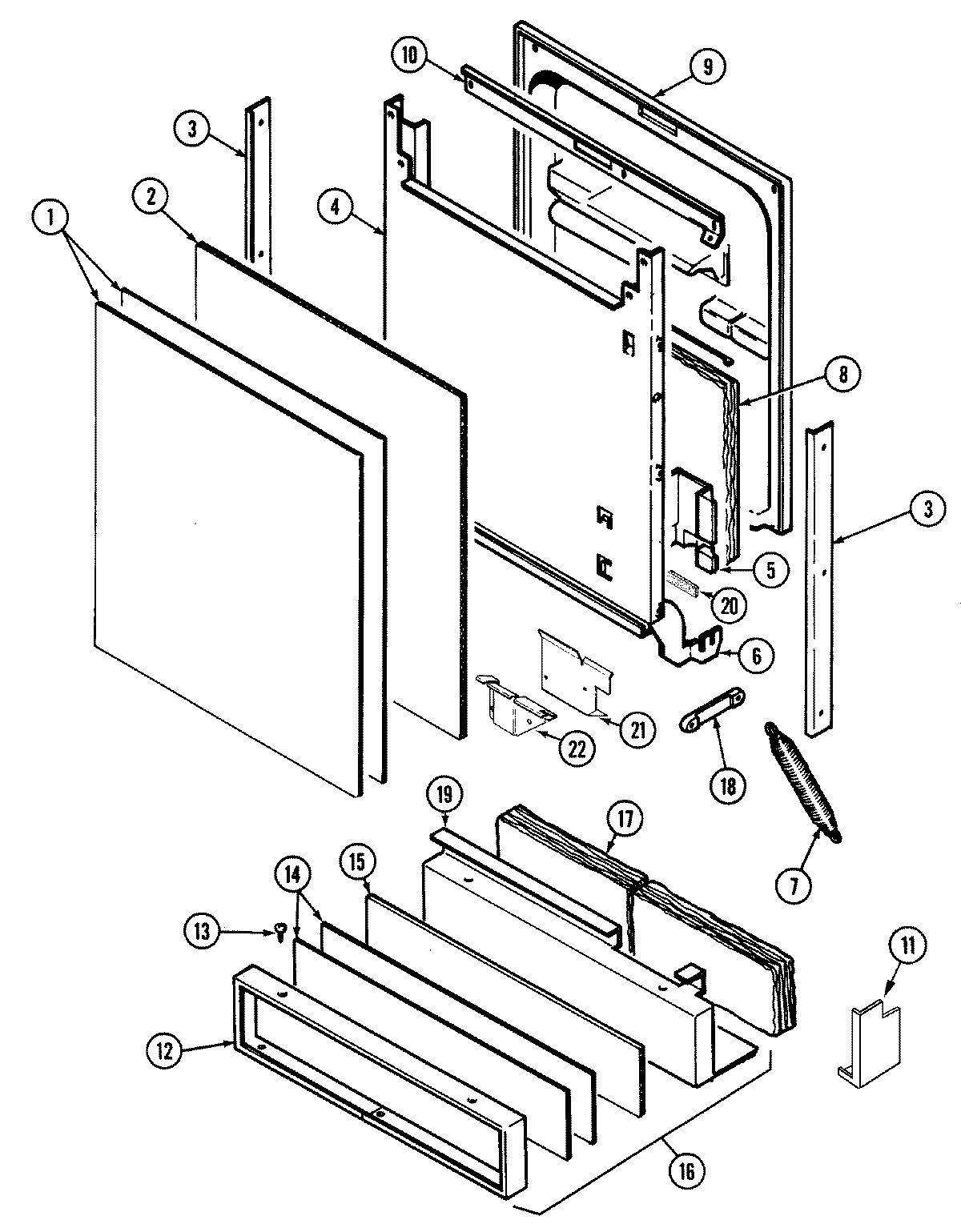

Door Diagram

Foam seal

Part #903233
Replaced by #WPW10117748
?
Manufacturer substitution
This part replaces 903233. Substitute parts can look different from the original.
This item is not returnable
In Stock
$23.29 |
18% OFF
Phone Price: $28.29
Dishwasher Water Inlet Valve (replaces 99001359)#2A

Tub Diagram

Water valve

Part #903400
Replaced by #WP99001359
?
Manufacturer substitution
This part replaces 903400. Substitute parts can look different from the original.
In Stock
$36.79 |
12% OFF
MSRP: $42.00
Dishwasher Dishrack Wheel#2

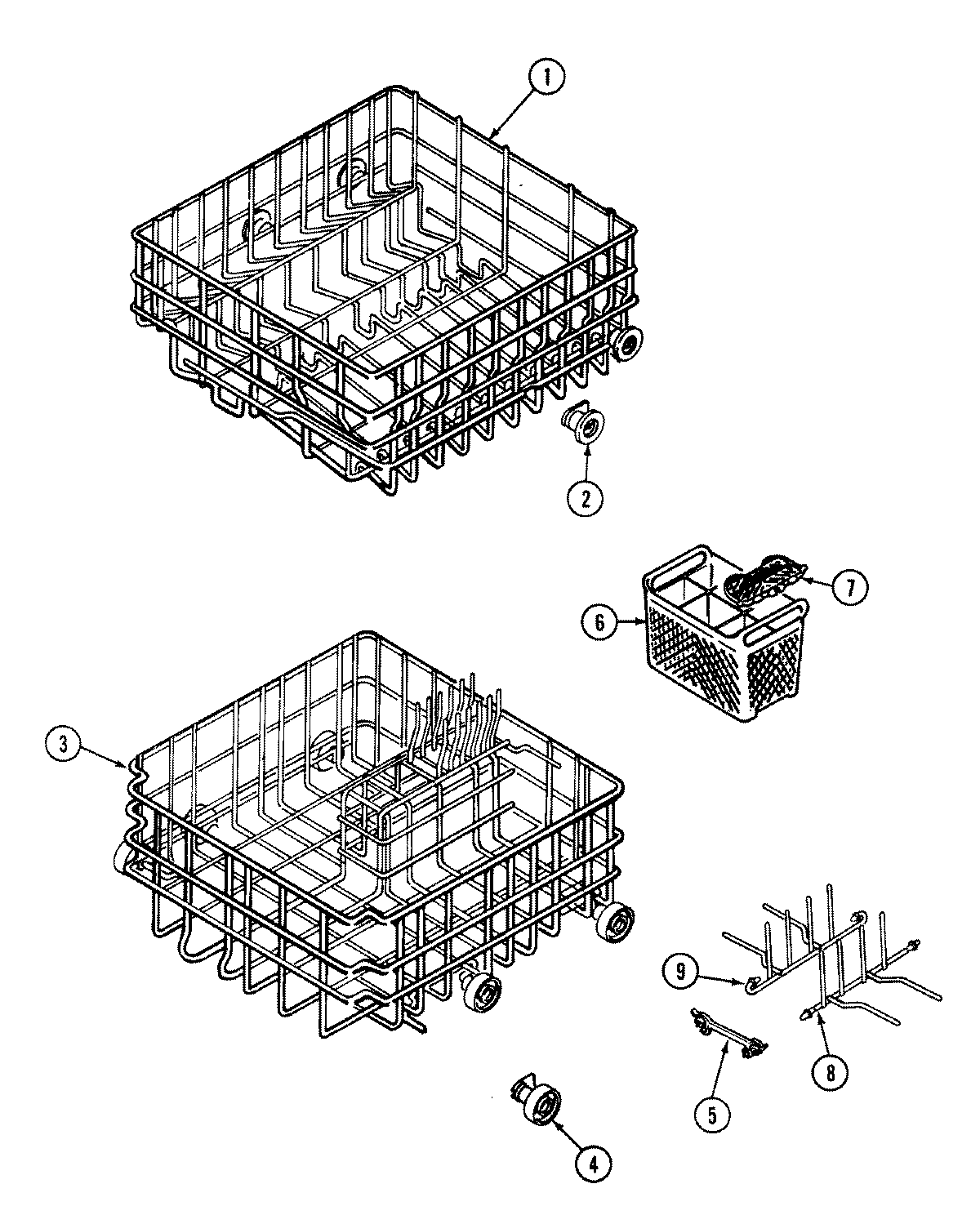

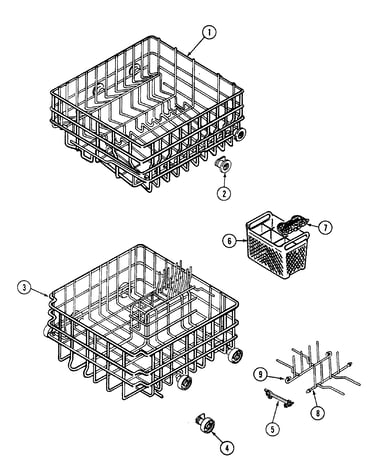

Racks Diagram

Dishwasher dishrack wheel

Part #903093
Replaced by #WP903093
?
Manufacturer substitution
This part replaces 903093. Substitute parts can look different from the original.
This item is not returnable
In Stock
$10.49 |
16% OFF
Phone Price: $12.49
Float#32

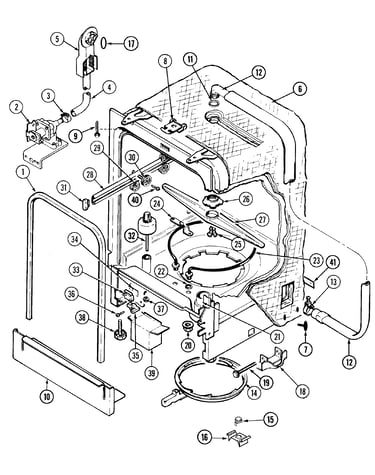

Tub Diagram

Float

Part #912687
Replaced by #WP99002363
?
Manufacturer substitution
This part replaces 912687. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Dishwasher Nut#37

Tub Diagram

Float palnut

Part #911265
Replaced by #WP911265
?
Manufacturer substitution
This part replaces 911265. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Dishwasher Dishrack Track Roller Assembly#29

Tub Diagram

Tub wheel

Part #912548
Replaced by #WP99002342
?
Manufacturer substitution
This part replaces 912548. Substitute parts can look different from the original.
In Stock
$8.40 |
11% OFF
Phone Price: $9.40
Dishwasher Float Switch#33

Tub Diagram

Water switch

Part #900882
Replaced by #WP99002560
?
Manufacturer substitution
This part replaces 900882. Substitute parts can look different from the original.
In Stock
$31.76 |
14% OFF
Phone Price: $36.76
Dishwasher Wire Harness Retainer#39

Tub Diagram

Cable clamp

Part #400321
Replaced by #4396672
?
Manufacturer substitution
This part replaces 400321. Substitute parts can look different from the original.
In Stock
$13.79 |
13% OFF
Phone Price: $15.79
