Model # 79043043400 Official Kenmore electric cooktop

Here are the diagrams and repair parts for Official Kenmore 79043043400 electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

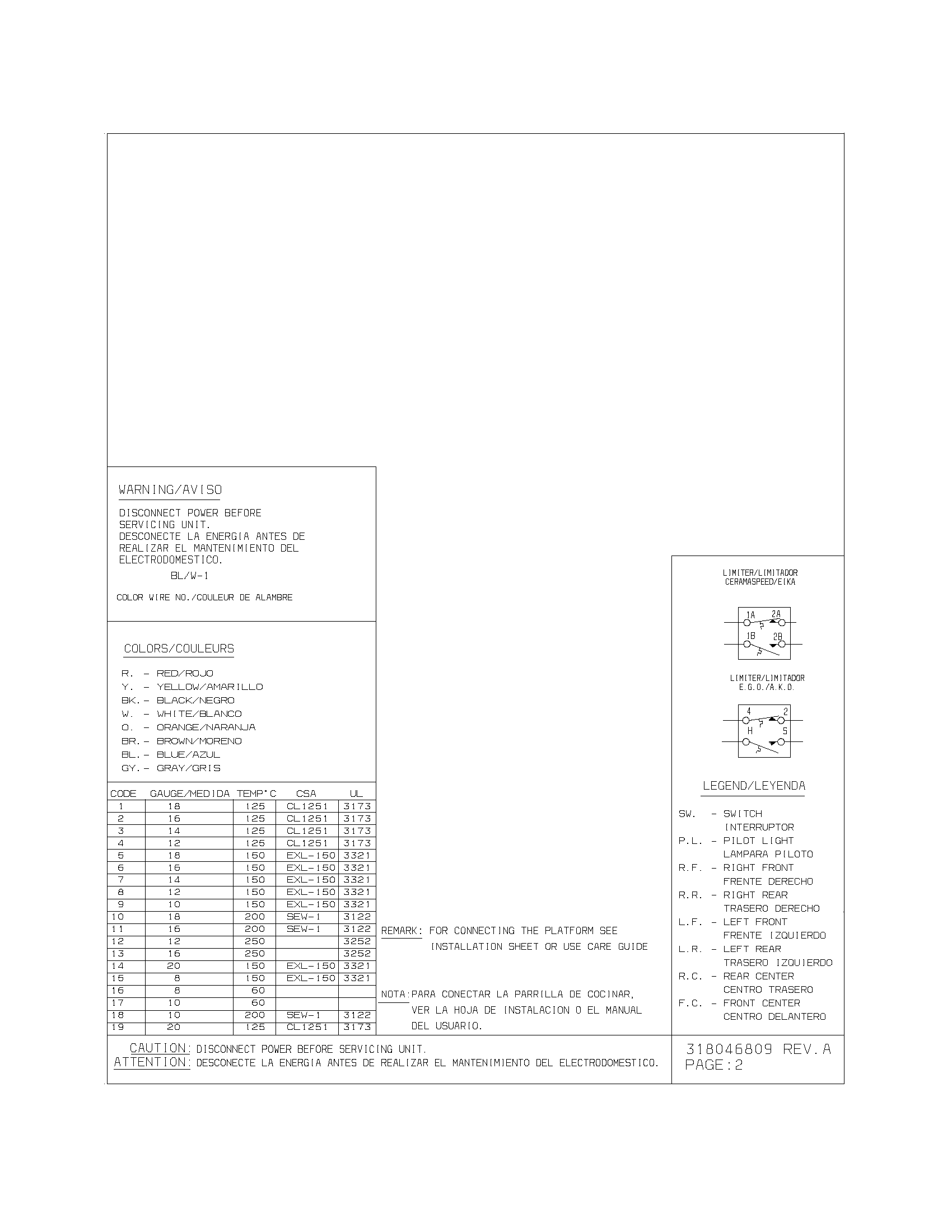

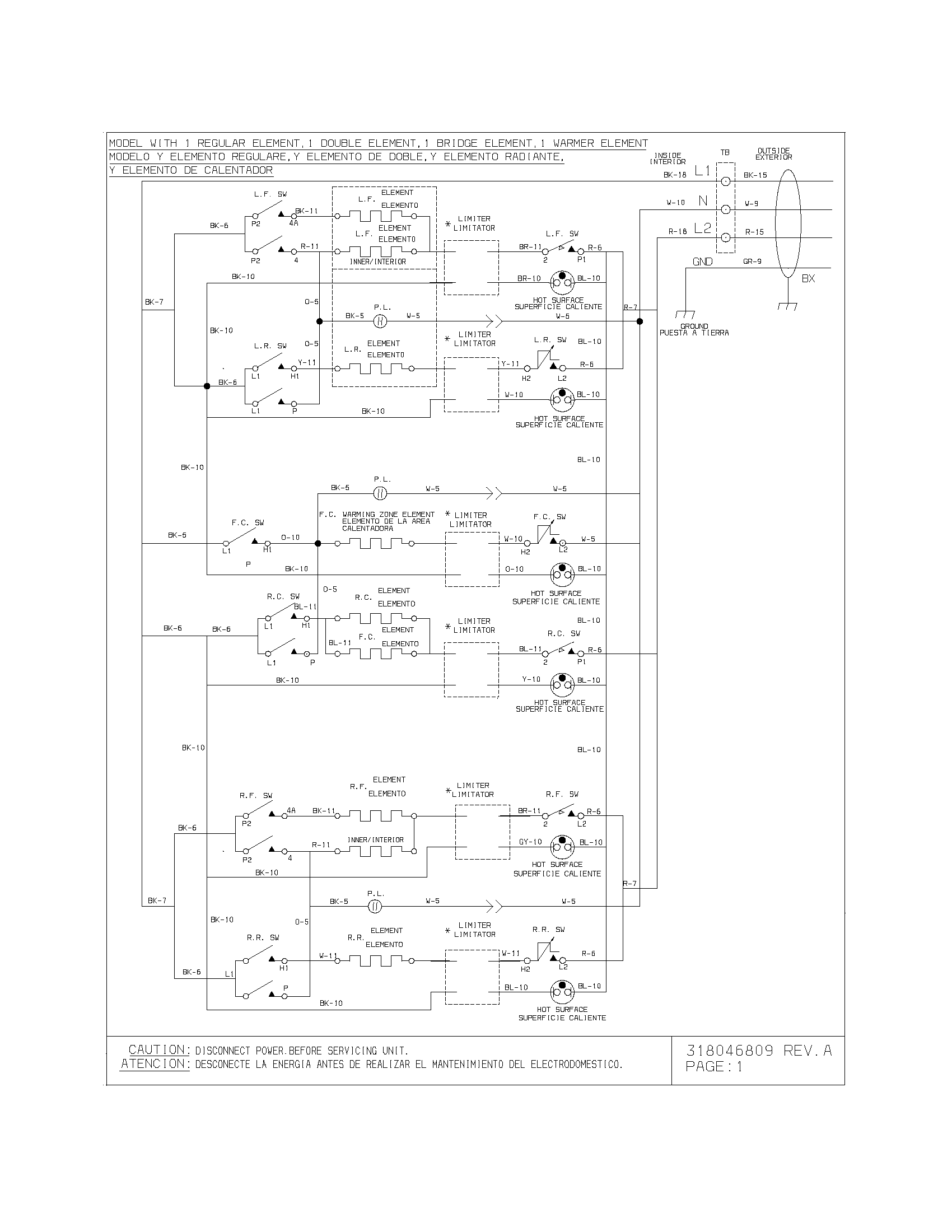

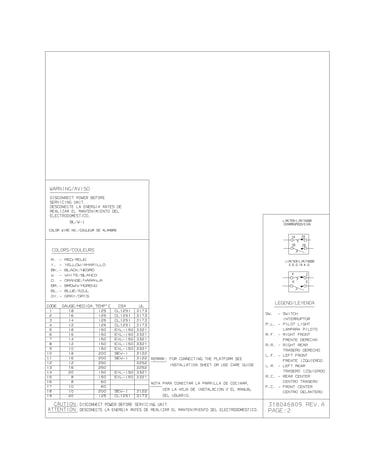

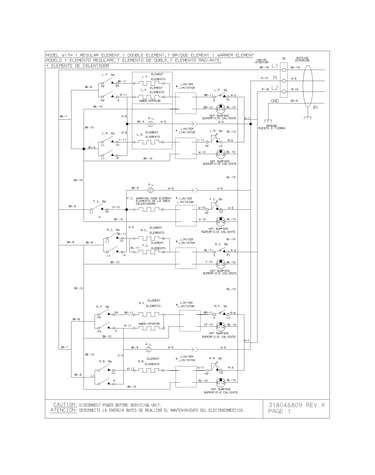

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Element 316216600
#15A

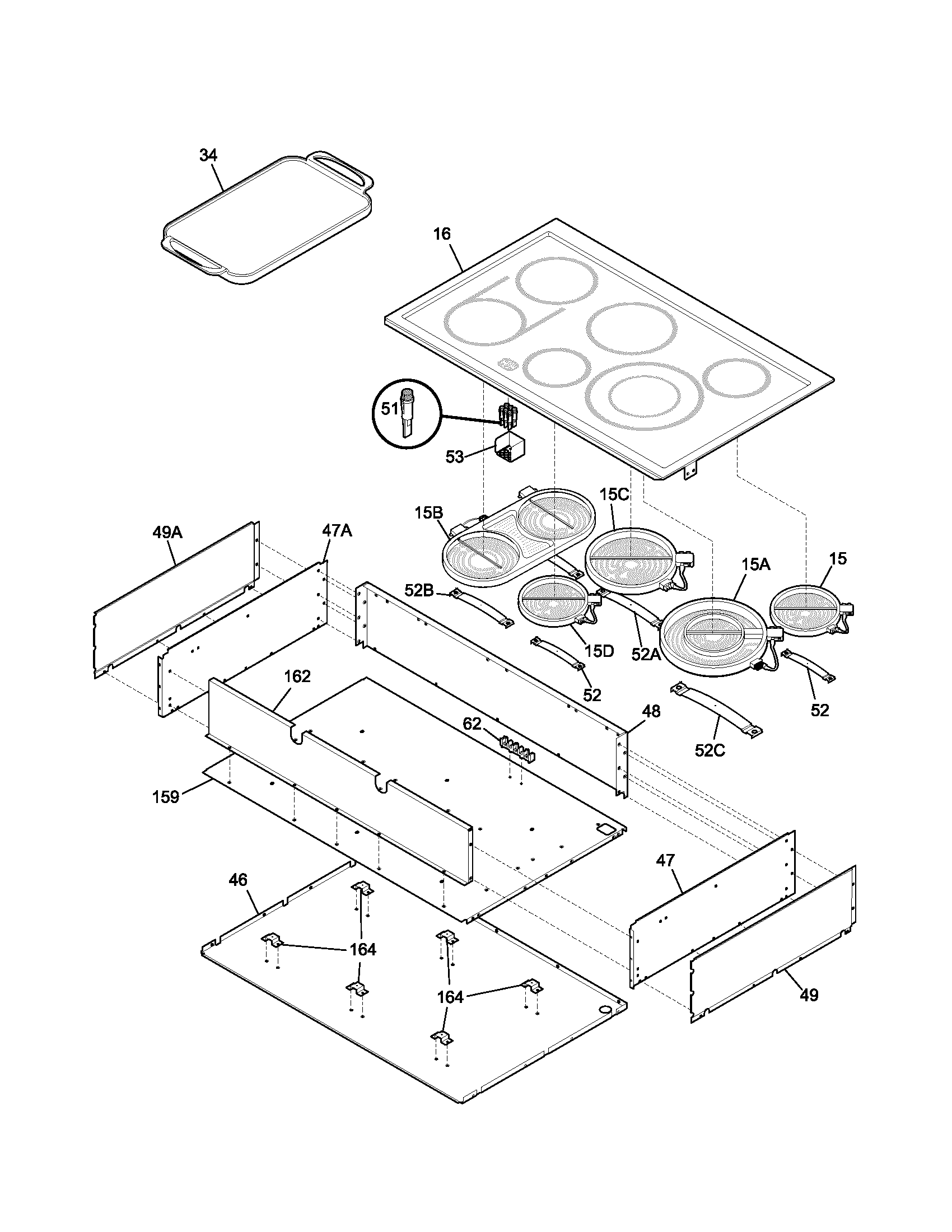

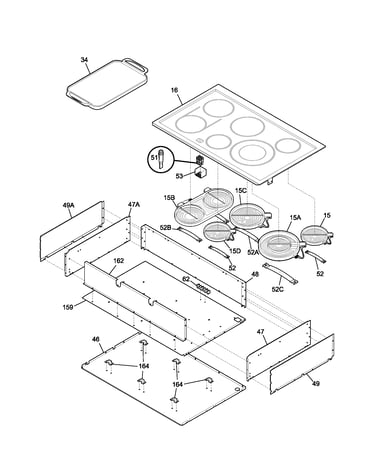

Maintop diagram

Element

Part #316216600

Replaced by #316282100

?
Manufacturer substitution
This part replaces 316216600. Substitute parts can look different from the original.
BEST SELLER
$195.83
5% OFF Phone Price : $205.83
In Stock
Surface Switch 318120504
#54C

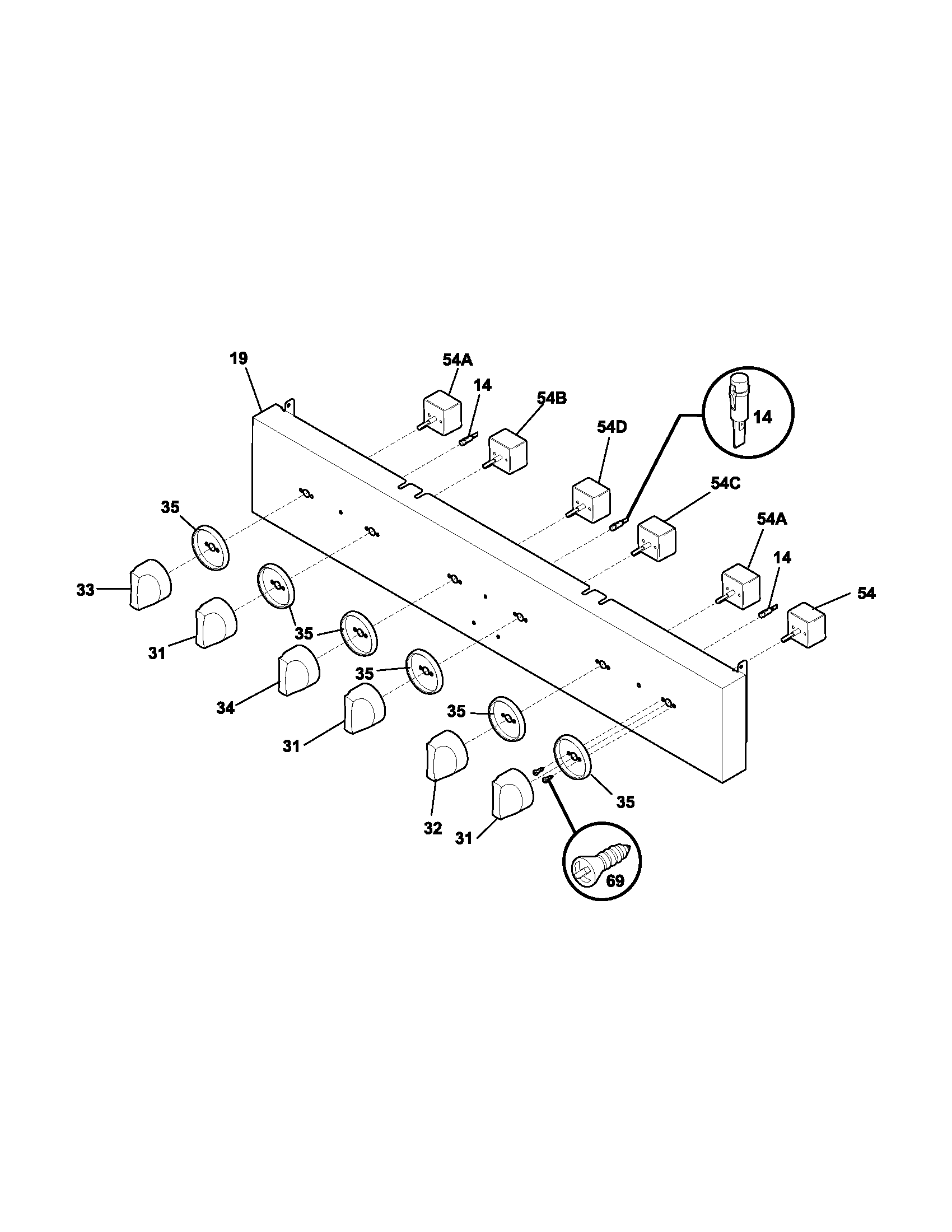

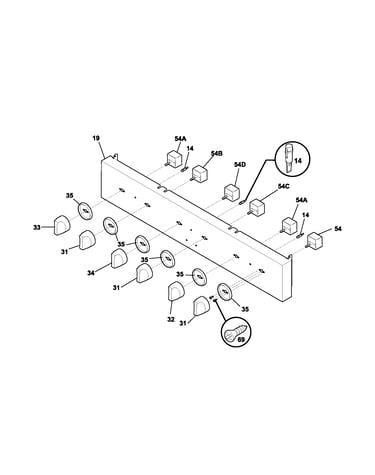

Controls diagram

Surface switch

Part #318120504

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 318120504. Substitute parts can look different from the original.
BEST SELLER
$43.22
10% OFF Phone Price : $48.22
In Stock
Switch 318220074
#54

Controls diagram

Switch

Part #318220074

Replaced by #318293818

?
Manufacturer substitution
This part replaces 318220074. Substitute parts can look different from the original.
$63.74
7% OFF Phone Price : $68.74
In Stock
Range Dual Surface Element Control Switch (replaces 318191028, 903097-9020) 318191024
#54A

Controls diagram

Range dual surface element control switch (replaces 318191028, 903097-9020)

Part #318191024

$63.61
7% OFF Phone Price : $68.61
In Stock
Element 318258200
#15B

Maintop diagram

Element

Part #318258200

Replaced by #318258201

?
Manufacturer substitution
This part replaces 318258200. Substitute parts can look different from the original.
$356.39
$10.00 OFF Phone Price : $366.39
In Stock
Screw 5303305528
#69

Controls diagram

Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
In Stock
Cooktop Griddle 316428000
#34

Maintop diagram

Cooktop griddle

Part #316428000

Replaced by #5304495353

?
Manufacturer substitution
This part replaces 316428000. Substitute parts can look different from the original.
$165.47
6% OFF Phone Price : $175.47
In Stock
Range Nut 5303323144
#NI

Maintop diagram

Range nut

Part #5303323144

In Stock
Bracket 318125960
#53

Maintop diagram

Bracket

Part #318125960

In Stock
Spring 318122011
#52C

Maintop diagram

Spring

Part #318122011

In Stock
