GE DRSR495GG9WW gas dryer Parts

For a GE gas dryer like model DRSR495GG9WW, the most common complaint we see is a no-heat or poor-heat condition. In many cases, the root cause is restricted venting (long, crushed, or clogged ducting) that overheats the dryer and can trip safety thermostats, even though the drum still tumbles.

Quick checks that solve many “no heat” calls

• Confirm the gas shutoff valve at the dryer and the main shutoff are fully open.
• Clean the lint filter before every load (a full screen reduces airflow fast).
• Inspect the vent hose for kinks, crushing, or excessive length; use the shortest run possible.
• Make sure the outside wall damper opens freely.
• Avoid plastic or other combustible ductwork.
• If the dryer tumbles but won’t heat, check the home fuse/circuit breakers (some dryers can run but not heat with an electrical supply issue).

Parts that commonly relate to heating and airflow

If airflow is good and gas is on, these parts are common suspects on a gas dryer:

Symptom	What it often points to	Example part for this model

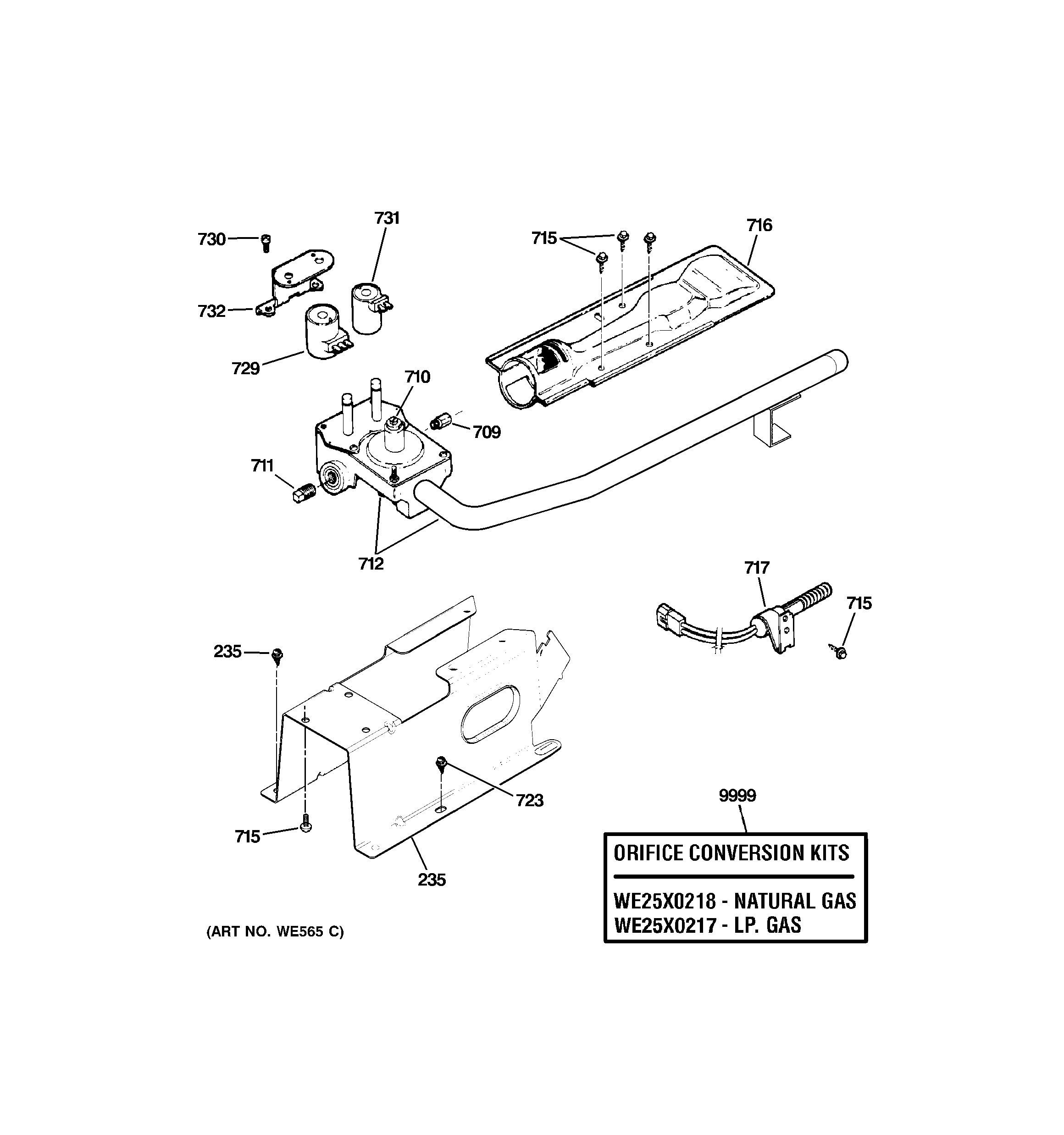

Tumbles, no heat	Ignition failure	Igniter WE04X25996
Overheats, shuts heat off	Safety thermostat opening due to heat buildup	Dryer high-limit thermostat WE4M137

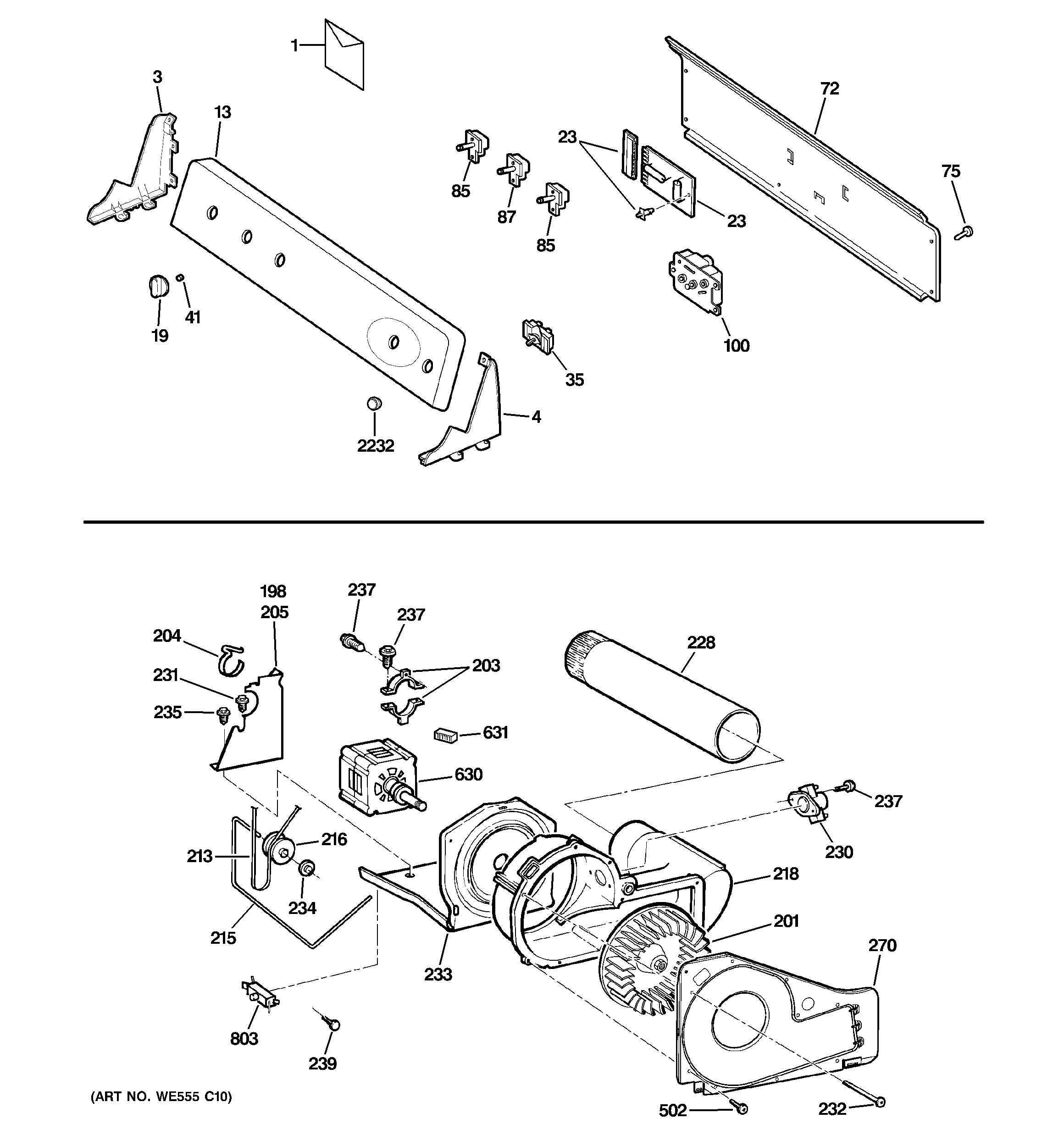

Long dry times, weak airflow	Air movement problem inside dryer	Dryer blower wheel WE16X20393

Why it matters

Restricted venting does more than slow drying; it raises internal temperatures and can cause repeated overheating symptoms. Keeping airflow correct helps the burner cycle normally, improves drying performance, and reduces wear on thermostats and other heat-related components.

Helpful reference

For venting rules and model-specific troubleshooting steps (including “dryer doesn’t heat” and “clothes take too long to dry”), use the owner's manual.

Last updated: February 2026

Vented dryers like the GE DRSR495GG9WW must exhaust to the outdoors, so they need correct ducting and a clear vent path. If the vent is long, crushed, or restricted, drying times increase, energy use goes up, and lint buildup can create a fire hazard (so proper installation and maintenance matter).

Main disadvantages of vented dryers

• Placement limits: You need access to an exterior wall or roof vent; that can restrict where the dryer can go.
• Vent system maintenance: The exhaust system needs regular inspection and cleaning (at least yearly) to prevent lint buildup.
• Performance drops with poor venting: Kinked, crushed, or overly long duct runs can make clothes take longer to dry.
• Higher energy use when venting is restricted: Longer run times typically mean higher gas and electricity use.
• Installation rules are strict: For this model, venting must go outdoors and duct material matters.

Venting requirements that drive those disadvantages (DRSR495GG9WW)

For this GE gas dryer, the installation guidance is clear: exhaust outdoors and use the right duct type.

Venting item	What to use	What to avoid	Why it matters
Duct diameter	4-inch duct	Smaller duct	Maintains airflow
Duct material	Rigid metal (recommended); UL-listed flexible metal if allowed	Flexible plastic duct	Plastic can trap lint and collapse
Duct assembly	Smooth interior, shortest practical run	Screws/fasteners protruding into duct	Protrusions catch lint
Termination	Exterior exhaust hood with moving flaps	Screens in or over the duct	Screens trap lint

How to reduce the downsides (quick checklist)

• Clean the lint screen before every load.
• Keep the vent run as short and straight as possible.
• Do not crush the duct behind the dryer when pushing it back.
• Check the outside hood flaps for free movement and blockages.
• Schedule a full vent inspection and cleaning at least once a year.

Why it matters

A vented gas dryer depends on strong airflow to dry efficiently and vent combustion byproducts outdoors. When airflow is restricted, you get longer dry times, wasted energy, and more lint accumulation in the exhaust path.

For model-specific venting diagrams and allowed exhaust configurations (rear, side, or bottom), follow the installation guide.

Last updated: February 2026

A GE dryer typically lasts 13 years. For your GE DRSR495GG9WW gas dryer, regular lint-screen cleaning, correct venting, and avoiding overloads are the biggest factors that keep the drum, motor, and gas heat system running longer; see the owner's manual for model-specific care steps.

What affects dryer lifespan the most

• Vent restriction (crushed duct, long runs, clogged hood) makes the dryer run hotter and longer.
• Lint buildup in the lint screen housing, blower area, or ducting reduces airflow.
• Overloading strains the drive motor, drum supports, and belt system.
• Heat system wear in gas dryers (igniter, gas valve, thermostats) increases with poor airflow.
• Installation issues (improper exhaust materials, not vented outdoors) shorten component life.

Maintenance that adds years (best ROI)

• Clean the lint filter before every load.
• Check the outside exhaust hood for free-moving flaps and blockages.
• Use the shortest, least-restricted vent path possible; rigid metal ducting is best.
• Keep loads medium-sized; heavy loads accelerate drum support wear.
• If drying times increase, address airflow first before replacing parts.

Common “wear” parts vs what you’ll notice

Symptom	Likely wear area	Example part on this model page

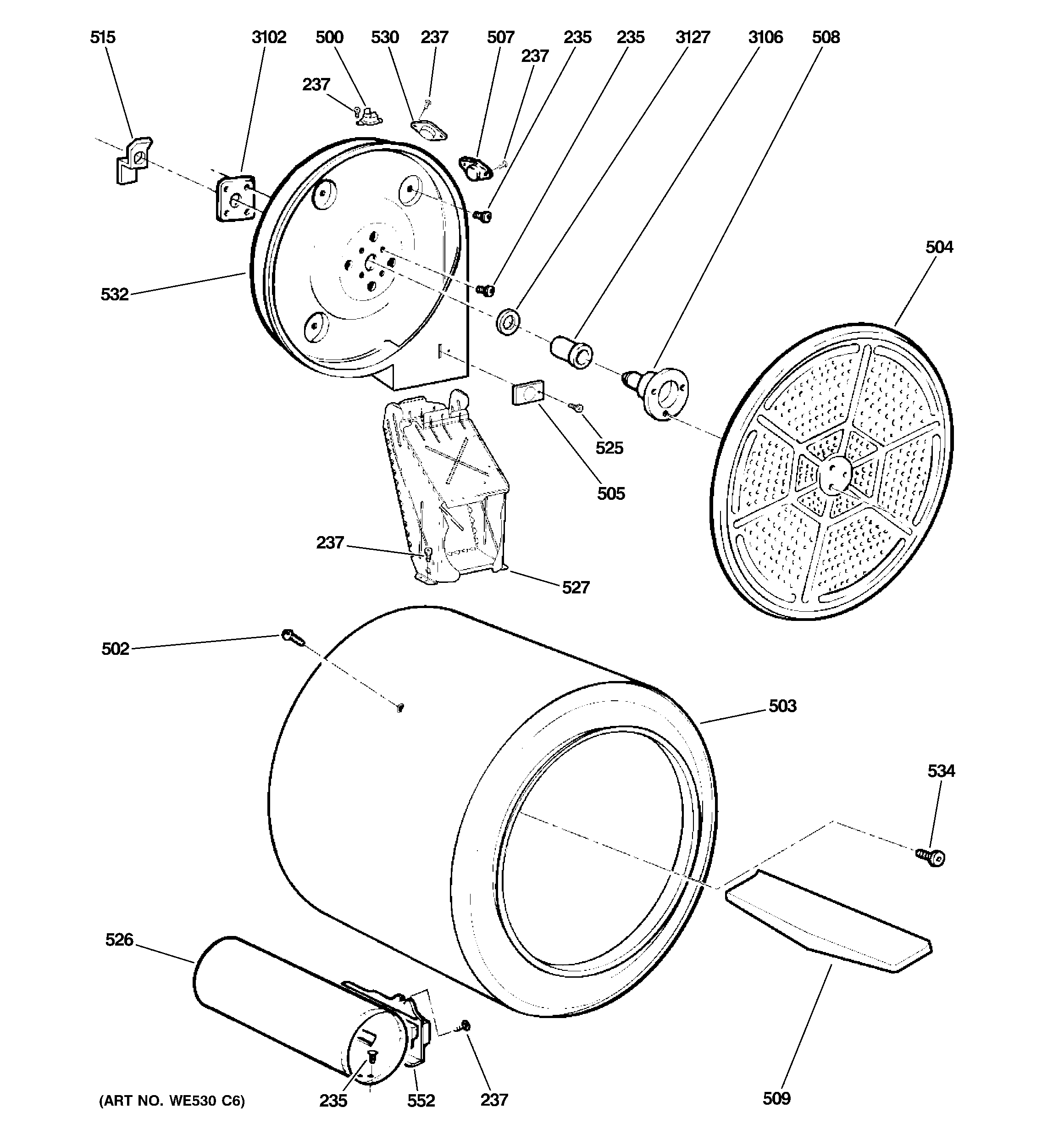

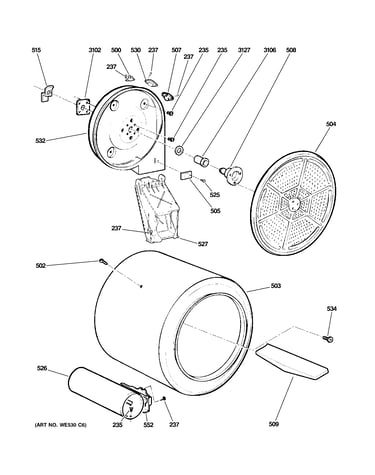

Squealing, scraping, thumping	Drum support and glides	Dryer drum front glide pad WE03X37318
Long dry times, weak airflow	Blower and venting	Dryer blower wheel WE16X20393
No heat (drum tumbles)	Gas ignition or safety controls	Igniter WE04X25996

Why it matters

Most “short lifespan” complaints come from airflow problems, not the age of the dryer. Good venting helps your DRSR495GG9WW dry faster, use less gas, and reduces overheating that can damage thermostats and other components.

Last updated: February 2026
