Bosch SHXM63W55N/01 dishwasher Parts

Yes, repairing a Bosch dishwasher like model SHXM63W55N is usually worth it when the unit is under about 10 years old and the fix is limited to one common failure (drain, fill, wash, or dispensing). If multiple major components are failing, replacement often makes more sense.

• Age: Under 10 years typically favors repair.
• Repair cost: Keep the total repair under about 50% of the cost of a comparable new dishwasher.
• Problem scope: One clear symptom (won’t drain, won’t fill, not cleaning) favors repair.
• Part availability: If the needed part is in stock, repair is faster and more predictable.
• Installation condition: A properly installed unit (secure mounting, correct drain routing) prevents repeat issues; see the installation guide.

These are frequent, targeted fixes on SHXM63W55N that often restore normal operation:

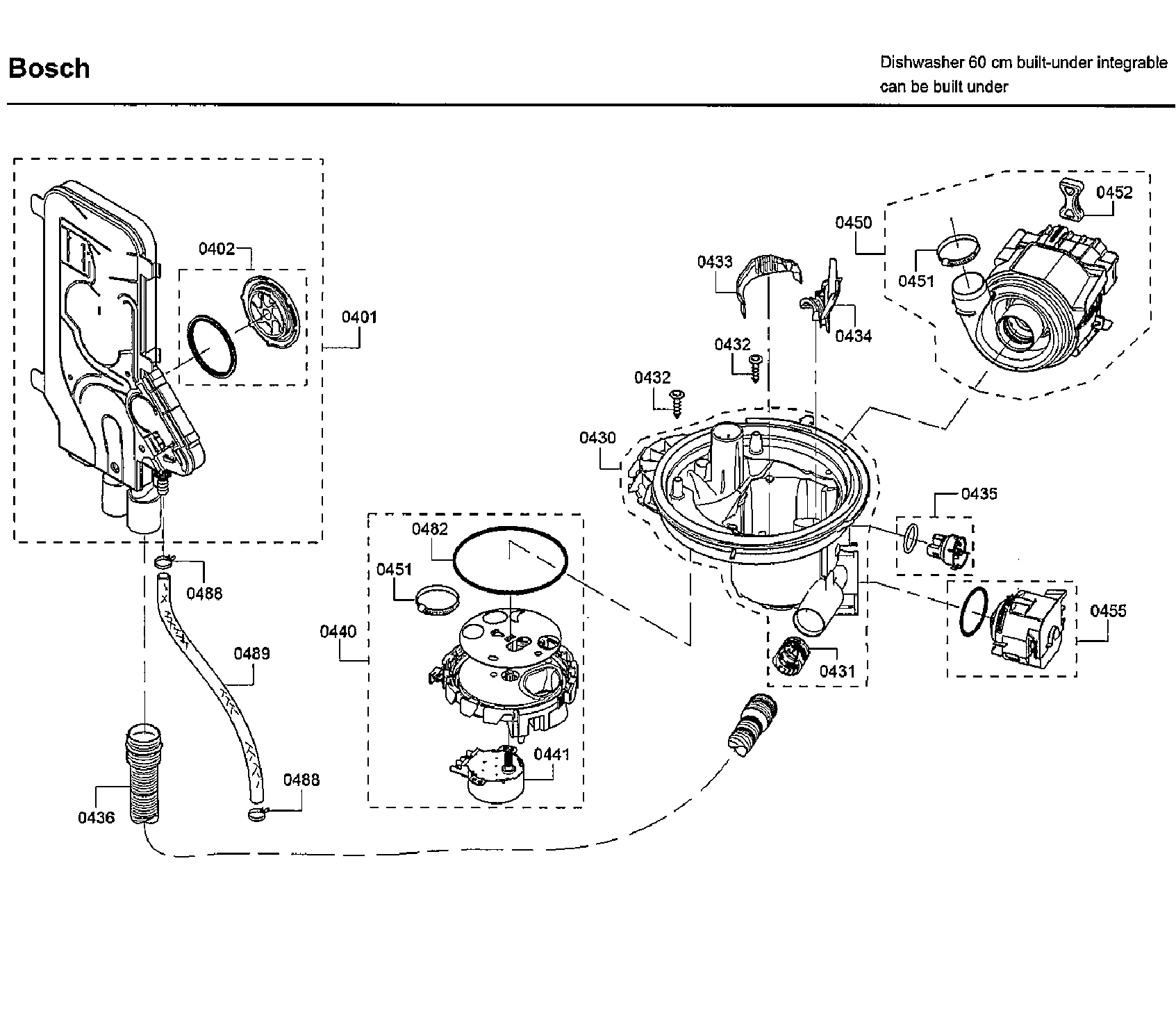

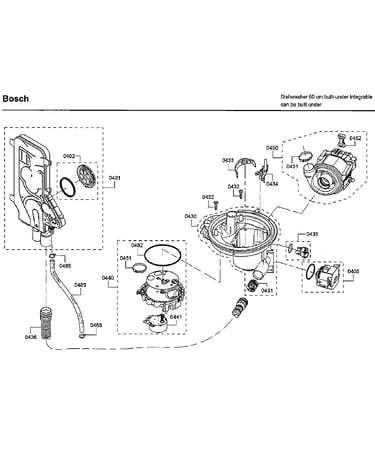

• Won’t drain or leaves water: check the drain path; replace the dishwasher drain pump 00631200 if the pump is seized or noisy.
• Not filling or fills slowly: verify the water supply valve is open; replace the dishwasher water inlet valve 10023852 if it won’t open electrically.
• Poor washing or no heat: circulation and heating issues can point to the dishwasher circulation pump with heater 12008381.

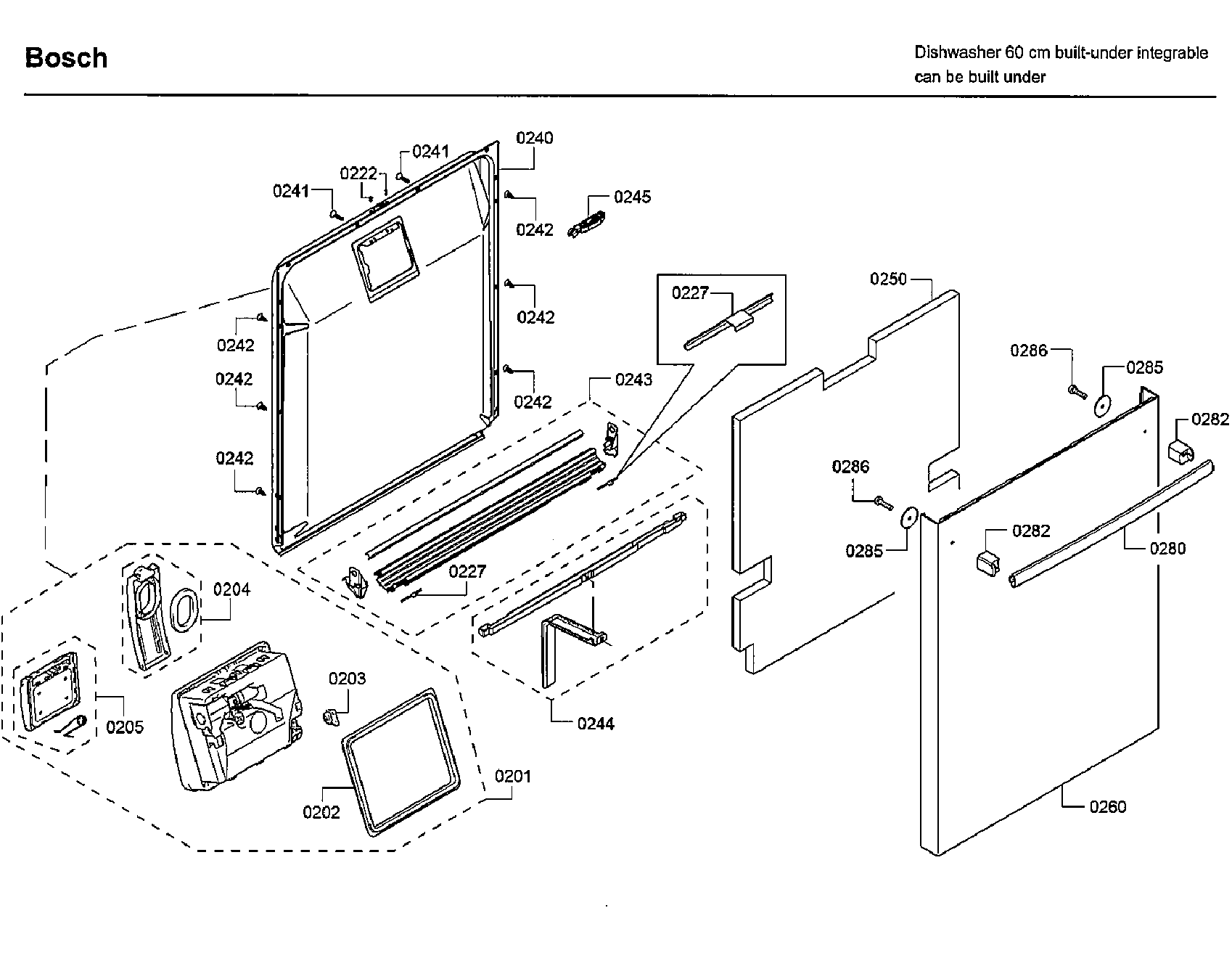

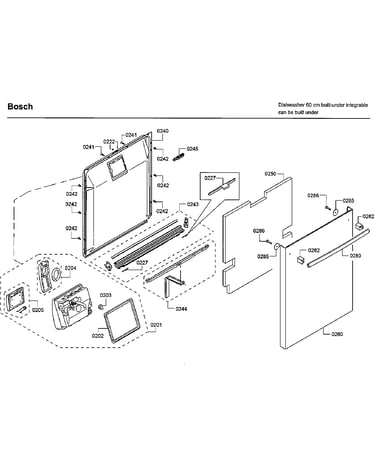

• Detergent door not dispensing: replace the dishwasher detergent dispenser assembly 12008380.

A dishwasher is a system (fill, wash, heat, drain, controls). When you fix the single failed link, you typically get years of additional service for far less than the cost and hassle of replacement.

• If the dishwasher is showing an error code, start with Bosch dishwasher error codes.
• To price and order the exact replacement parts for SHXM63W55N, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

A Bosch dishwasher typically lasts 10 to 15 years with normal household use and basic care. For your Bosch SHXM63W55N, correct installation (especially proper draining) and routine cleaning help you reach the high end of that range; see the installation guide.

Most dishwashers wear out from heat, moisture, and moving-water components. These factors have the biggest impact:

• Water quality (hard water speeds up mineral buildup)
• How often you run it (daily use wears pumps and seals faster)
• Loading habits (blocked spray arms reduce cleaning and strain the wash system)
• Maintenance (keeping filters and spray arms clear prevents circulation issues)
• Installation quality (drain hose routing and electrical supply matter)

From the SHXM63W55N installation requirements, two items matter most for long-term reliability:

• The drain hose must loop up at least 20 inches (508 mm) above the cabinet floor to help prevent poor draining and backflow.
• Use a dedicated 120V, 60 Hz circuit with a 15-amp breaker/fuse and minimum #14 AWG copper wiring.

These steps reduce clogs, odors, and pump strain:

• Rinse and clean the filter area (remove debris and labels)

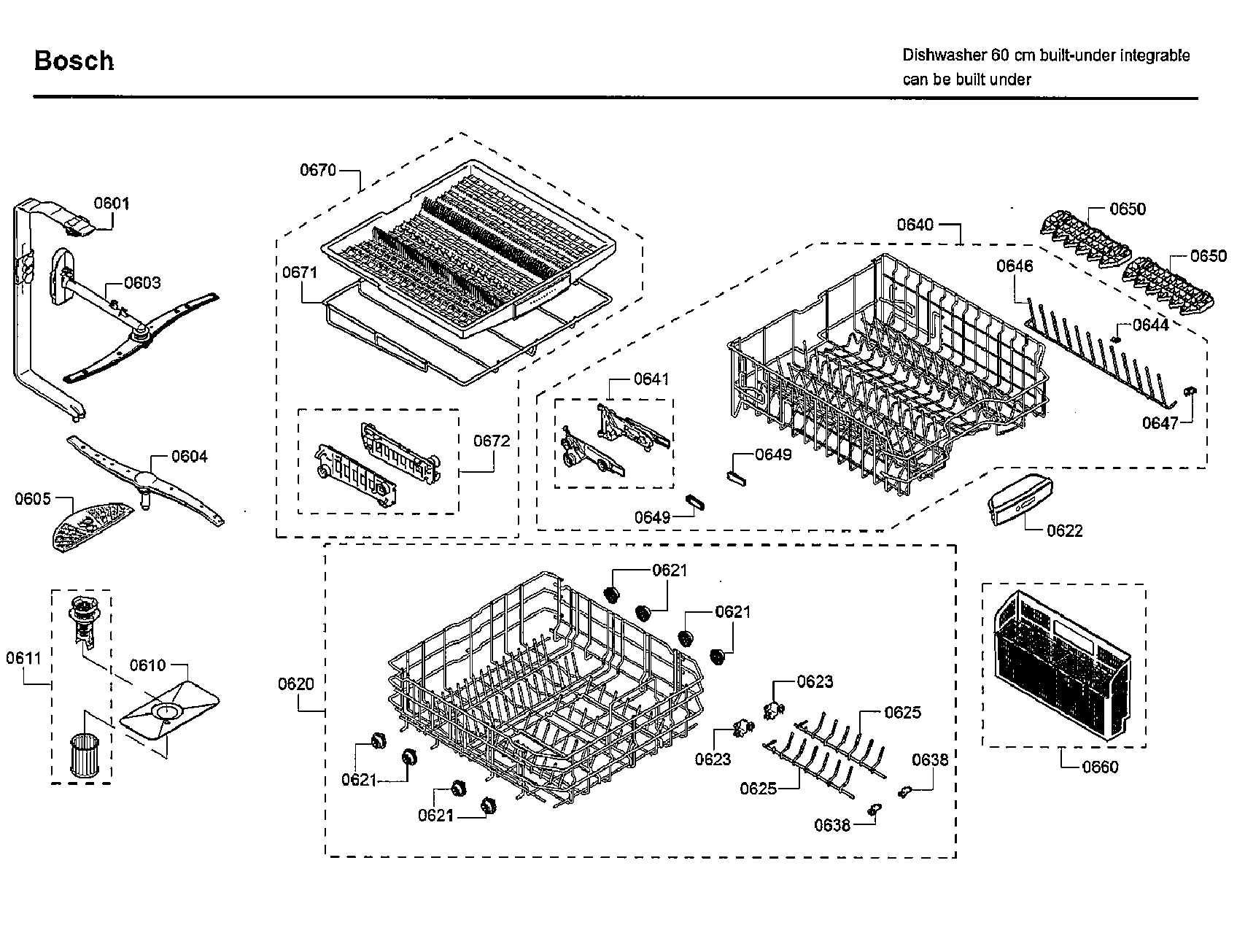

• Check spray arms for blocked holes and clear them
• Run hot water at the sink before starting a cycle (improves wash performance)
• Use the right detergent amount for your water hardness
• Inspect for slow draining; address it early to protect the drain system

A dishwasher that drains correctly, fills consistently, and circulates water strongly cleans better and runs cooler and shorter overall. That reduces stress on the circulation pump, heater, hoses, and seals, which is what extends real-world service life.

You can order replacement parts for Bosch SHXM63W55N from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Bosch dishwasher problems are maintenance-related: restricted water flow from a dirty filter or clogged spray arms, which leads to poor cleaning and sometimes poor draining. On the Bosch SHXM63W55N, these issues are usually solved with cleaning and a quick inspection before replacing parts.

• Turn off power at the breaker before opening panels or handling wiring.
• Clean the filter area and remove any debris that can block circulation.
• Spin and rinse the spray arms; clear food or mineral buildup from the holes.
• Confirm the hot water supply is on and connections are tight (loose fittings can cause leaks).
• Check the drain hose routing for kinks or a loose clamp at the house plumbing.

If cleaning does not fix it, these are the most common part-related causes on this model:

A restricted filter, spray arm, or drain path makes the dishwasher work harder, increases cycle time, and leaves soil behind. Catching the issue early helps prevent repeat clogs and reduces strain on the circulation pump and drain pump.

• Use the installation guide for safety basics (grounding, no extension cords, and tightening water connections) and for drain hose attachment guidance.
• If you’re seeing a fault code or unusual beeps/lights, use Bosch dishwasher error codes to narrow the problem to the right system.

You can order replacement parts for Bosch SHXM63W55N from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
