Dacor
Electric Wall Oven

Model # CPO230 Official Dacor wall oven

Here are the diagrams and repair parts for Official Dacor CPO230 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Appliance Screw, #8 X 3/8-in 83263
#F30

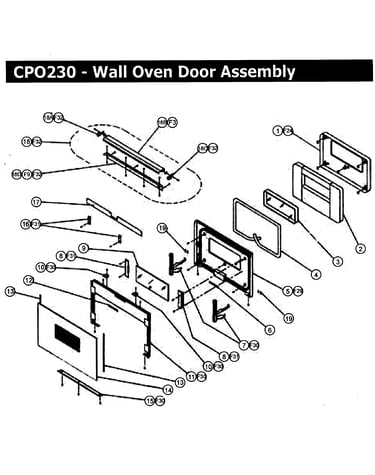

Door assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Screw 83024
Screw

Part #83024

This item is not returnable
$2.16
In Stock
Bracket Support 26550
#10

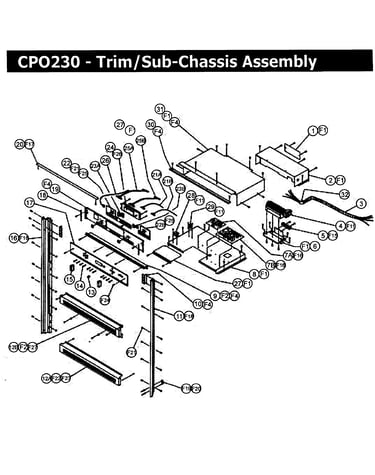

Trim assy diagram

Bracket support

Part #26550

This item is not returnable
$2.99
In Stock
Backshield 27422
#2

Trim assy diagram

Backshield

Part #27422

$33.49
In Stock
Stif Brckt 26548
#1

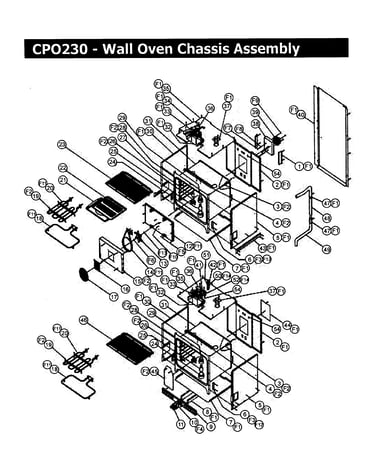

Chassis assy diagram

Stif brckt

Part #26548

This item is not returnable
$6.49
In Stock
Dacor Wall Oven Control To Rotary Switch Wire Harness 82847
#23A

Trim assy diagram

Dacor wall oven control to rotary switch wire harness

Part #82847

$20.96 |
19% OFF Phone Price : $25.96
In Stock
Grill Porc 82106
#22

Chassis assy diagram

Grill porc

Part #82106

$35.49
In Stock
Conv Baffl 26556BP
#15

Chassis assy diagram

Conv baffl

Part #26556BP

$49.99
In Stock
Latch Plate 26538
#32

Chassis assy diagram

Latch plate

Part #26538

$17.49
In Stock
Wall Oven Convection Fan Cover 82891
#17

Chassis assy diagram

Wall oven convection fan cover

Part #82891

$62.49
In Stock
