Kenmore 10652212103 refrigerator Parts

Your Kenmore refrigerator model 10652212103 is a 106-series side-by-side; the most reliable way to get the exact cubic-foot capacity is to look up the specifications in the 10652212103 owner's manual or on the model and serial label inside the fresh food compartment.

Fast ways to find the exact capacity

We recommend using these options in this order:

• Check the model and serial number label inside the refrigerator compartment; it often lists key specs or points you to the spec section.
• Look up the specifications section in the 10652212103 owner's manual.
• If you are measuring for fit, use typical side-by-side sizing as a planning baseline, then confirm the exact capacity in the manual.

Typical capacity range (for planning)

Most Kenmore 106-series side-by-side refrigerators are commonly in this range:

Refrigerator type	Typical capacity range
Side-by-side (Kenmore 106 series)	About 20 to 26 cu. ft.

Why cubic feet matters

Capacity affects how the refrigerator performs and fits your needs:

• Food storage planning (weekly groceries, bulk items, party trays)
• Air circulation and temperature stability (overpacking reduces airflow)
• Shelf and bin configuration (usable space can differ from total capacity)
• Replacement decisions (comparing like-for-like when shopping or upgrading)

Related tip: don’t confuse capacity with installation clearance

Cubic feet is internal volume; installation space is about exterior dimensions and required airflow clearance. Your manual also covers ventilation guidance (for example, leaving space at the sides and top for proper air circulation).

Last updated: February 2026

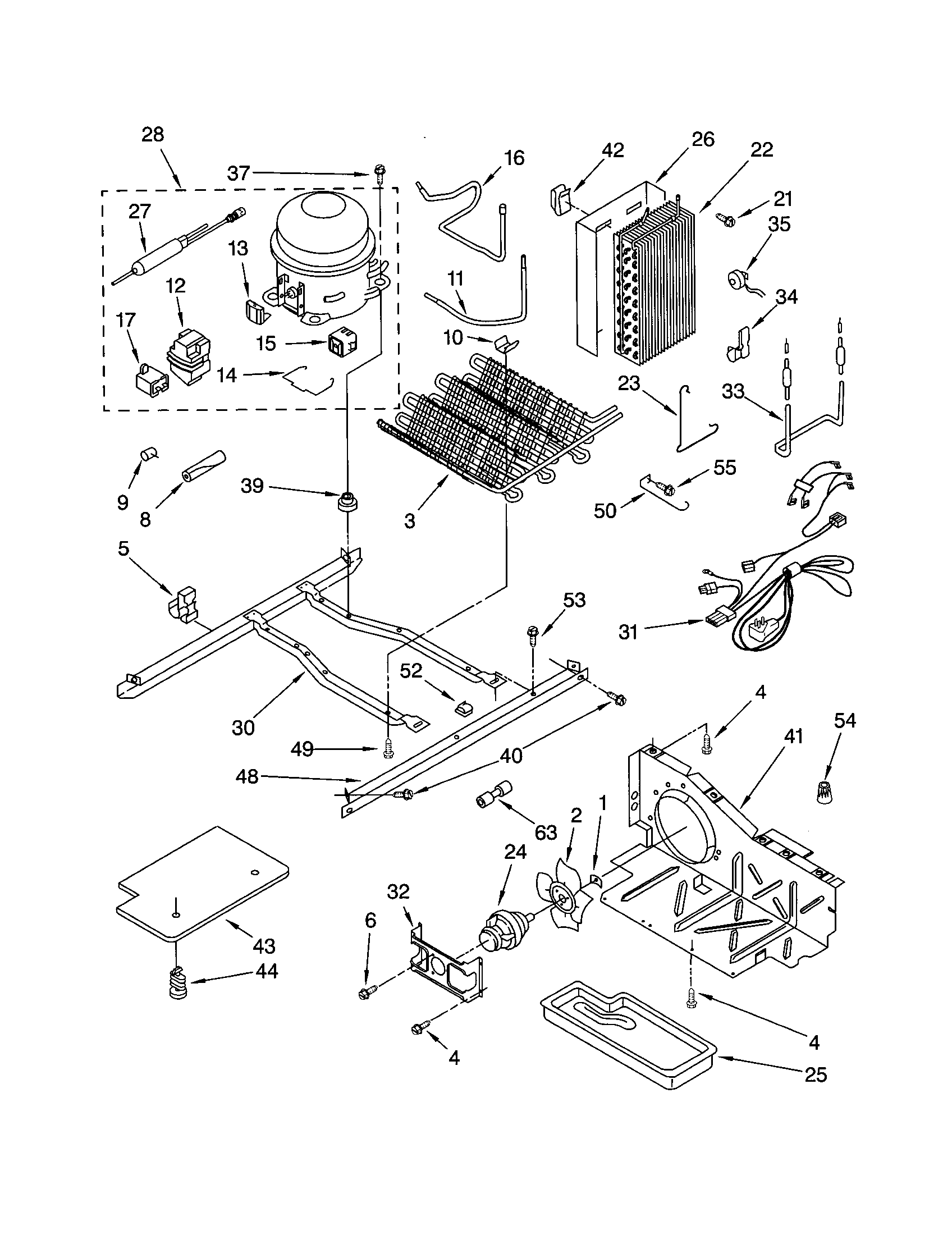

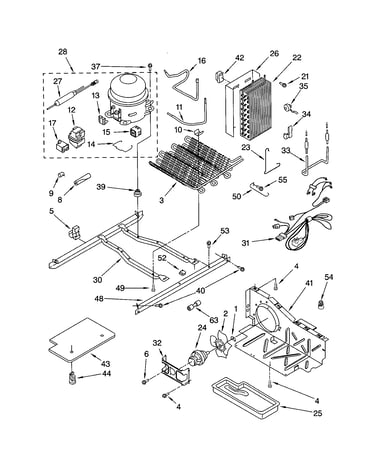

For Kenmore side-by-side refrigerator model 10652212103, we clean the condenser coils by unplugging the refrigerator, accessing the coil area (often behind the base grille), then brushing and vacuuming dust off the coils and nearby fan area. Dirty coils reduce heat transfer and make the compressor run longer.

Step-by-step: cleaning the condenser coils

• Unplug the refrigerator (or switch off power at the breaker).
• Pull the refrigerator out enough to work safely and avoid kinking the water line.

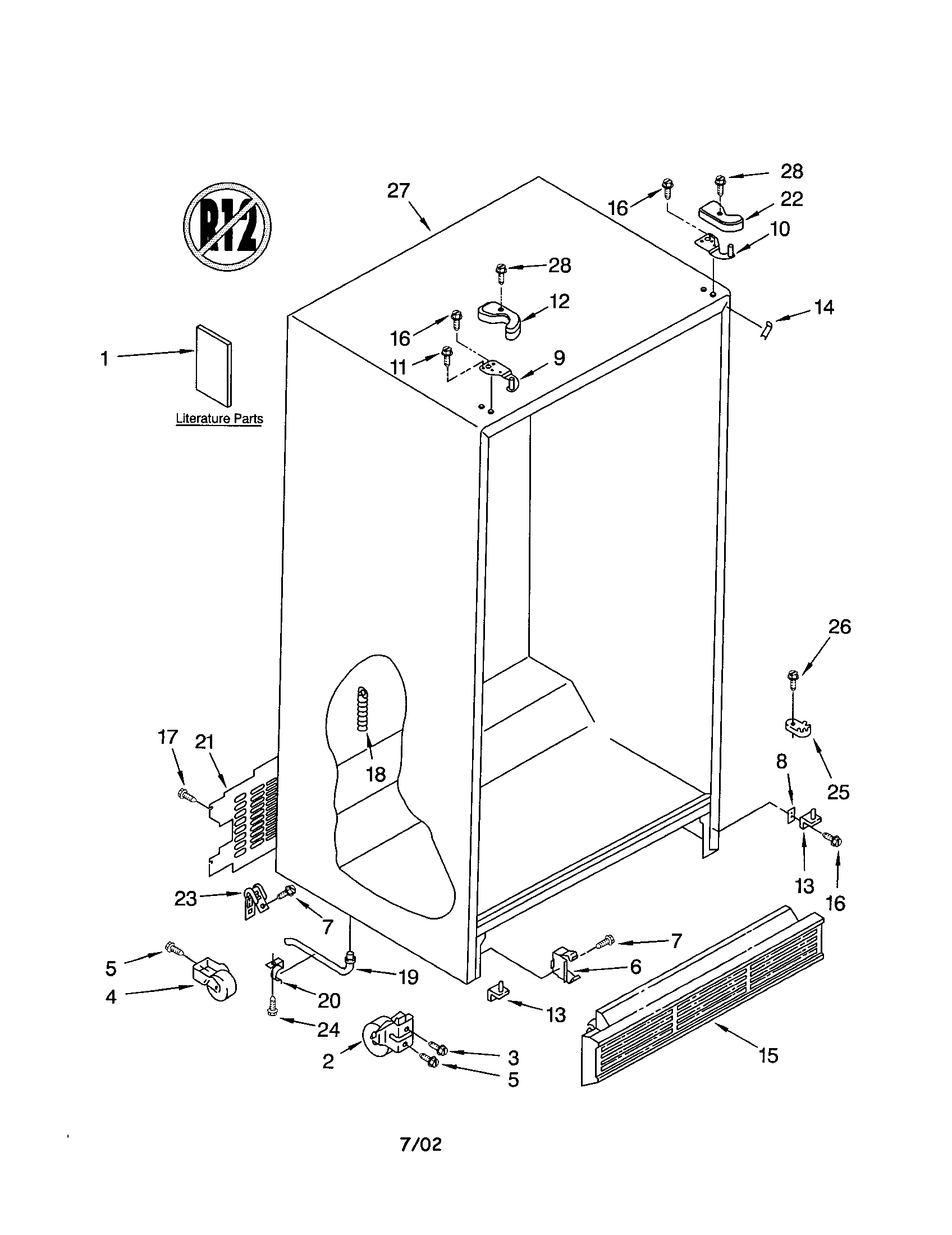

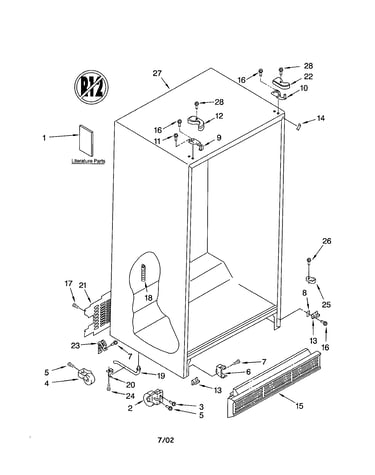

• Remove the base grille if your coil access is behind it (many side-by-sides place coils underneath).
• Use a coil brush to loosen packed dust and pet hair.
• Vacuum thoroughly (use a crevice tool); avoid bending coil fins.
• Reinstall the base grille, move the refrigerator back, then restore power.

How often we recommend cleaning

Most homes do best with coil cleaning every 6 months; if you have pets, heavy dust, or the refrigerator sits near a high-traffic area, clean coils about every 3 months.

Home condition	Coil cleaning interval	What you may notice if overdue
Low dust, no pets	Every 6 to 12 months	Longer run times
Pets or dusty home	Every 3 to 6 months	Warm temps, noisy running
Very dusty (workshop, basement)	Every 1 to 3 months	Hot cabinet sides, poor cooling

Why it matters (symptoms dirty coils can cause)

Your 10652212103 manual notes that dirty condenser coils prevent air transfer and make the motor work harder, so cleaning them helps cooling performance and efficiency. Use the owner's manual for model-specific cleaning and access details.

• Refrigerator runs a lot or seems louder than normal
• Freezer temperature creeps warmer
• Fresh food section struggles to hold temperature
• Cabinet sides feel hotter than usual
• Higher energy use

Quick safety and handling tips

• Keep water away from electrical components; dry any damp areas before restoring power.
• Do not use abrasive cleaners or harsh chemicals on plastic parts or gaskets (mild detergent and warm water is best for general cleaning).
• If the refrigerator still runs constantly after coil cleaning, check door sealing and airflow, then troubleshoot cooling components.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10652212103 are cooling issues, ice maker and dispenser troubles, water leaks, and door sealing problems. These usually trace back to airflow restrictions, defrost system faults, water supply or filter issues, or worn door gaskets; the owner's manual troubleshooting section helps narrow it down.

Most common symptoms and what typically causes them

• Not cooling or warm temperatures: dirty condenser coils, failed evaporator fan, defrost system icing up, or a control/thermostat issue
• Ice maker not making ice: water supply shutoff closed, kinked water line, clogged or incorrectly installed filter, or ice jam at the ejector
• Bad-tasting or smelly ice: old ice, unwrapped foods transferring odors, or a dirty ice bin/freezer interior
• Water leaking at the dispenser: ice stuck holding the chute door open, air in water lines after filter changes, or not holding the glass under the chute long enough
• Doors hard to open: dirty or sticky door gaskets that need cleaning

Quick checks we recommend first (fast, no parts)

• Confirm the temperature controls are set correctly and allow time for changes to stabilize.
• Clean door gaskets if they feel sticky; dirty gaskets can also cause sealing and moisture issues.
• If ice production is low, allow 24 hours after heavy ice use for the ice maker to catch up.
• For dispenser drips after a filter change, flush additional water to help clear air from the lines.
• If water flow is weak, check for a kinked supply line and verify the shutoff valve is fully open.

Common part-related fixes for this model

If troubleshooting points to a failed component, these are examples of parts commonly involved on 10652212103:

Problem area	What fails most often	Example part for this model

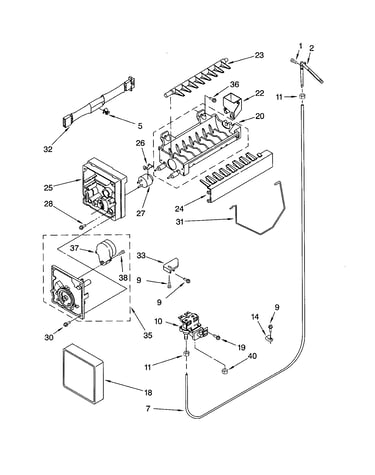

Ice maker not working	Ice maker module/assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943

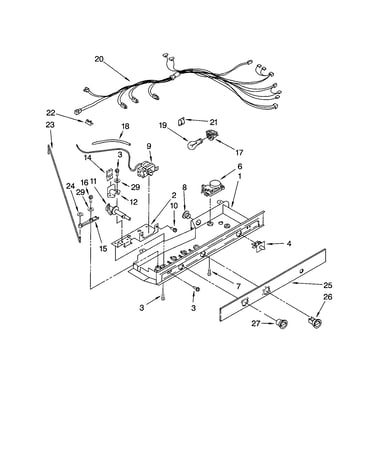

Temperature control issues	Cold control thermostat	Refrigerator thermostat WP2198202
Defrost problems (frost buildup)	Defrost timer (on some designs)	Refrigerator defrost timer W10822278

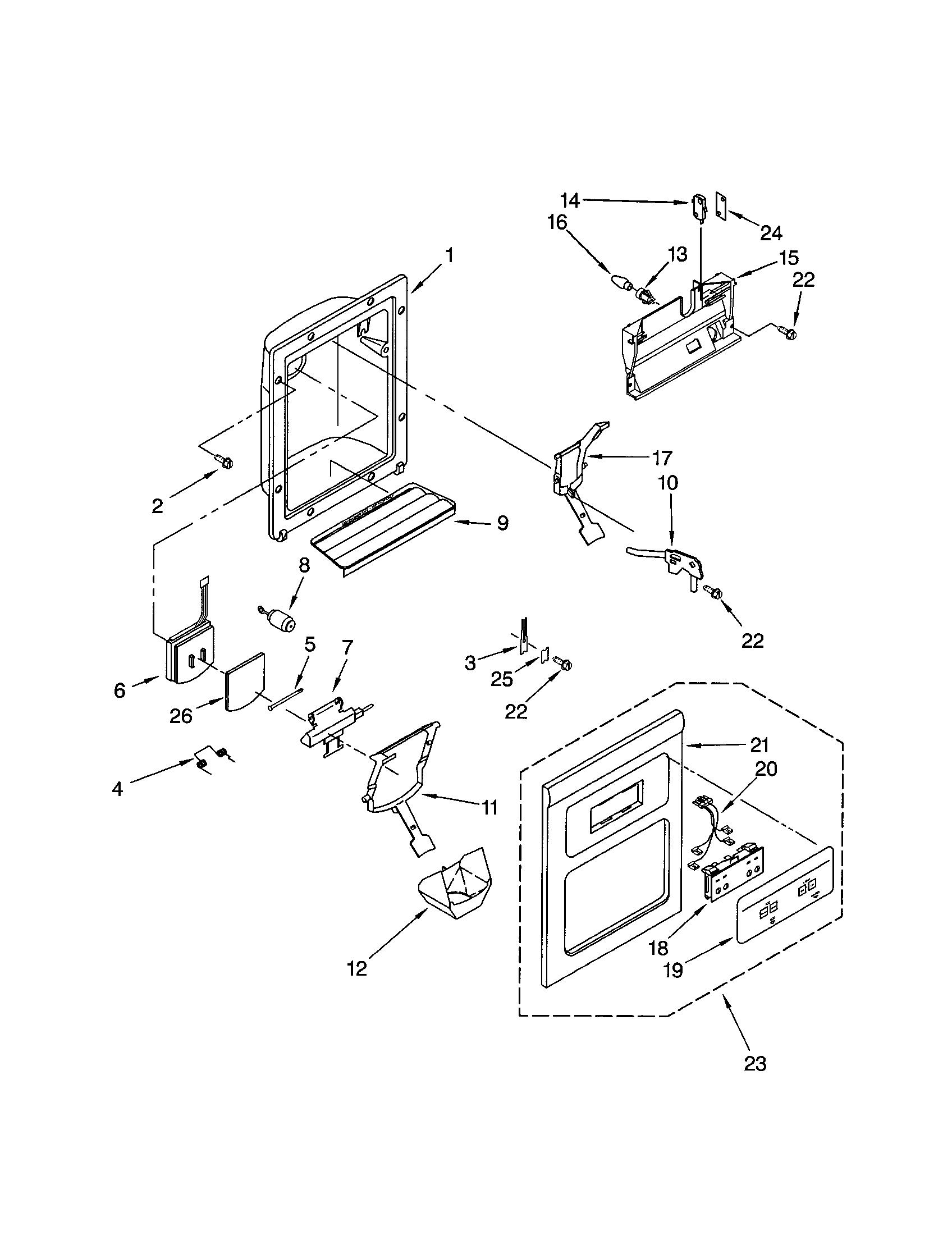

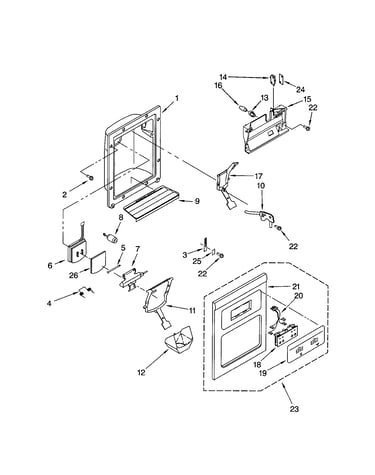

Ice dispenser leaks/spills	Chute door not sealing, chute issues	Refrigerator door chute WP2180353

Why it matters

Catching airflow, defrost, and water supply problems early helps prevent food spoilage, recurring ice maker failures, and nuisance leaks. Many “big” symptoms start with simple causes like a clogged filter, a stuck ice cube in the chute, or dirty gaskets.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10652212103, the model number is printed on the model and serial number label inside the fresh food (refrigerator) compartment, typically on an inside wall. The same label also lists the serial number and is the best reference for ordering parts.

Where to look (fast checklist)

• Open the refrigerator (fresh food) door, not the freezer door
• Look along the inside side walls of the refrigerator compartment
• Check near the upper side wall and around the crisper/meat pan area
• Use a flashlight; the label can be easy to miss
• Write down the full model number and serial number exactly as shown

What the label usually includes

The identification label is meant for service and parts lookup, so it commonly shows:

Item on label	What it’s used for
Model number (10652212103)	Matching the correct parts diagrams and parts list
Serial number	Identifying production details for service and compatibility
Purchase date (you record it)	Warranty and service records

Why it matters

We use the exact model number to match the correct Kenmore parts for your refrigerator, including common repairs like an ice maker replacement or dispenser issues. Using the wrong model number can lead to ordering a part that does not fit.

Related parts you might match by model number

If you are troubleshooting or ordering, these are examples of parts that must match the model:

• Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (ice production issues)
• Refrigerator thermostat WP2198202 (temperature control problems)

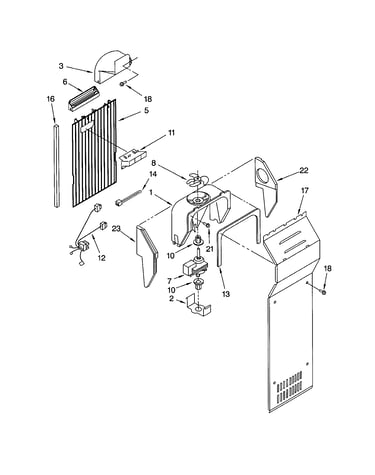

• Refrigerator diffuser WPW10151374 (airflow between compartments)

For diagrams and the exact label location notes for your unit, check the 10652212103 owner's manual.
