GE
Side-By-Side Refrigerator

Model #GST22JEPDCC GE refrigerator - p series

Here are the diagrams and repair parts for GE GST22JEPDCC refrigerator - p series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

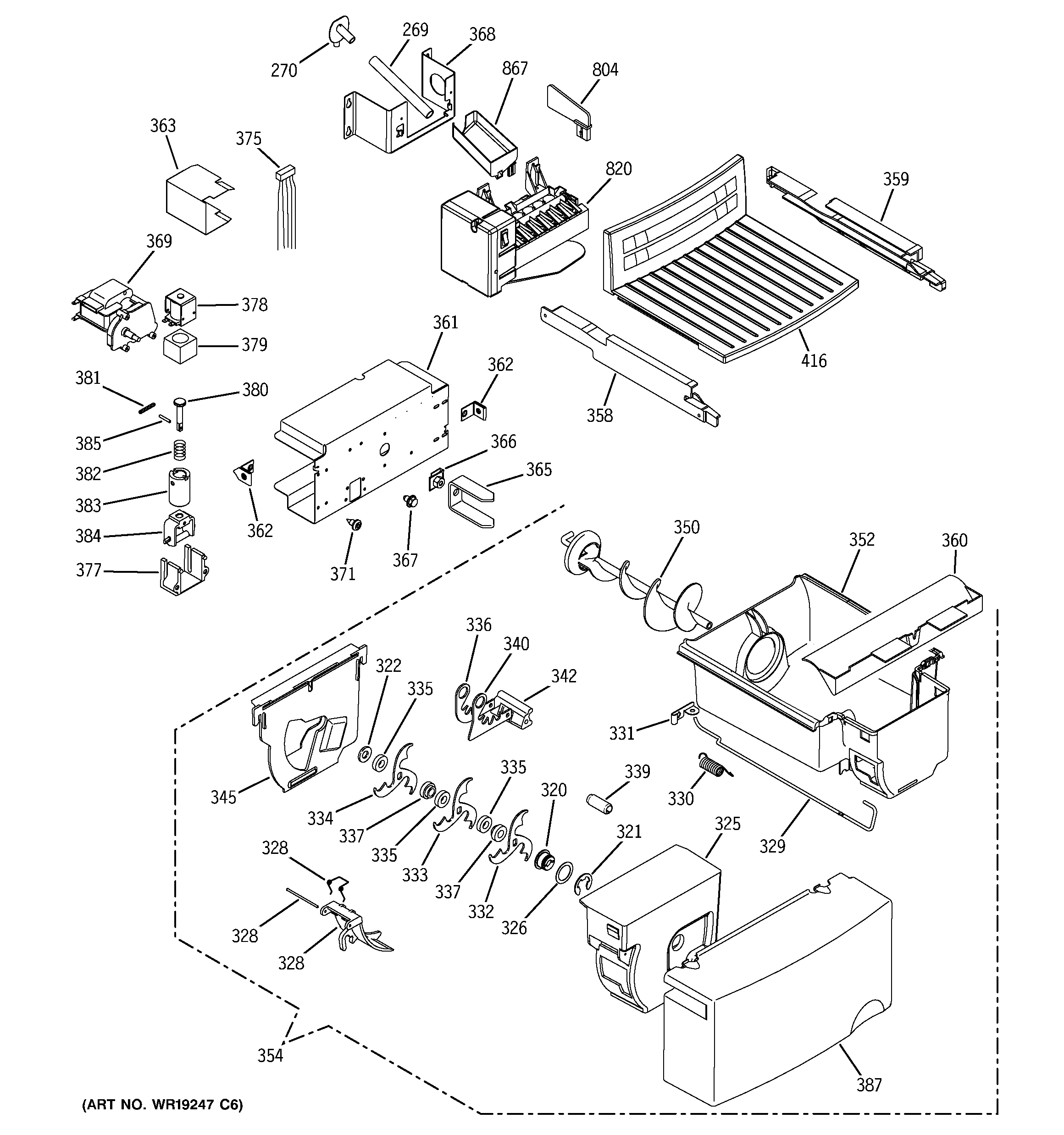

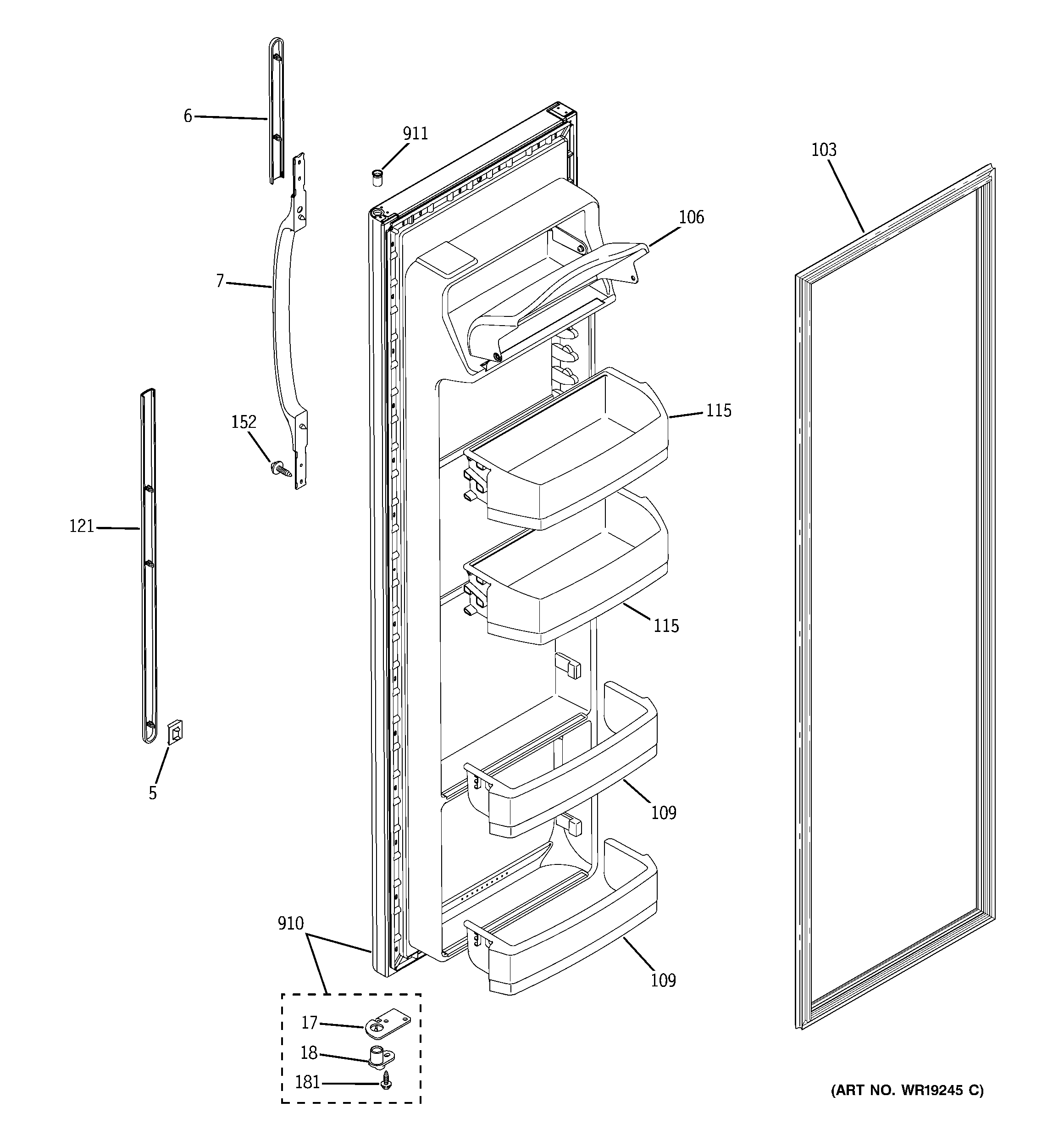

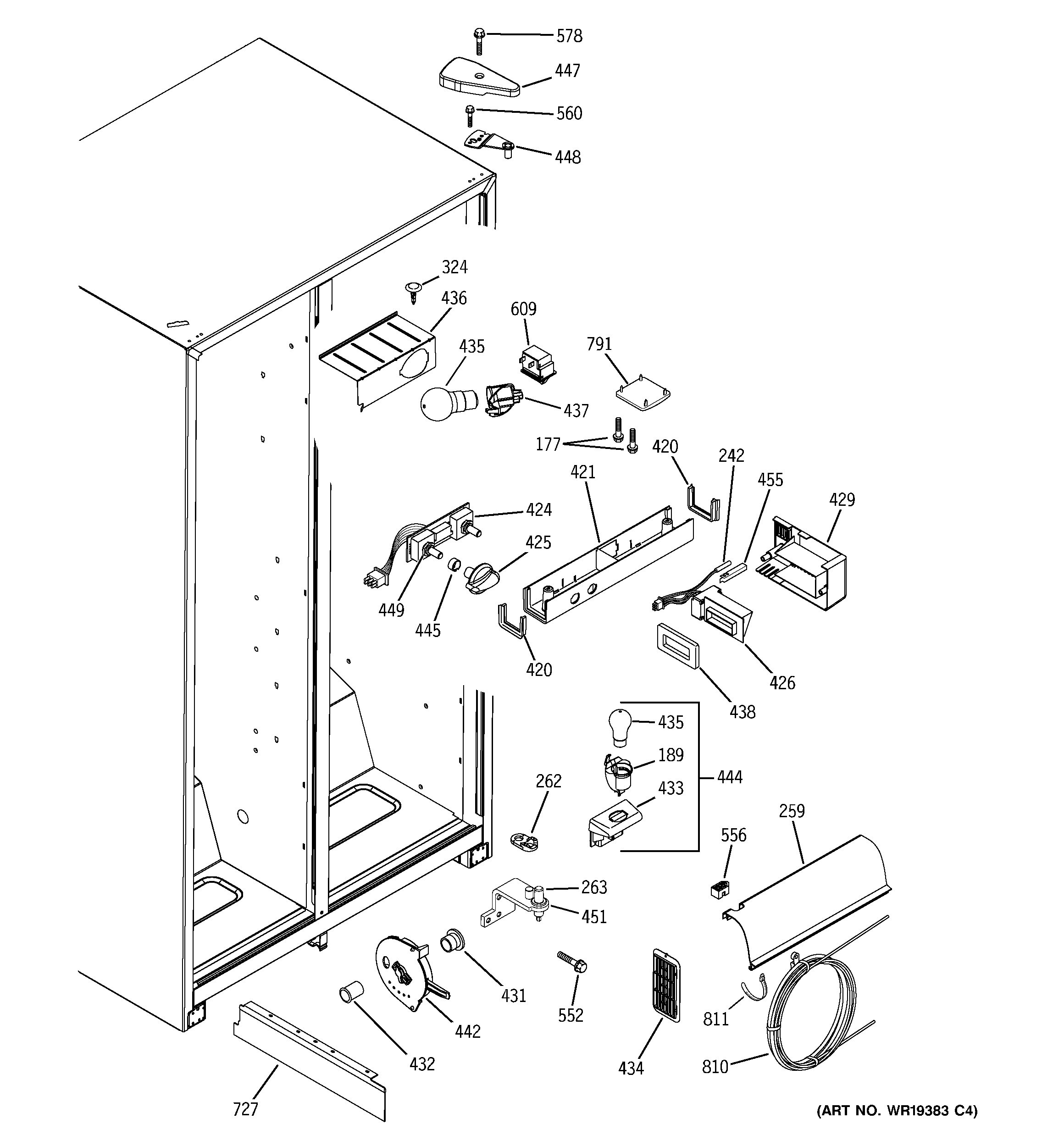

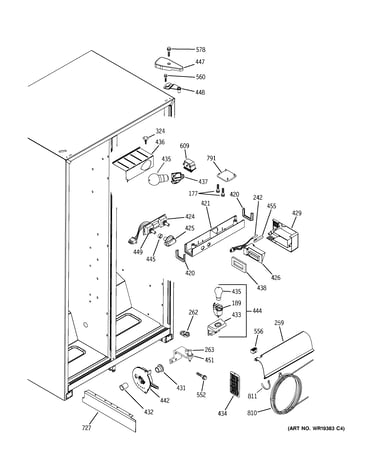

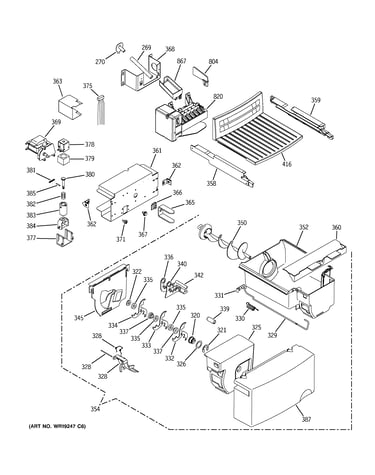

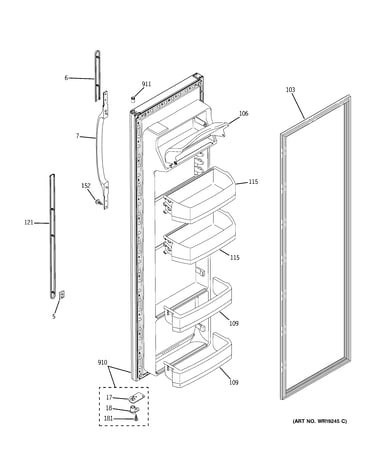

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 263 parts

    Refrigerator Dispenser Lever Spring

    #63

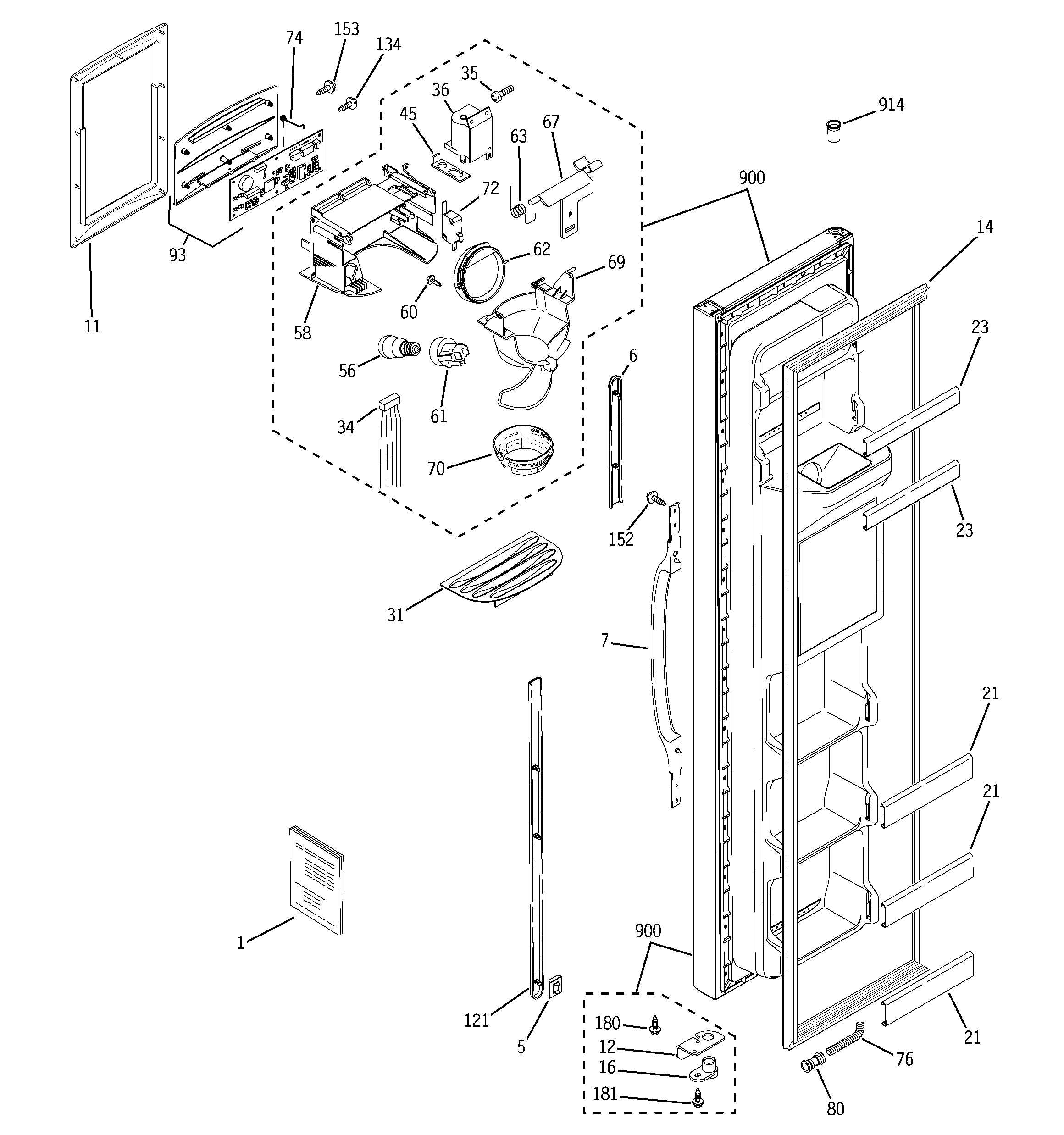

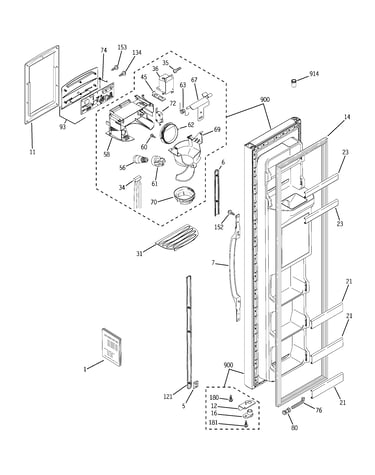

    Freezer door Diagram

    Refrigerator dispenser lever spring

    Part #WR02X10585
    This item is not returnable
    $7.09

    In Stock

    Refrigerator Evaporator Fan Motor Grommet

    #618

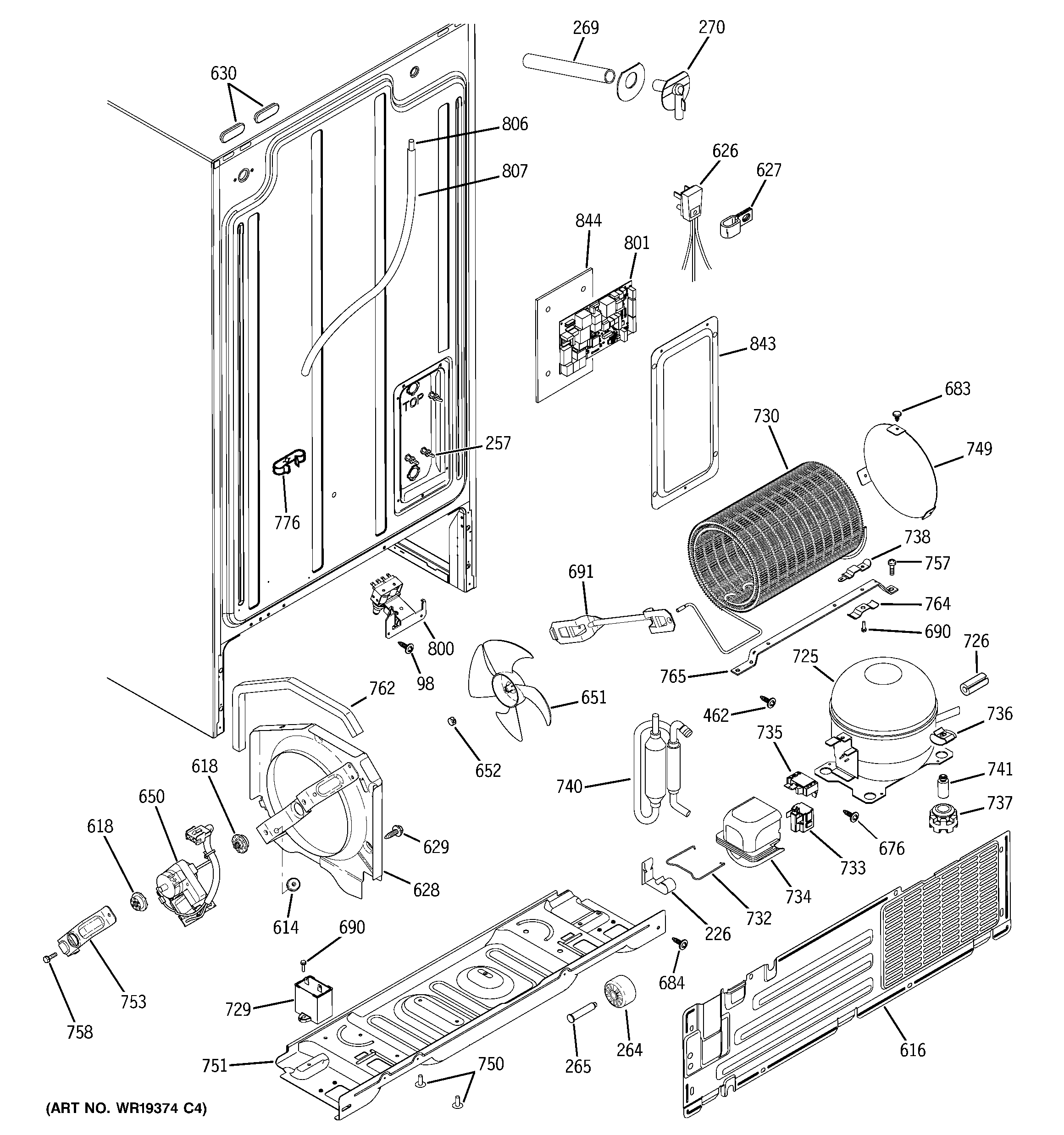

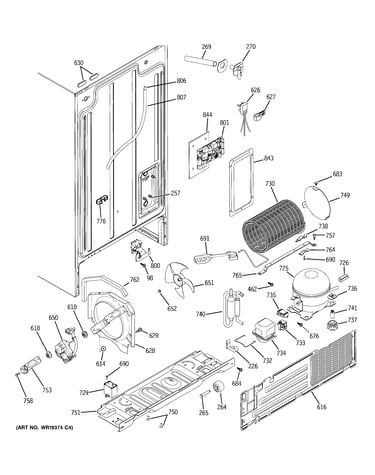

    Sealed system & mother board Diagram

    Refrigerator evaporator fan motor grommet

    Part #WR02X10098
    This item is not returnable
    $4.89

    In Stock

    Refrigerator Dispenser Housing Shield

    #58

    Freezer door Diagram

    $17.99

    In Stock

    Refrigerator Dispenser Ice Chute Door Crank

    #67

    Freezer door Diagram

    $8.69

    In Stock

    Refrigerator Door Cam Riser

    #262

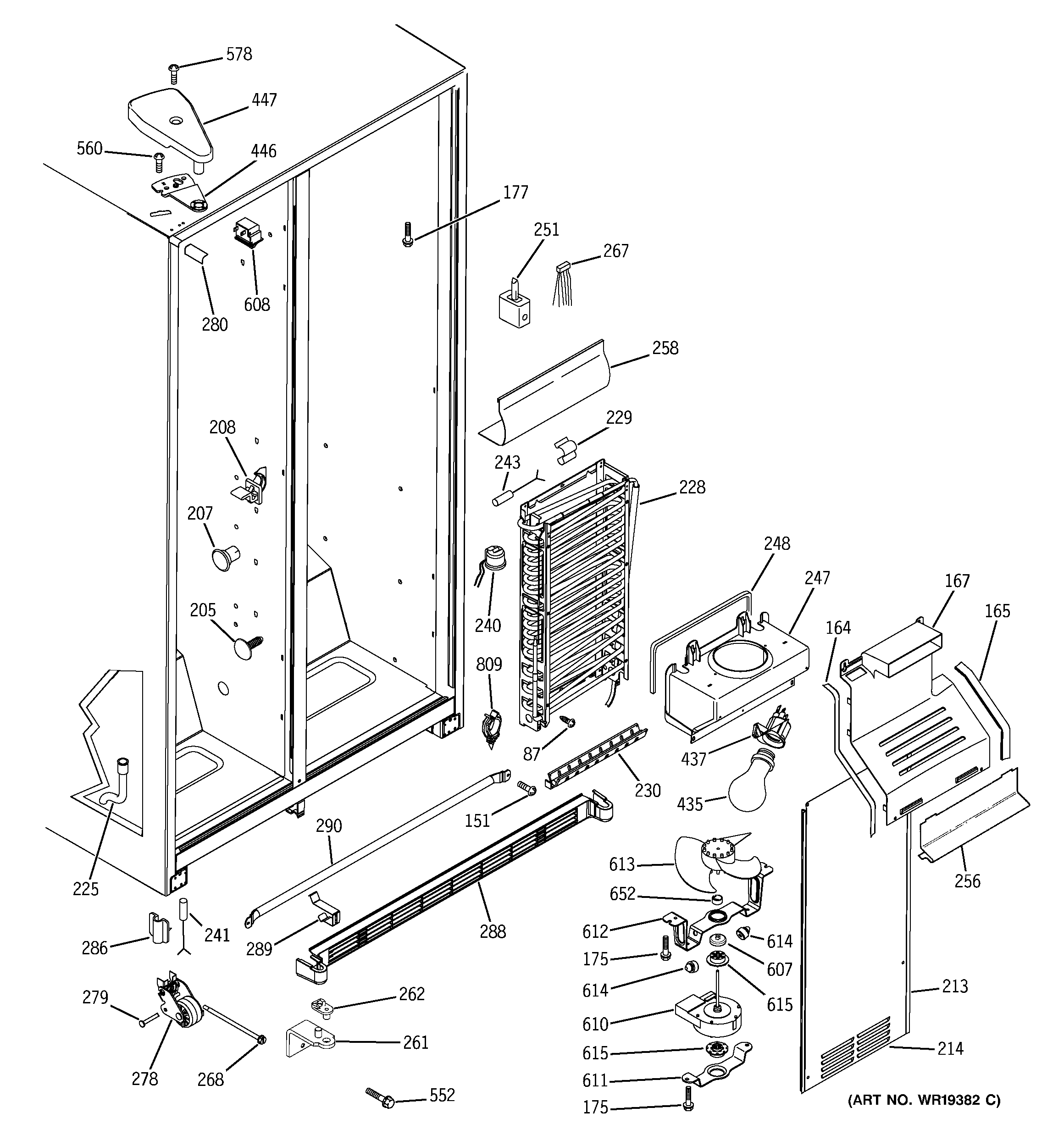

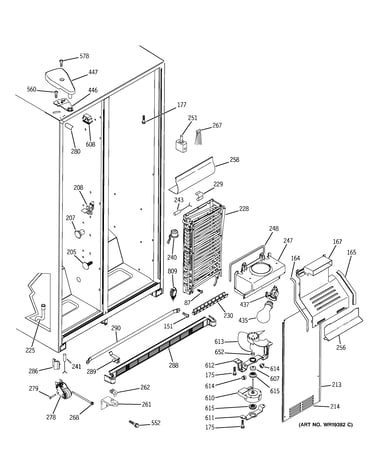

    Freezer section Diagram

    Refrigerator door cam riser

    Part #WR02X11743
    This item is not returnable
    $4.89

    In Stock

    Refrigerator Crisper Drawer Seal

    #414

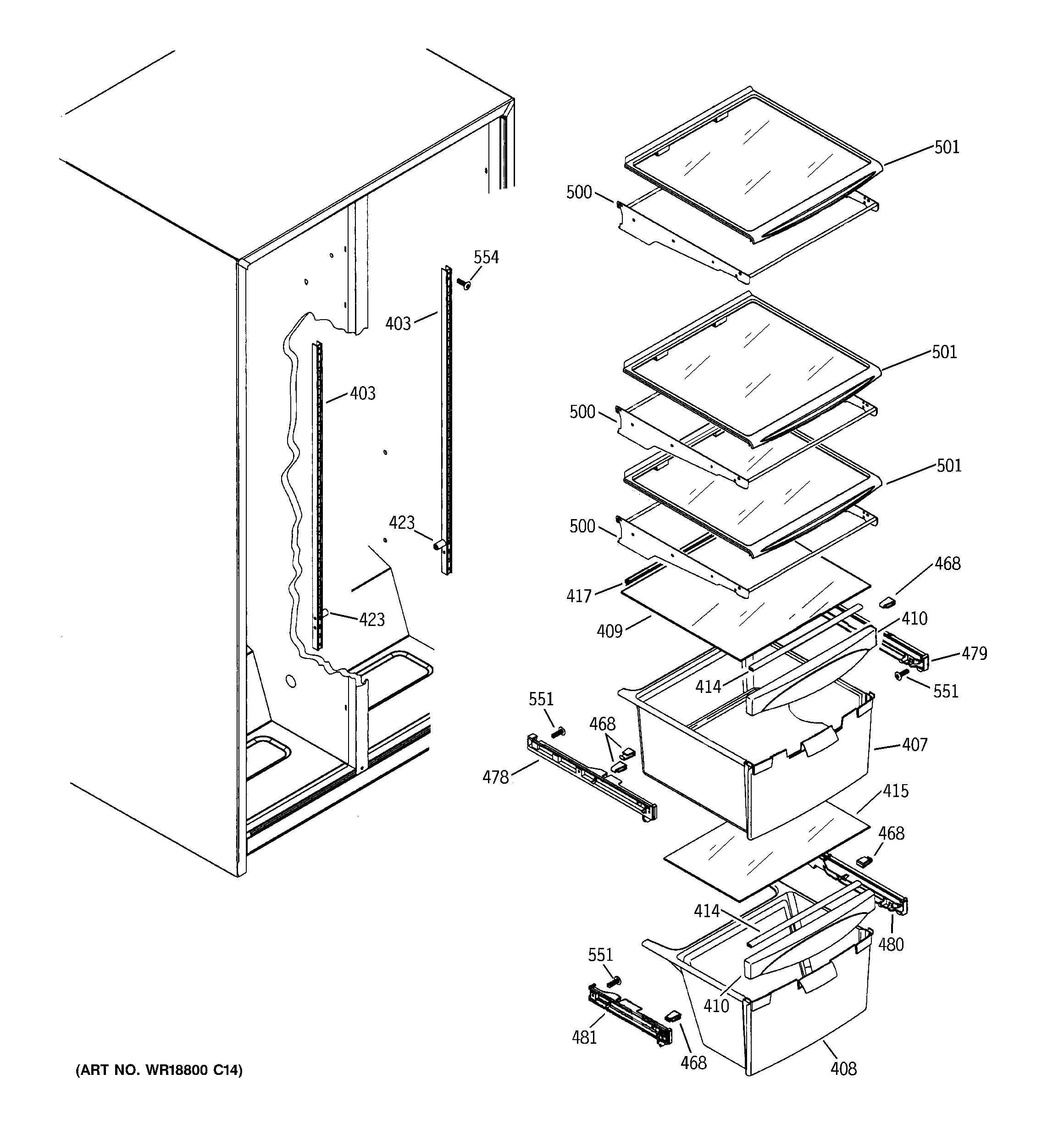

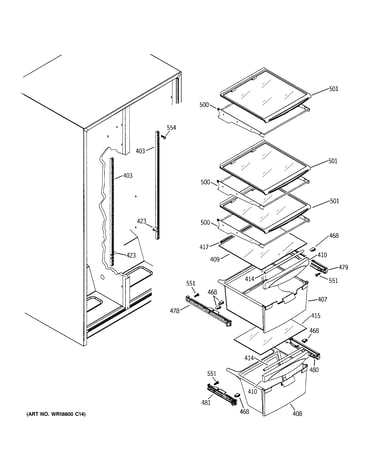

    Fresh food shelves Diagram

    Refrigerator crisper drawer seal

    Part #WR14X10084
    This item is not returnable
    $5.79

    In Stock

    Refrigerator Water Tubing

    #806

    Sealed system & mother board Diagram

    Refrigerator water tubing

    Part #WR17X11625
    $18.99

    In Stock

    Refrigerator Water Inlet Valve Assembly

    #800

    Sealed system & mother board Diagram

    $41.99

    In Stock

    Refrigerator Crisper Shelf Seal

    #417

    Fresh food shelves Diagram

    Refrigerator crisper shelf seal

    Part #WR14X10052
    This item is not returnable
    $4.17

    In Stock

    Refrigerator Screw, 8-18 x 5/8-in

    #172

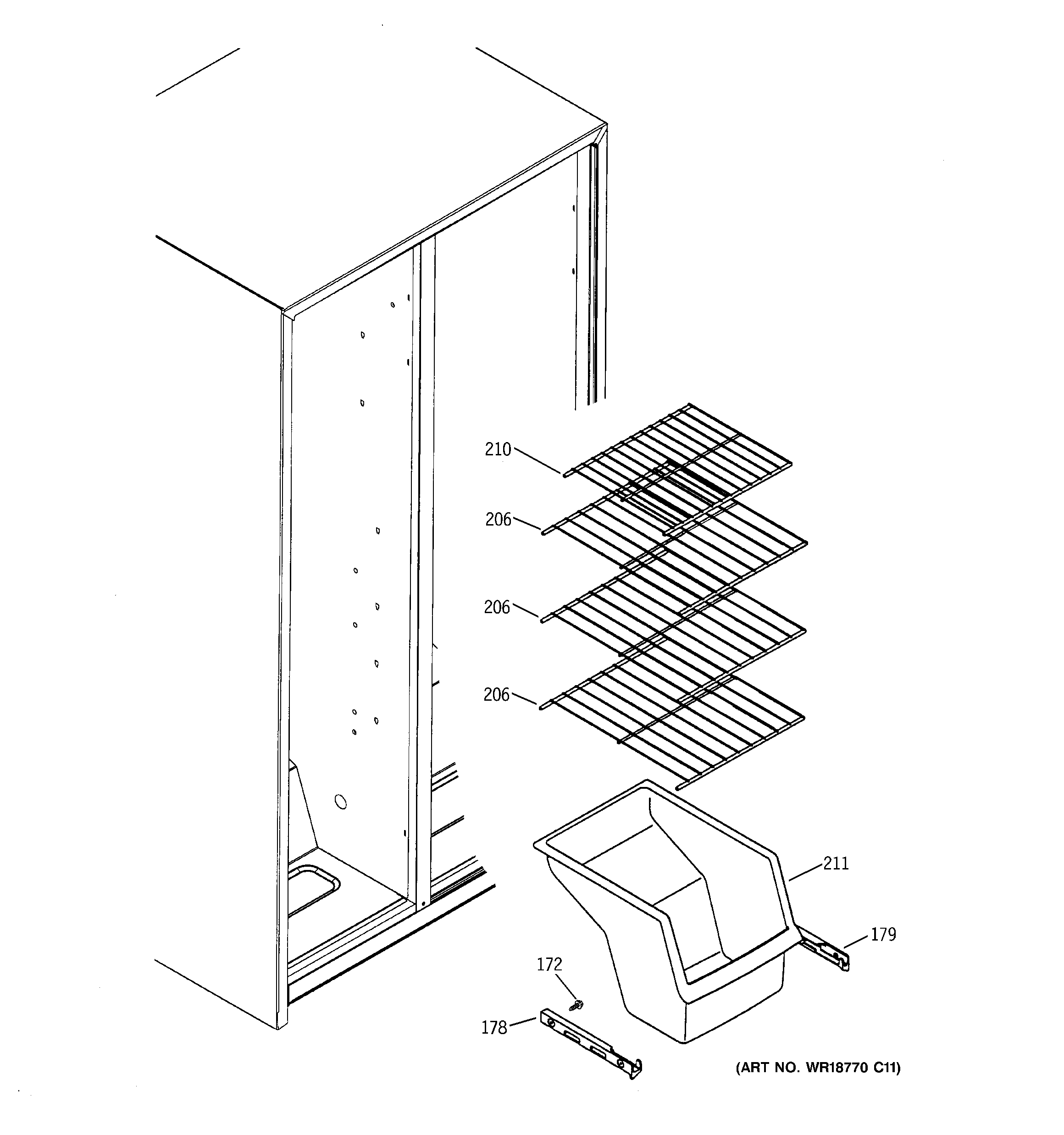

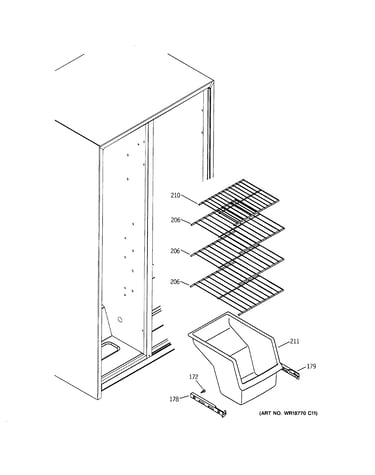

    Freezer shelves Diagram

    Refrigerator screw, 8-18 x 5/8-in

    Part #WR01X10380
    This item is not returnable
    $3.17

    In Stock
