Kenmore 1069552812 refrigerator Parts

On Kenmore side-by-side refrigerators like model 1069552812, the model number is printed on the appliance’s rating label, most often inside the fresh food compartment on a side wall near the crisper drawers, or on the cabinet frame behind the door. Use that exact model number when ordering parts.

Common places to check on model 1069552812

Look for a white or silver sticker with MODEL and SERIAL information:

• Inside the refrigerator section on the left or right wall
• On the cabinet frame (the vertical face) that’s visible when you open the refrigerator door
• Near the crisper pan area (above or beside the pans)
• Inside the freezer section on a side wall (less common, but possible)
• Behind the toe grille or lower kickplate area (occasionally)

What the label looks like (quick guide)

The label usually includes both identifiers. Here’s what to expect:

Item on label	What it’s used for	Example format
Model number	Matching parts to your exact refrigerator	1069552812
Serial number	Production info; helpful for service history	Letters plus numbers

Why it matters

Kenmore model families can share similar door bins, shelves, and ice maker designs, but use different mounting points or wiring. Using the exact model number helps us match the correct ice maker, thermostat, door gasket, or water system part the first time.

Parts you might match using the model number

Once you find the label, you can use 1069552812 to select the right replacement part, such as:

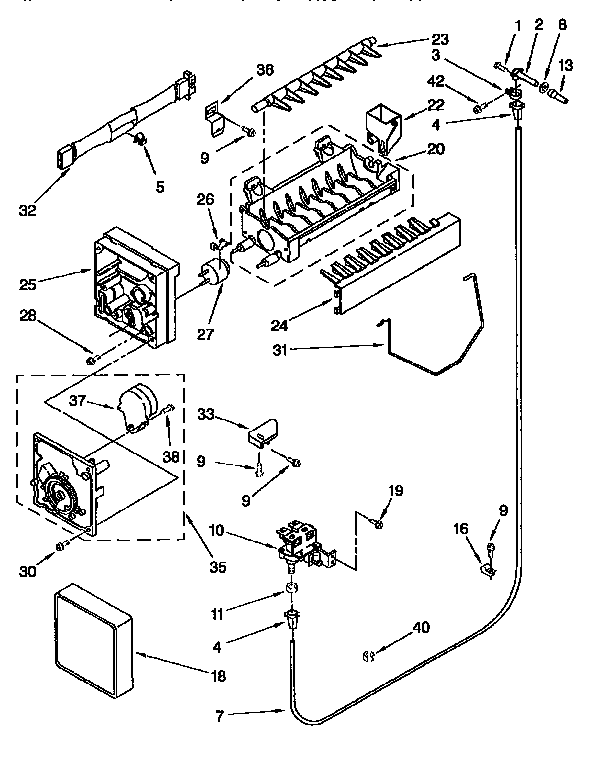

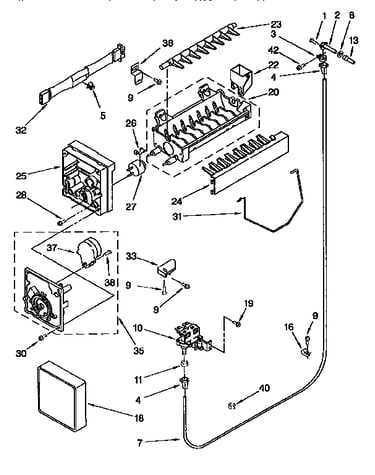

• Ice maker assembly - refrigerator ice maker by whirlpool 4317943
• Refrigerator thermostat WP2198202
• Refrigerator water tube W10823511
• Refrigerator freeer door switch W11457217

To search beyond the parts list for this model, use Sears PartsDirect.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 1069552812 has a specific cubic-foot capacity, but the most reliable way to confirm it is to read the capacity information on the refrigerator’s rating plate (inside the fresh food section). If you need parts while you’re checking, we list model-matched replacements on this page and on Sears PartsDirect.

Where to find the cubic-foot capacity on model 1069552812

Look for the rating plate (also called the model and serial tag). On most Kenmore side-by-side refrigerators, it’s typically located:

• On an inside wall of the fresh food compartment (often near the crisper area)
• Along the side wall near the top shelf area
• Occasionally behind a crisper pan or on the ceiling liner

The tag usually lists model number, serial number, electrical ratings, and often the capacity.

Quick checks if the rating plate is hard to read

Use these practical steps to confirm you have the right spec:

• Write down the full model number exactly as shown: 1069552812
• Clean the tag gently with a damp cloth so the print is readable
• Take a clear photo and zoom in to read the capacity line
• If the tag is missing, compare your refrigerator’s configuration (ice maker, dispenser, shelves) to the parts diagrams for this model
• If you’re troubleshooting cooling or ice issues at the same time, start with common service areas like the thermostat and defrost system

Common parts customers replace while identifying the model

If you’re already inside the refrigerator checking the tag, these are common model-matched parts on this page:

Symptom or need	Part to check	Example part on this model page
No ice or poor ice production	Ice maker assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Temperature swings	Refrigerator thermostat	Refrigerator thermostat WP2198202
Frost buildup, warm freezer	Defrost bi-metal	Refrigerator defrost bi-metal WPW10225581

Why it matters

Cubic-foot capacity helps you match the right shelves, bins, pans, and sometimes ice system components. It also helps when comparing storage space or diagnosing airflow and temperature complaints in a side-by-side refrigerator.

Last updated: February 2026

To clean the condenser coils on your Kenmore 1069552812 side-by-side refrigerator, unplug the refrigerator, expose the coil area (front grille or rear access panel), then vacuum and brush off dust until the fins are clear. Clean coils help the compressor run cooler and more efficiently.

What you need

• Vacuum with a crevice tool
• Coil brush or soft nylon brush
• Flashlight
• Towel or drop cloth
• Work gloves (recommended)

Step-by-step: cleaning the condenser coils

1. Unplug power (or switch off the breaker) to prevent the condenser fan from running while you work.
2. Locate the coils:
   • Many side-by-side models have coils behind the toe grille at the bottom front.
   • Others have coils behind a rear lower access panel.
3. Remove the cover:
   • Pop off the toe grille or remove screws from the rear lower panel.
4. Vacuum loose dust first, then use a brush to loosen packed lint and pet hair.
5. Vacuum again to pull debris out from between coil fins and around the fan area.
6. Reinstall the cover, plug the refrigerator back in, and confirm you hear normal airflow.

How often to clean (typical schedule)

Home situation	Recommended coil cleaning
No pets, low dust	Every 6 to 12 months
Pets or heavy dust	Every 3 to 6 months
Refrigerator in a garage or near laundry	Every 3 to 6 months

If the refrigerator is still warm after cleaning

Coil cleaning fixes many “not cooling well” complaints, but if temperatures are still high, check these common causes:

• Door not sealing well (warm air leaks)
• Evaporator fan not running or noisy (air not circulating)
• Frost buildup on the evaporator (defrost problem)
• Thermostat not regulating temperature correctly
• Condenser fan area still packed with lint

For airflow and cooling issues, our DIY guide how to fix your evaporator cooling fan walks through the most common checks.

Why it matters

Dirty coils trap heat, which forces the sealed system to work harder. That can lead to longer run times, warmer cabinet temperatures, and higher energy use.

If you need replacement parts while troubleshooting, you can order model-matched parts for Kenmore 1069552812 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 1069552812 are cooling issues, water leaks, ice maker and dispenser failures, and unusual noises. These usually trace back to airflow restrictions, frost buildup in the defrost system, worn door seals, or a failing fan or thermostat.

Most common symptoms and what they usually mean

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan problem, thermostat issue, or defrost failure
• Freezer cold but fridge warm: blocked air vents, frost-clogged evaporator, weak evaporator fan
• Water under the refrigerator: clogged defrost drain, cracked water tube, or reservoir leak
• Ice maker not making ice: no water supply, frozen fill tube, failed ice maker assembly
• Buzzing, rattling, or grinding noises: fan blade hitting ice, worn motor, or items vibrating on shelves/bins

Quick checks you can do first (no parts needed)

1. Set temperatures to typical targets: 0°F freezer and 37°F fresh food.
2. Make sure vents inside the refrigerator are not blocked by food packages.
3. Clean condenser coils (restricted airflow is a top cause of poor cooling).
4. Check door closing and sealing; a poor seal causes frost and temperature swings.
5. If you have an ice maker, confirm the shutoff arm is down and the water supply valve is fully open.

Common part-related fixes for this model

If symptoms point to a failed component, these parts are commonly involved on model 1069552812:

Problem area	What fails most often	Example part on this page
Ice maker not producing	Ice maker module or assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Frost buildup, warm temps	Defrost sensor/bi-metal	Refrigerator defrost bi-metal WPW10225581
Warm fridge section, noise	Evaporator fan blade or motor	Refrigerator evaporator fan blade WP2169142 or refrigerator evaporator motor 4389144
Temperature swings	Cold control thermostat	Refrigerator thermostat WP2198202
Leaks at dispenser line	Cracked or loose water line	Refrigerator water tube W10823511 or refrigerator water reservoir WP2256126

Why it matters

Cooling, defrost, and water system problems tend to cascade. For example, a weak evaporator fan can cause warm temperatures, which leads to longer run times and heavier frost, which then reduces airflow even more. Fixing the root cause early helps protect the compressor and keeps food safe.

For more Kenmore-specific troubleshooting patterns, use Kenmore 106 model refrigerator error codes. For ordering, you can use the parts list for model 1069552812 or search by model number on Sears PartsDirect.

Last updated: February 2026

Kenmore model numbers read left to right: the first 3 digits are the manufacturer prefix, the middle digits identify the design series, and the last digits show version or feature variations. For Kenmore refrigerator model 1069552812, the 106 prefix is the key identifier.

What the prefix means (and why we use it)

The prefix helps us match the correct parts diagrams and compatible replacement parts because Kenmore appliances are built by different manufacturers.

Common Kenmore refrigerator prefixes:

• 106: Whirlpool-built Kenmore refrigerators
• 253: Frigidaire/Electrolux-built Kenmore refrigerators
• 795: LG-built Kenmore refrigerators

Where to find the model number on a side-by-side refrigerator

On most Kenmore side-by-side refrigerators, the model/serial tag is typically located:

• Inside the fresh food compartment on a side wall
• Along the door frame (hinge side)
• On the ceiling of the fresh food compartment near the light

How to use the model number to get the right parts

Use the full model number exactly as printed (every digit matters) when selecting parts such as an ice maker, thermostat, shelf, or door gasket.

Section	Example from 1069552812	What it helps with
Prefix	106	Identifies manufacturer family
Series digits	955281	Narrows the design platform
Variation digits	2	Prevents ordering a similar but wrong version

Parts examples for Kenmore 1069552812

These are common part types customers replace when symptoms point to them:

• No ice: ice maker assembly - refrigerator ice maker by whirlpool 4317943
• Temperature swings: refrigerator thermostat WP2198202
• Warm spots or moisture at the door: refrigerator door gasket (black) 2159081

Why it matters

A single digit difference can change mounting points, wiring connectors, and fit for items like door bins, shelves, and ice maker components.

For broader model searches, use the parts list for 1069552812 or search by model on Sears PartsDirect.

Last updated: February 2026
