Model #79095758990 Kenmore electric range

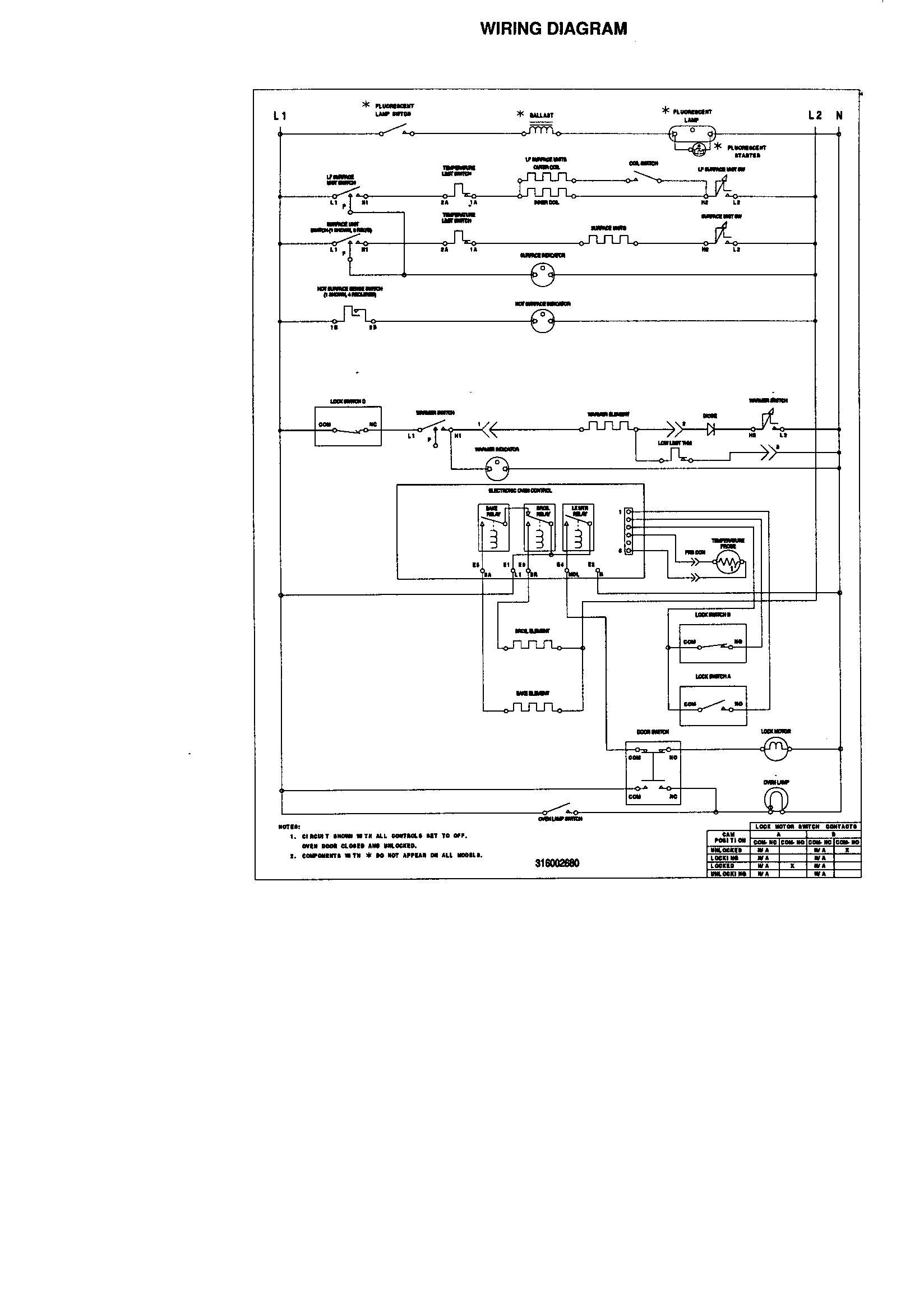

Here are the diagrams and repair parts for Kenmore 79095758990 electric range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 142 parts

    Range Washer

    #39A

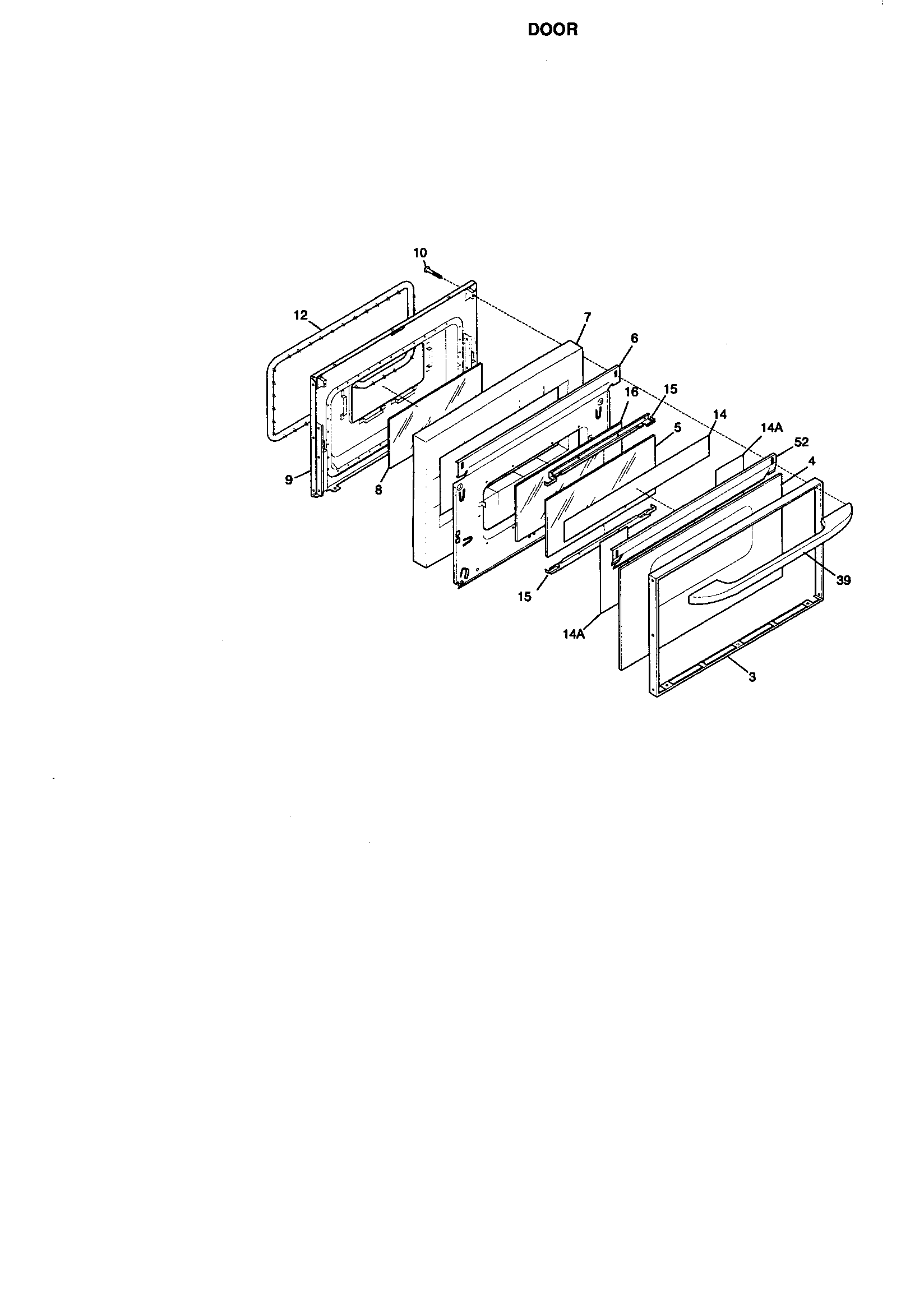

    Door Diagram

    Range washer

    Part #316008401
    $8.08

    In Stock

    Range Indicator Light

    #14A

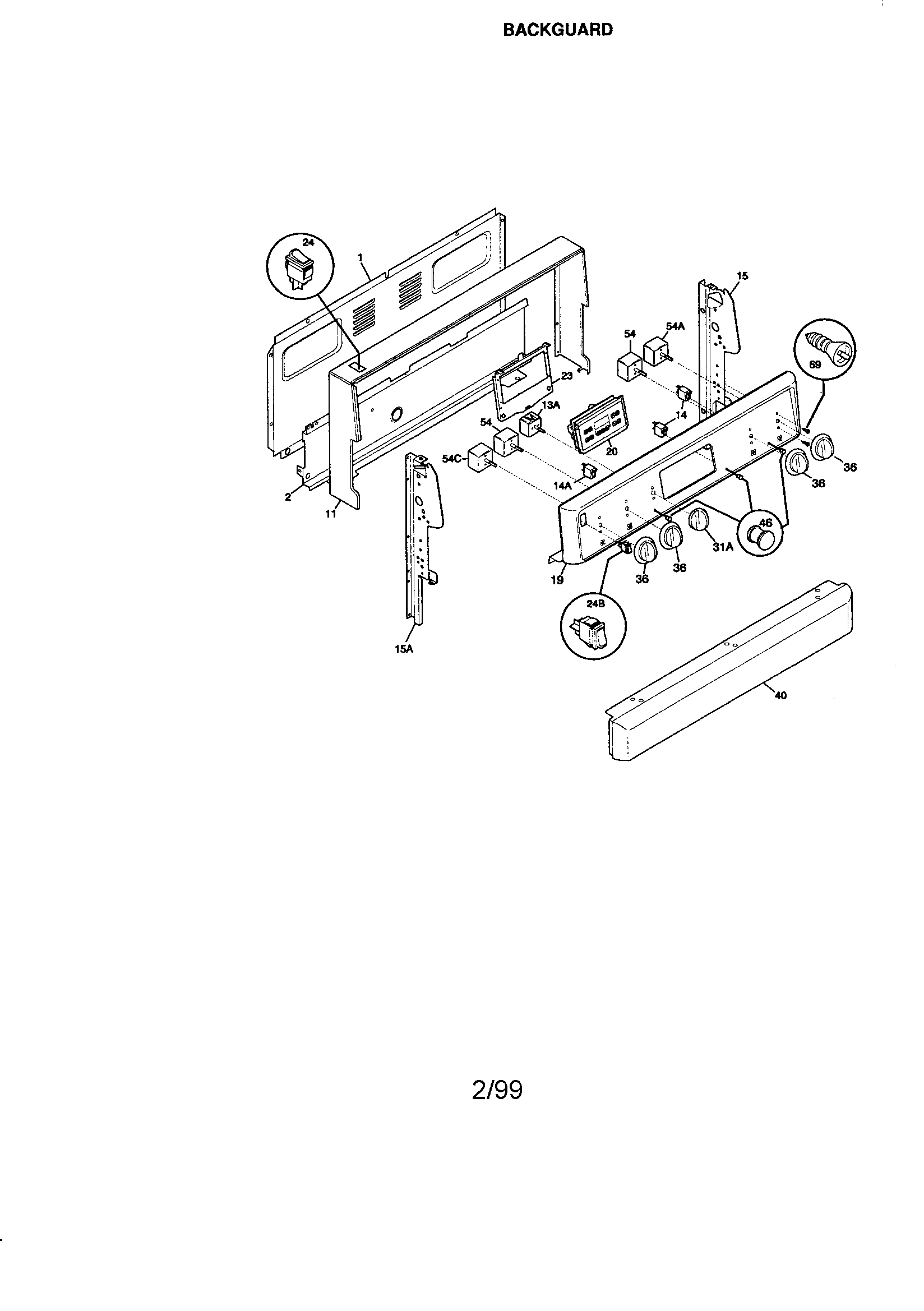

    Backguard Diagram

    Range indicator light

    Part #316022500
    $31.24 |
    20% OFF MSRP:$39.00

    In Stock

    Range Surface Element Control Switch

    #54C

    Backguard Diagram

    $93.87 |
    37% OFF MSRP:$150.00

    In Stock

    Range Broil Element

    #66

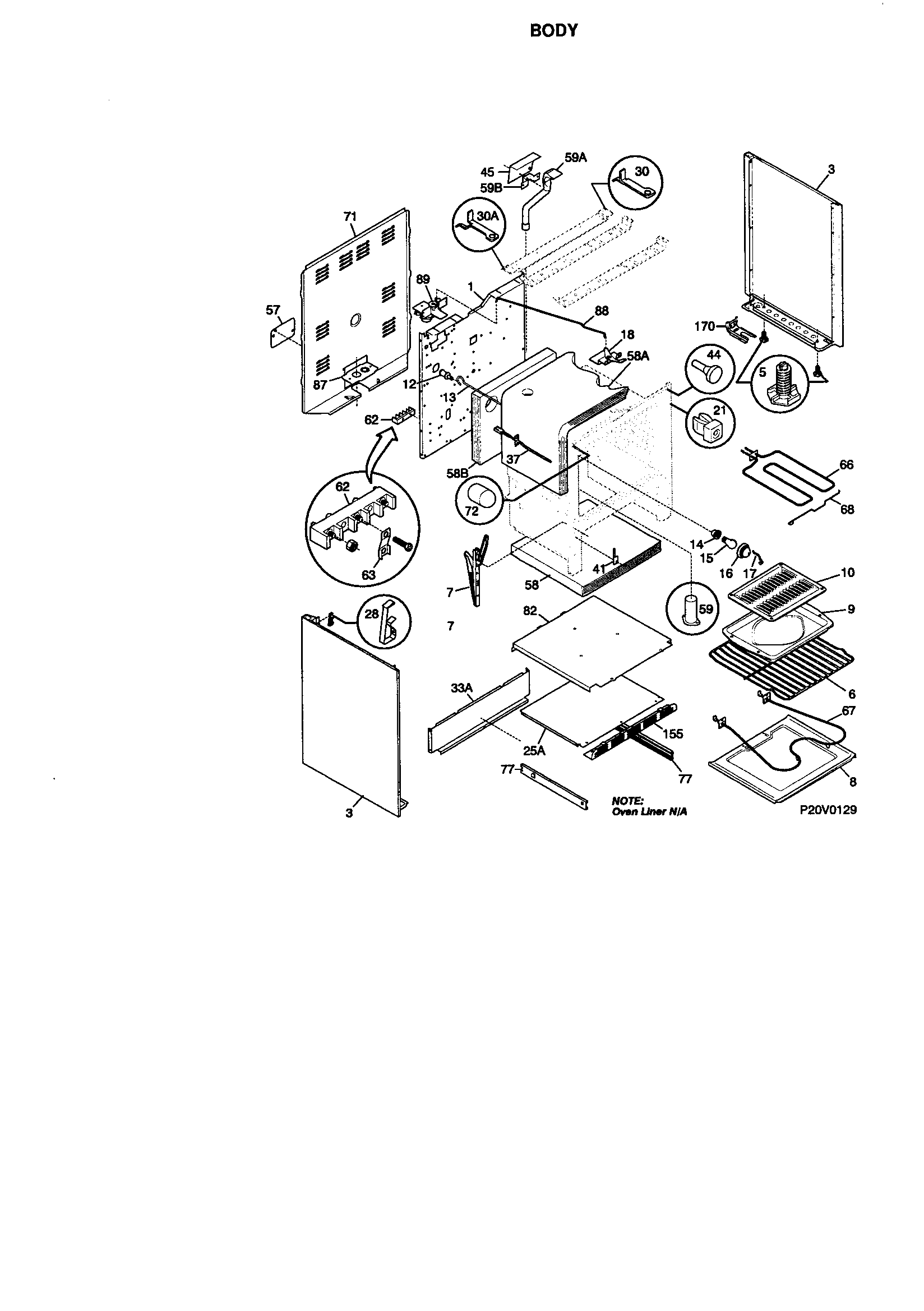

    Body Diagram

    Range broil element

    Part #5303051140
    $19.54 |
    52% OFF MSRP:$41.00

    In Stock

    Range Oven Control Overlay

    #20A

    Backguard Diagram

    $36.90 |
    43% OFF MSRP:$65.00

    In Stock

    Range Oven Light Lens Retainer

    #17

    Body Diagram

    $32.68 |
    16% OFF MSRP:$39.00

    In Stock

    Range Dual Surface Element Selector Switch

    #24B

    Backguard Diagram

    $38.84 |
    31% OFF MSRP:$56.00

    In Stock

    Clip-hold Do

    #86

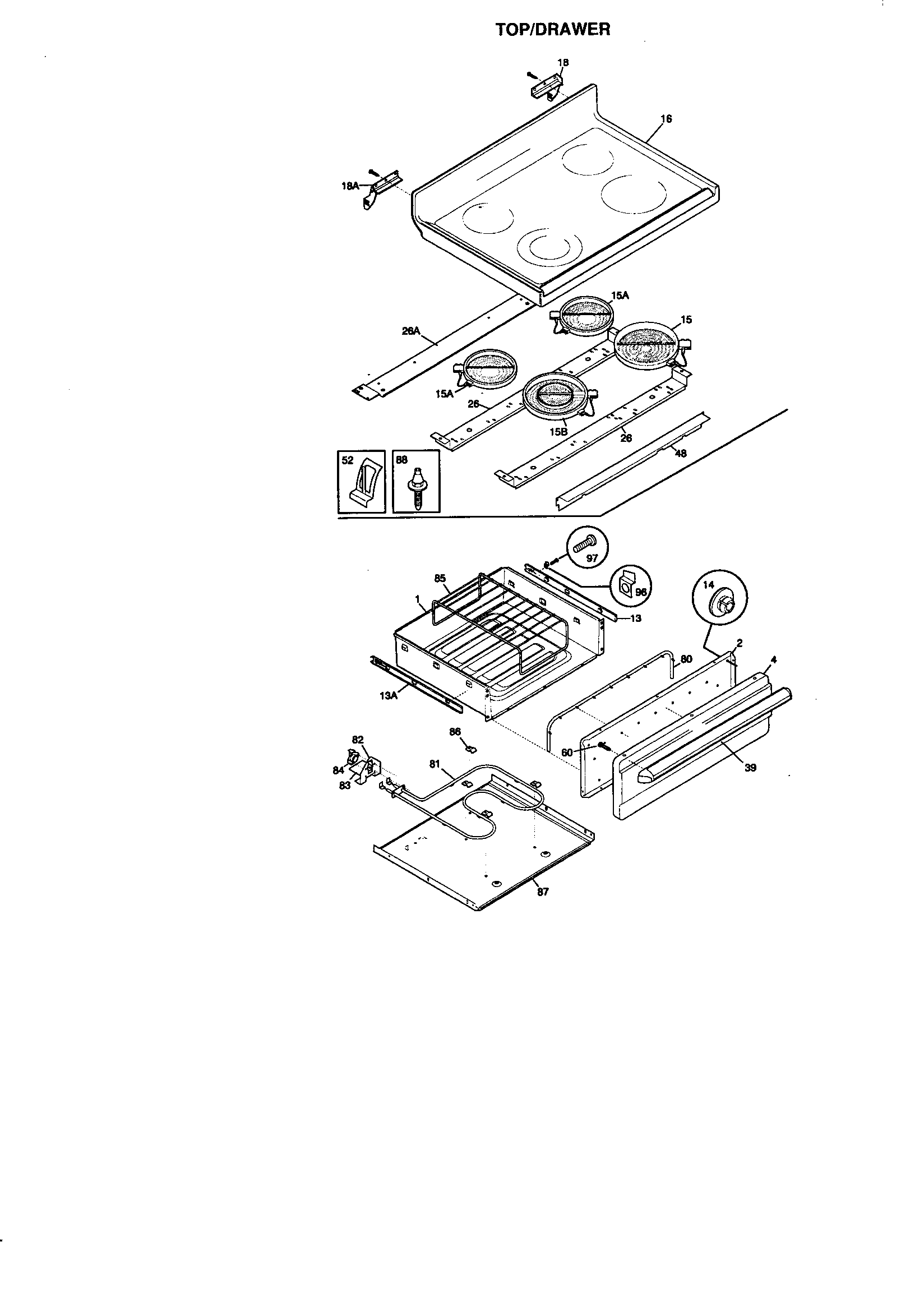

    Top/drawer Diagram

    Clip-hold do

    Part #316095800
    This item is not returnable
    $4.05 |
    69% OFF MSRP:$13.00

    In Stock

    Range Screw

    #NI

    All parts Diagram

    Range screw

    Part #5303280311
    This item is not returnable
    $3.03 |
    50% OFF MSRP:$6.10

    In Stock

    Range Warming Drawer Knob

    #31A

    Backguard Diagram

    $38.38

    In Stock

    Symptoms common to all ranges

    Choose a symptom to see related range repairs.

    Main causes: broken oven door lock assembly, wiring failure, electronic control board problem
    Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleaning the door
    Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sensor, wiring failure
    Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure
    Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner igniter
    Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner igniter, oven door problem
    Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sensor, wiring failure

    Repair guides common to all ranges

    These step-by-step repair guides will help you safely fix what’s broken on your range.

    July 20, 2018
    By Lyle Weischwill
    How to replace a range oven door switch

    The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it doesn’t control the oven light properly.

    Repair difficulty
    Time required
     30 minutes or less
    February 20, 2015
    By Lyle Weischwill
    How to replace a range oven door lock assembly

    Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.

    Repair difficulty
    Time required
     15 minutes or less

    Articles and videos common to all ranges

    Use the advice and tips in these articles and videos to get the most out of your range.

    September 22, 2016

    Easy party appetizer recipe video

    By Sears PartsDirect staff

    Make your next get-together a hit with these 3 great-tasting party appetizer recipes.

    January 18, 2016

    Troubleshooting an F10 error code on a range video

    By Sears PartsDirect staff

    Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.

    July 1, 2013

    Range common questions

    By Sears PartsDirect staff

    Read the most common questions our experts hear about ranges, and the answers.
