Kenmore 8504277590 electric self-cleaning built-in oven Parts
Here are the diagrams and repair parts for Kenmore 8504277590 electric self-cleaning built-in oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

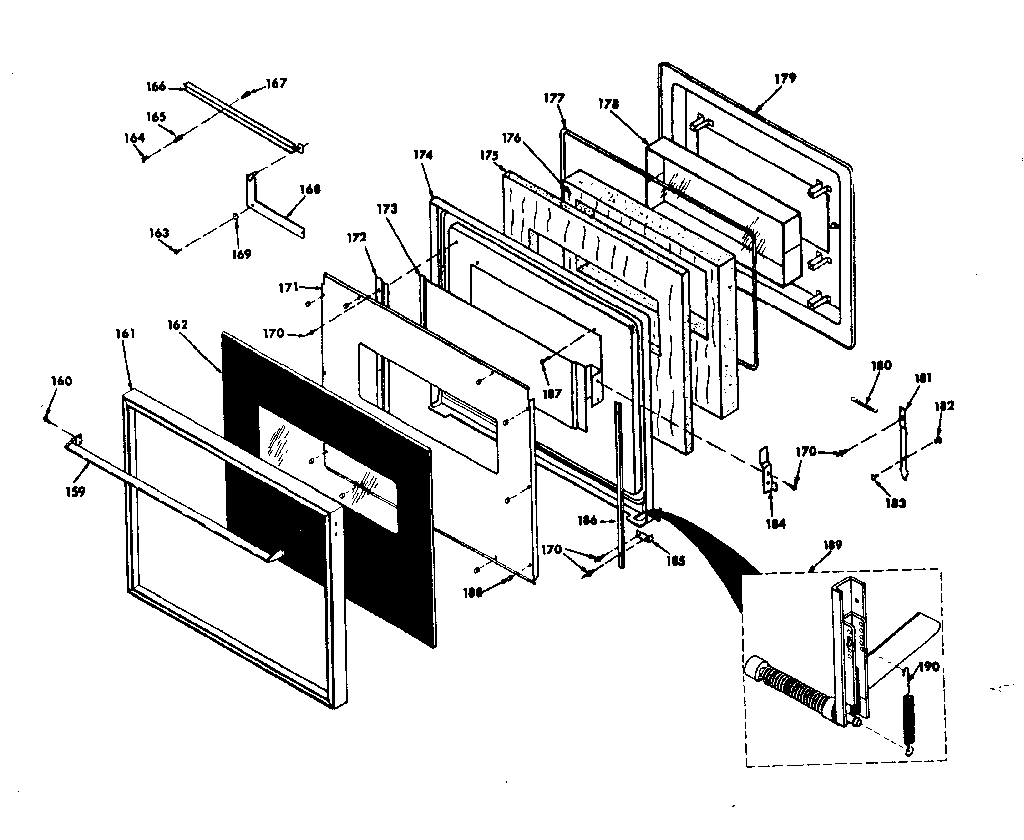

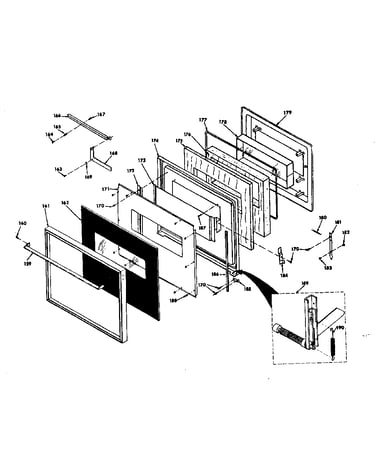

SELECT DIAGRAM
Browse Parts for 8504277590 Ranges

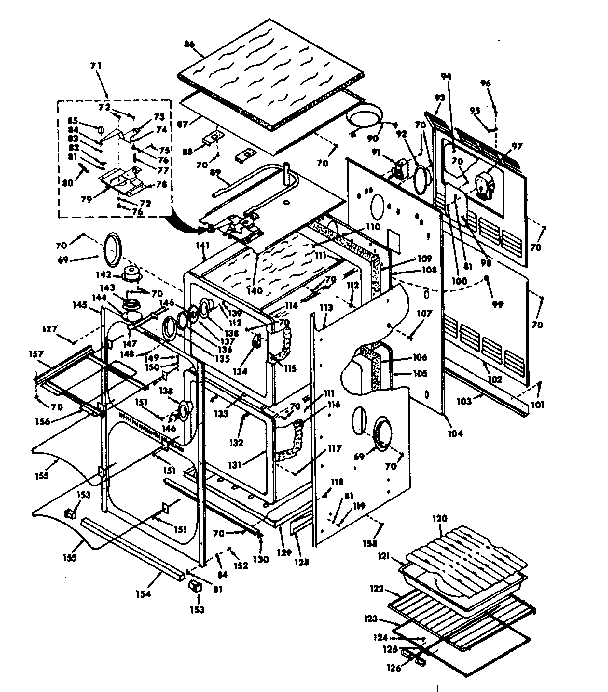

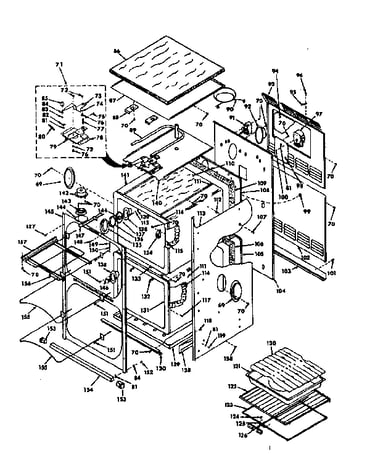

Body section diagram
Screw
Part #17886Replaced by #W11233072
Manufacturer substitutionThis part replaces 17886. Substitute parts can look different from the original.In Stock$17.63
Qty
Body section diagram
Element
Part #17507
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Broiler Pan
Part #19194Replaced by #4396923
Manufacturer substitutionThis part replaces 19194. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56
QtyBody section diagram
Oven Broiler Element
Part #17468
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Light Bulb
Part #STD372401Replaced by #8009

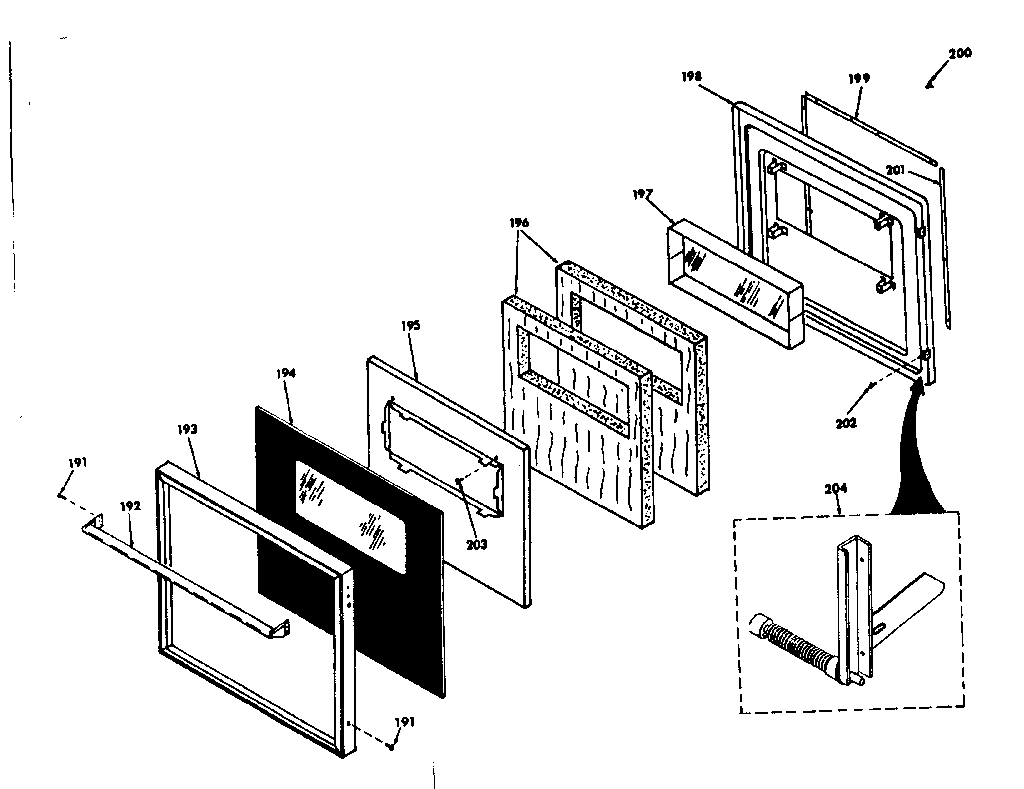

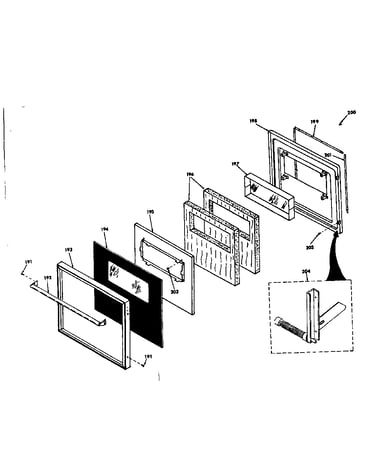

Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.In Stock$35.61QtyLower oven door diagram
Screw
Part #17576Replaced by #WP356138
Manufacturer substitutionThis part replaces 17576. Substitute parts can look different from the original.In Stock$36.09QtyBody section diagram
Oven Broiler Grid
Part #19190Replaced by #4396923
Manufacturer substitutionThis part replaces 19190. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyBody section diagram
Insulation
Part #17681
The manufacturer no longer makes this part, and there's no substitute part
Body section diagram
Lug
Part #17960
The manufacturer no longer makes this part, and there's no substitute part

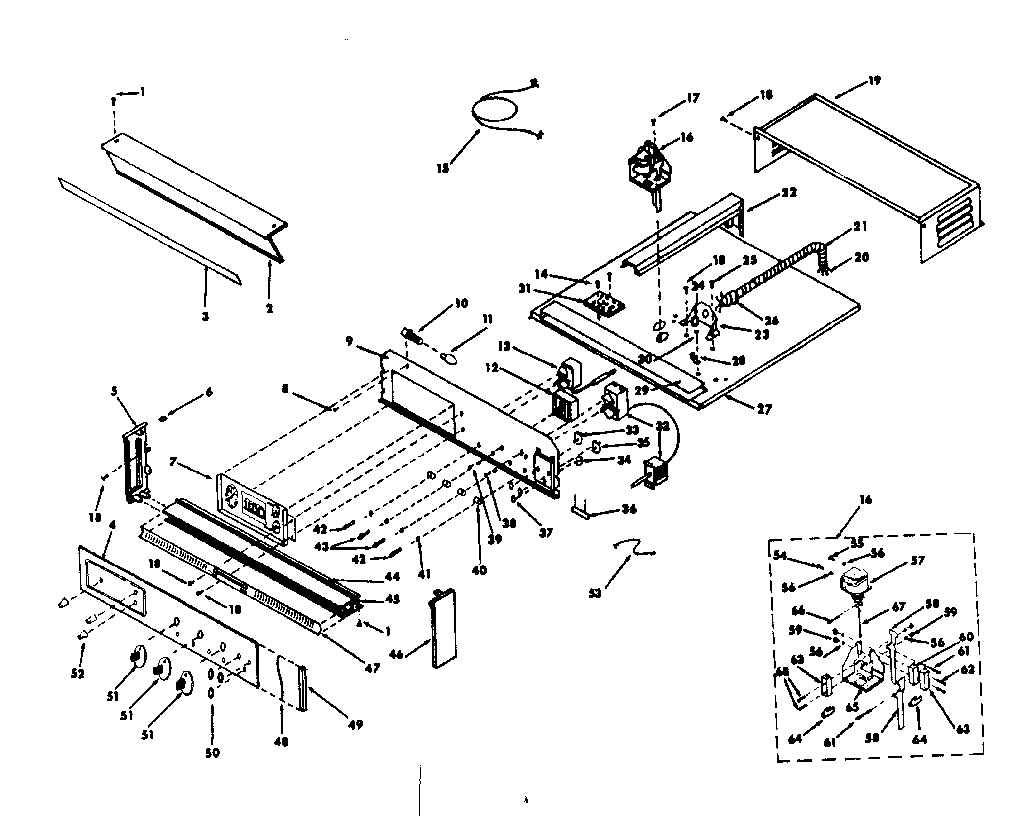

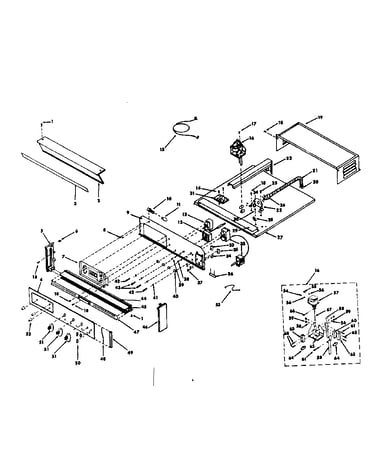

Control section diagram
Thermostat
Part #19187
The manufacturer no longer makes this part, and there's no substitute part
