GE WPRE6150K2WT washer Parts

Here are the diagrams and repair parts for GE WPRE6150K2WT washer, as well as links to manuals and error code tables, if available.

GE WPRE6150K2WT washer
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WPRE6150K2WT Washer

  • Washer Hub Nut for GE WPRE6150K2WT - Part WH2X1193

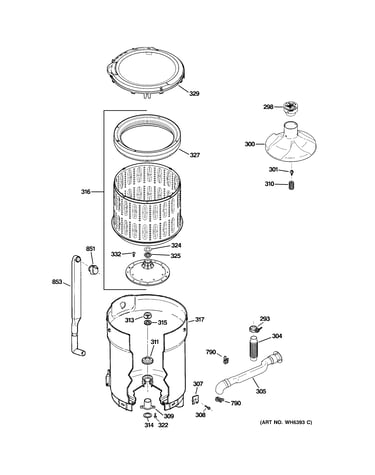

    Tub, basket & agitator diagram

    Hub Nut

    Part #WH02X1193

    Replaced by #WH2X1193

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1193. Substitute parts can look different from the original.
    In Stock
    $15.90
    11% OFF Phone Price : $17.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Seal Assembly for GE WPRE6150K2WT - Part WH02X10383

    Tub, basket & agitator diagram

    Washer Tub Seal

    Part #WH02X10032

    Replaced by #WH02X10383

    Info Icon
    Manufacturer substitution
    This part replaces WH02X10032. Substitute parts can look different from the original.
    In Stock
    $11.96
    14% OFF Phone Price : $13.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drive Belt for GE WPRE6150K2WT - Part WH01X10302

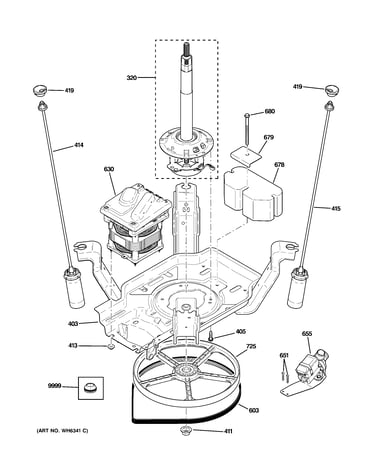

    Suspension, pump & drive components diagram

    Washer Drive Belt

    Part #WH01X10353

    Replaced by #WH01X10302

    Info Icon
    Manufacturer substitution
    This part replaces WH01X10353. Substitute parts can look different from the original.
    In Stock
    $25.49
    19% OFF Phone Price : $31.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drive Shaft And Shifter Assembly for GE WPRE6150K2WT - Part WH38X10017

    Suspension, pump & drive components diagram

    Washer Drive Shaft And Shifter Assembly

    In Stock
    $239.93
    5% OFF Phone Price : $251.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drain Pump for GE WPRE6150K2WT - Part WH23X10030

    Suspension, pump & drive components diagram

    Washer Drain Pump Assembly

    Part #WH23X10013

    Replaced by #WH23X10030

    Info Icon
    Manufacturer substitution
    This part replaces WH23X10013. Substitute parts can look different from the original.
    In Stock
    $59.40
    9% OFF Phone Price : $65.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Tub Mounting Hub Washer for GE WPRE6150K2WT - Part WH2X1199

    Tub, basket & agitator diagram

    Hub Washer

    Part #WH02X1199

    Replaced by #WH2X1199

    Info Icon
    Manufacturer substitution
    This part replaces WH02X1199. Substitute parts can look different from the original.
    In Stock
    $8.92
    10% OFF Phone Price : $9.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Drive Pulley for GE WPRE6150K2WT - Part WH07X10019

    Suspension, pump & drive components diagram

    Washer Drive Pulley

    In Stock
    $35.14
    56% OFF Was : $80.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Suspension Rod And Spring Assembly for GE WPRE6150K2WT - Part WH16X10141

    Suspension, pump & drive components diagram

    Rod Spring

    Part #WH16X0545

    Replaced by #WH16X10141

    Info Icon
    Manufacturer substitution
    This part replaces WH16X0545. Substitute parts can look different from the original.
    In Stock
    $34.89
    15% OFF Phone Price : $40.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Outer Tub for GE WPRE6150K2WT - Part WH45X20473

    Tub, basket & agitator diagram

    Extra Large Tub Assembly

    Part #WH45X10024

    Replaced by #WH45X20473

    Info Icon
    Manufacturer substitution
    This part replaces WH45X10024. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $217.26
    5% OFF Phone Price : $229.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Start/stop Switch Button for GE WPRE6150K2WT - Part WH01X10088

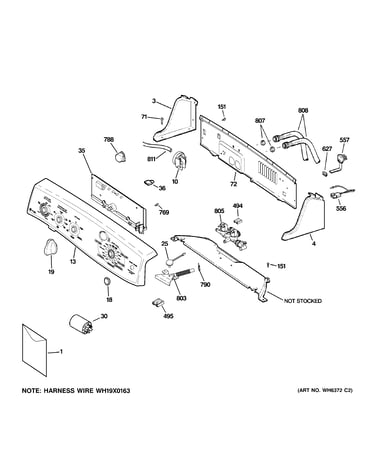

    Controls & backsplash diagram

    Laundry Appliance Start Button

    Part #WH01X10306

    Replaced by #WH01X10088

    Info Icon
    Manufacturer substitution
    This part replaces WH01X10306. Substitute parts can look different from the original.
    In Stock
    $17.59
    10% OFF Phone Price : $19.59Info Icon
    Minus Item
    Qty
    Plus Item

GE Washer WPRE6150K2WT FAQs

A GE dryer typically lasts 10 years. With normal household use and basic upkeep (especially lint and vent maintenance), many dryers reach 10 to 15 years before major repairs become common.

What affects dryer lifespan most

  • Cleaning the lint screen before or after every load
  • Keeping the exhaust vent and outside hood clear (restricted airflow shortens life)
  • Avoiding overloading (extra strain on the drum support, belt, and motor)
  • Using the right cycle and heat setting for the fabric
  • Fixing small issues early (squealing, thumping, long dry times)

Quick “is it worth fixing?” guide

Dryers are often worth repairing when the problem is a wear item (belt, rollers, idler pulley, thermal fuse) and the cabinet and drum are in good shape.

Dryer age Typical recommendation Why
0 to 5 years Repair is usually the best value Most parts failures are straightforward
6 to 10 years Repair if the cost is reasonable You can often extend life several years
11 to 15 years Repair only for smaller fixes Major components may be nearing end of life
16+ years Replace is usually the better value Efficiency and reliability drop

Why it matters

A dryer that takes longer to dry or runs hotter than normal often has an airflow problem. Correcting airflow early helps prevent overheating, repeat part failures, and premature breakdown.

Model note for this page

This page is for the GE WPRE6150K2WT washer, not a dryer. For washer care and maintenance details that help prevent wear (like keeping the basket clean and replacing fill hoses about every 5 years), follow the WPRE6150K2WT owner’s manual.

Last updated: February 2026

The GE WPRE6150K2WT top-load washer has a 4.1 cu. ft. capacity. That capacity helps you size loads correctly so the washer can agitate, rinse, and spin effectively without overfilling.

How to use capacity the right way

Even with a 4.1 cu. ft. tub, performance depends on how you load and select settings. We recommend:

  • Load items loosely; do not pack or compress laundry.
  • Keep the load height at or below the top row of holes in the wash basket.
  • Distribute items around the outside of the basket for better balance.
  • Match the load size setting to the amount of laundry.
  • Use the correct detergent type and amount for your cycle and soil level.

For the model-specific loading guidance and control steps, use the WPRE6150K2WT owner's manual.

Quick reference: what 4.1 cu. ft. means in practice

Actual “what fits” varies by fabric type and absorbency, but this is a practical way to think about it:

Load type Typical examples Best practice
Light A few shirts, underwear, small towels Use a smaller load size setting
Medium Mixed everyday laundry Load loosely, keep below basket holes
Bulky Towels, sweatshirts, bedding Wash bulky items in smaller batches

Why it matters

Overloading a top-load washer can cause poor cleaning, out-of-balance spinning, extra noise, and added wear on suspension and drive components. Loading to the recommended height helps the washer move water through fabrics and spin smoothly.

Last updated: February 2026

If your GE WPRE6150K2WT washer is not draining, the most common causes are a kinked or incorrectly installed drain hose, a clog in the pump or hose, or a failed drain pump. Start with the hose height and routing, then check for obstructions.

Quick checks we recommend first

  • Unplug the washer for safety.
  • Make sure the drain hose is not kinked and the washer is not sitting on the hose.
  • Confirm the standpipe height and hose routing; the top of the drain outlet should be less than 6 ft (1.8 m) above the floor.
  • If the cycle was paused a long time, reset the cycle and try a drain/spin again.
  • Listen during drain: a steady hum with no water movement usually points to a blockage at the pump or a weak pump.

Likely causes and what to do

Symptom Most likely cause What to check next
Water stays in tub, hose looks pinched Kinked drain hose Reroute hose, remove kinks, verify washer is not crushing it
Pump runs (hums) but little or no water exits Clog at pump or hose Check hose for socks, lint, debris; inspect pump inlet/outlet
No drain sound at all Pump not running or control issue Verify cycle settings, lid closed, then move to pump diagnosis
Drains slowly Partial blockage Clear hose and pump path; check for buildup

Parts that commonly fix a no-drain problem

If you confirm the hose is routed correctly and clear, the drain pump is a common repair on this style of GE washer. For this model, the matching part is the washer drain pump assembly WH23X10030.

Why it matters

A washer that cannot drain will not spin properly, leaving clothes soaking wet and putting extra strain on the drive system. Fixing a drain restriction early also helps prevent leaks and odors.

Reference for model-specific setup

For the correct drain hose installation details and moving/storage drain steps, follow the WPRE6150K2WT installation guide.

Last updated: February 2026

On the GE washer model WPRE6150K2WT, the model and serial number label is located under the lid. Lift the lid and look around the underside area near the opening; that tag is what you will use to match parts and service information in the WPRE6150K2WT owner's manual.

Where to look (quick checklist)

  • Under the washer lid (primary location for WPRE6150K2WT)
  • Around the top rim of the cabinet opening (near the lid opening)
  • On the back of the control panel area (some GE top-load designs)
  • On the cabinet side near the bottom (less common, but possible)

What to write down (and why)

We recommend recording both numbers exactly as shown on the tag.

Item to record What it’s used for Example of when you need it
Model number Ensures parts fit your exact washer Ordering a lid switch or inlet valve
Serial number Helps identify production details for service Scheduling repair or confirming compatibility

Why it matters

GE often uses similar-looking designs across multiple washers, but internal components can differ by model. Using the exact WPRE6150K2WT model number helps us match the correct parts (such as a washer lid switch WH12X10333) and avoid returns due to fit issues.

Pro tips for reading the label

  • Use a flashlight; the print can be small or lightly stamped
  • Take a clear photo of the tag before ordering parts
  • Copy letters and numbers exactly (including any dashes)

Last updated: February 2026

The most common GE washer problems are not draining and not spinning. On the GE WPRE6150K2WT, these symptoms are often tied to a drain restriction, a lid safety issue, or wear in spin-support parts that can also cause loud noise and vibration. See the WPRE6150K2WT owner's manual for model-specific troubleshooting steps.

Most common symptoms and what usually causes them

  • Won’t drain or drains slowly: drain pump issue, kinked/clogged drain hose, or a restriction in the tub-to-pump path
  • Won’t spin: lid safety feature not satisfied (lid not closed, lid switch issue), unbalanced load, or drive system wear
  • Loud roaring or grinding in spin: worn tub bearing
  • Excessive shaking or banging: worn suspension components or an uneven load
  • Water fill problems: supply faucets not fully open, inlet screens clogged, or a failing inlet valve

Quick checks we recommend first (fast, no parts)

  • Confirm the washer is plugged in and the breaker is on; then reset electronics by unplugging for 2 minutes and restarting.
  • Close the lid fully; this model will not operate correctly with the lid open during certain settings.
  • Run a small test load; load items evenly around the outside of the basket (avoid laying sheets/towels across the center).
  • Check the drain hose for kinks and verify the standpipe height matches the installation guide.
  • Use the right detergent amount; too much or too little detergent can cause performance issues (including oversudsing and poor rinsing).

Parts that commonly fix these problems on WPRE6150K2WT

Symptom Common suspect part What you’ll notice
Won’t drain Washer drain pump assembly WH23X10030 Water left in tub, humming, slow drain
Won’t spin (top-load safety) Washer lid switch WH12X10333 No spin/agitate when lid is up or switch fails
Loud noise in spin Tub bearing WH2X1198 Roaring/grinding that gets worse at high speed
Shakes badly Washer suspension rod and spring assembly WH16X10057 Tub bounces, out-of-balance shutdowns
Won’t fill or fills wrong Washer water inlet valve WH13X10037 Slow fill, no hot/cold, intermittent fill

Why it matters

Drain and spin problems can look like a “bad washer,” but they are often caused by a simple load issue, a lid safety condition, or a single replaceable part (pump, lid switch, suspension, or bearing). Fixing the root cause prevents repeat failures and reduces noise, leaks, and cycle interruptions.

Last updated: February 2026

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Repair guides for bottom-mount refrigerators

How to replace an electronic control board on the back of a refrigerator

How to replace an electronic control board on the back of a refrigerator

If your refrigerator isn't running, an electronic control board failure could be the problem. A service technician can d…

Repair time and Difficulty

 15 minutes or less
How to replace a door gasket in a French-door refrigerator

How to replace a door gasket in a French-door refrigerator

The door gasket, often called a door seal, seals the gap around the door to keep the cold air in and the warm air out. R…

Repair time and Difficulty

 15 minutes or less
How to replace an in-door ice maker on a French door refrigerator

How to replace an in-door ice maker on a French door refrigerator

Follow these step-by-step instructions how to replace the in-door ice maker in Kenmore TRIO and LG French door refrigera…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your washers

Use the advice and tips in these articles and videos to get the most out of your washer.

How auto-load sensing washers work (and when they don't)

How auto-load sensing washers work (and when they don't)

Your washer barely fills or seems stuck in sensing mode? Find out how auto-load sensing and Precise Fill features work, …

How to remove the main control board and user interface from a Maytag Epic Z front-load washer

How to remove the main control board and user interface from a Maytag Epic Z front-load washer

Get step-by-step instructions for removing the main electronic control board and the control panel from a Maytage Epic Z…

Using a wiring schematic to trace a current video

Using a wiring schematic to trace a current video

Find out what’s wrong with your appliance by following a circuit.…

Parts & More

Bottom-Mount Refrigerator
Countertop Microwave
Dryer
Gas Range
Laundry Center
Parts
Radial Arm Saw
Side-By-Side Refrigerator
Top-Mount Refrigerator
Upright Freezer
