Whirlpool JT051CAE2511 freestanding ice maker Parts
Here are the diagrams and repair parts for Whirlpool JT051CAE2511 freestanding ice maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part

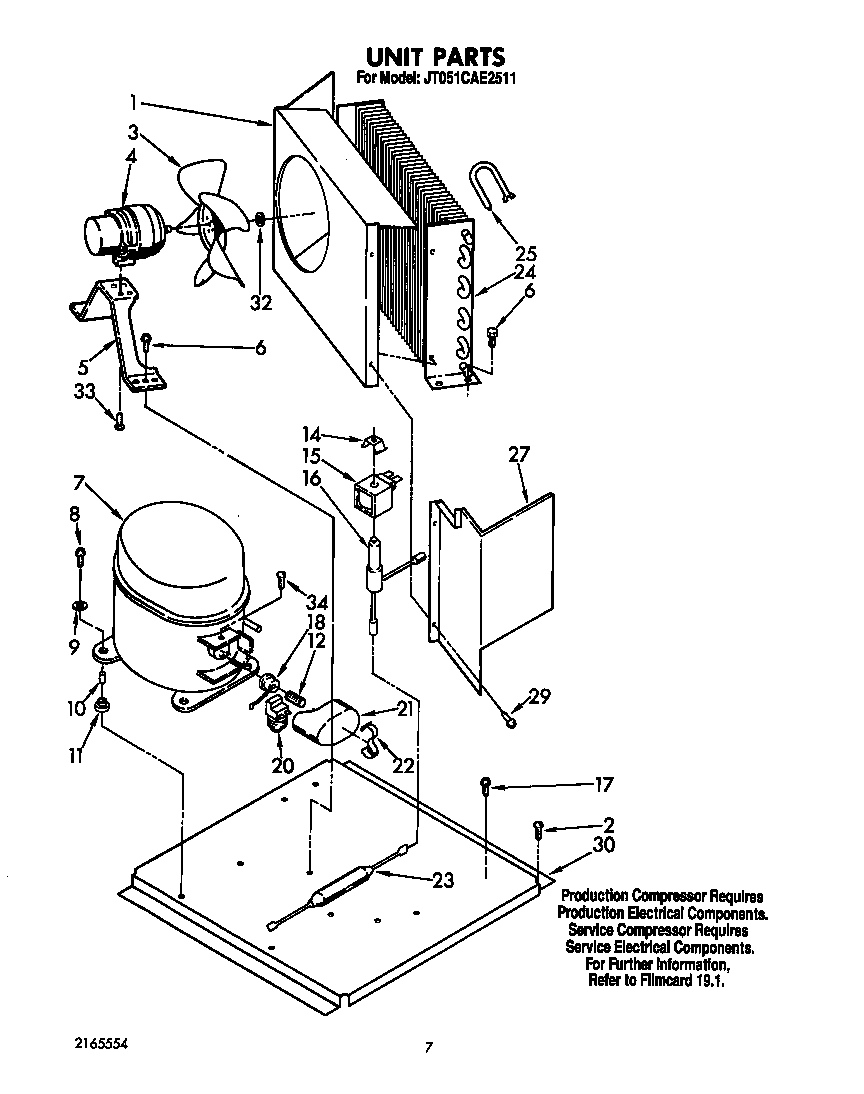

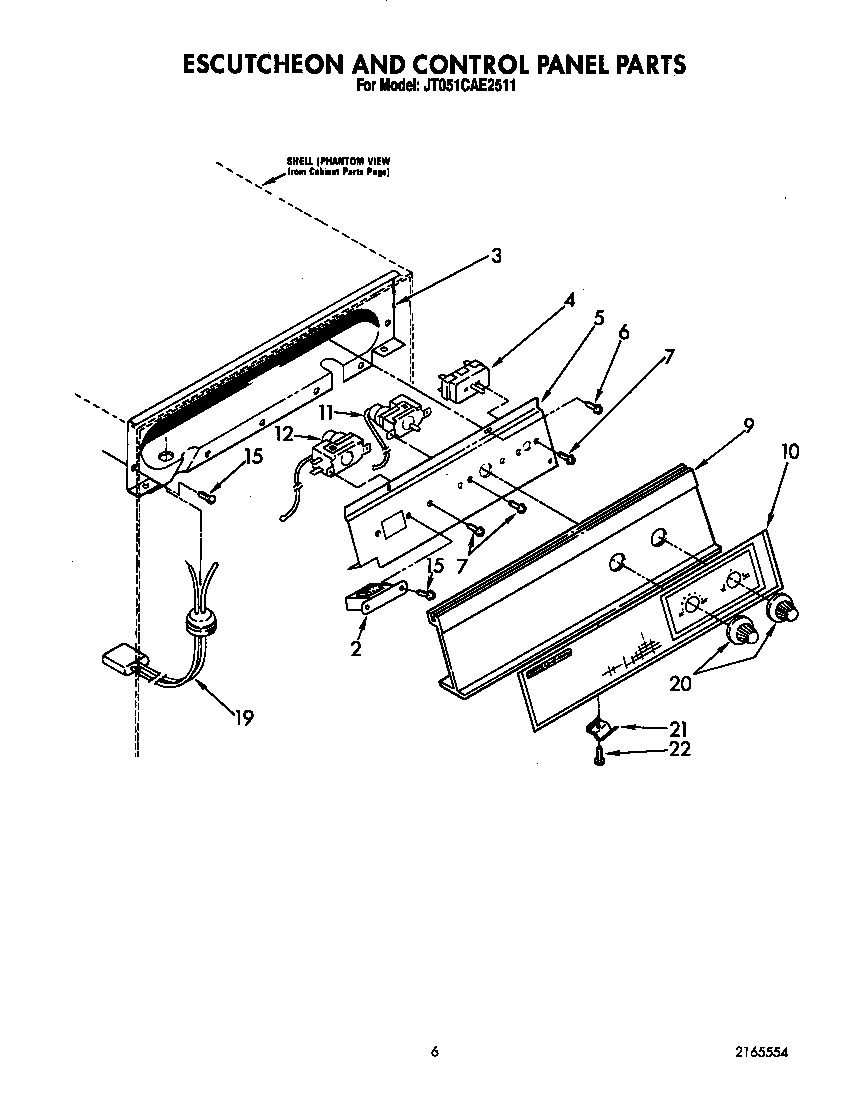

SELECT DIAGRAM
Browse Parts for JT051CAE2511 Freestanding Ice Maker
Screw
Part #489196Replaced by #WP488729
Manufacturer substitutionThis part replaces 489196. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93
Qty

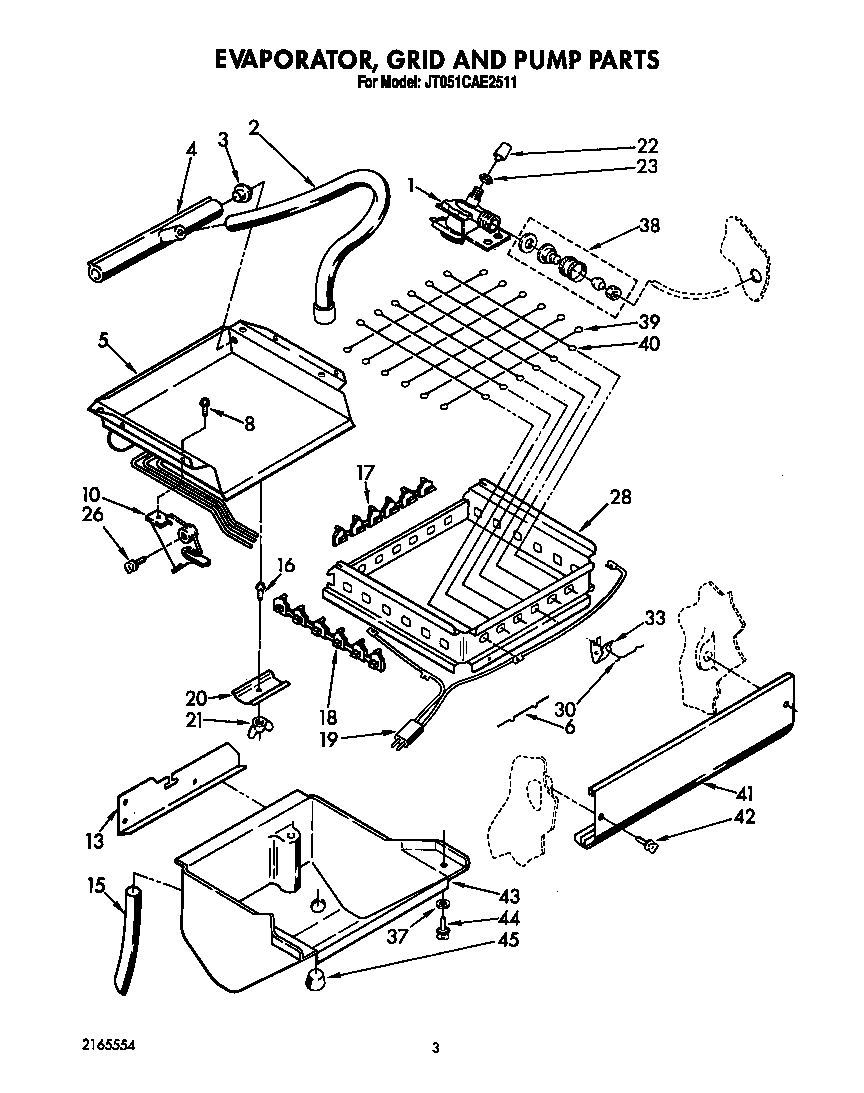

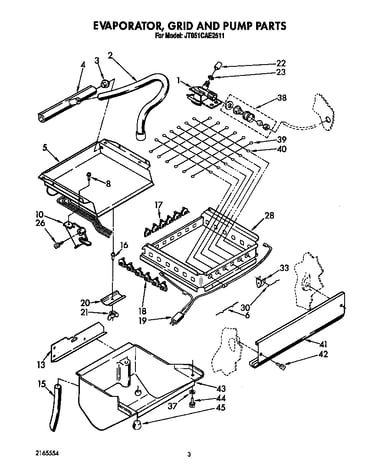

Evaporator, grid and pump diagram
Refrigerator Water Tube Fitting
Part #627018Replaced by #WP627018

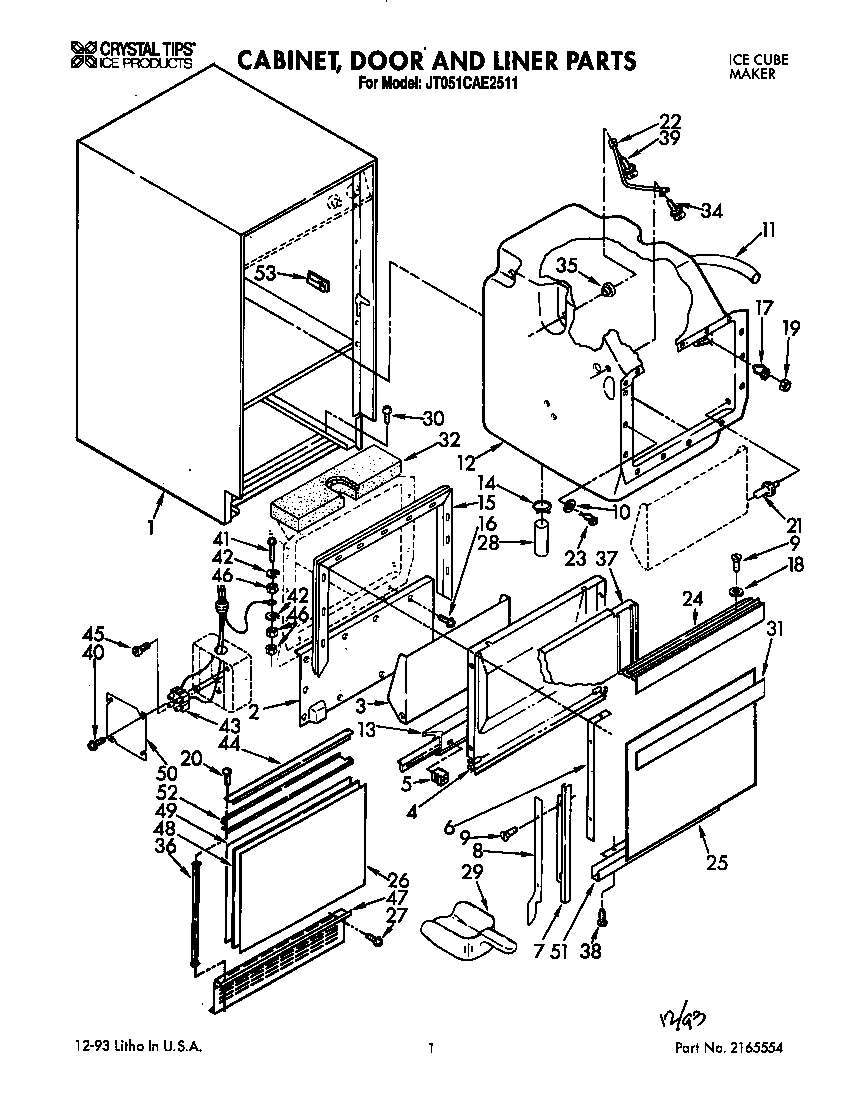

Manufacturer substitutionThis part replaces 627018. Substitute parts can look different from the original.This item is not returnableIn Stock$8.9810% OFF Phone Price : $9.98QtyCabinet, door and liner diagram
Sears Refrigerator Service Valve
In Stock$31.0731% OFF Was : $45.33QtyCabinet, door and liner diagram
Insulation
Part #479976Replaced by #876370
Manufacturer substitutionThis part replaces 479976. Substitute parts can look different from the original.In Stock$130.138% OFF Phone Price : $142.13QtyCabinet, door and liner diagram
Sears Refrigerator Service Valve
In Stock$32.6434% OFF Was : $49.46QtyCabinet, door and liner diagram
Sears Refrigerator Permagum Sealer

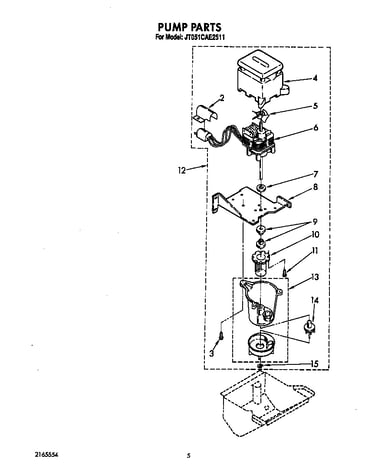

Part #212643This item is not returnableIn Stock$28.0336% OFF Was : $43.86QtyPump diagram
Ice Maker Pump Mounting Screw
In Stock$18.0710% OFF Phone Price : $20.07QtyCabinet, door and liner diagram
Sears Refrigerator Service Valve, 3/4-in
In Stock$36.2033% OFF Was : $54.08QtyEvaporator, grid and pump diagram
Screw
Part #489049Replaced by #WP681414

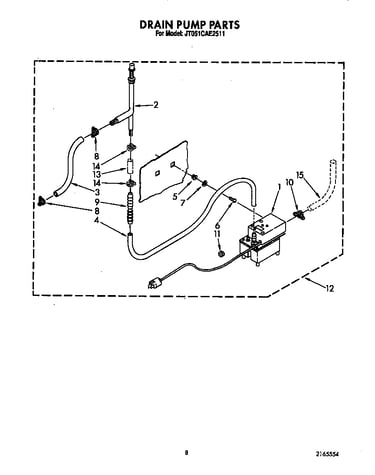

Manufacturer substitutionThis part replaces 489049. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyDrain pump diagram
Washer
Part #486713Replaced by #STD551025
Manufacturer substitutionThis part replaces 486713. Substitute parts can look different from the original.In Stock$36.61Qty
